Features of your vehicle
78 4

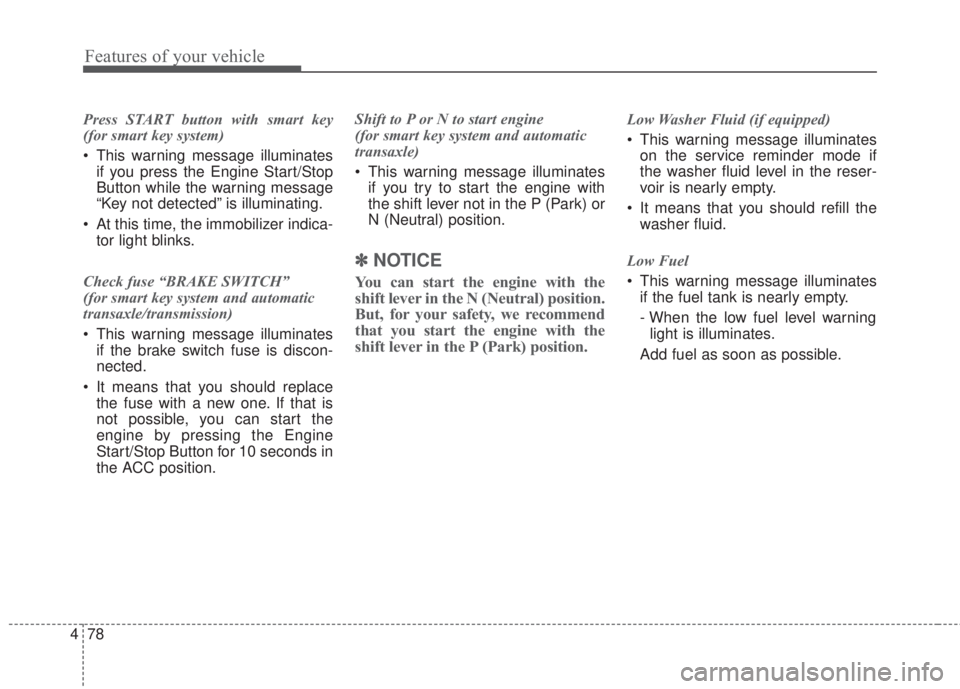

Press START button with smart key
(for smart key system)
• This warning message illuminates
if you press the Engine Start/Stop
Button while the warning message
“Key not detected” is illuminating.
• At this time, the immobilizer indica-
tor light blinks.
Check fuse “BRAKE SWITCH”
(for smart key system and automatic
transaxle/transmission)
• This warning message illuminates
if the brake switch fuse is discon-
nected.
• It means that you should replace
the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop Button for 10 seconds in
the ACC position.Shift to P or N to start engine
(for smart key system and automatic
transaxle)
• This warning message illuminates
if you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
✽NOTICE
You can start the engine with the
shift lever in the N (Neutral) position.
But, for your safety, we recommend
that you start the engine with the
shift lever in the P (Park) position.
Low Washer Fluid (if equipped)
• This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
• It means that you should refill the
washer fluid.
Low Fuel
• This warning message illuminates
if the fuel tank is nearly empty.
- When the low fuel level warning
light is illuminates.
Add fuel as soon as possible.

625
What to do in an emergency

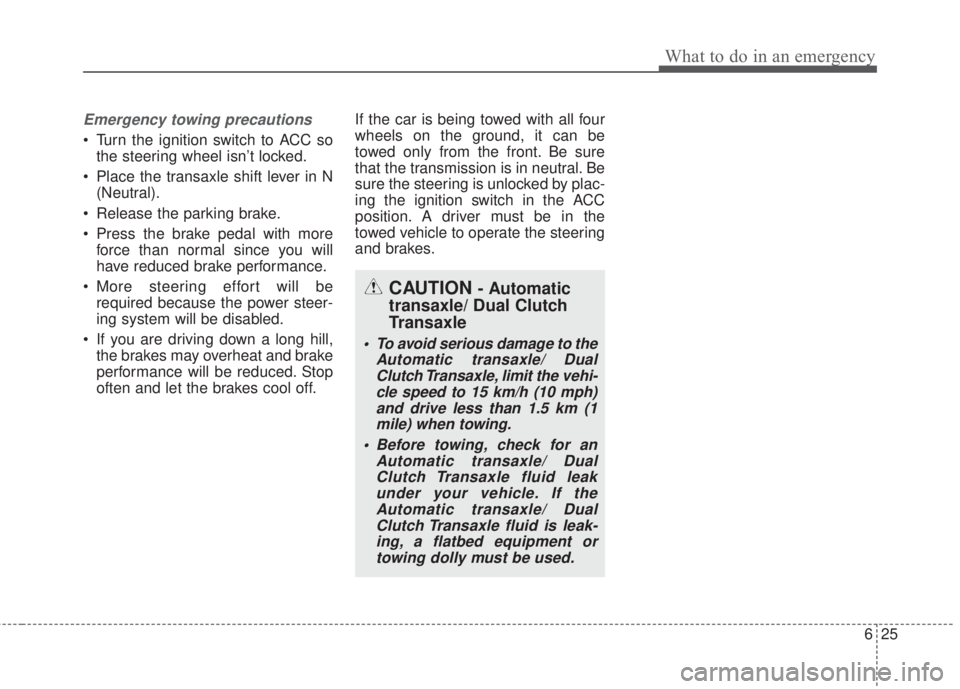

Emergency towing precautions
• Turn the ignition switch to ACC so
the steering wheel isn’t locked.
• Place the transaxle shift lever in N
(Neutral).
• Release the parking brake.
• Press the brake pedal with more
force than normal since you will
have reduced brake performance.
• More steering effort will be
required because the power steer-
ing system will be disabled.
• If you are driving down a long hill,
the brakes may overheat and brake
performance will be reduced. Stop
often and let the brakes cool off.If the car is being towed with all four
wheels on the ground, it can be
towed only from the front. Be sure
that the transmission is in neutral. Be
sure the steering is unlocked by plac-
ing the ignition switch in the ACC
position. A driver must be in the
towed vehicle to operate the steering
and brakes.
CAUTION - Automatic
transaxle/ Dual Clutch
Transaxle
• To avoid serious damage to the
Automatic transaxle/ Dual
Clutch Transaxle, limit the vehi-
cle speed to 15 km/h (10 mph)
and drive less than 1.5 km (1
mile) when towing.
• Before towing, check for an
Automatic transaxle/ Dual
Clutch Transaxle fluid leak
under your vehicle. If the
Automatic transaxle/ Dual
Clutch Transaxle fluid is leak-
ing, a flatbed equipment or
towing dolly must be used.

729
Maintenance

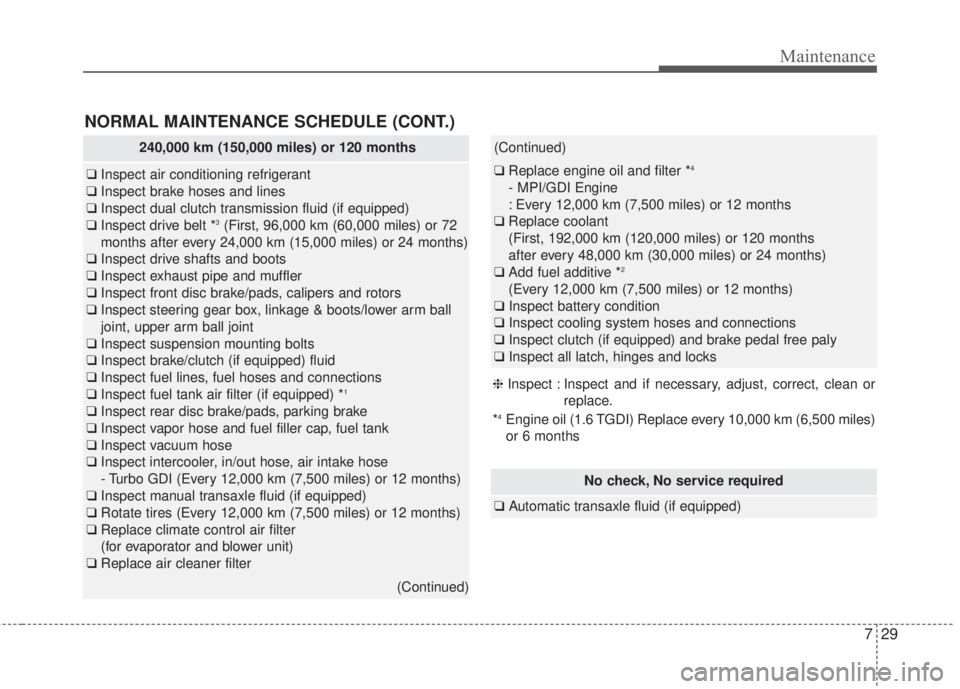

NORMAL MAINTENANCE SCHEDULE (CONT.)
No check, No service required
❑Automatic transaxle fluid (if equipped)
(Continued)
❑Replace engine oil and filter *4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑Replace coolant
(First, 192,000 km (120,000 miles) or 120 months
after every 48,000 km (30,000 miles) or 24 months)
❑Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑Inspect battery condition
❑Inspect cooling system hoses and connections
❑Inspect clutch (if equipped) and brake pedal free paly
❑Inspect all latch, hinges and locks
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months
240,000 km (150,000 miles) or 120 months
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect dual clutch transmission fluid (if equipped)
❑Inspect drive belt *
3(First, 96,000 km (60,000 miles) or 72
months after every 24,000 km (15,000 miles) or 24 months)
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front disc brake/pads, calipers and rotors
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
❑Inspect brake/clutch (if equipped) fluid
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *
1
❑Inspect rear disc brake/pads, parking brake
❑Inspect vapor hose and fuel filler cap, fuel tank
❑Inspect vacuum hose
❑Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑Inspect manual transaxle fluid (if equipped)
❑Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑Replace climate control air filter
(for evaporator and blower unit)
❑Replace air cleaner filter
(Continued)

735
Maintenance

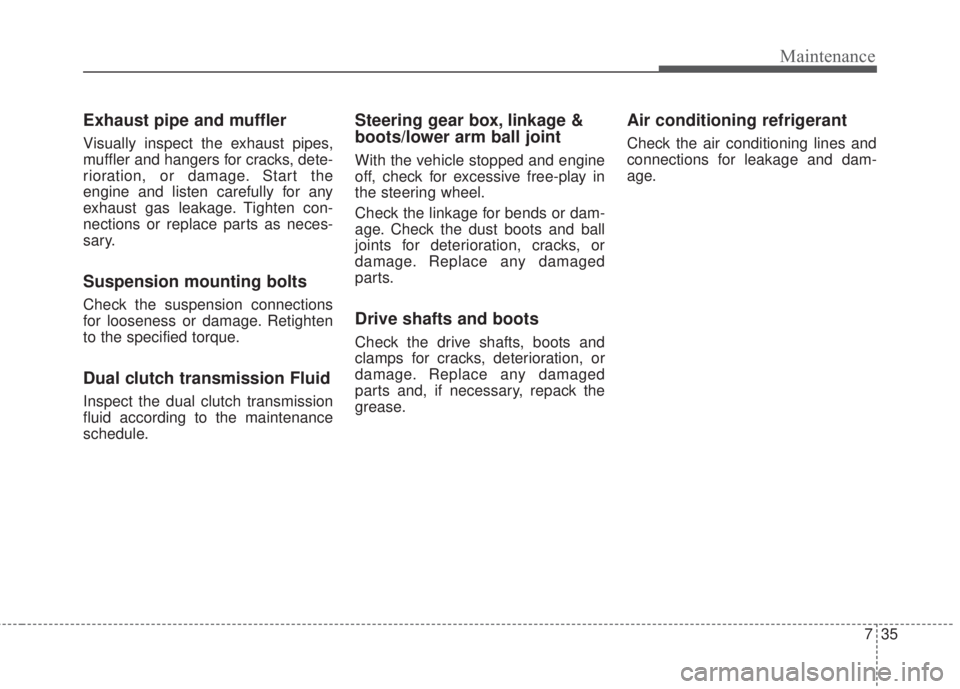

Exhaust pipe and muffler
Visually inspect the exhaust pipes,
muffler and hangers for cracks, dete-
rioration, or damage. Start the
engine and listen carefully for any
exhaust gas leakage. Tighten con-
nections or replace parts as neces-
sary.
Suspension mounting bolts
Check the suspension connections
for looseness or damage. Retighten
to the specified torque.
Dual clutch transmission Fluid
Inspect the dual clutch transmission
fluid according to the maintenance
schedule.
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engine
off, check for excessive free-play in
the steering wheel.
Check the linkage for bends or dam-
age. Check the dust boots and ball
joints for deterioration, cracks, or
damage. Replace any damaged
parts.
Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged
parts and, if necessary, repack the
grease.
Air conditioning refrigerant
Check the air conditioning lines and
connections for leakage and dam-
age.

I3

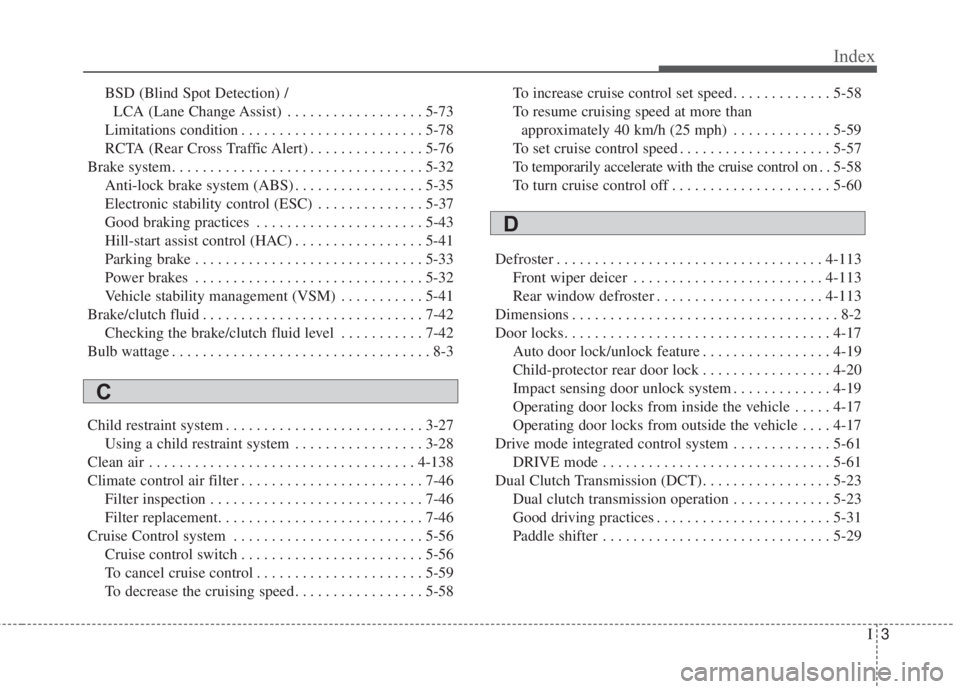

Index
BSD (Blind Spot Detection) /
LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 5-73
Limitations condition . . . . . . . . . . . . . . . . . . . . . . . . 5-78
RCTA (Rear Cross Traffic Alert) . . . . . . . . . . . . . . . 5-76
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-32
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . 5-35
Electronic stability control (ESC) . . . . . . . . . . . . . . 5-37
Good braking practices . . . . . . . . . . . . . . . . . . . . . . 5-43
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . 5-41
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-33
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-32
Vehicle stability management (VSM) . . . . . . . . . . . 5-41
Brake/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
Checking the brake/clutch fluid level . . . . . . . . . . . 7-42
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Using a child restraint system . . . . . . . . . . . . . . . . . 3-28
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-46
Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46
Cruise Control system . . . . . . . . . . . . . . . . . . . . . . . . . 5-56
Cruise control switch . . . . . . . . . . . . . . . . . . . . . . . . 5-56
To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 5-59
To decrease the cruising speed . . . . . . . . . . . . . . . . . 5-58To increase cruise control set speed . . . . . . . . . . . . . 5-58
To resume cruising speed at more than
approximately 40 km/h (25 mph) . . . . . . . . . . . . . 5-59
To set cruise control speed . . . . . . . . . . . . . . . . . . . . 5-57
To temporarily accelerate with the cruise control on . . 5-58
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 5-60
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Front wiper deicer . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Rear window defroster . . . . . . . . . . . . . . . . . . . . . . 4-113
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Auto door lock/unlock feature . . . . . . . . . . . . . . . . . 4-19
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-20
Impact sensing door unlock system . . . . . . . . . . . . . 4-19
Operating door locks from inside the vehicle . . . . . 4-17
Operating door locks from outside the vehicle . . . . 4-17
Drive mode integrated control system . . . . . . . . . . . . . 5-61
DRIVE mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-61
Dual Clutch Transmission (DCT). . . . . . . . . . . . . . . . . 5-23
Dual clutch transmission operation . . . . . . . . . . . . . 5-23
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 5-31
Paddle shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-29
C
D
