ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
GETTING STARTED
As you get to know your new Kia, you can explore this booklet to better understand
how to operate its many features and systems. You can find the complete Table of
Contents on the next two pages, but first, be sure to review the following to better
understand some of your Kia’s most used features:
1 Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2 Fuel Filler Door Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3 Power Adjustable Driver’s Seat* / Front Seat Headrest Adjustment . . . . . 45-46
4 Seat Warmers* / Ventilated Seats* . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5 Lifting Wipers (Wiper Service Mode) . . . . . . . . . . . . . . . . . . . . . . . . . 27
6 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7 Idle, Stop & Go (ISG) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8 Smart Cruise Control (SCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
10 Rear Occupant Alert (ROA) with Door Monitoring . . . . . . . . . . . . . . . . . 46
11 Smart Trunk with Auto Open* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
12 Normal Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . Back Cover
13 User Settings – Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . 09
14 Vehicle Settings* – Audio Head Unit Screen . . . . . . . . . . . . . . . . . . . . . 10
15 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
16 Standard Audio System - Value* . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
17 UVO link Activation* / UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . 34
18 Standard Audio System - Value with UVO link* . . . . . . . . . . . . . . . . . . . 36
19 UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
20 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . . . . 32
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www.kia.com Consumer Affairs – Roadside Assistance†1 8: 1-800-333-4KIA (800-333-4542)
Always check the Owner ’s Manual for complete operating information and safet y warnings.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED1
Page 4 of 58
TABLE OF CONTENTS
VIDEOS & QR CODES .........Inside Cover
INSTRUMENT CLUSTER
Instrument Cluster Overview ................03Indicators & Warning Lights ..................04Tire Pressure Monitoring System (TPMS) ..... 05Instant Fuel Economy / Fuel Economy ........06Drive Mode Integrated Control System .......07
VEHICLE SETTINGS
LCD Instrument Cluster Modes ...............08Trip Modes / Trip Computer ..................08User Settings – Instrument Cluster ...........09Service Interval Mode .......................09Vehicle Settings – Audio Head Unit* .......... 10Vehicle Auto-Shut Off* ...................... 10
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Forward Collision-Avoidance Assist (FCA) ......11Lane Keeping Assist (LK A) ....................12Blind-Spot Collision-Avoidance Assist (BCA)* ...13Safe Exit Assist (SEA)* ........................14Driver Attention Warning (DAW) ...............14Leading Vehicle Departure Alert (LVDA) .......15Cruise Control (CC)* ..........................15Smart Cruise Control (SCC)* ..................16Navigation-based Smart Cruise Control - Curve (NSCC-C)* .........................17Lane Following Assist (LFA) ...................18Highway Driving Assist (HDA)* ................19Rear View Monitor (RVM) ....................20Surround View Monitor (SVM)* ...............20Rear Cross-Traffic Collision Avoidance Assist (RCCA)* .............................21Reverse Parking Collision-Avoidance Assist (PCA)* ..............................22Forward/Reverse Parking Distance Warning (PDW)* ....................................22
DRIVER’S PANEL
Instrument Cluster Control* .................. 23Electronic Stability Control (ESC) ............. 23Hill-Start Assist Control (HAC) ................ 23Engine Start/Stop Button* ................... 24Manual Folding Mirrors* ..................... 24Power Windows, Window Lock & Central Door Lock ....................... 25Auto Door Lock/Unlock ...................... 25Power Folding Outside Mirrors* .............. 25Power/Heated Outside Mirrors* .............. 25Electronic Child Safety Lock System* ......... 25
STEERING WHEEL CONTROLS
Headlights & High Beams .................... 26Turn Signals & Fog Lights* ................... 27Windshield Wipers & Washers ................ 27Lifting Wipers (Wiper Service Mode) .......... 27Heated Steering Wheel Button* .............. 28Tilt/Telescoping Steering Wheel .............. 28
AUDIO SYSTEMS
Audio Controls ............................. 29 Bluetooth® Wireless Technology ............. 30 Android Auto™ / Apple CarPlay® Setup ........ 32Standard Audio System - Value* .............. 33UVO link Activation* ......................... 34UVO Assistance* ............................ 34Kia Access with UVO link App Download ...... 35Kia Access with UVO link App Features Guide . 35Standard Audio System - Value with UVO link* 36UVO link with Navigation* ................... 37
CENTER PANEL
Multimedia USB Port & Power Outlets ........ 38Digital Clock (Audio Head Unit) .............. 38USB Charger Ports* ......................... 38Idle, Stop & Go (ISG) System ................. 39Wireless Smartphone Charging System* ...... 40
CENTER PANEL CONTINUED
Automatic Climate Control ................... 41Electronic Parking Brake (EPB) ............... 42Auto Hold .................................. 42Automatic Gear Shift with Sportmatic® Shifting .43Paddle Shifters* ............................. 43Dual Clutch Transmission (DCT)* ............. 44Seat Warmers* / Ventilated Seats* ............ 44
SEATING
Driver Position Memory System* .............45Power Adjustable Driver ’s Seat* ..............456-Way Manual Adjustable Driver ’s Seat* ......46Rear Occupant Alert (ROA) with Door Monitoring ...................... 46Front Seat Headrest Adjustment .............46
OTHER KEY FEATURES
Map/Room Lamps .......................... 47Panoramic Sunroof with Power Sunshade* .... 47Smart Key* .................................48Remote Keyless Entry (Folding Key)* .......... 49Double-Turn Lock/Unlock All ................. 49Fuel Cap / Malfunction Indicator (Check Engine Light) ...................... 49Fuel Filler Door Release ...................... 49Trunk Release Buttons ...................... 50Smart Trunk with Auto Open* ................50Sunvisor .................................... 51Hood Release Lever and Latch ............... 51
SAFETY FEATURES
Occupant Detection System (ODS) / Passenger Airbag Off Indicator ............ 52Child-Protector Rear Door Locks (Manual)*. . . . 52Seat Belts .................................. 52
MAINTENANCE - TURBO .....Back Cover
LEGAL DISCLAIMERS ....Inside Back Cover
*IF EQUIPPED2K5 FEATURES & FUNCTIONS GUIDE
Page 34 of 58
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED32K5 FEATURES & FUNCTIONS GUIDE
Android Auto™†3 / Apple CarPlay®†4 Setup
Android Auto™ compatible smartphone setup — Download the Android Auto™ app from the Google Play™ Store.†1 0 Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device.
Wireless Connection setup for Android Auto™ & Apple CarPlay® (Standard Audio System-Value only):
1. Press the SETUP key on the audio head unit
2. Press DEVICE CONNECTION SETTINGS
3. Press PHONE PROJECTION, then ADD NEW
Cable Connection setup for Android Auto™ (Standard Audio System-Value & UVO link with Navigation):
1. Press the SETUP key on the audio head unit
2. Press DEVICE CONNECTION, select Android Auto™ and then select ENABLE ANDROID AUTO. Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Android Auto™
3. Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4. From the vehicle’s home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death. The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
Cable Connection setup for Apple CarPlay® (UVO link with Navigation only):
1. Connect the Apple CarPlay® compatible iPhone®†1 1 with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®†1 1
2. Press the SETUP key on the audio head unit
3. Press DEVICE CONNECTION on the screen and select Apple CarPlay®
4. Select ENABLE APPLE CARPL AY. Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Apple CarPlay®
5. From the audio head unit home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
REMINDERS:
•Android Auto™ compatibilit y requirements for connection:
-
UVO link with Navigation (USB cable connection only): OS Android™ 5.0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-Standard Audio System-Value (USB cable & wireless connection):
-
USB cable connection - OS Android™ 5.0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-
Wireless connection - OS Android™ 9.0 or higher with data plan for applicable feature(s)
•Apple CarPlay® compatibilit y requirements for connection:
-UVO link with Navigation (USB cable connection only): iOS soft ware 8.0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s)
-
Standard Audio System-Value (wireless connection only): iOS soft ware 10.0 and higher with data plan for applicable feature(s)
•
It is recommended to always update your phone to the latest operating system release
•
Wireless Android Auto™ system only works for cer tain Android models. Use the manufacturer ’s USB cable when wireless feature is not availableRefer to the Car Infotainment System Quick Reference Guide for more information.
AUDIOSYSTEMS
AUDIO SYSTEMS
•If Android Auto™ / Apple CarPlay® randomly disconnects:
-Ensure the USB cable is cer tified by the phone manufacturer for both power and data
-
Clean the phone’s por t, which the USB cable connects to, with disposable compressed air
-
The phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
-
Visit the phone manufacturers website for Android Auto™/ Apple CarPlay® app concerns
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Wireless Apple CarPlay® & Android™ Auto Video
QR CODE
Page 35 of 58
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 33
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
Yo u r audio system may differ from those in the illustrations.
For fur ther system information, refer to the Car Infotainment System Quick Reference Guide. For other audio system information, refer to pages 29-37.
AUDIOSYSTEMS
Standard Audio System - Value* — FM/AM/SiriusXM®†1 9/Media
(USB, Bluetooth® Audio, My Music)
Sound Settings: To adjust the sound settings: 1. Press the SETUP key on the audio head unit or the onscreen MENU button, when in MEDIA mode.2. Select the onscreen SOUND button, or SOUND SETTINGS
3.
Select the menu item (Position, Volume, Tone, Priority, Advanced, Default)
4.
Use the onscreen buttons to adjust settings. Press the return button to save settings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations.
How to Save a Preset: Press the favorite (star) button near the station information. This saves the current station in the selected slot in FM, AM or SiriusXM®
Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or
repeat from the beginning of a song or a program segment. In Radio mode, choose SiriusXM®, then select any of the first ten favorites. During song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast.
Custom Key H: A programmable key to provide quick access to one of several available system features.
To Program the Custom Key: Press and hold the Custom key. Select one of the available features you would like the Custom key to open.
AUDIO SYSTEMS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Standard Audio System – Value Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•
Navigation may be available when connected to Android Auto™ or Apple CarPlay® suppor ted smar tphones
•Prolonged use of the audio head unit in ACC mode may drain the vehicle’s battery
•This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only)
QUICK TIPS
RADIO< SEEK
MEDIATRACK >
SETUP
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• MEDIA mode: Change the track, file or titlePress and hold to do the following:• FM/AM mode: Move quickly through all of the frequencies. When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to Power ON/OFF. Rotate to adjust Volume
Press to select FM/AM/SiriusXM® modes
Press to select MEDIA mode
A programmable key to provide quick access to one of several available system featuresPress to display SETUP/Set tings modeRotate to change Radio Station/Media tracks/ files. Press to select(System display)
Page 36 of 58
UVO link Activation*†1 (Systems equipped with UVO link only):
Follow these steps to activate your UVO link system:
1. Enter the activation screen on your vehicle’s head unit:
a. Press SETUP key
b. Press UVO icon
c. Press Activate UVO
2. Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3. Enter number or email address to receive a verification code, then press SUBMIT
4. Follow these steps to receive your verification code using your phone text message or email:
a. Check your phone text message or email for verification code
b. Open the link in your text message or email. A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
c. Enter your first name, last name, email, phone number, and account password, and click CREATE ACCOUNT. A page will open displaying your verification code
d. Enter the code in the head unit and press ACTIVATE
e. Go back to the page with your verification code and press “I have entered my PIN.” A link will be provided to download the Kia Access with UVO link app from your app store. After installing the app, log in and enjoy
REMINDER: This vehicle is not equipped with over-the-air system updates.
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts. See UVO Terms of Ser vice at owners.kia.com for more information.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death. The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
For fur ther UVO link operations, refer to the Car Infotainment System Quick Reference Guide.
UVO Assistance*
Virtual Assistant A — Press to connect to a virtual assistant to hear information about the UVO features
UVO B (non-navigation systems) — Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable — see previous page for availability and setup)
UVO Voice Local Search UVO B (systems with navigation) — Press to connect to the search function to find points of interest or other locations, like “cafe”
Roadside Assist C — Press to connect to the UVO Center where you can request vehicle towing services
For more information, refer to the Car Infotainment System Quick Reference Guide.(But tons on rear view mirror*.UVO but ton may be located on the overhead console area)
UVO
AUDIOSYSTEMS
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
AUDIO SYSTEMS
34K5 FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Access with UVO link app Video
UVO Assistance Video
QR CODE
BCA
Page 38 of 58
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED36K5 FEATURES & FUNCTIONS GUIDE
Standard Audio System - Value with UVO link*†1 ,1 2
– FM/AM/SiriusXM®†1 8/Media (USB, Aux, Bluetooth® Au d io)
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts.See UVO Terms of Ser vice at owners.kia.com for more information.
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
AUDIOSYSTEMS
AUDIO SYSTEMS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Standard Audio System – Value with UVO link Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•To download map updates for the navigation system, go to update.kia.com. Check for updates that are generally available t wice a year
•At any time, you can interrupt UVO link Command Feedback by pressing the TALK but ton on the steering wheel
•Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y. A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
QUICK TIPS
System reset
MAP< SEEKMEDIARADIO
N AVTRACK >
SETUP
Press briefly to do the following: • FM/AM mode: Play the previous/next frequency • SiriusXM™ mode: Change the channel • MEDIA mode: Change the track, file or title Press and hold to the do the following (over 0.8 seconds): • FM/AM mode: Move quickly through all of the frequencies. W h e n r e l e a s e d , t h e s y s t e m s e e k s t h e n e x t a v a i l a b l e f r e q u e n c y• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to toggle bet ween AM, FM, and SiriusXM® modesPress to display the media selection window
Press to Power ON/OFF. Rotate to adjust Volume
A programmable key to provide quick access to one of several available system features
• Displays the Set tings screen. Press & hold to show SW Info/Update screen
Sound Settings: To adjust the audio system sound settings:
1. Press the SETUP key on the audio head unit or the on-screen MENU button, when in MEDIA mode. Select the on-screen SOUND button
2.
Select the menu item (Position, Volume, Tone, Priority, Navigation Volume, Advanced, Reset)
3. Use the on-screen buttons to adjust settings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations
How to Save a Preset: Press and hold the desired slot. This saves the current station in the selected slot in AM, FM, or SiriusXM®
Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment. In Radio mode, choose SiriusXM®, then select any of the first six favorites. During song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast
Custom Key H A programmable key to provide quick access to one of several available system features
To Program the Custom Key: Press and hold the Custom Key. Select one of the available features you would like the Custom Key to open
Your vehicle’s audio system may differ from that in the illustration.
For fur ther UVO link with Navigation operations, refer to the Car Infotainment System Quick Reference Guide. For other audio system information, see pages 29-37.
Page 39 of 58
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 37
UVO link†1 with Navigation*†1 4 – FM/AM/SiriusXM®†2 0/Media (USB, Aux, Bluetooth® Au d io)
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts.See UVO Terms of Ser vice at owners.kia.com for more information.
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
UVO link with Navigation Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•To download map updates for the navigation system, go to update.kia.com. Check for updates that are generally available t wice a year
•At any time, you can interrupt UVO link Command Feedback by pressing the TALK but ton on the steering wheel
•Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y. A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
QUICK TIPS
Press to display the MAP screen for the current position mode
Press to select navigation mode
System reset
MAP< SEEKMEDIARADIO
N AVTRACK >
SETUP
Press briefly to do the following: • FM/AM mode: Play the previous/next frequency • SiriusXM™ mode: Change the channel • MEDIA mode: Change the track, file or title Press and hold to the do the following (over 0.8 seconds): • FM/AM mode: Move quickly through all of the frequencies. W h e n r e l e a s e d , t h e s y s t e m s e e k s t h e n e x t a v a i l a b l e f r e q u e n c y• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to toggle bet ween AM, FM, and SiriusXM® modes
Press to display the media selection window
Press to Power ON/OFF. Rotate to adjust Volume
A programmable key to provide quick access to one of several available system features• Displays the Set tings screen. Press & hold to show SW Info/Update screen
Sound Settings: To adjust the audio system sound settings:
1. Press the SETUP key on the audio head unit or the on-screen MENU button, when in MEDIA mode. Select the on-screen SOUND button
2.
Select the menu item (Position, Volume, Tone, Priority, Navigation Volume, Advanced, Reset)
3. Use the on-screen buttons to adjust settings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations
How to Save a Preset: Press and hold the desired slot. This saves the current station in the selected slot in AM, FM, or SiriusXM®
Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment. In Radio mode, choose SiriusXM®, then select any of the first six favorites. During song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast
Custom Key H A programmable key to provide quick access to one of several available system features
To Program the Custom Key: Press and hold the Custom Key. Select one of the available features you would like the Custom Key to open
Your vehicle’s audio system may differ from that in the illustration.
For fur ther UVO link with Navigation operations, refer to the Car Infotainment System Quick Reference Guide. For other audio system information, see pages 29-36.
AUDIOSYSTEMS
AUDIO SYSTEMS
Page 55 of 58
Sales Consultant:
____________________________________________________________________________________
Date:
___________________________
Sales Manager:
_______________________________________________________________________________________
Date:
___________________________
Customer:
____________________________________________________________________________________________
Date:
___________________________
LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.11. UVO link: Purchase/lease of certain 2020 and newer Kia vehicles with UVO link includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year UVO link subscription expires, continued access to the full suite of UVO link available on your Kia will require a paid subscription at the then current subscription rate or your use of certain UVO link features may immediately terminate. Use of UVO is subject to agreement to the UVO Privacy Policy (available at https://owners.kia.com/us/en/privacy-policy.html ) and Terms of Service (available at https://owners.kia.com/us/en/terms-of-service.html). UVO link is transferable to subsequent owner during the original UVO link service term. Only use UVO link when safe to do so. Kia Access with UVO link App is available from the Apple® App Store® or Google Play™. Kia Motors America, Inc. reserves the right to change or discontinue UVO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Apple and App Store are registered trademarks of Apple Inc. Google and logos are trademarks of Google, LLC.UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachusetts. See UVO Terms of Service at owners.kia.com for more information.
12. Airbags: For maximum protection, always wear your seat belt.13. Android Auto™: Android Auto is a trademark of Google, Inc. Android™ is a registered trademark of Google, Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.14. Apple CarPlay®: Apple® and Apple CarPlay® are trademarks of Apple, Inc., registered in the U.S. and other countries. Apple CarPlay® runs on your smartphone cellular data service. Normal data rates will apply.15. Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.16a. Driver Assist Features – Highway Driving Assist (HDA), Safe Exit Assist (SEA), Blind-Spot Collision-Avoidance Assist (BCA), Rear Cross-Traffic Collision-Avoidance Assist (RCCA), Forward Collision-Avoidance Assist (FCA), Lane Keeping Assist (LKA), Lane Following Assist (LFA), Surround View Monitor (SVM), Rear View Monitor (RVM), Forward/Reverse Parking Distance Warning (PDW), Smart Cruise Control (SCC), Navigation-based Smart Cruise Control (NSCC), Leading Vehicle Departure Alert (LVDA), Parking Collision-Avoidance Assist-Rear (PCA-R): These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.16b. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.17. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.18. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.19. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.10. Google Play™ Store is a trademark of Google, Inc. ©2021 Google Inc. All rights reserved. Google and the Google Logo are registered trademarks of Google Inc.11.
iPhone®: iPhone is a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.12. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
13. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.14. Smart Trunk with Auto Open: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.15. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.16. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.17.
Seat belts: For maximum protection, always wear your seatbelt.18. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.19. SiriusXM®: SiriusXM® Satellite Radio, SiriusXM® Traffic and SiriusXM® Travel Link each require a subscription sold separately, or as a package, by SiriusXM® Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM® Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM®. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM® is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM® satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM® Internet Radio service is available throughout our satellite service area and in AK and HI. ©2021 SiriusXM® Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM® Radio Inc.20. Sportmatic® is a registered trademark of Kia Motors America.21. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.22. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.23. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.24. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.
Page 56 of 58

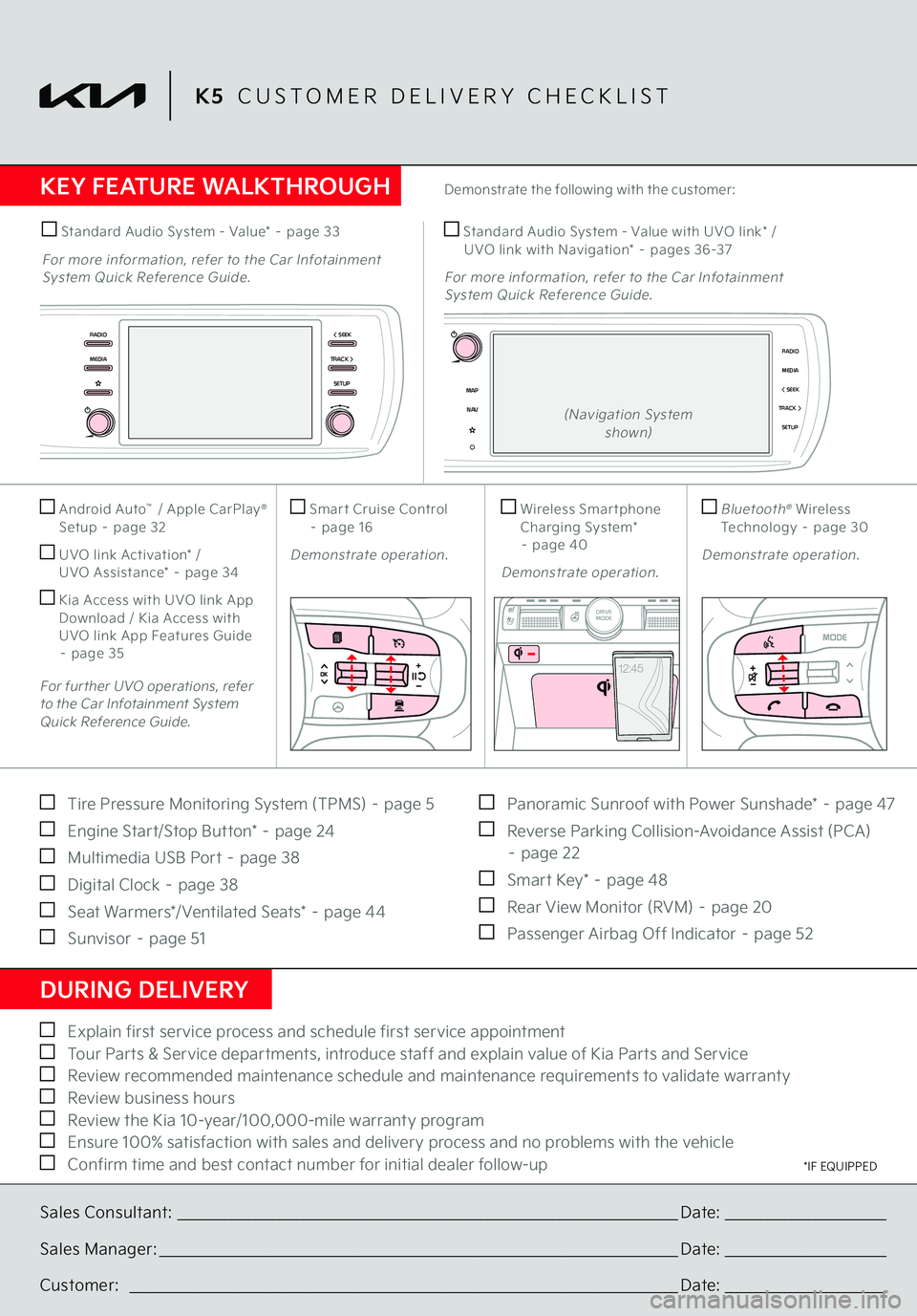

KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System (TPMS) – page 5 Engine Start/Stop Button* – page 24 Multimedia USB Port – page 38 Digital Clock – page 38 Seat Warmers*/ Ventilated Seats* – page 44 Sunvisor – page 51
Panoramic Sunroof with Power Sunshade* – page 47 Reverse Parking Collision-Avoidance Assist (PCA)
– page 22 Smart Key* – page 48 Rear View Monitor (RVM) – page 20 Passenger Airbag Off Indicator – page 52
Demonstrate the following with the customer:
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-upSales Consultant:
____________________________________________________________________________________
Date:
___________________________
Sales Manager:
_______________________________________________________________________________________
Date:
___________________________
Customer:
____________________________________________________________________________________________
Date:
___________________________
K5
CUSTOMER DELIVERY CHECKLIST
*IF EQUIPPED
Standard Audio System - Value* – page 33For more information, refer to the Car Infotainment
System Quick Reference Guide.
Standard Audio System - Value with UVO link* /
UVO link with Navigation* – pages 36-37For more information, refer to the Car Infotainment
System Quick Reference Guide.
Smar t Cruise Control
– page 16Demonstrate operation.
Wireless Smar tphone Charging System*
– page 40Demonstrate operation.
Bluetooth
® Wireless
Technology – page 30Demonstrate operation.
Android Auto
™ / Apple CarPlay
®
Setup – page 32 UVO link Activation* /
UVO Assistance* – page 34 Kia Access with UVO link App Download / Kia Access with
UVO link App Features Guide
– page 35For fur ther UVO operations, refer
to the Car Infotainment System
Quick Reference Guide.
RADIO < SEEKMEDIATRACK >
SETUP
MAP
< SEEKMEDIARADIO
N AV
TRACK >
SETUP
AUTO
HOLD
DRIVE
MODE
OFF
VIEW
SHIFT
LOCK
RELEASEP
R
N D
+
_
(Navigation System
shown)
