Page 21 of 56
19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
AUTO
(But tons located on right side of the steering wheel)
B
C
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways
Always drive safely and use caution
See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
Images are for illustrative purposes only and may not reflect actual feature or operation
Highway Driving Assist (HDA)*†4
Highway Driving Assist (HDA) is designed to help detect vehicles and lanes ahead, and help maintain distance from the vehicle ahead, maintain the set speed, and help center the vehicle in the lane
When HDA is activated and the conditions are met, the Instrument Cluster indicator A will illuminate green If the conditions are not met, HDA will be in standby mode and the indicator light A will illuminate white When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green A
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster, and an audible warning will sound If hands on the Steering Wheel is not detected, HDA will cancel
HDA settings:
•HDA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* is in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button B on the Steering Wheel to toggle to User Settings Press the OK button C up/down to toggle to Driver Assistance, then Driving Assist Select Highway Driving Assist and press the OK button C
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Driver Convenience Select Highway Driving Assist to activate
AREMINDERS:
•When the ignition is cycled, the system returns to its previous state, on or off
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways Always drive safely and use caution Refer to section 5 in the Owner ’s Manual for more detailed information, limitations and conditions
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Page 23 of 56
21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Rear Cross-traffic Collision Avoidance Assist (RCCA)*†4
REMINDERS:
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
Rear Cross-traffic Collision-Avoidance Assist is designed to detect vehicles approaching from the rear left and right side A while your vehicle is reversing, and warning the driver that a collision is imminent with a warning message and an audible warning Also, to help prevent collisions, braking assist may be applied
RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B If RCCA detects that the collision risk has increased, the system automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision
RCCA is designed to operate under the following conditions:
•
When the gear shift is in Reverse
•When the vehicle is moving slower than 5 mph
RCCA Settings:
•RCCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* is in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings Press the OK button D up/down to toggle to Driver Assistance, then Parking Safety Select Rear Cross-traffic Safety and press the OK button D
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Parking Safety and select Rear Cross-traffic Safety
•Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
- Later: Reduces the amount of distance between the vehicles before the initial warning occurs
Refer to section 4 in the Owner ’s Manual for more information
When engaged, RCCA is a supplemental system Do not solely rely on this system and always pay at tention to the road and its conditions
(But tons located on steering wheel)
Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit Go to Driver Assistance, then Warning Volume When adjusted, the Warning Volume for other driver assistance systems may be adjusted
QUICK TIP
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Rear Cross-traffic Collision Avoidance Assist (RCCA) Video
QR CODE
A
B
C
D
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Page 24 of 56
22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
(Located left of steering wheel)
Refer to section 5 in the Owner ’s Manual for more information
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 5 in the Owner ’s Manual for more information
Electronic Stability Control (ESC)†6
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers It is a good idea to keep the ESC turned on for daily driving whenever possible Press ESC button A to turn ESC on or off
REMINDERS:
•
ESC is turned ON by default at vehicle star t-up When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will be lit momentarily whenever ESC is active
Hill-start Assist Control (HAC)†6
HAC is designed to help prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline The HAC automatically activates whether the ESC is on or off but does NOT activate when the ESC has malfunctioned
Refer to section 4 in the Owner ’s Manual for more information
Instrument Cluster Control
With parking lights/headlights on, press button B (+) or (-) to adjust the brightness of the instrument panel illumination
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio head unit screens Use the display set tings in the Setup menu to adjust the brightness on the screen
REMINDERS:
•
The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
•
In the event of HAC system malfunctions, see Authorized Kia Dealer for ser vice
•When HAC is active (e g , during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation
•HAC provides a 2-second delay before the vehicle may star t rolling backwards
QUICK TIPS
AB
DRIVER'S PANEL
DRIVER’SPANEL
Page 28 of 56
Refer to section 7 in the Owner ’s Manual for more information
Illustrations are for demonstration purposes only Actual features on vehicle may var y
Lifting Wipers (Wiper Service Mode)
To lift the windshield wipers to clean windshield, inspect or replace wiper blades or raise wipers in snow/ice conditions without damaging the hood, the blades need to be moved to the service position B
When the ignition is on, turn the ignition off, and within 20 seconds move the wiper switch to the MIST position A and hold the switch for more than two seconds until the wiper blade is in the fully up position
To return wipers to normal position, turn the ignition on, then activate MIST
Windshield Wipers & Washers
To operate:
•Move lever up/down to change Wiper modes
•Rotate switch to adjust Wiper mode
•Press INT switch up/down A to adjust Intermittent Wipe Speed
•Pull lever to spray and wipe
MIST
OFF
AUTO LOHIINT
PULL
3 F G F S U P T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
STEERING WHEEL
CONTROLS
•Pressing INT switch up increases Intermit tent wipe frequency and wipe speed Pressing INT switch down decreases frequency of wipes
•Set the wiper to OFF position when the wiper is not in use
QUICK TIPS
26*IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
MIST: Single wipeOFF: Wiper offI N T:
Intermittent wipeLO: Slow wipeHI: Fast wipe
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wipers and Wiper Stalk Video
Lifting Wipers (WiperService Mode) Video
QR CODE
STEERING WHEEL CONTROLS
A
B
Page 29 of 56

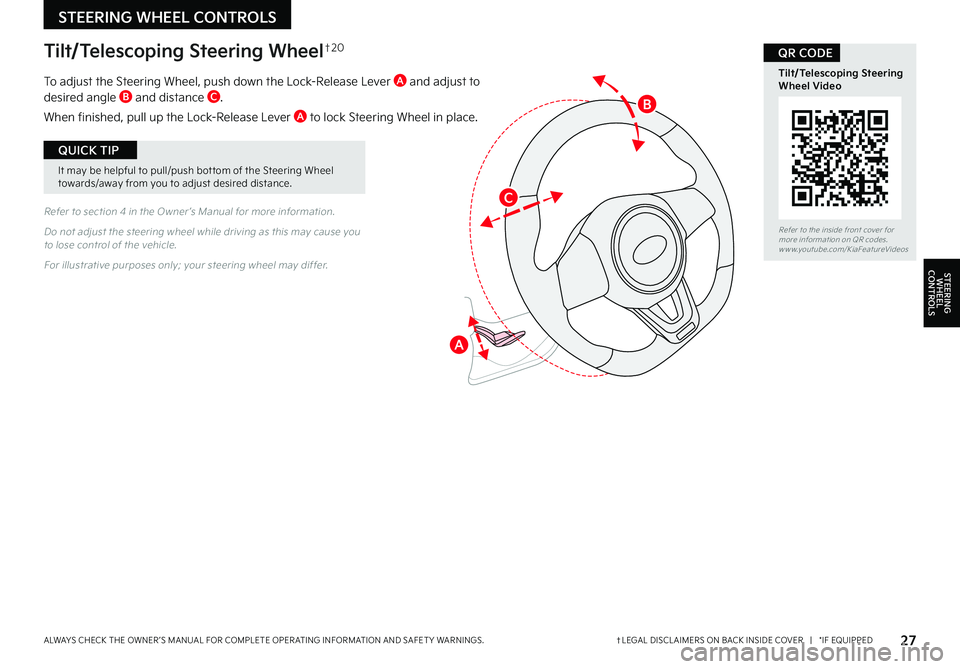

Tilt/Telescoping Steering Wheel†2 0
To adjust the Steering Wheel, push down the Lock-Release Lever A and adjust to desired angle B and distance C
When finished, pull up the Lock-Release Lever A to lock Steering Wheel in place
Refer to section 4 in the Owner ’s Manual for more information
Do not adjust the steering wheel while driving as this may cause you to lose control of the vehicle
For illustrative purposes only; your steering wheel may differ STEERING WHEEL
CONTROLS
It may be helpful to pull/push bot tom of the Steering Wheel towards/away from you to adjust desired distance
QUICK TIP
27†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tilt/Telescoping Steering Wheel Video
QR CODE
STEERING WHEEL CONTROLS
A
B
C
Page 30 of 56
28†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
—
+
MODE
Bluetooth® Wireless Technology†3 , 1 8
A
Volume button: Press up/down to raise/lower speaker volume
Mute button: Press to mute the microphone during a call and to mute the audio system speakers, or to pause Bluetooth® streaming media
B
Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system Press and hold to exit voice recognition Kia Connect with Navigation system* – When enrolled with a Kia Connect subscription, press this button to activate the Kia Connect Voice Assist to use navigation guidance and search destinations
C
Receive/Place/End Call button: Press to receive/place/end calls, reject an incoming call or cancel a function If no phone is paired, press button to pair a phone
D Custom Button (Steering Wheel): Press and hold to set the button to bring up certain menus on the infotainment/audio system screen Press briefly to go that menu
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
For more information, refer to the Car Infotainment System Quick Reference Guide For Bluetooth® Wireless Technology FAQs, go to w w w kia com, Owners section, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA Refer to your Owner ’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions
Pairing a Phone
For instructions on how to pair a phone, refer to the audio system’s user ’s guide or your vehicle’s Quick Star t Guide
How to Place a Call
When using the voice command feature, waiting for the system BEEP before speaking the command
There are two options for placing a call using the Steering Wheel controls:
•Option 1: Press the Receive/Place Call button C (displays the call history)
•Option 2: Press the Talk button B Then say the command “Call {name}” or Dial {number}
Your vehicle’s steering wheel but tons may differ from those in the illustrations See your Owner ’s Manual for more details
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
(Type B)
During the pairing process, be sure to accept the connection requests on the phone for phonebook download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIP
•The system can register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•When using the voice command feature, wait for the system BEEP before speaking the command
•
Phonebook transfer upload time varies by phone model and with number of phonebook entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
QUICK TIPS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Steering Wheel Controls Video
Star, Favorite & Radio Presets Buttons Video
QR CODE
INFOTAINMENT SYSTEMS
INFOTAINMENTSYSTEMS
A
B
CD
Page 31 of 56
29†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Bluetooth® Wireless Technology†3 , 1 8 (continued)
Voice Recognition* and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names Improve the per formance by making a few simple changes to your phone contacts, listed below To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips
•Use full names (first and last names) vs short or single-syllable names (“John Smith” vs “Dad," “Smith Residence” vs “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc )
•Avoid using acronyms (“In Case of Emergency” vs “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs “Dr Smith”)
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
•
The system may register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
• Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•
When placing a call, speak in a natural, moderate tone, with clear pronunciation The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•
Close windows and sunroof and turn off A /C - Open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
E
Audio MODE button: Press to cycle through the FM/AM/SiriusXM®†1 8/Media modes Audio System ON/OFF: Press to turn power on; Press and hold to turn power off Press and hold to go to Advanced Setting / Steering Wheel mode (Kia Connect with Navigation)
F
Seek/Preset button: Radio Mode (FM/AM/SiriusXM®*†1 8) - Press to advance through the Preset Stations Press and hold to Auto Seek Media Mode - Press to move track forward/back Press & hold to fast forward/rewind (except for Bluetooth® Audio)
G Volume button: Press up/down to raise/lower volume Mute button: Press to mute all audio (in some Media modes the media pauses when pressed)
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
For illustrative purposes only Your actual display, but tons and/or features may var y
Audio Controls†1 8
CANCEL
OK
RES
SET
—
+
—
+
MODE
Your vehicle’s steering wheel but tons may differ from those in the illustrations Refer to section 4 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Voice RecognitionTips Video
QR CODE
INFOTAINMENT SYSTEMS
INFOTAINMENTSYSTEMS
E
FG
Page 36 of 56
34†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Kia Connect with Navigation*†1 , 9–FM/AM/SiriusXM®†1 7/Media (USB, Bluetooth®†3 Audio)
Sound Settings: To adjust the infotainment system sound settings, press the SETUP key on the Infotainment System or the on-screen MENU button, when in MEDIA mode Select the on-screen SOUND button, then select the menu item (Premium Sound, Position, Tone, Guidance, Radio Noise, Driver Assistance, Connected Devices) Use the onscreen buttons to adjust settings
Radio Presets: To save a preset, press the Custom H C V U U P O O F Y U U P P S C F M P X U I F 3 B E J P 4 U B U J P O E J T Q M B Z 5 I J T T B W F T U I F D V S S F O U T U B U J P O B T B Q S F T F U
SiriusXM® Smart Favorites: In Radio mode, choose SiriusXM®, then select any of the first six
favorites During song or program play, tap the Skip Backward icon to start from the beginning of the song or program Tap the Play Live icon to return to the live broadcast
Custom Key H To program the Custom Key, press and hold the Custom Key, then select one of the available features you would like the Custom Key to open
REMINDERS: •
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park •
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y •
Map/software updates: To keep your map and soft ware up to date, free of charge, visit the of ficial Kia update webpage at ht tps://update kia com/US/EN/Main Note, visiting a dealer for soft ware update may include an additional charge
MAP RADIO
NAV SEEKTRACK SETUP
MEDIA
Press to Power ON/OFF Rotate to adjust VolumePress to enter MAP screenPress to enter NAVIGATION mode
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• SiriusXM™ mode: Change the channel• MEDIA mode: Change the track, file or titlePress and hold to do the following (over 0 8 seconds):• FM/AM mode: Move quickly through all of the frequencies When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to enter SETUP mode
Press to enter MEDIA mode
Rotate to change Radio/SiriusXM™ Station/Media tracks/files
Press to enter Custom modePress to enter R ADIO mode
•Volume level bet ween different audio modes: – When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc ), the audio system saves the previous volume level you were listening to For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume If the volume is turned down low on your device it will remain low even if the system volume is turned up •When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the device’s navigation system may also be available •At any time, you can interrupt the Voice Command Feedback: Press the TALK but ton on the steering wheel •Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge •When using the voice command feature, wait for the system BEEP before speaking the command
QUICK TIPS
For further Kia Connect with Navigation operations, refer to the Car Infotainment System Quick Reference Guide For other audio system information, see pages 28-33
Yo u r vehicle’s audio system may differ from that in the illustration
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Kia Connect may be currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Kia Connect with Navigation Video
Navigation System Important Tips Video
Navigation System Updates Video
QR CODE
Page 55 of 56
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.1. Kia Connect: Purchase/lease of certain 2022 and newer Kia vehicles with Kia Connect includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year Kia Connect subscription expires, continued access to the full suite of Kia Connect services available on your Kia will require a paid subscription at the then-current subscription rate or your use of certain Kia Connect features may immediately terminate. Use of Kia Connect is subject to agreement to the Kia Connect Privacy Policy (available at owners.kia.com/us/en/privacy-policy.html) and Terms of Service (available at owners.kia.com/us/en/terms-of-service.html). Complimentary Kia Connect subscription is transferable to subsequent owner during the original Kia Connect service term. Only use Kia Connect when safe to do so. Kia Connect may currently be unavailable for Model Year 2022 and newer vehicles sold or purchased in Massachusetts; please see the Kia Owners Portal for updates on availability. Kia Access app is available from the Apple® App Store® or Google Play Store™. Kia America, Inc. reserves the right to change or discontinue Kia Connect at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. Kia Connect features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit www.kia.com or your authorized Kia dealer. Apple® and App Store® are registered trademarks of Apple Inc. Google™ and its logos are trademarks of Google LLC.
12. Airbags: For maximum protection, always wear your seat belt.13. Android Auto™, Apple CarPlay®, Bluetooth® Wireless Technology, Google Play™ Store, iPhone, SiriusXM®, Sportmatic®, HomeLink®: Fair Use of Trademark – The commentary reference to trademarked material is for educational purposes only and not an endorsement by or of the holder of the mark.14. Driver Assist Features – Forward Collision-Avoidance Assist (FCA), Lane Keeping Assist (LKA), Blind-Spot Collision-Avoidance Assist (BCA), Safe Exit Warning (SEW), Cruise Control (CC), Smart Cruise Control (SCC) with Stop & Go, Navigation-based Smart Cruise Control (NSCC), Lane Following Assist (LFA), Highway Driving Assist (HDA), Leading Vehicle Departure Alert (LVDA), Rear View Monitor (RVM), Rear Cross-Traffic Collision Avoidance Assist (RCCA), Reverse Parking Distance Warning (PDW): When engaged, these features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.15. Driver Attention Warning (DAW): When engaged, Driver Attention Warning is not a substitute for safe driving and may not detect all instances of inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.16. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.17. Engine Start/Stop Button / Smart Key with Remote Start: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.18. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.19. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.10. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.11. Power Trunk / Smart Trunk*: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.12. Rear Occupant Alert (ROA) with Door Monitoring: When engaged, ROA with Door Monitoring is not a substitute for one’s attention. Always check the vehicle interior when exiting the vehicle.
13. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.14. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.15. Seat belts: For maximum protection, always wear your seatbelt.16. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.17. SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2022 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.18. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.19. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.20. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.21. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.22. The myQ logo is a registered trademark of The Chamberlain Group, Inc.
LEGAL DISCLAIMERS
