Your vehicle at a glance
4 2

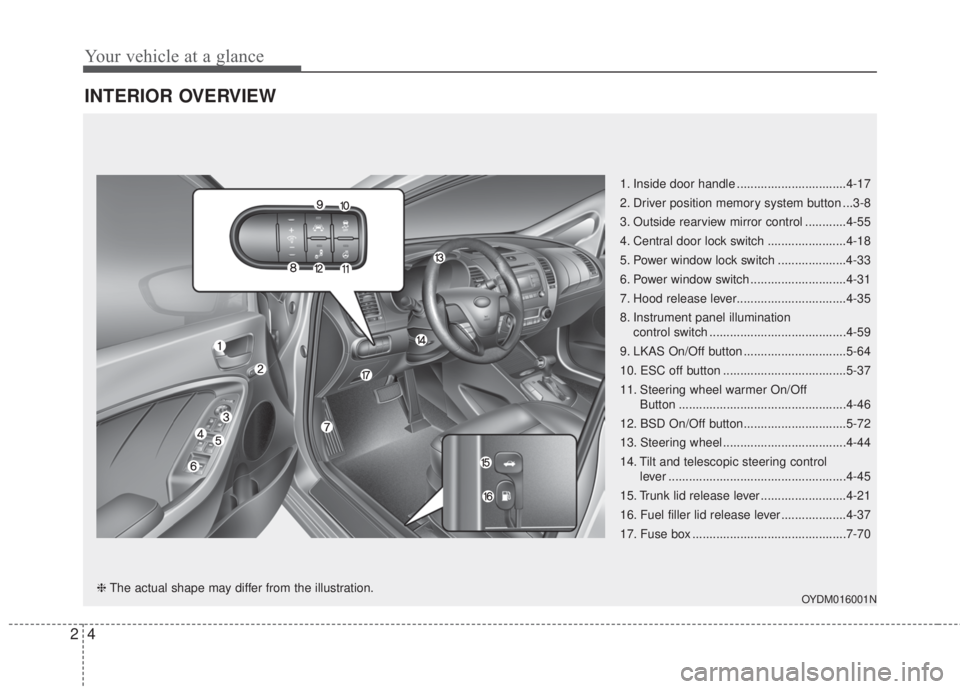

INTERIOR OVERVIEW
1. Inside door handle ................................4-17
2. Driver position memory system button ...3-8
3. Outside rearview mirror control ............4-55
4. Central door lock switch .......................4-18
5. Power window lock switch ....................4-33
6. Power window switch ............................4-31
7. Hood release lever................................4-35
8. Instrument panel illumination
control switch ........................................4-59
9. LKAS On/Off button ..............................5-64
10. ESC off button ....................................5-37
11. Steering wheel warmer On/Off
Button .................................................4-46
12. BSD On/Off button..............................5-72
13. Steering wheel ....................................4-44
14. Tilt and telescopic steering control
lever ....................................................4-45
15. Trunk lid release lever .........................4-21
16. Fuel filler lid release lever ...................4-37
17. Fuse box .............................................7-70
OYDM016001N❈The actual shape may differ from the illustration.
Page 12 of 595
25
Your vehicle at a glance

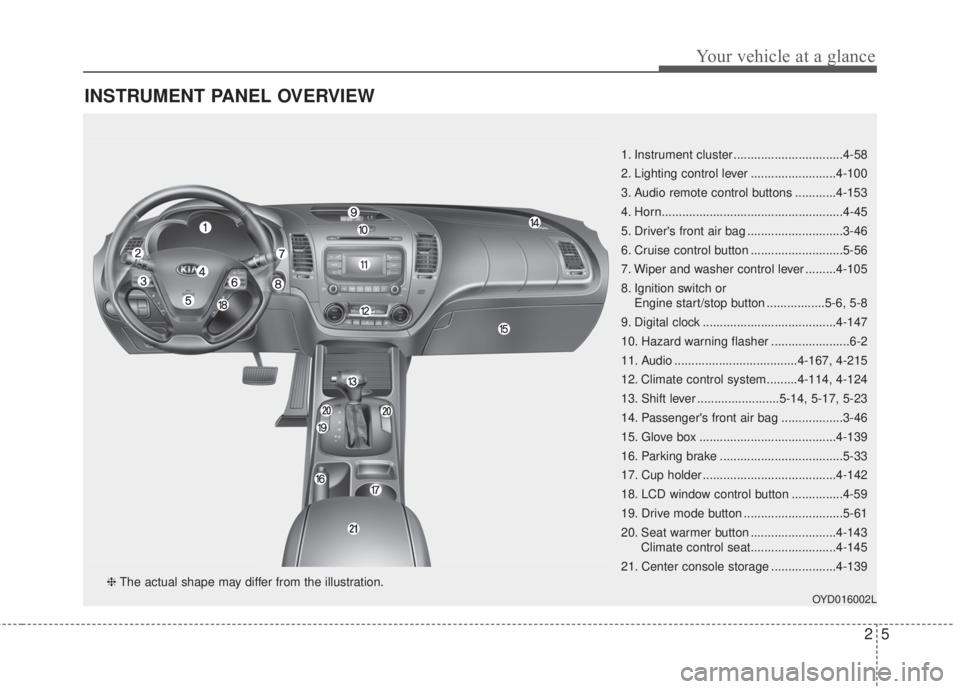

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster ................................4-58
2. Lighting control lever .........................4-100
3. Audio remote control buttons ............4-153
4. Horn.....................................................4-45
5. Driver's front air bag ............................3-46
6. Cruise control button ...........................5-56
7. Wiper and washer control lever .........4-105
8. Ignition switch or
Engine start/stop button .................5-6, 5-8
9. Digital clock .......................................4-147
10. Hazard warning flasher .......................6-2
11. Audio ....................................4-167, 4-215
12. Climate control system.........4-114, 4-124
13. Shift lever ........................5-14, 5-17, 5-23
14. Passenger's front air bag ..................3-46
15. Glove box ........................................4-139
16. Parking brake ....................................5-33
17. Cup holder .......................................4-142
18. LCD window control button ...............4-59
19. Drive mode button .............................5-61
20. Seat warmer button .........................4-143
Climate control seat.........................4-145
21. Center console storage ...................4-139
OYD016002L
❈The actual shape may differ from the illustration.
Page 13 of 595
Your vehicle at a glance
6 2

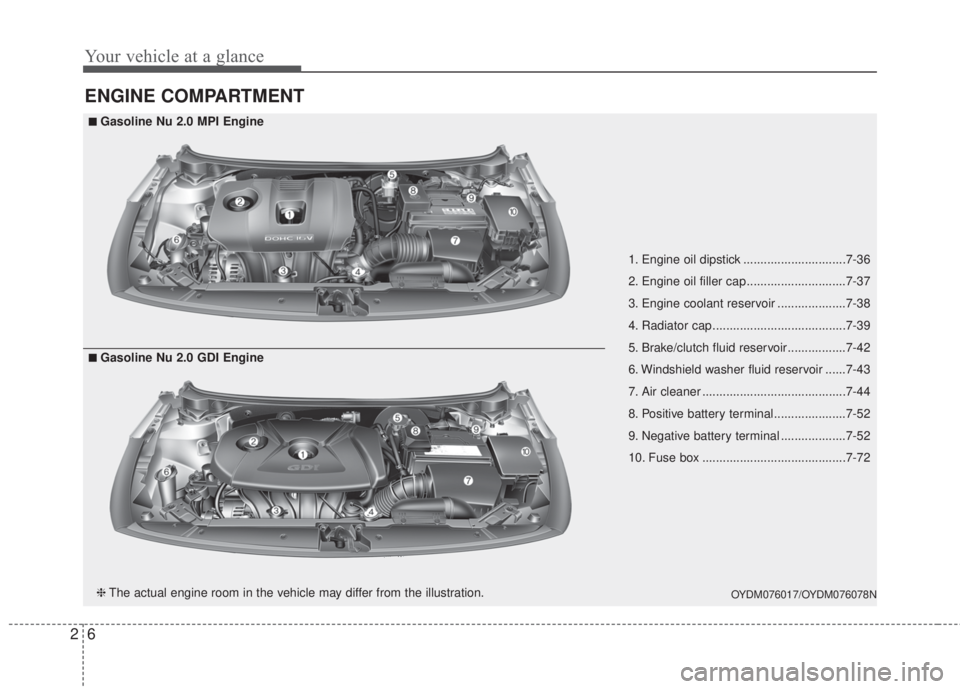

ENGINE COMPARTMENT
OYDM076017/OYDM076078N
■Gasoline Nu 2.0 MPI Engine
❈The actual engine room in the vehicle may differ from the illustration.
■Gasoline Nu 2.0 GDI Engine1. Engine oil dipstick ..............................7-36
2. Engine oil filler cap .............................7-37
3. Engine coolant reservoir ....................7-38
4. Radiator cap .......................................7-39
5. Brake/clutch fluid reservoir .................7-42
6. Windshield washer fluid reservoir ......7-43
7. Air cleaner ..........................................7-44
8. Positive battery terminal.....................7-52
9. Negative battery terminal ...................7-52
10. Fuse box ..........................................7-72
Page 14 of 595
27
Your vehicle at a glance
OYD076038N

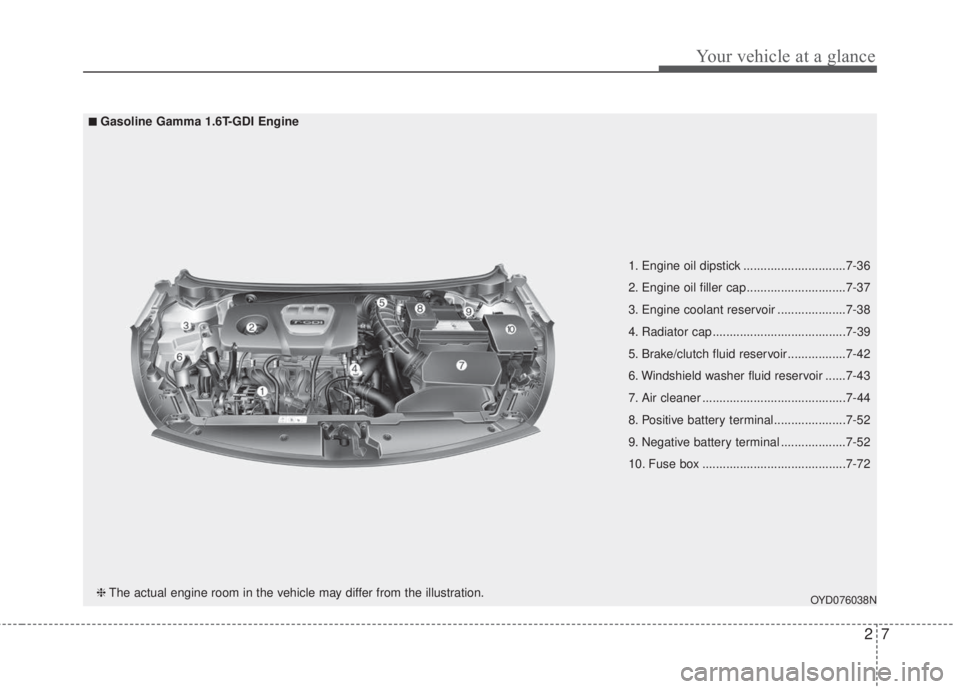

■Gasoline Gamma 1.6T-GDI Engine
❈The actual engine room in the vehicle may differ from the illustration.1. Engine oil dipstick ..............................7-36
2. Engine oil filler cap .............................7-37
3. Engine coolant reservoir ....................7-38
4. Radiator cap .......................................7-39
5. Brake/clutch fluid reservoir .................7-42
6. Windshield washer fluid reservoir ......7-43
7. Air cleaner ..........................................7-44
8. Positive battery terminal.....................7-52
9. Negative battery terminal ...................7-52
10. Fuse box ..........................................7-72
Page 15 of 595
Safety features of your vehicle

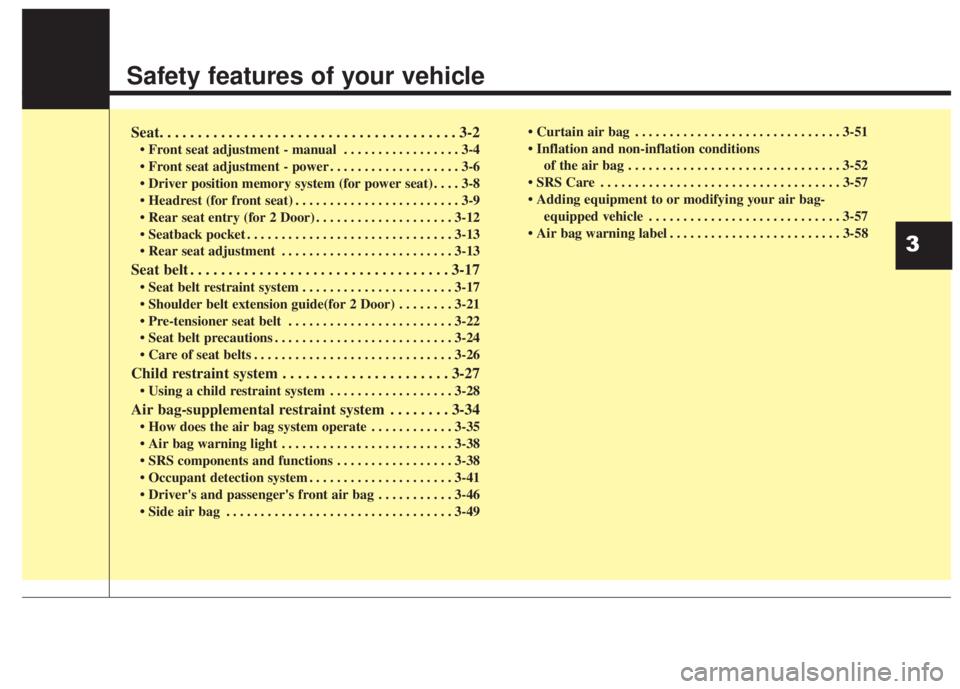

Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-4
• Front seat adjustment - power . . . . . . . . . . . . . . . . . . . 3-6
• Driver position memory system (for power seat) . . . . 3-8
• Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . . 3-9
• Rear seat entry (for 2 Door) . . . . . . . . . . . . . . . . . . . . 3-12
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-17
• Shoulder belt extension guide(for 2 Door) . . . . . . . . 3-21
• Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-22
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-27
• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-28
Air bag-supplemental restraint system . . . . . . . . 3-34
• How does the air bag system operate . . . . . . . . . . . . 3-35
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
• SRS components and functions . . . . . . . . . . . . . . . . . 3-38
• Occupant detection system . . . . . . . . . . . . . . . . . . . . . 3-41
• Driver's and passenger's front air bag . . . . . . . . . . . 3-46
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51
• Inflation and non-inflation conditions
of the air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-52
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-57
• Adding equipment to or modifying your air bag-
equipped vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-57
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-58
3
Page 16 of 595
Safety features of your vehicle
2 3

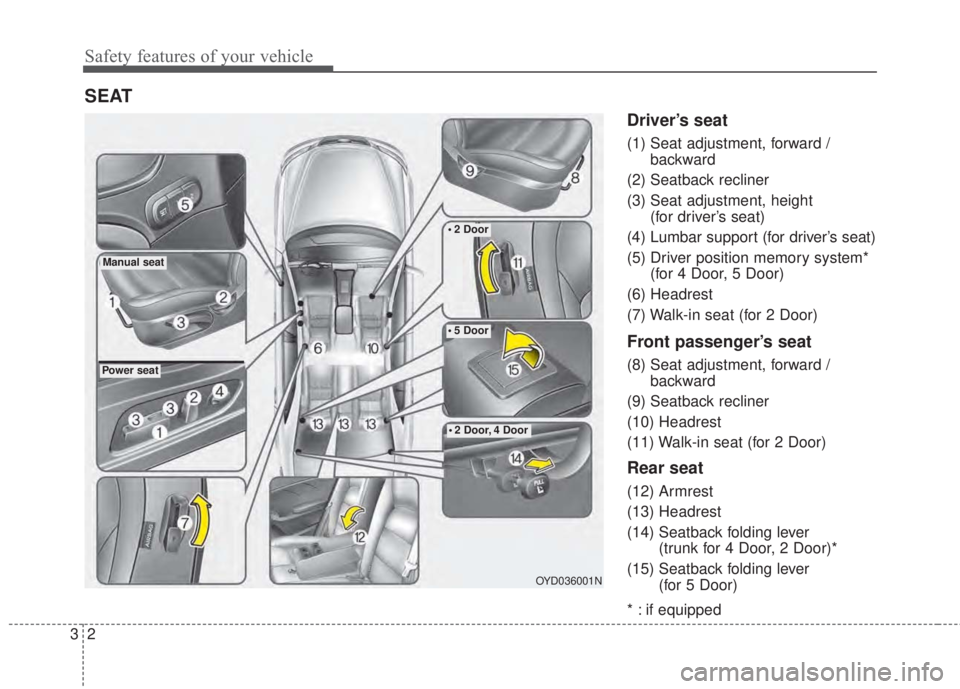

Driver’s seat
(1) Seat adjustment, forward /
backward
(2) Seatback recliner
(3) Seat adjustment, height
(for driver’s seat)
(4) Lumbar support (for driver’s seat)
(5) Driver position memory system*
(for 4 Door, 5 Door)
(6) Headrest
(7) Walk-in seat (for 2 Door)
Front passenger’s seat
(8) Seat adjustment, forward /
backward
(9) Seatback recliner
(10) Headrest
(11) Walk-in seat (for 2 Door)
Rear seat
(12) Armrest
(13) Headrest
(14) Seatback folding lever
(trunk for 4 Door, 2 Door)*
(15) Seatback folding lever
(for 5 Door)
* : if equipped
SEAT
OYD036001N
Manual seat
• 5 Door
• 2 Door
• 2 Door, 4 Door
Power seat
Page 17 of 595
33
Safety features of your vehicle

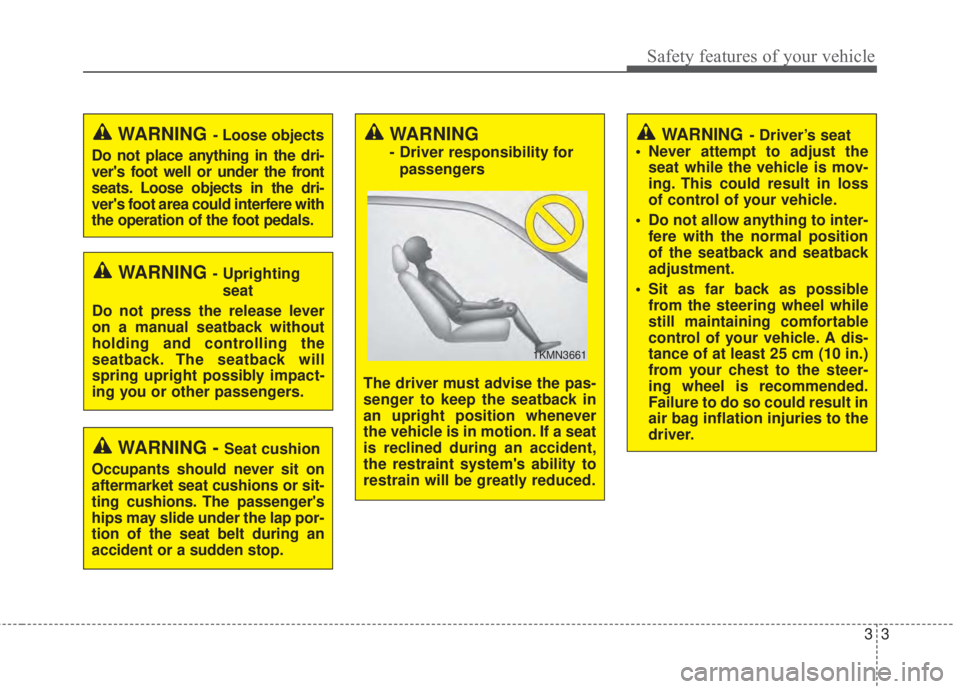

WARNING - Uprighting
seat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING- Loose objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere with
the operation of the foot pedals.WARNING
- Driver responsibility for
passengers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the restraint system's ability to
restrain will be greatly reduced.
1KMN3661
WARNING - Seat cushion
Occupants should never sit on
aftermarket seat cushions or sit-
ting cushions. The passenger's
hips may slide under the lap por-
tion of the seat belt during an
accident or a sudden stop.
WARNING- Driver’s seat
• Never attempt to adjust the
seat while the vehicle is mov-
ing. This could result in loss
of control of your vehicle.
• Do not allow anything to inter-
fere with the normal position
of the seatback and seatback
adjustment.
• Sit as far back as possible
from the steering wheel while
still maintaining comfortable
control of your vehicle. A dis-
tance of at least 25 cm (10 in.)
from your chest to the steer-
ing wheel is recommended.
Failure to do so could result in
air bag inflation injuries to the
driver.
Page 18 of 595
Safety features of your vehicle
4 3

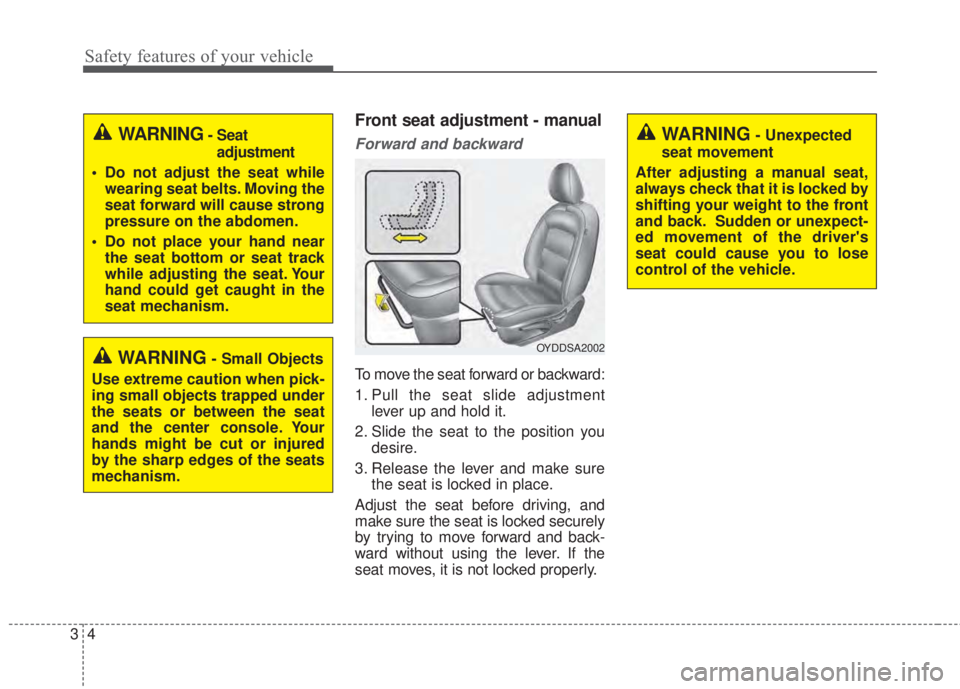

Front seat adjustment - manual
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment
lever up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
WARNING- Unexpected
seat movement
After adjusting a manual seat,
always check that it is locked by
shifting your weight to the front
and back. Sudden or unexpect-
ed movement of the driver's
seat could cause you to lose
control of the vehicle.
OYDDSA2002
WARNING- Seat
adjustment
• Do not adjust the seat while
wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
• Do not place your hand near
the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
WARNING- Small Objects
Use extreme caution when pick-
ing small objects trapped under
the seats or between the seat
and the center console. Your
hands might be cut or injured
by the sharp edges of the seats
mechanism.
Page 19 of 595
35
Safety features of your vehicle
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback recline lever.
2. Carefully lean back on the seat
and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
Seat Cushion height
(for driver's seat)
To change the height of the seat
cushion push the lever upwards or
downwards.
• To lower the seat cushion, push the
lever down several times.
• To raise the seat cushion, push the
lever up several times.
Lumbar support
(for driver`s seat, if equipped)
Press the front portion of the switch to
increase support, or the rear portion
of the switch to decrease support.
OYDDSA2004
OYDDSA2003
OYDDSA2008
Page 20 of 595
Safety features of your vehicle
6 3

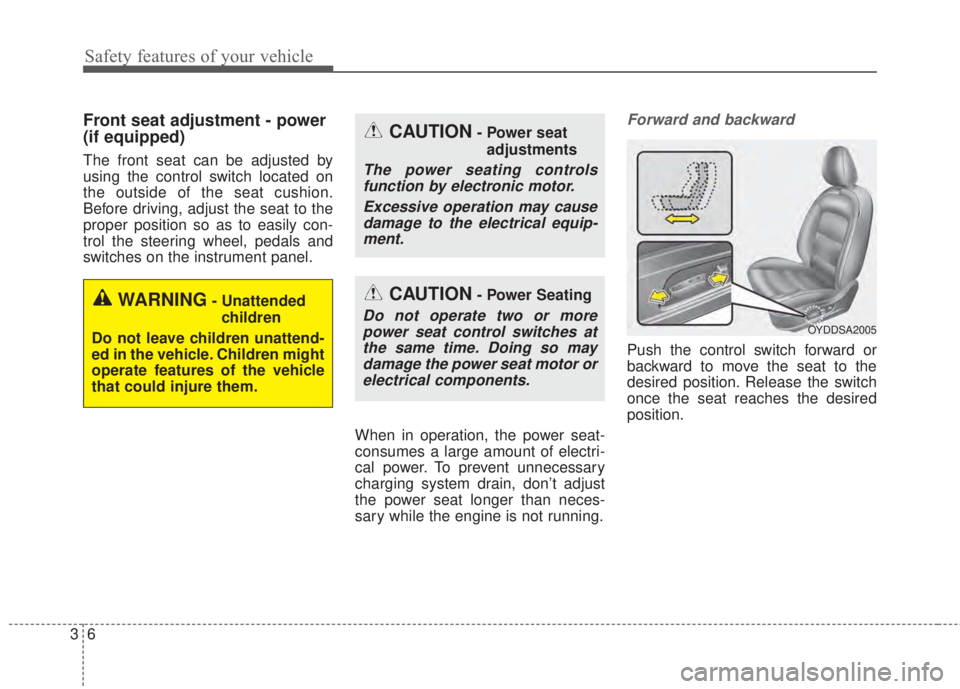

Front seat adjustment - power
(if equipped)
The front seat can be adjusted by
using the control switch located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so as to easily con-
trol the steering wheel, pedals and
switches on the instrument panel.
When in operation, the power seat-
consumes a large amount of electri-
cal power. To prevent unnecessary
charging system drain, don’t adjust
the power seat longer than neces-
sary while the engine is not running.
Forward and backward
Push the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.
OYDDSA2005
CAUTION- Power seat
adjustments
The power seating controls
function by electronic motor.
Excessive operation may cause
damage to the electrical equip-
ment.
CAUTION- Power Seating
Do not operate two or more
power seat control switches at
the same time. Doing so may
damage the power seat motor or
electrical components.WARNING- Unattended
children
Do not leave children unattend-
ed in the vehicle. Children might
operate features of the vehicle
that could injure them.
