79
Maintenance

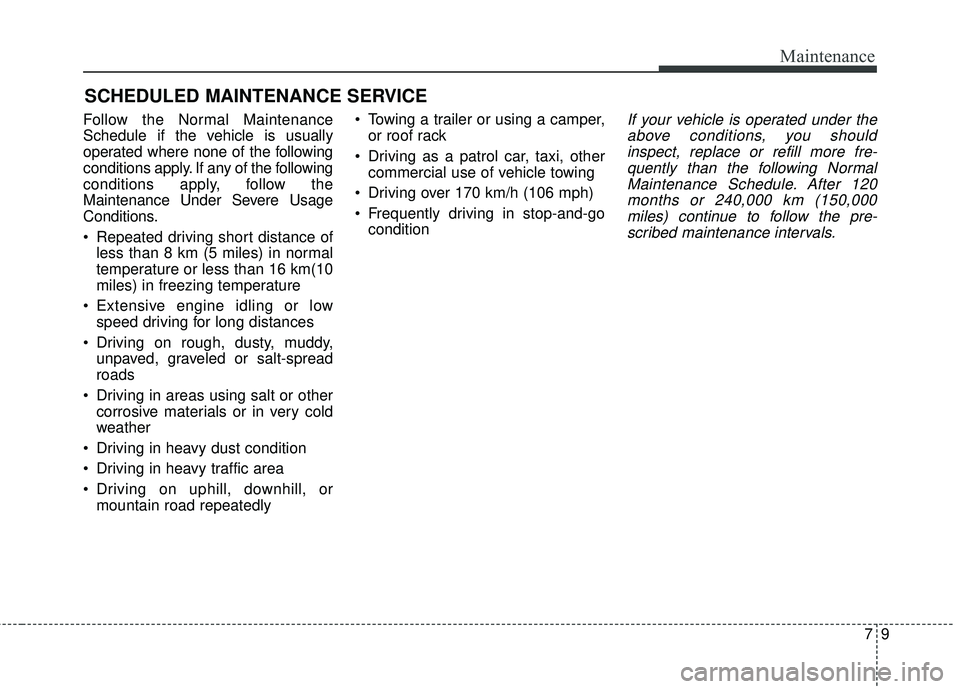

SCHEDULED MAINTENANCE SERVICE
Follow the Normal Maintenance
Schedule if the vehicle is usually
operated where none of the following
conditions apply. If any of the following
conditions apply, follow the
Maintenance Under Severe Usage
Conditions.
Repeated driving short distance ofless than 8 km (5 miles) in normal
temperature or less than 16 km(10
miles) in freezing temperature
Extensive engine idling or low speed driving for long distances
Driving on rough, dusty, muddy, unpaved, graveled or salt-spread
roads
Driving in areas using salt or other corrosive materials or in very cold
weather
Driving in heavy dust condition
Driving in heavy traffic area
Driving on uphill, downhill, or mountain road repeatedly Towing a trailer or using a camper,
or roof rack
Driving as a patrol car, taxi, other commercial use of vehicle towing
Driving over 170 km/h (106 mph)
Frequently driving in stop-and-go conditionIf your vehicle is operated under theabove conditions, you shouldinspect, replace or refill more fre-quently than the following NormalMaintenance Schedule. After 120months or 240,000 km (150,000miles) continue to follow the pre-scribed maintenance intervals.

Maintenance
10
7

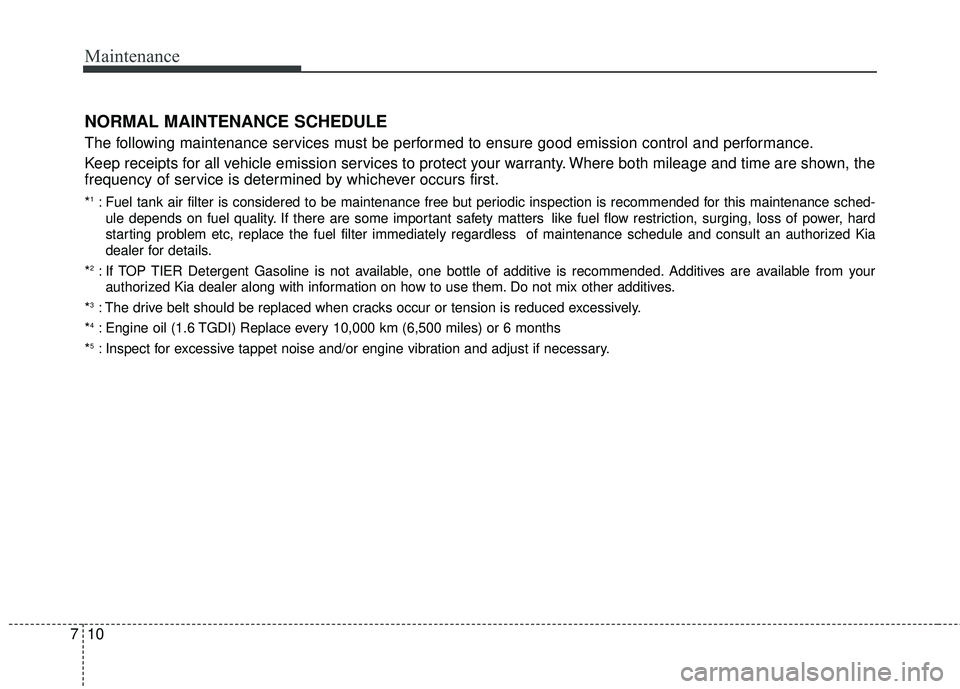

NORMAL MAINTENANCE SCHEDULE
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the
frequency of service is determined by whichever occurs first.
*1: Fuel tank air filter is considered to be maintenance free but periodic inspection is recommended for this maintenance sched-
ule depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard
starting problem etc, replace the fuel filter immediately regardless of maintenance schedul\
e and consult an authorized Kia
dealer for details.
*
2: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.
*
3: The drive belt should be replaced when cracks occur or tension is reduced excessively.
*
4: Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles) or 6 months
*
5: Inspect for excessive tappet noise and/or engine vibration and adjust if necessary.

711
Maintenance

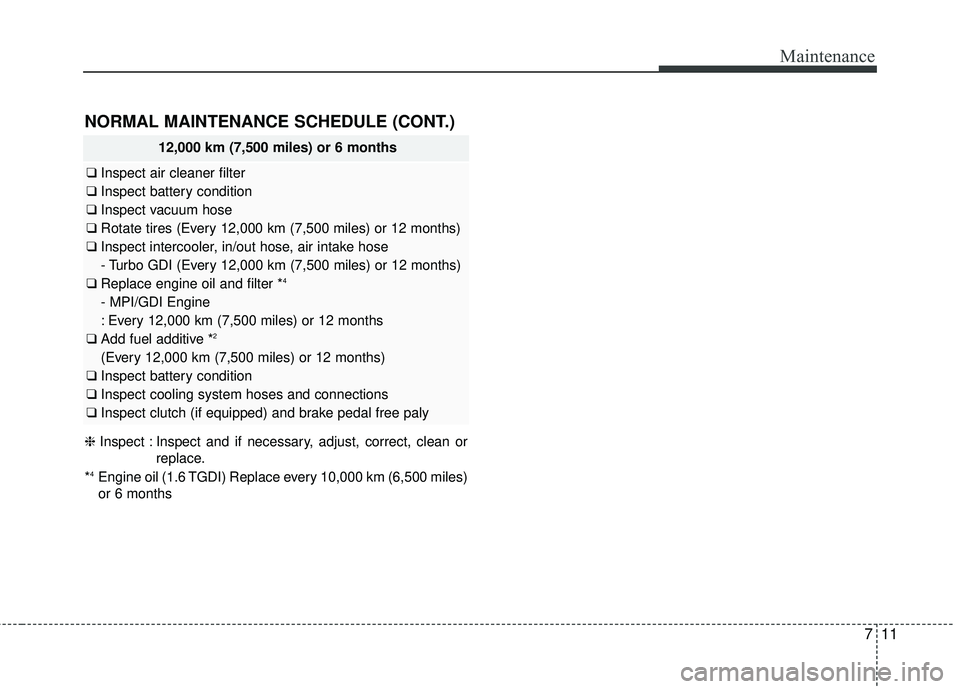

12,000 km (7,500 miles) or 6 months
❑Inspect air cleaner filter
❑ Inspect battery condition
❑ Inspect vacuum hose
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months

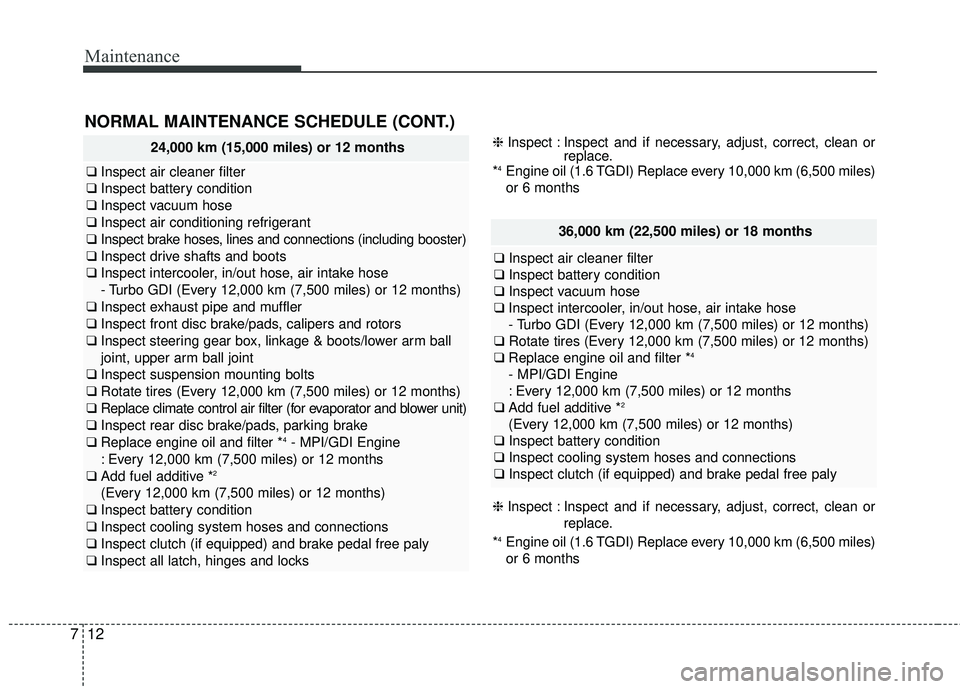

NORMAL MAINTENANCE SCHEDULE (CONT.)

Maintenance
12
7
24,000 km (15,000 miles) or 12 months
❑ Inspect air cleaner filter
❑ Inspect battery condition
❑ Inspect vacuum hose
❑ Inspect air conditioning refrigerant
❑ Inspect brake hoses, lines and connections (including booster)
❑ Inspect drive shafts and boots
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect exhaust pipe and muffler
❑ Inspect front disc brake/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace climate control air filter (for evaporator and blower unit)
❑ Inspect rear disc brake/pads, parking brake
❑ Replace engine oil and filter *
4- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months
NORMAL MAINTENANCE SCHEDULE (CONT.)
36,000 km (22,500 miles) or 18 months
❑ Inspect air cleaner filter
❑ Inspect battery condition
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months

713
Maintenance

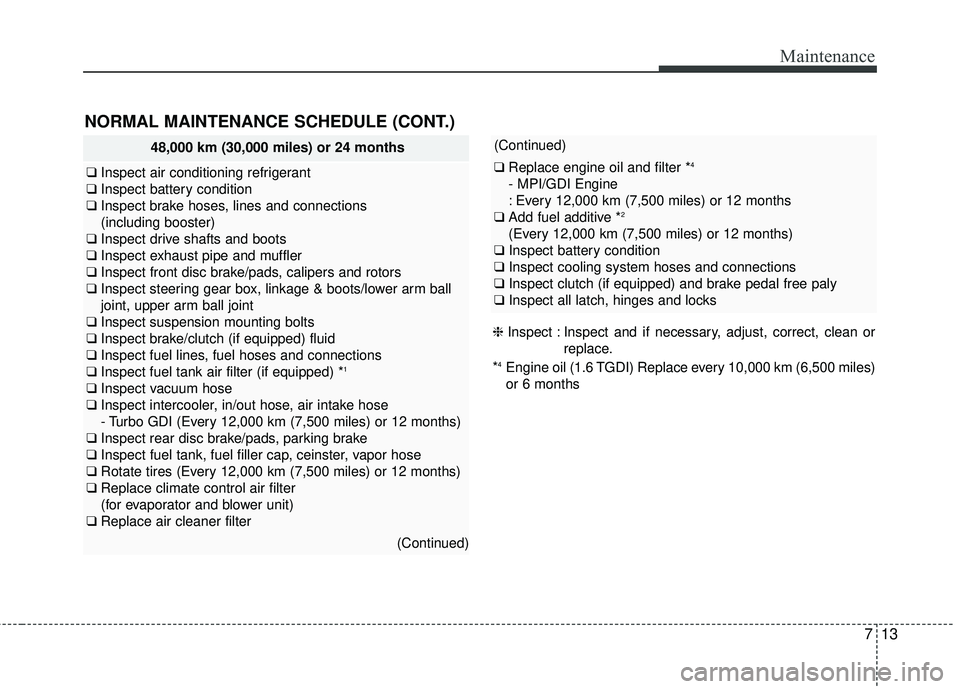

48,000 km (30,000 miles) or 24 months
❑Inspect air conditioning refrigerant
❑ Inspect battery condition
❑ Inspect brake hoses, lines and connections
(including booster)
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front disc brake/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Inspect brake/clutch (if equipped) fluid
❑ Inspect fuel lines, fuel hoses and connections
❑ Inspect fuel tank air filter (if equipped) *
1
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect rear disc brake/pads, parking brake
❑ Inspect fuel tank, fuel filler cap, ceinster, vapor hose
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace climate control air filter
(for evaporator and blower unit)
❑ Replace air cleaner filter
(Continued)
(Continued)
❑Replace engine oil and filter *4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months
NORMAL MAINTENANCE SCHEDULE (CONT.)

Maintenance
14
7

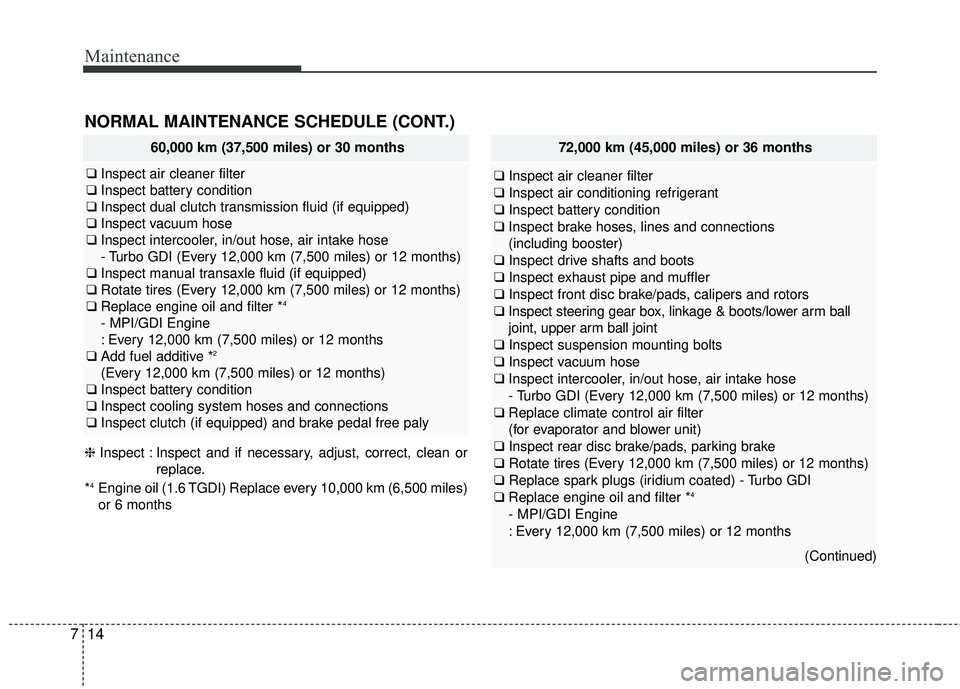

NORMAL MAINTENANCE SCHEDULE (CONT.)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months
60,000 km (37,500 miles) or 30 months
❑ Inspect air cleaner filter
❑ Inspect battery condition
❑ Inspect dual clutch transmission fluid (if equipped)
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect manual transaxle fluid (if equipped)
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
72,000 km (45,000 miles) or 36 months
❑Inspect air cleaner filter
❑ Inspect air conditioning refrigerant
❑ Inspect battery condition
❑ Inspect brake hoses, lines and connections
(including booster)
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front disc brake/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace climate control air filter
(for evaporator and blower unit)
❑ Inspect rear disc brake/pads, parking brake
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace spark plugs (iridium coated) - Turbo GDI
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
(Continued)

715
Maintenance
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months

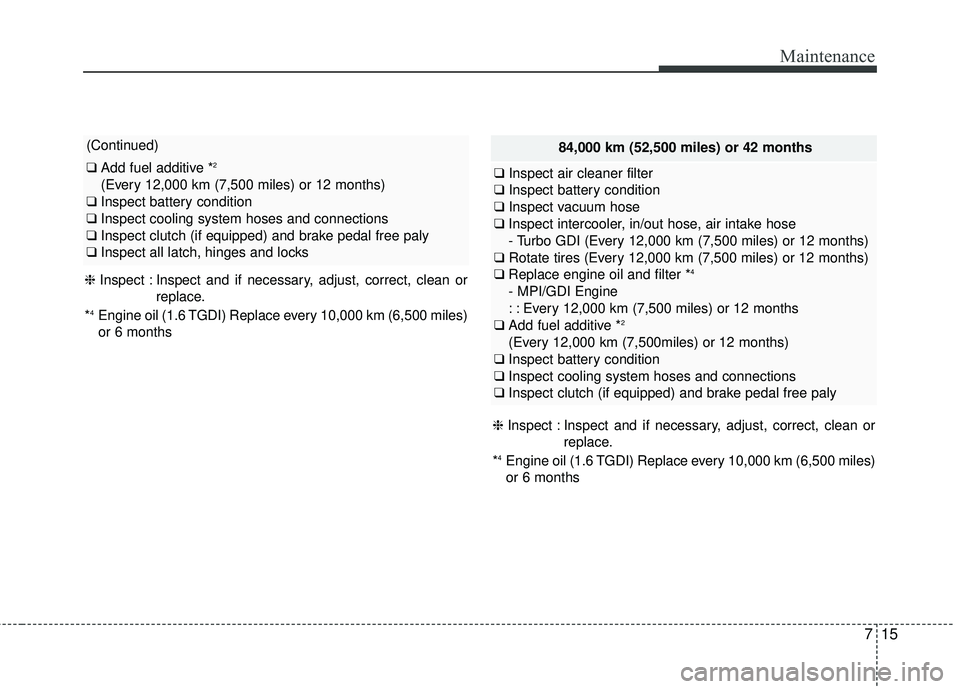

(Continued)
❑ Add fuel additive *2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❑ Inspect all latch, hinges and locks
84,000 km (52,500 miles) or 42 months
❑ Inspect air cleaner filter
❑ Inspect battery condition
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: : Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months

Maintenance
16
7
(Continued)
❑ Replace climate control air filter
(for evaporator and blower unit)
❑ Replace air cleaner filter
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months

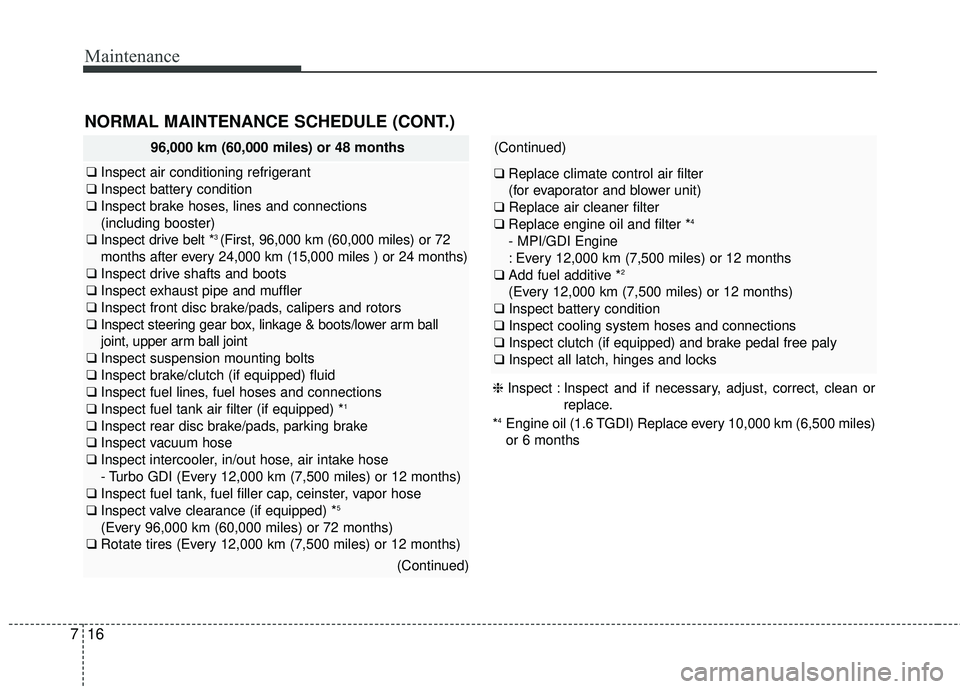

NORMAL MAINTENANCE SCHEDULE (CONT.)
96,000 km (60,000 miles) or 48 months
❑ Inspect air conditioning refrigerant
❑ Inspect battery condition
❑ Inspect brake hoses, lines and connections
(including booster)
❑ Inspect drive belt *
3 (First, 96,000 km (60,000 miles) or 72
months after every 24,000 km (15,000 miles ) or 24 months)
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front disc brake/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Inspect brake/clutch (if equipped) fluid
❑ Inspect fuel lines, fuel hoses and connections
❑ Inspect fuel tank air filter (if equipped) *
1
❑Inspect rear disc brake/pads, parking brake
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect fuel tank, fuel filler cap, ceinster, vapor hose
❑ Inspect valve clearance (if equipped) *
5
(Every 96,000 km (60,000 miles) or 72 months)
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
(Continued)

717
Maintenance
NORMAL MAINTENANCE SCHEDULE (CONT.)
108,000 km (67,500 miles) or 54 months
❑Inspect air cleaner filter
❑ Inspect battery condition
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
❑ Add fuel additive *
2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months

Maintenance
18
7

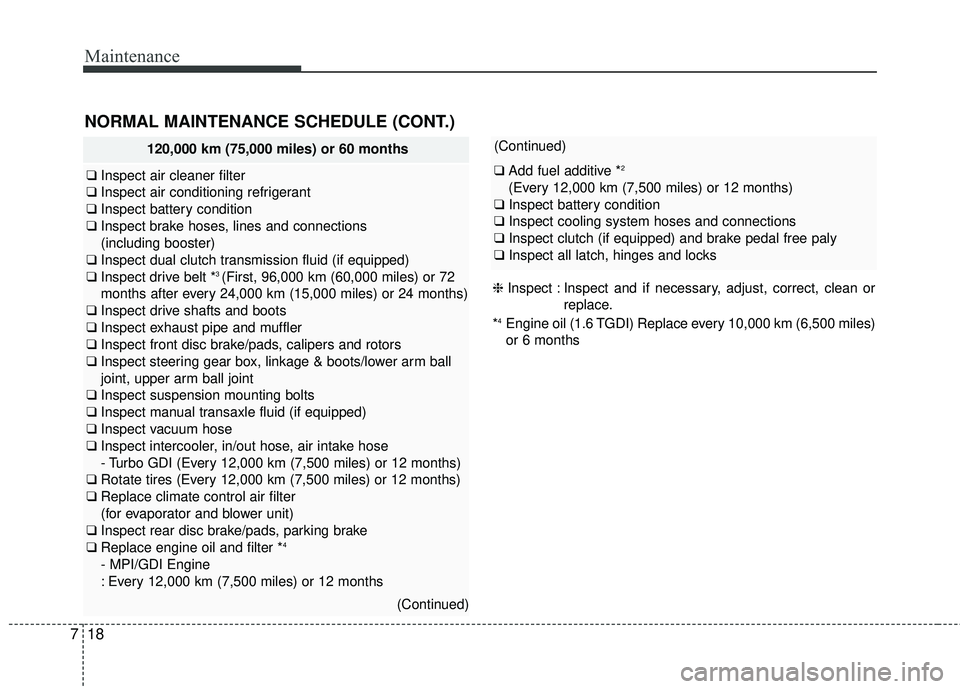

NORMAL MAINTENANCE SCHEDULE (CONT.)
120,000 km (75,000 miles) or 60 months
❑ Inspect air cleaner filter
❑ Inspect air conditioning refrigerant
❑ Inspect battery condition
❑ Inspect brake hoses, lines and connections
(including booster)
❑ Inspect dual clutch transmission fluid (if equipped)
❑ Inspect drive belt *
3 (First, 96,000 km (60,000 miles) or 72
months after every 24,000 km (15,000 miles) or 24 months)
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front disc brake/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Inspect manual transaxle fluid (if equipped)
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose
- Turbo GDI (Every 12,000 km (7,500 miles) or 12 months)
❑ Rotate tires (Every 12,000 km (7,500 miles) or 12 months)
❑ Replace climate control air filter
(for evaporator and blower unit)
❑ Inspect rear disc brake/pads, parking brake
❑ Replace engine oil and filter *
4
- MPI/GDI Engine
: Every 12,000 km (7,500 miles) or 12 months
(Continued)
(Continued)
❑Add fuel additive *2
(Every 12,000 km (7,500 miles) or 12 months)
❑ Inspect battery condition
❑ Inspect cooling system hoses and connections
❑ Inspect clutch (if equipped) and brake pedal free paly
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
*
4Engine oil (1.6 TGDI) Replace every 10,000 km (6,500 miles)
or 6 months
