Safety features of your vehicle
54
3

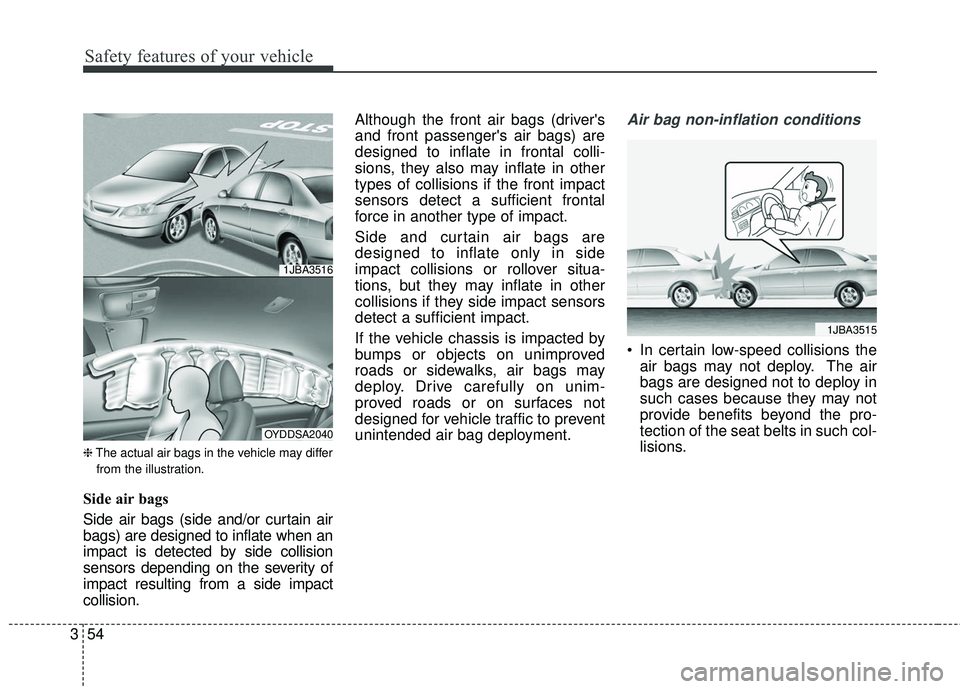

❈ The actual air bags in the vehicle may differ
from the illustration.
Side air bags
Side air bags (side and/or curtain air
bags) are designed to inflate when an
impact is detected by side collision
sensors depending on the severity of
impact resulting from a side impact
collision. Although the front air bags (driver's
and front passenger's air bags) are
designed to inflate in frontal colli-
sions, they also may inflate in other
types of collisions if the front impact
sensors detect a sufficient frontal
force in another type of impact.
Side and curtain air bags are
designed to inflate only in side
impact collisions or rollover situa-
tions, but they may inflate in other
collisions if they side impact sensors
detect a sufficient impact.
If the vehicle chassis is impacted by
bumps or objects on unimproved
roads or sidewalks, air bags may
deploy. Drive carefully on unim-
proved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
Air bag non-inflation conditions
In certain low-speed collisions the
air bags may not deploy. The air
bags are designed not to deploy in
such cases because they may not
provide benefits beyond the pro-
tection of the seat belts in such col-
lisions.
1JBA3516
OYDDSA2040
1JBA3515

355
Safety features of your vehicle

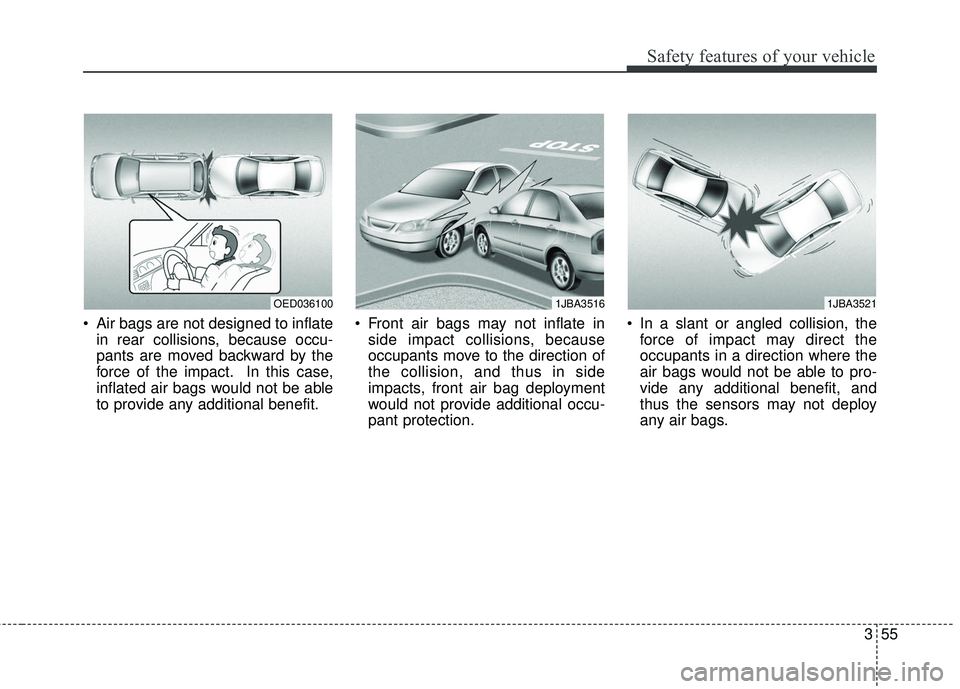

Air bags are not designed to inflatein rear collisions, because occu-
pants are moved backward by the
force of the impact. In this case,
inflated air bags would not be able
to provide any additional benefit. Front air bags may not inflate in
side impact collisions, because
occupants move to the direction of
the collision, and thus in side
impacts, front air bag deployment
would not provide additional occu-
pant protection. In a slant or angled collision, the
force of impact may direct the
occupants in a direction where the
air bags would not be able to pro-
vide any additional benefit, and
thus the sensors may not deploy
any air bags.
OED0361001JBA35211JBA3516

Safety features of your vehicle
56
3

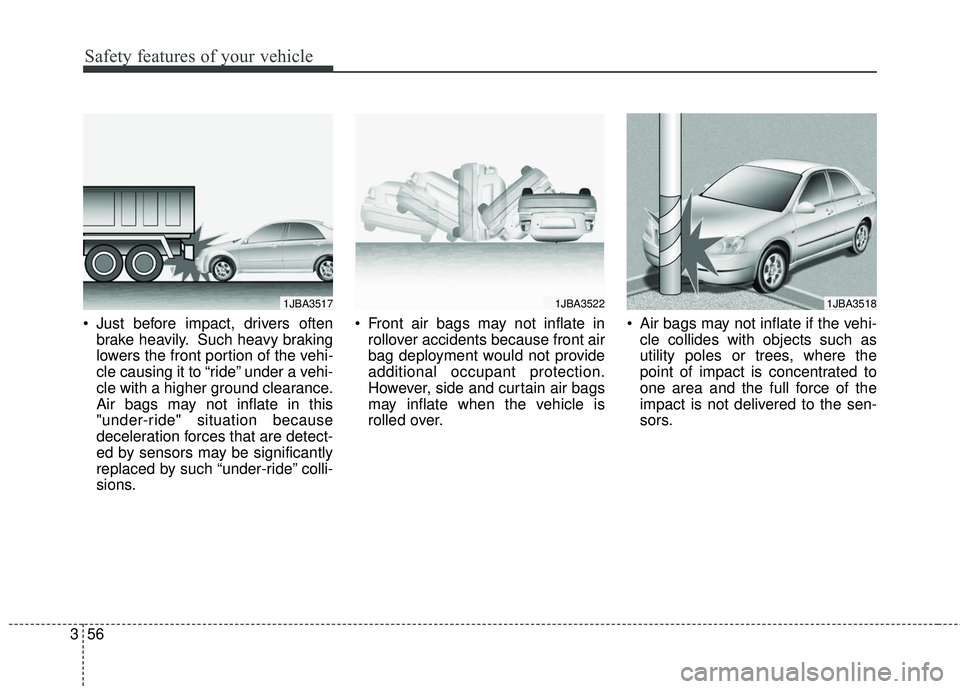

Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehi-
cle causing it to “ride” under a vehi-
cle with a higher ground clearance.
Air bags may not inflate in this
"under-ride" situation because
deceleration forces that are detect-
ed by sensors may be significantly
replaced by such “under-ride” colli-
sions. Front air bags may not inflate in
rollover accidents because front air
bag deployment would not provide
additional occupant protection.
However, side and curtain air bags
may inflate when the vehicle is
rolled over. Air bags may not inflate if the vehi-
cle collides with objects such as
utility poles or trees, where the
point of impact is concentrated to
one area and the full force of the
impact is not delivered to the sen-
sors.
1JBA35171JBA35221JBA3518

357
Safety features of your vehicle

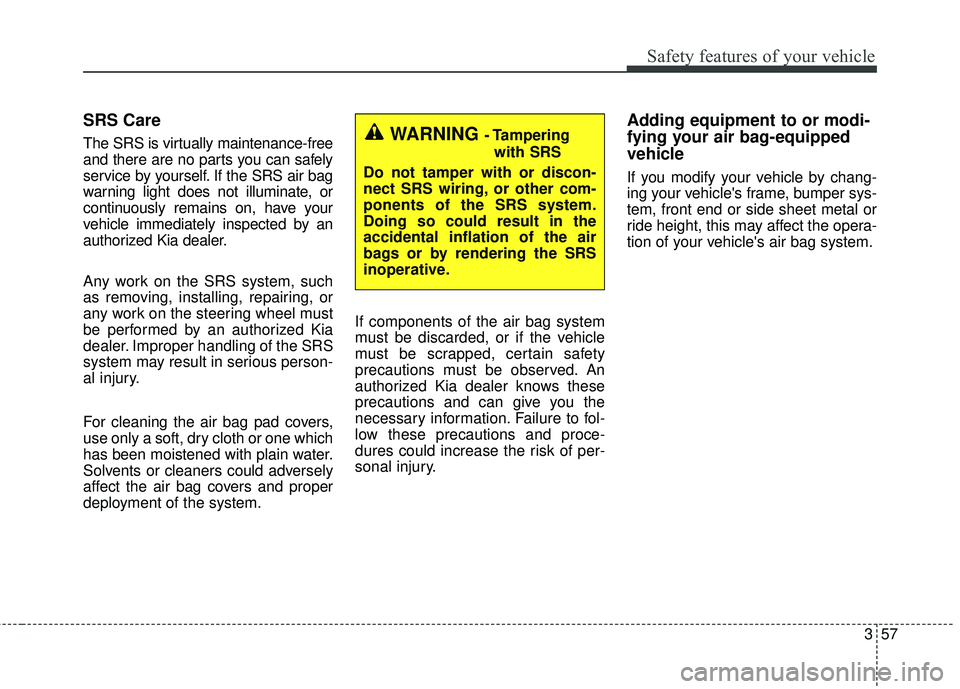

SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate, or
continuously remains on, have your
vehicle immediately inspected by an
authorized Kia dealer.
Any work on the SRS system, such
as removing, installing, repairing, or
any work on the steering wheel must
be performed by an authorized Kia
dealer. Improper handling of the SRS
system may result in serious person-
al injury.
For cleaning the air bag pad covers,
use only a soft, dry cloth or one which
has been moistened with plain water.
Solvents or cleaners could adversely
affect the air bag covers and proper
deployment of the system.If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed. An
authorized Kia dealer knows these
precautions and can give you the
necessary information. Failure to fol-
low these precautions and proce-
dures could increase the risk of per-
sonal injury.
Adding equipment to or modi-
fying your air bag-equipped
vehicle
If you modify your vehicle by chang-
ing your vehicle's frame, bumper sys-
tem, front end or side sheet metal or
ride height, this may affect the opera-
tion of your vehicle's air bag system.
WARNING - Tampering
with SRS
Do not tamper with or discon-
nect SRS wiring, or other com-
ponents of the SRS system.
Doing so could result in the
accidental inflation of the air
bags or by rendering the SRS
inoperative.

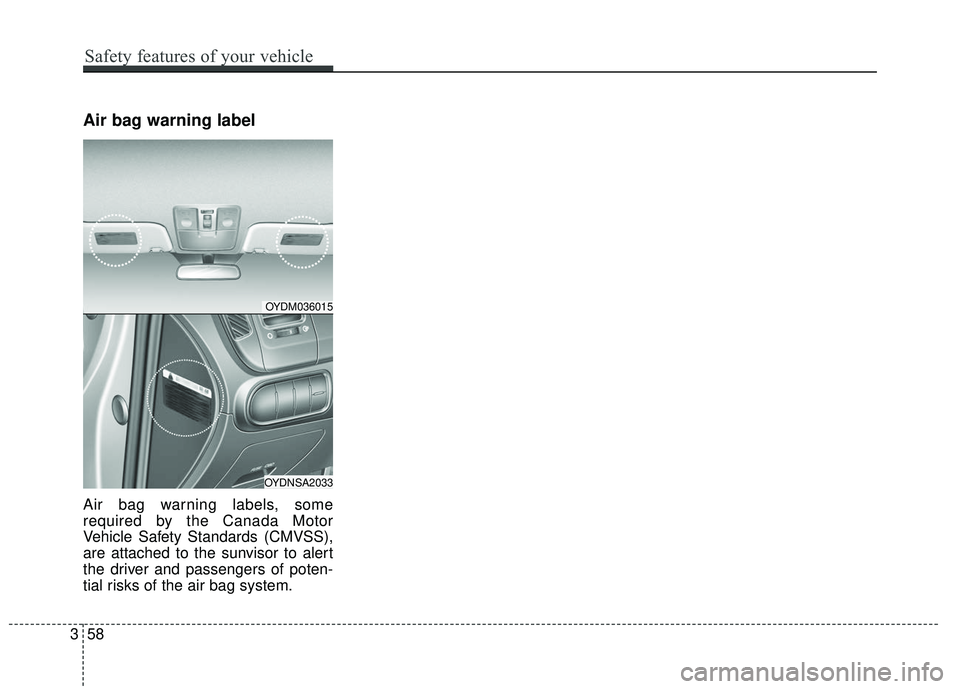

Air bag warning label
Air bag warning labels, some
required by the Canada Motor
Vehicle Safety Standards (CMVSS),
are attached to the sunvisor to alert
the driver and passengers of poten-
tial risks of the air bag system.
OYDM036015
OYDNSA2033
358
Safety features of your vehicle

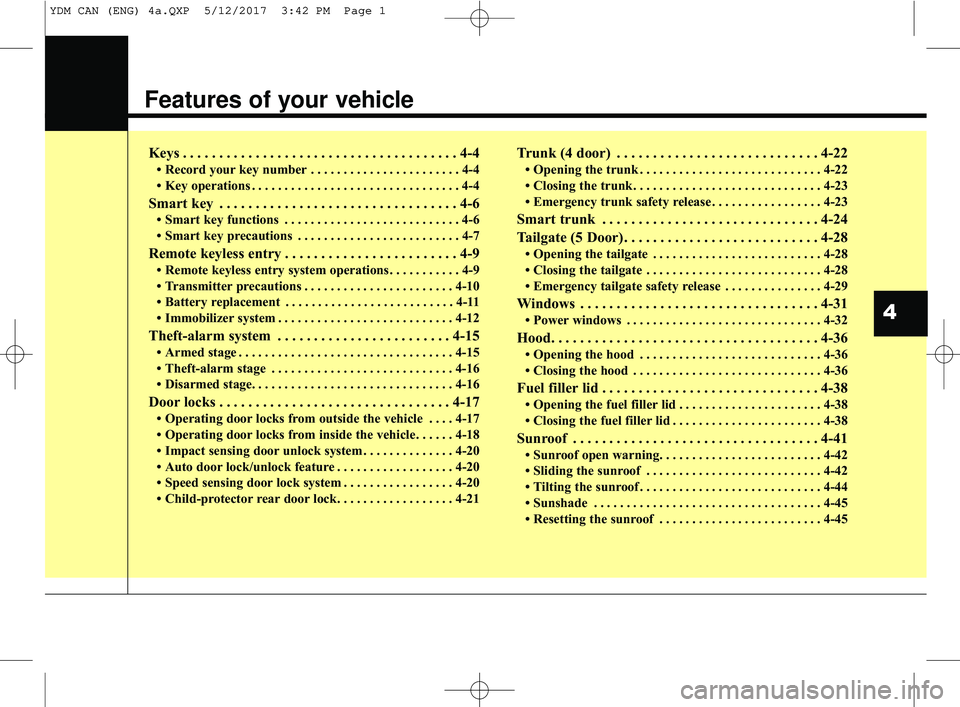

Features of your vehicle
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-4
• Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-4
• Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
• Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
• Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . 4-9
• Remote keyless entry system operations . . . . . . . . . . . 4-9
• Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-10
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
• Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-15
• Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
• Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
• Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
• Operating door locks from outside the vehicle . . . . 4-17
• Operating door locks from inside the vehicle . . . . . . 4-18
• Impact sensing door unlock system . . . . . . . . . . . . . . 4-20
• Auto door lock/unlock feature . . . . . . . . . . . . . . . . . . 4-20
• Speed sensing door lock system . . . . . . . . . . . . . . . . . 4-20
• Child-protector rear door lock. . . . . . . . . . . . . . . . . . 4-21
Trunk (4 door) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
• Opening the trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
• Closing the trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
• Emergency trunk safety release . . . . . . . . . . . . . . . . . 4-23
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24
Tailgate (5 Door) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
• Opening the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
• Closing the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
• Emergency tailgate safety release . . . . . . . . . . . . . . . 4-29
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
• Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-36
• Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
• Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
• Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-38
• Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-38
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41\
• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-42
• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
• Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
45
• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
4
YDM CAN (ENG) 4a.QXP 5/12/2017 3:42 PM Page 1

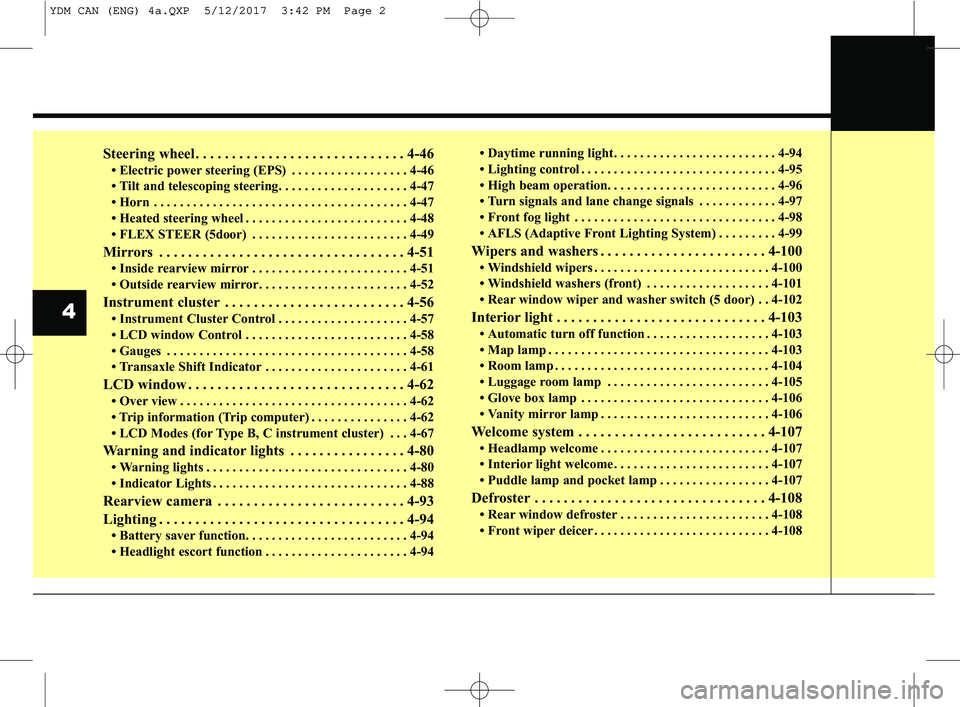

Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
• Electric power steering (EPS) . . . . . . . . . . . . . . . . . . 4-46
• Tilt and telescoping steering. . . . . . . . . . . . . . . . . . . . 4-47
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-47
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
• FLEX STEER (5door) . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51\
• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-51
• Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-52
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-56
• Instrument Cluster Control . . . . . . . . . . . . . . . . . . . . 4-57
• LCD window Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-58
• Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . 4-61
LCD window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
• Over view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
62
• Trip information (Trip computer) . . . . . . . . . . . . . . . 4-62
• LCD Modes (for Type B, C instrument cluster) . . . 4-67
Warning and indicator lights . . . . . . . . . . . . . . . . 4-80
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
• Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-88
Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . . 4-93
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94\
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . . 4-94
• Headlight escort function . . . . . . . . . . . . . . . . . . . . . . 4-94• Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
• Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
• High beam operation. . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• Turn signals and lane change signals . . . . . . . . . . . . 4-97
• Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
• AFLS (Adaptive Front Lighting System) . . . . . . . . . 4-99
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . 4-100
• Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
• Windshield washers (front) . . . . . . . . . . . . . . . . . . . 4-101
• Rear window wiper and washer switch (5 door) . . 4-102
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Automatic turn off function . . . . . . . . . . . . . . . . . . . 4-103
• Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10\
3
• Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
• Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
• Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
• Interior light welcome . . . . . . . . . . . . . . . . . . . . . . . . 4-107
• Puddle lamp and pocket lamp . . . . . . . . . . . . . . . . . 4-107
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
• Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-108
• Front wiper deicer . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
4
YDM CAN (ENG) 4a.QXP 5/12/2017 3:42 PM Page 2

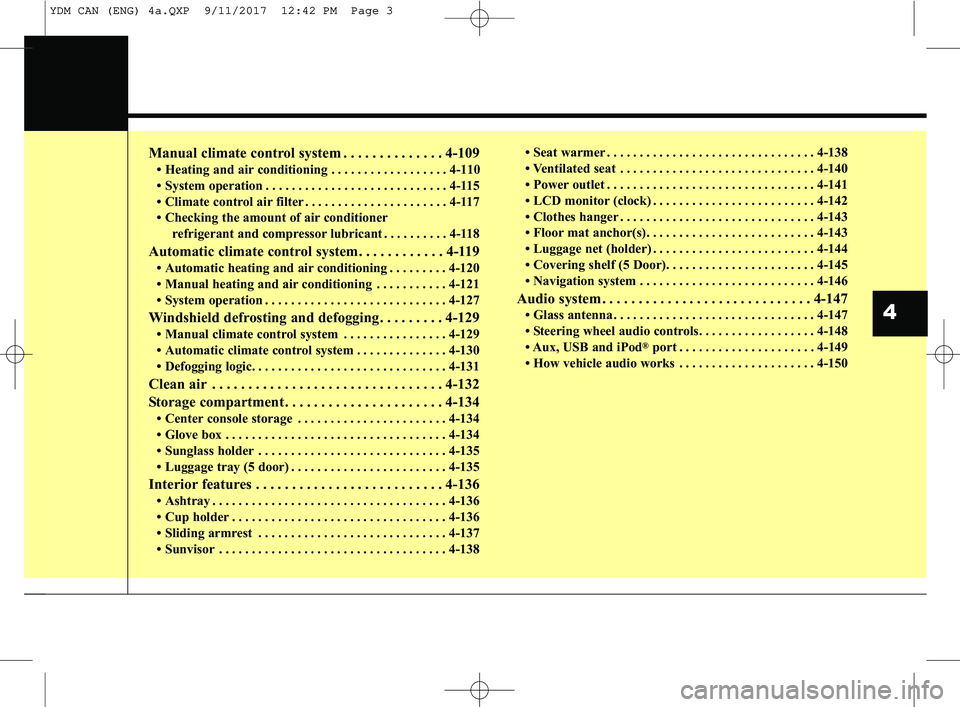

Manual climate control system . . . . . . . . . . . . . . 4-109
• Heating and air conditioning . . . . . . . . . . . . . . . . . . 4-110
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
• Climate control air filter . . . . . . . . . . . . . . . . . . . . . . 4-117
• Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . 4-118
Automatic climate control system. . . . . . . . . . . . 4-119
• Automatic heating and air conditioning . . . . . . . . . 4-120
• Manual heating and air conditioning . . . . . . . . . . . 4-121
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Windshield defrosting and defogging . . . . . . . . . 4-129
• Manual climate control system . . . . . . . . . . . . . . . . 4-129
• Automatic climate control system . . . . . . . . . . . . . . 4-130
• Defogging logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
Storage compartment . . . . . . . . . . . . . . . . . . . . . . 4-134
• Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-134
• Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13\
4
• Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
• Luggage tray (5 door) . . . . . . . . . . . . . . . . . . . . . . . . 4-135
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
• Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-136
• Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
• Sliding armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
• Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
138 • Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
• Ventilated seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
• Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
• LCD monitor (clock) . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
• Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
• Floor mat anchor(s). . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
• Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-144
• Covering shelf (5 Door). . . . . . . . . . . . . . . . . . . . . . . 4-145
• Navigation system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
• Glass antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
• Steering wheel audio controls. . . . . . . . . . . . . . . . . . 4-148
• Aux, USB and iPod
®port . . . . . . . . . . . . . . . . . . . . . 4-149
• How vehicle audio works . . . . . . . . . . . . . . . . . . . . . 4-150
4
YDM CAN (ENG) 4a.QXP 9/11/2017 12:42 PM Page 3

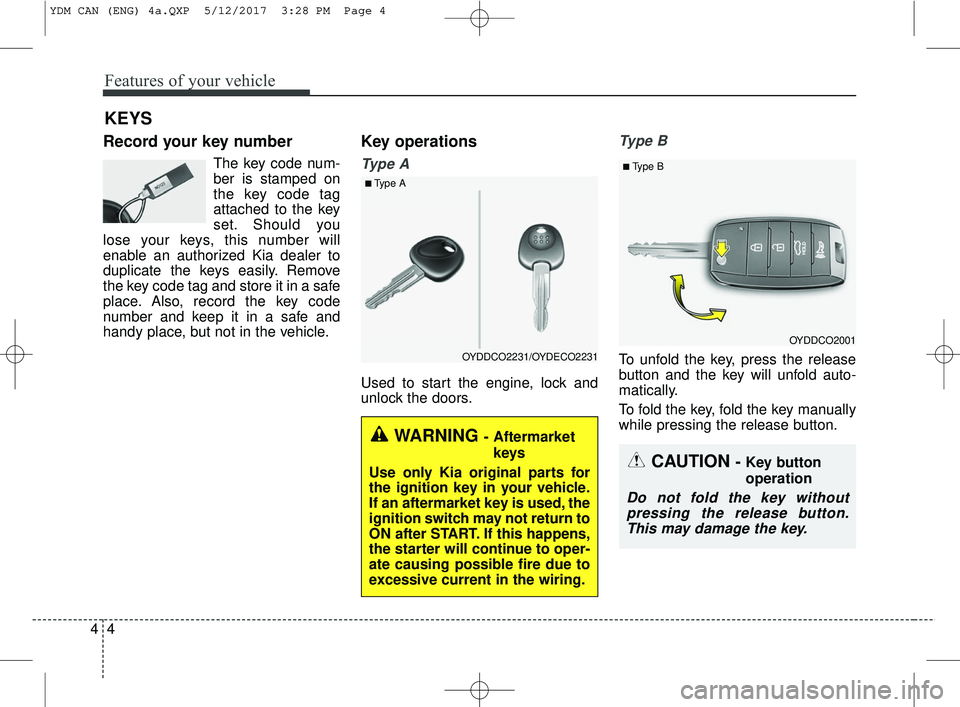

Features of your vehicle
44
Record your key number
The key code num-
ber is stamped on
the key code tag
attached to the key
set. Should you
lose your keys, this number will
enable an authorized Kia dealer to
duplicate the keys easily. Remove
the key code tag and store it in a safe
place. Also, record the key code
number and keep it in a safe and
handy place, but not in the vehicle.
Key operations
Type A
Used to start the engine, lock and
unlock the doors.
Ty p e B
To unfold the key, press the release
button and the key will unfold auto-
matically.
To fold the key, fold the key manually
while pressing the release button.
KEYS
■Type A
OYDDCO2231/OYDECO2231
WARNING - Aftermarket
keys
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used, the
ignition switch may not return to
ON after START. If this happens,
the starter will continue to oper-
ate causing possible fire due to
excessive current in the wiring.
OYDDCO2001
■Type B
CAUTION - Key button
operation
Do not fold the key without pressing the release button.This may damage the key.
YDM CAN (ENG) 4a.QXP 5/12/2017 3:28 PM Page 4

45
Features of your vehicle

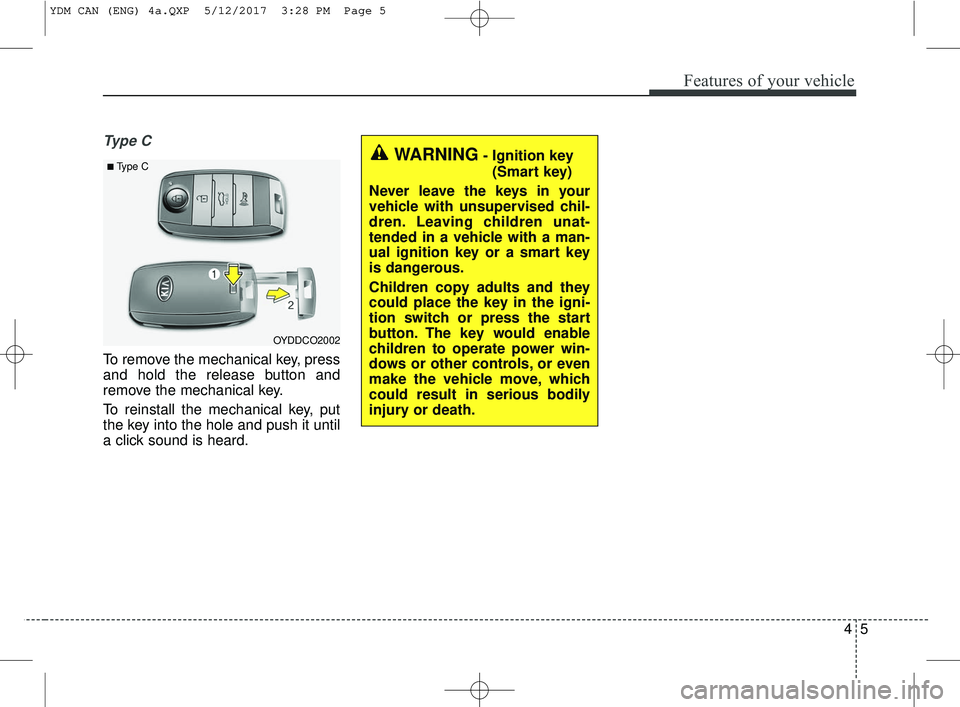

Ty p e C
To remove the mechanical key, press
and hold the release button and
remove the mechanical key.
To reinstall the mechanical key, put
the key into the hole and push it until
a click sound is heard.
OYDDCO2002
■Type CWARNING- Ignition key(Smart key)
Never leave the keys in your
vehicle with unsupervised chil-
dren. Leaving children unat-
tended in a vehicle with a man-
ual ignition key or a smart key
is dangerous.
Children copy adults and they
could place the key in the igni-
tion switch or press the start
button. The key would enable
children to operate power win-
dows or other controls, or even
make the vehicle move, which
could result in serious bodily
injury or death.
YDM CAN (ENG) 4a.QXP 5/12/2017 3:28 PM Page 5
