Rear seat adjustment
- for power seat (if equipped)
The rear seat can be adjusted by
using the control switches located on
the door.When in operation, the power seat
consumes a large amount of electri-
cal power. To prevent unnecessary
battery drain, don’t adjust the power
seat longer than necessary while the
engine is not running.
Seat and safety features of your vehicle
3
3-13
Seat adjustment
Do not adjust the seat whilewearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat when adjusting the
seat. Your hand could get
caught in the seat mecha-
nism.
WARNING
Do not operate the rear power
seat while the child seat is
installed. Operation of the rear
power seats affect the proper
car seat installation and thereby
increase the risk of injury to the
child seat occupant.
WARNING
Power seat adjustments
The power seating controls
function by electronic motor.
Excessive operation may cause
damage to the electrical equip-
ment.
CAUTION
Power Seating
Do not operate two or more
power seat control switches at
the same time. Doing so may
damage the power seat motor
or electrical components.
CAUTION
Unattended children
Do not leave children unattend-
ed in the vehicle. Children might
operate features of the vehicle
that could injure them.
WARNING
KH USA 3:2016 12/2/2016 10:11 AM Page 13

Forward, backward and seatbackangle (for power seat)
Push the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.
Easy access switch (for power seat)
Your vehicle features an easy access
system to provide convenient access
for rear passengers. When opening
the rear door, the rear seats will
move rearward automatically to pro-
vide easier access for passengers.
This easy access system will operate
only when the control switch is in
"ON" position.
Additional switches for adjustingthe front seat (if equipped)
• Front passenger’s seat
The switch is located on the left side
of the front passenger’s seatback.
To adjust the position of front pas-
senger’s seat ;
Press the control switch forward (1)
or rearward (2)to move the seat to
the desired position. Press the con-
trol switch forward (3) or rearward (4)
to move the seatback to the desired
angle.
Do not use these switches while the
front passenger seat is occupied.
3-14
Seat and safety features of your vehicle
OKH033035NOKH033036NOKH035022N
KH USA 3:2016 12/2/2016 10:11 AM Page 14

• Rear seat
The switch is located in the armrest
of the rear seat.
To adjust the position of front pas-
senger’s seat ;
Press the control switch forward (1)
or rearward (2) to move the seat to
the desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the
front passenger seat is occupied.
Lumbar support (for rear right and left passenger’sseat) (if equipped)

Press the R switch.
The lumbar support can be adjusted
by pushing the lumbar support lever.
Push the lever to left side (1) increase
support or push the lever to the right
side (2) to decrease support.
To move the support position up or
down, push the lever upside (3) or
down side (4).
Press the L switch.
The lumbar support can be adjusted
by pushing the lumbar support lever.
Push the lever to left side (1) increase
support or push the lever to the right
side (2) to decrease support.
To move the support position up or
down, push the lever upside (3) or
down side (4).
Seat and safety features of your vehicle
3
3-15
OKH033037N
OKH033032N
KH USA 3:2016 12/2/2016 10:11 AM Page 15

Rear switches operating limitation
You can activate or deactivate the
rear seat control, rear audio control
and climate control by using the
REAR LOCK button on the rear arm-
rest or “System Settings” in the AVN
(Audio, Video, and Navigation).
Detailed information for the “System
Settings” is described in a separately
supplied manual.
If the rear control button has deacti-
vated through AVN, you can reacti-
vate the rear control button only
through AVN.
Headrest (for rear seat)
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision. For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height as the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
3-16
Seat and safety features of your vehicle
OKH033111NOKH033040N
KH USA 3:2016 12/2/2016 10:11 AM Page 16

Seat and safety features of your vehicle
3
3-17
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).Removal and installation
(for power seat)
To remove the headrest move the
seat forward as much as possible.
Raise it as far as it can go then press
the release button (1) while pulling
the headrest up (2).
To reinstall the headrest move the
seat forward as much as possible.
Put the headrest poles (3) into the
holes while pressing the release but-
ton (1). Then adjust it to the appro-
priate height (2).
OKH033026NOKH033024N
Do not operate the vehicle with
the headrests removed.
Headrests may provide critical
neck and head support in a
crash.
WARNING
Headrest Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly.
WARNING
KH USA 3:2016 12/2/2016 10:11 AM Page 17

3-18
Seat and safety features of your vehicle
Rear center seat headrest
You can fold the rear center seat’s
headrest by pressing the upper part
of the headrest while pushing the
button (1).
To use the headrest, pull up the
upper part of the headrest.
✽NOTICE
Operating the vehicle with the head-
rest in the folded position does not
provide the vehicle occupant with
the optimal neck and head support
in the event of a crash.
Forward and backward adjustment
The headrest may be adjusted for-
ward or backward by pulling the
lower part of the headrest forward or
backward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck. Wing-out (if equipped)
For rear outboard passenger's com-
fort, the ends of the headrest can be
adjusted inward.
OKH033039NOKH033106NOKH033103N
KH USA 3:2016 12/2/2016 10:11 AM Page 18

Seat and safety features of your vehicle
3
3-19
Armrest
To use the armrest, pull it forward
from the seatback.
Carrying long / narrow cargo (for fixed seat, if equipped)
Additional cargo space is provided to
accommodate long/narrow cargo
(skis, poles, etc.) not able to fit prop-
erly in the trunk when closed.
1. Pull the armrest down.
2. Pull the cover down while pushing the release lever down.
OKH033076N
OKH033027N
Be careful when loadingcargo through the rear passen-
ger seats to prevent damage to
the vehicle interior.
When cargo is loaded through the rear passenger seats,
ensure the cargo is properly
secured to prevent it from mov-
ing while driving. Unsecured
cargo in the passenger com-
partment can cause damage to
the vehicle.
CAUTION
Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Do not
place objects on the rear seats,
since they cannot be properly
secured and may hit the front
seat occupants in a collision.
WARNING
KH USA 3:2016 12/2/2016 10:12 AM Page 19

3-20
Seat and safety features of your vehicle
Seat belt restraint system
Seat belts are designed to bear upon
the bony structure of the body, and
should be worn low across the
pelvis, chest and shoulders as appli-
cable. wearing the lap section of the
belt across the abdominal area must
be avoided.
Seat belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection for
which they have been designed.
A slack belt will greatly reduce the
protection afforded to the wearer.
Care should be taken to avoid con-
tamination of the webbing with pol-
ishes, oils and chemicals, and partic-
ularly battery acid. Cleaning may
safely be carried out using mild soap
and water. The belt should be
replaced if webbing becomes frayed,
contaminated or damaged.
For maximum restraint system pro-tection, the seat belts must always
be used whenever the vehicle is
moving. A properly positioned
shoulder belt should be positioned
midway over your shoulder across
your collarbone. Never allow children to ride in the
front passenger seat. See child
restraint system section for further
discussion.
SEAT BELTS
Shoulder belt
Never wear the shoulder belt
under your arm or behind your
back. An improperly positioned
shoulder belt cannot protect the
occupant in a crash.
WARNING
Damaged seat belt
Replace the entire seat belt
assembly if any part of the web-
bing or hardware is damaged as
you can no longer be sure that a
damaged seat belt will provide
protection in a crash.
WARNING
Twisted seat belt
Make sure your seat belt is not
twisted when worn. A twisted
seat belt may not properly pro-
tect you in an accident and
could even cut into your body.
WARNING
Seat belt buckle
Do not allow foreign material
(gum, crumbs, coins, etc.) to
obstruct the seat belt buckle.
This may prevent the seat belt
from fastening securely.
WARNING
KH USA 3:2016 12/2/2016 10:12 AM Page 20

Seat and safety features of your vehicle
3
3-21
Seat belt warning (for driver’s seat)
The driver's seat belt warning light
and chime will activate to the follow-
ing table when the Engine Start/Stop
button is in "ON" position. The driver seat belt warning light and
chime will activate during following
situations.
The warning light and chime will
activate for 6 seconds when the
seat belt is not buckled and the
Engine Start/Stop button is in ON.
The warning light will activate for 6 seconds when the seat belt is
buckled and the Engine Start/Stop
button is in ON.
If the driver seat belt is buckled and then unbuckled during driving
- If the vehicle speed is below 3mph (5 km/h), the warning light
will illuminate for 6 seconds.
- If the vehicle speed is between 3 mph (5 km/h) ~ 6 mph (10 km/h),
the warning light and sound will
activate for 6 seconds.
- If the vehicle speed is over 6 mph (10 km/h), the warning light and
sound will activate for 6 seconds.
And repeat 11 times with 24 sec-
onds of interval. If the driver seat belt has not been
buckled at all during driving
- If the vehicle speed is over 6 mph(10 km/h), the warning light and
sound will activate for 6 seconds.
And repeat 11 times with 24 sec-
onds of interval.
- If the vehicle speed is below 3 mph (5 km/h), the warning light
and sound will turn off within
6seconds.
- If the seat belt has been buckled during driving, the warning light
will turn off within 6 seconds. The
warning sound will deactivate
immediately.
WKH-001
KH USA 3:2016 12/2/2016 10:12 AM Page 21

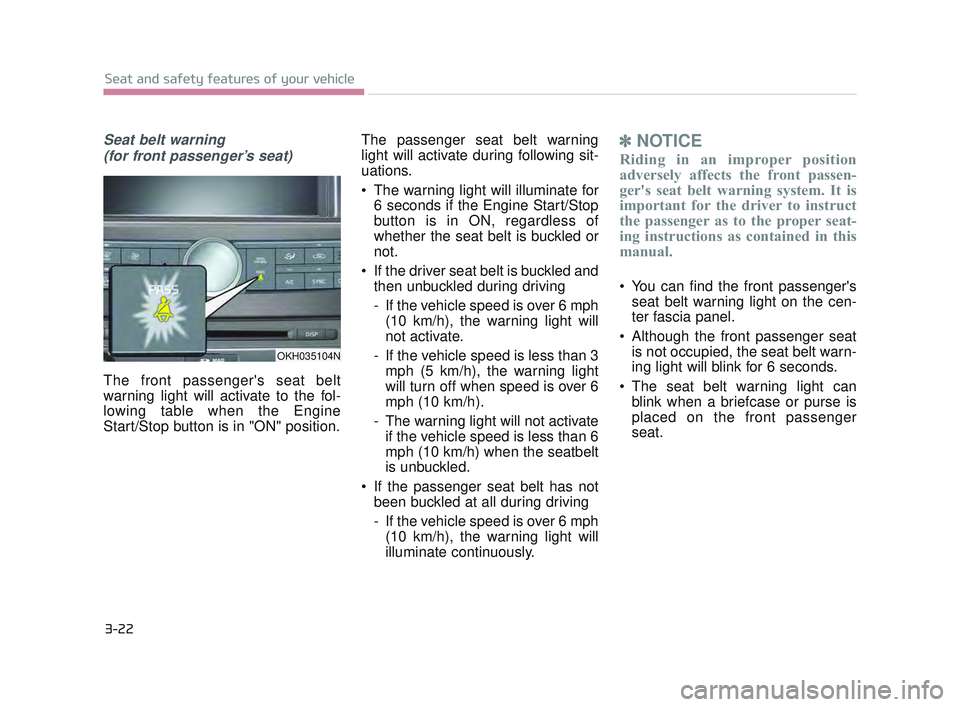

3-22
Seat and safety features of your vehicle
Seat belt warning (for front passenger’s seat)
The front passenger's seat belt
warning light will activate to the fol-
lowing table when the Engine
Start/Stop button is in "ON" position. The passenger seat belt warning
light will activate during following sit-
uations.
The warning light will illuminate for
6 seconds if the Engine Start/Stop
button is in ON, regardless of
whether the seat belt is buckled or
not.
If the driver seat belt is buckled and then unbuckled during driving
- If the vehicle speed is over 6 mph(10 km/h), the warning light will
not activate.
- If the vehicle speed is less than 3 mph (5 km/h), the warning light
will turn off when speed is over 6
mph (10 km/h).
- The warning light will not activate if the vehicle speed is less than 6
mph (10 km/h) when the seatbelt
is unbuckled.
If the passenger seat belt has not been buckled at all during driving
- If the vehicle speed is over 6 mph(10 km/h), the warning light will
illuminate continuously.
✽ NOTICE
Riding in an improper position
adversely affects the front passen-
ger's seat belt warning system. It is
important for the driver to instruct
the passenger as to the proper seat-
ing instructions as contained in this
manual.
You can find the front passenger's
seat belt warning light on the cen-
ter fascia panel.
Although the front passenger seat is not occupied, the seat belt warn-
ing light will blink for 6 seconds.
The seat belt warning light can blink when a briefcase or purse is
placed on the front passenger
seat.
OKH035104N
KH USA 3:2016 12/2/2016 10:12 AM Page 22
