Features of your vehicle
4

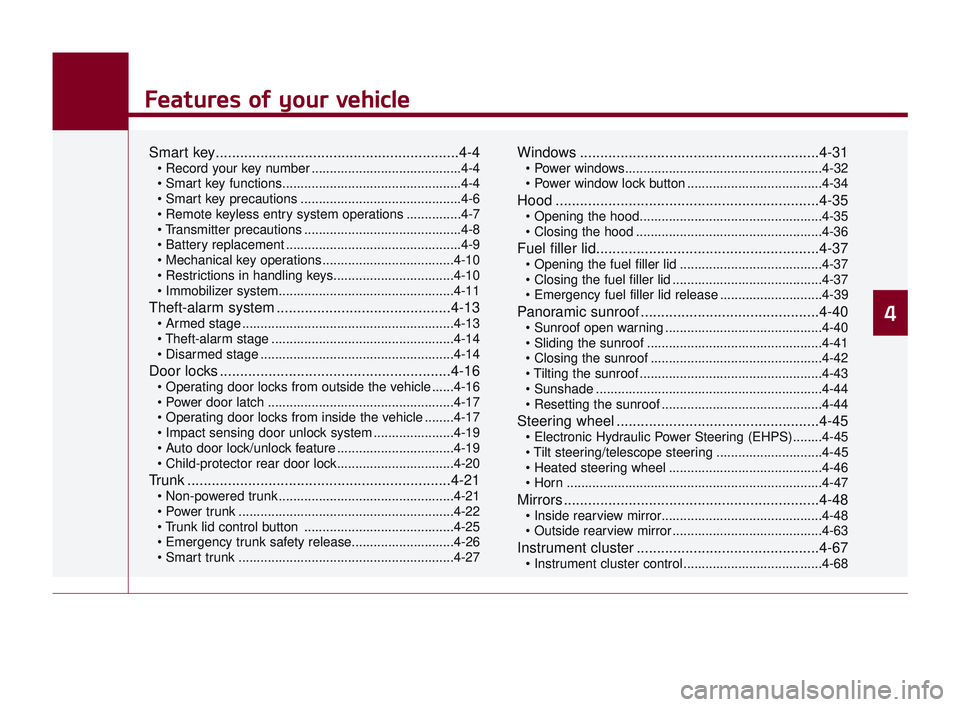

Features of your vehicle
Smart key............................................................4-4
.........................................4-4

............................................4-6
...............4-7
...........................................4-8
................................................4-9
....................................4-10


Theft-alarm system ...........................................4-13
..........................................................4-13
..................................................4-14
.....................................................4-14
Door locks .........................................................4-16
......4-16
...................................................4-17
........4-17
......................4-19
................................4-19

Trunk .................................................................4-21
................................................4-21
...........................................................4-22
.........................................4-25

...........................................................4-27
Windows ...........................................................4-31

.....................................4-34
Hood .................................................................4-35

...................................................4-36
Fuel filler lid.......................................................4-37
.......................................4-37
.........................................4-37
............................4-39
Panoramic sunroof ............................................4-40
...........................................4-40
................................................4-41
...............................................4-42
..................................................4-43
..............................................................4-44
............................................4-44
Steering wheel ..................................................4-45

.............................4-45
..........................................4-46
......................................................................4-\
47
Mirrors ...............................................................4-48

.........................................4-63
Instrument cluster .............................................4-67
......................................4-68
4
KH USA 4:2015 12/2/2016 10:22 AM Page 1

...............................................4-68
..................................................................4-69
.........................................4-72
LCD display.......................................................4-73
...........................................................4-73

.......................................4-75
...............................................4-75
..............................................................4-75
..................................................4-76
...............................................4-78

Trip computer ....................................................4-96
...............................................................4-96
........................................................4-96
..................................................................4-98
Warning and indicator lights ...........................4-100

.....................................................4-109
Head up display (HUD) ...................................4-115
..........................................................4-115

..............................4-116
.....................................4-117
Parking Assist System ....................................4-118
.............4-118
System ..............................................................4-120
......................................................4-121
Rear Camera Display .....................................4-122
Parking Guide System ....................................4-124
.................4-124
...................................4-125
Front Blind Spot Monitoring System ...............4-126
Surround View Monitoring System (SVM) ......4-127
Welcome system.............................................4-128
........................................................4-128
.............................................................4-128
.........................................................4-128
Lighting ...........................................................4-129
.........................................4-129
....................................4-129
..........................................4-130
....................................................4-130
...........................................4-133
.................4-134
......................................................4-135

Wipers and washers .......................................4-136

Interior light .....................................................4-139
..................................4-139
4
KH USA 4:2015 12/2/2016 10:22 AM Page 2

Features of your vehicle
4
................................................4-139


.............................................4-141
...................................................4-142
...............................................4-142
Defroster .........................................................4-143
........................................4-143
Automatic climate control system ...................4-144
...............4-145
...................4-146
................................................4-154
.......................................4-156
and compressor lubricant ....................................4-157
.........................4-157
Windshield defrosting and defogging..............4-158
..................................4-158
..............................4-159


.........................4-162
Climate Control Additional Features ...............4-163
.....................................................4-163
.................................................4-163
Storage compartments ...................................4-164
.......................................4-164
............................................................4-165
..................................................4-166
..................................................4-166
..........................................................4-167
Interior features...............................................4-168

..............................................................4-169

........................................................4-171
...............................................4-172
...................................................................4-174\
....................................................4-175
.............................................4-175


...........................................4-177

.........................................................4-178
Multimedia system ..........................................4-179
and iPod®port ....................................4-179

............4-180
.........................4-180

®Wireless Technology hands-free .......4-181
...............................................................4-181

4
KH USA 4:2015 12/2/2016 10:22 AM Page 3

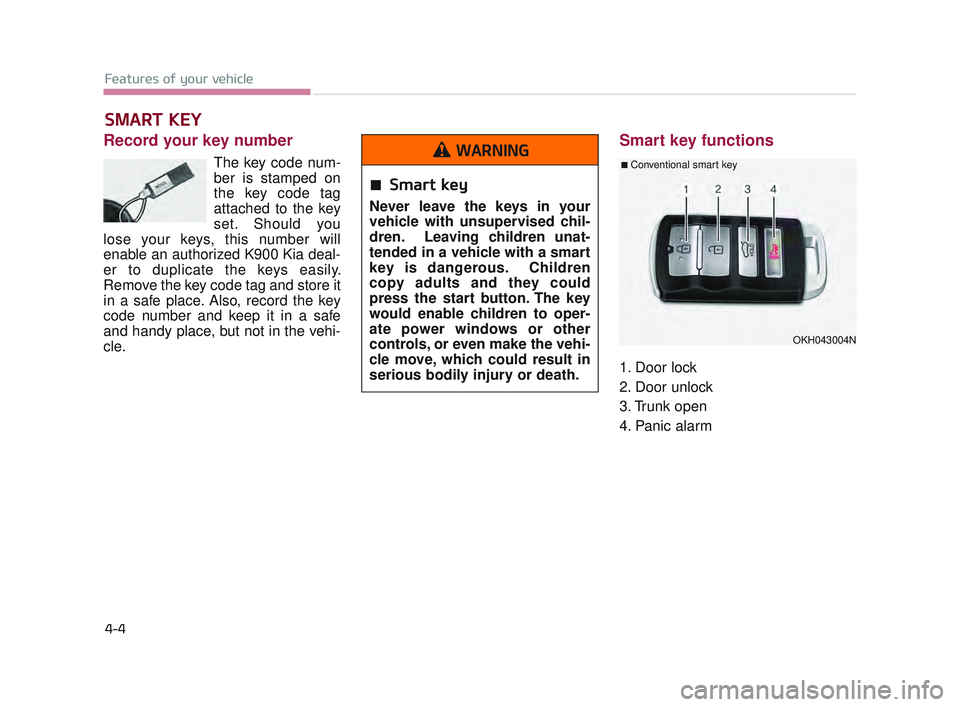

Record your key number
The key code num-
ber is stamped on
the key code tag
attached to the key
set. Should you
lose your keys, this number will
enable an authorized K900 Kia deal-
er to duplicate the keys easily.
Remove the key code tag and store it
in a safe place. Also, record the key
code number and keep it in a safe
and handy place, but not in the vehi-
cle.
Smart key functions
1. Door lock
2. Door unlock
3. Trunk open
4. Panic alarm
SMART KEY
Features of your vehicle
4-4
OKH043004N
■ Conventional smart key
Smart key
Never leave the keys in your
vehicle with unsupervised chil-
dren. Leaving children unat-
tended in a vehicle with a smart
key is dangerous. Children
copy adults and they could
press the start button. The key
would enable children to oper-
ate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or death.
WARNING
KH USA 4:2015 12/2/2016 10:22 AM Page 4

With smart key, you can lock or
unlock doors (and trunk) and start
the engine without inserting the key.
Refer to the following, for more
details.Locking
Pressing the button of the front out-
side door handles with all doors
closed and any door unlocked, locks
all the doors. The hazard warning
lights will blink and the chime will
sound once to indicate that all doors
are locked. The button will only oper-
ate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle. If you want to make
sure that a door has locked or not,
you should check the door lock but-
ton inside the vehicle or pull the out-
side door handle.In some instances, when the outside
door button is selected, the doors will
not lock and an audible chime will
sound for 3 seconds if any of the fol-
lowing occurs:
The smart key is in the vehicle.
The Engine Start/Stop button is in
the ACC or ON position.
Any door except the trunk is opened.
Features of your vehicle
4
4-5
OKH043003N
KH USA 4:2015 12/2/2016 10:22 AM Page 5

Features of your vehicle
4-6
Unlocking
Pressing the button of the driver's (or
front passenger’s) outside door han-
dle with all doors closed and locked,
unlocks the driver's door.
The hazard warning lights will blink
and the chime will sound twice to
indicate that the driver's door is
unlocked. Also, the outside rearview
mirrors will automatically unfold if the
outside rearview mirror folding switch
is in the AUTO position.
If you press the button of the driver's
outside door handle again within 4
seconds, The other doors will be
unlocked. But if you press the button
of the driver's outside door handle
again after 4 seconds, all doors will
be locked.
The button will only operate when the
smart key is within 28~40 in. (0.7~1m)
from the outside door handle.
Start-up
You can start the engine without
inserting the key. For detailed infor-
mation refer to “Starting the engine
with a smart key” in chapter 5.
Smart key precautions
If you lose your smart key, you willnot be able to start the engine. Tow
the vehicle, if necessary, and con-
tact an authorized K900 Kia dealer.
A maximum of 2 smart keys can be registered to a single vehicle. If you
lose a smart key, you should imme-
diately take the vehicle and key to
your authorized K900 Kia dealer to
protect it from potential theft.
The smart key will not work if any of following occurs:
- The smart key is close to a radiotransmitter such as a radio sta-
tion or an airport which can inter-
fere with normal operation of the
smart key.
- The smart key near a mobile two-way radio system or a cellu-
lar phone.
- Another vehicle’s smart key is being operated close to your
vehicle. When the smart key does not work
correctly, open and close the door
with the mechanical key. If you
have a problem with the smart key,
contact an authorized K900 Kia
dealer.
If the smart key is in close proximity to your cell phone or smart phone,
the signal from the smart key could
be blocked by normal operation of
your cell phone or smart phone.
This is especially important when
the phone is active such as making
call, receiving calls, text messaging,
and/or sending/receiving emails.
Avoid placing the smart key and
your cell phone or smart phone in
the same pants or jacket pocket and
maintain adequate distance
between the two devices.
Transmitter
Keep the smart key away from
water or any liquid as it can
become damaged and not func-
tion properly.
CAUTION
KH USA 4:2015 12/2/2016 10:22 AM Page 6

Features of your vehicle
4
4-7
Remote keyless entry system
operations
Lock (1)
All doors are locked if the lock button
is pressed. If all doors (and trunk) are
closed, the hazard warning lights will
blink once to indicate that all doors
(and trunk) are locked.
Also, if the lock button is pressed
once more within 4 seconds, the
hazard warning lights will blink and
the chime will sound once to confirm
that the door is locked.However, if any door remains open,
the hazard warning lights (and/or the
chime) will not operate. But if all
doors are closed after the lock button
is pressed, the hazard warning lights
will blink once.
Unlock (2)
The driver's door is unlocked if the
unlock button is pressed once. The
hazard warning lights will blink (for
smart key, the chime also sounds)
twice to indicate that the driver's door
is unlocked.
All doors are unlocked if the unlock
button is pressed once more within 4
seconds. The hazard warning lights
will blink (for smart key, the chime
also sounds) twice again to indicate
that all doors are unlocked. After
pressing this button, the doors will
lock automatically unless you open
any door within 30 seconds.
✽
NOTICE
If the keyless entry system is inoper-
ative due to exposure to water or liq-
uids, it will not be covered by your
manufacturer's vehicle warranty.
OKH043004N
KH USA 4:2015 12/2/2016 10:22 AM Page 7

Features of your vehicle
4-8
Trunk open (3)
The trunk is opened if the button is
pressed for more than 1 second.
Once the trunk is opened and then
closed, the trunk will lock automati-
cally.
Panic alarm (4)
The horn sounds and the hazard
warning lights blink for about 30 sec-
onds if this button is pressed for
more than 0.5 seconds. To stop the
horn and lights, press any button on
the transmitter.
Transmitter precautions
The transmitter (or smart key) will not
work if any of following occurs:
You exceed the operating distancelimit (about 90 feet [30 m]).
The battery in the transmitter (or smart key) is weak.
Other vehicles or objects may be blocking the signal.
The weather is extremely cold.
The transmitter (or smart key) is close to a radio transmitter such as
a radio station or an airport which
can interfere with normal operation
of the transmitter.
When the transmitter (or smart key)
does not work properly, open and
close the door with the smart key. If
you have a problem with the trans-
mitter (or smart key), contact an
authorized K900 Kia dealer. If the transmitter is in close proximi-
ty to your cell phone or smart phone,
the signal from the transmitter could
be blocked by normal operation of
your cell phone or smart phone. This
is especially important when the
phone is active such as making call,
receiving calls, text messaging,
and/or sending/receiving emails.
Avoid placing the transmitter and
your cell phone or smart phone in
the same pants or jacket pocket and
maintain adequate distance
between the two devices.
Transmitter damage
Do not drop, wet or expose the
keyless entry system transmit-
ter to heat or sunlight.
CAUTION
KH USA 4:2015 12/2/2016 10:22 AM Page 8

Features of your vehicle
4
4-9
Pursuant to Code of Federal
Regulations, Title 47, Part 15
("FCC Rules")
Operation is subject to the following
two conditions:
1.This device may not cause harmfulinterference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
✽ NOTICE
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to changes
or modifications not expressly
approved by the party responsible
for compliance, it will not be cov-
ered by your manufacturer’s vehicle
warranty.
Battery replacement
Conventional smart key
A battery should last for several
years, but if the smart key is not work-
ing properly, try replacing the battery
with a new one. If you are unsure how
to use or replace the battery, contact
an authorized K900 Kia dealer.
1.Pry open the smart key center cover.
2.Replace the battery with a newbattery (CR2032). When replacing
the battery, make sure the battery
position.
3.Install the battery in the reverse order of removal.
OKH043006N
KH USA 4:2015 12/2/2016 10:22 AM Page 9

Features of your vehicle
4-10
Mechanical key operations
Used to lock and unlock the glovebox.
Lock and unlock the doors when the vehicle or smart key battery is
discharged.
Conventional smart key
To remove the mechanical key, press
and hold the release button(1) and
remove the mechanical key(2).
To reinstall the mechanical key, put
the key into the hole and push it until
a click sound is heard.
Restrictions in Handling Keys
When leaving keys with parking lot
and valet attendants, the following
procedures will ensure your vehicle’s
trunk and glove box compartment
can only be opened with the
mechanical key.
OKH043008NOKH043010N
KH USA 4:2015 12/2/2016 10:22 AM Page 10
