Features of your vehicle
28
4

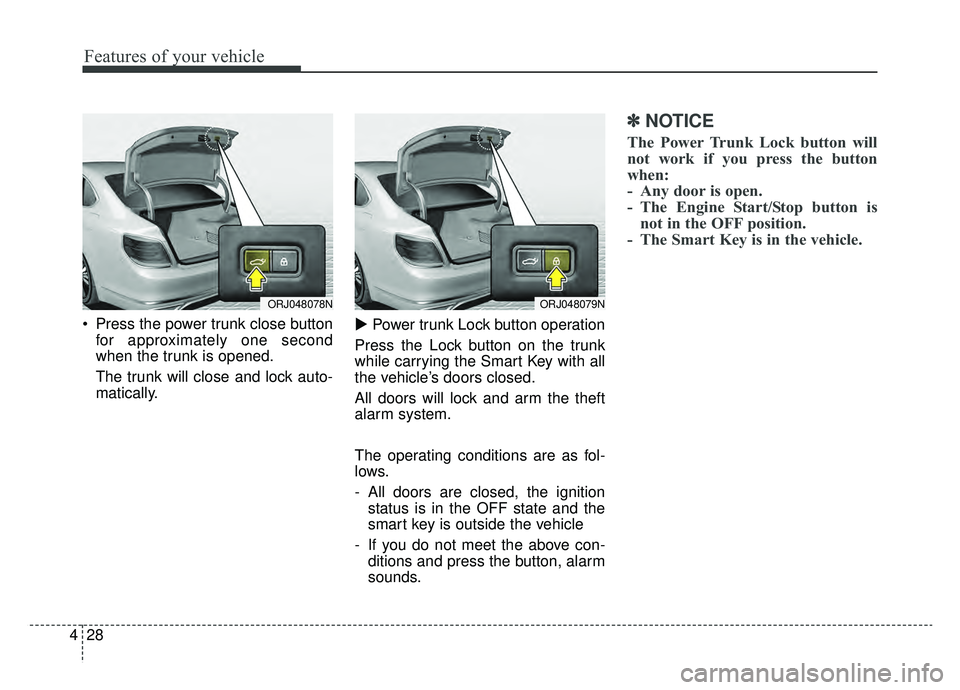

Press the power trunk close button
for approximately one second
when the trunk is opened.
The trunk will close and lock auto-
matically.
Power trunk Lock button operation
Press the Lock button on the trunk
while carrying the Smart Key with all
the vehicle’s doors closed.
All doors will lock and arm the theft
alarm system.
The operating conditions are as fol-
lows.
- All doors are closed, the ignition status is in the OFF state and the
smart key is outside the vehicle
- If you do not meet the above con- ditions and press the button, alarm
sounds.
✽ ✽ NOTICE
The Power Trunk Lock button will
not work if you press the button
when:
- Any door is open.
- The Engine Start/Stop button is
not in the OFF position.
- The Smart Key is in the vehicle.
ORJ048078NORJ048079N

429
Features of your vehicle

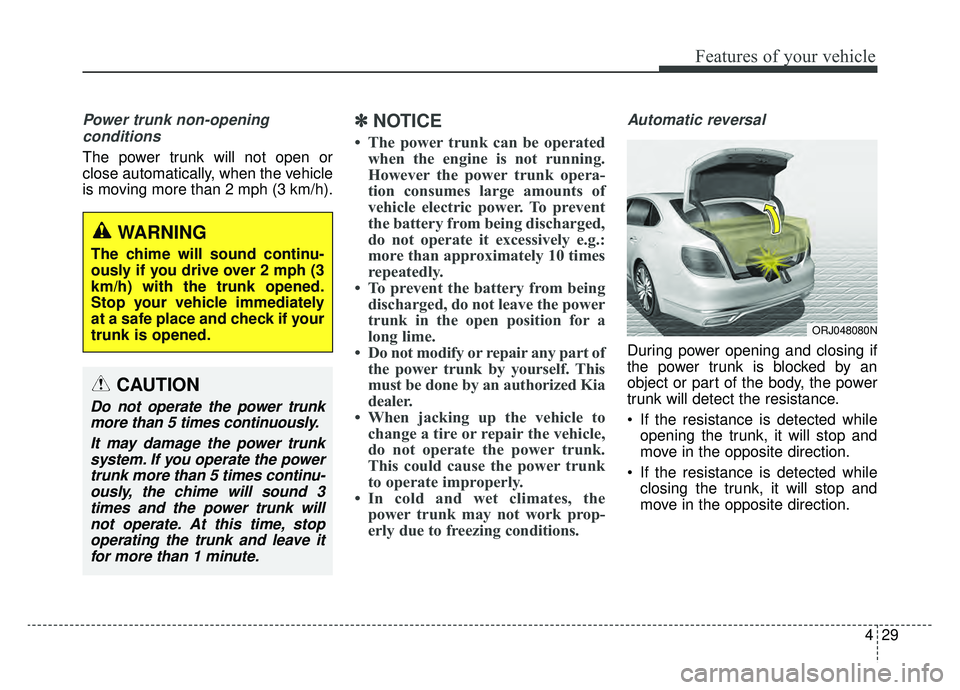

Power trunk non-opening conditions
The power trunk will not open or
close automatically, when the vehicle
is moving more than 2 mph (3 km/h).
✽ ✽ NOTICE
• The power trunk can be operated
when the engine is not running.
However the power trunk opera-
tion consumes large amounts of
vehicle electric power. To prevent
the battery from being discharged,
do not operate it excessively e.g.:
more than approximately 10 times
repeatedly.
• To prevent the battery from being discharged, do not leave the power
trunk in the open position for a
long lime.
• Do not modify or repair any part of the power trunk by yourself. This
must be done by an authorized Kia
dealer.
• When jacking up the vehicle to change a tire or repair the vehicle,
do not operate the power trunk.
This could cause the power trunk
to operate improperly.
• In cold and wet climates, the power trunk may not work prop-
erly due to freezing conditions.
Automatic reversal
During power opening and closing if
the power trunk is blocked by an
object or part of the body, the power
trunk will detect the resistance.
If the resistance is detected while
opening the trunk, it will stop and
move in the opposite direction.
If the resistance is detected while closing the trunk, it will stop and
move in the opposite direction.
WARNING
The chime will sound continu-
ously if you drive over 2 mph (3
km/h) with the trunk opened.
Stop your vehicle immediately
at a safe place and check if your
trunk is opened.
CAUTION
Do not operate the power trunkmore than 5 times continuously.
It may damage the power trunksystem. If you operate the powertrunk more than 5 times continu-ously, the chime will sound 3times and the power trunk willnot operate. At this time, stopoperating the trunk and leave itfor more than 1 minute.
ORJ048080N

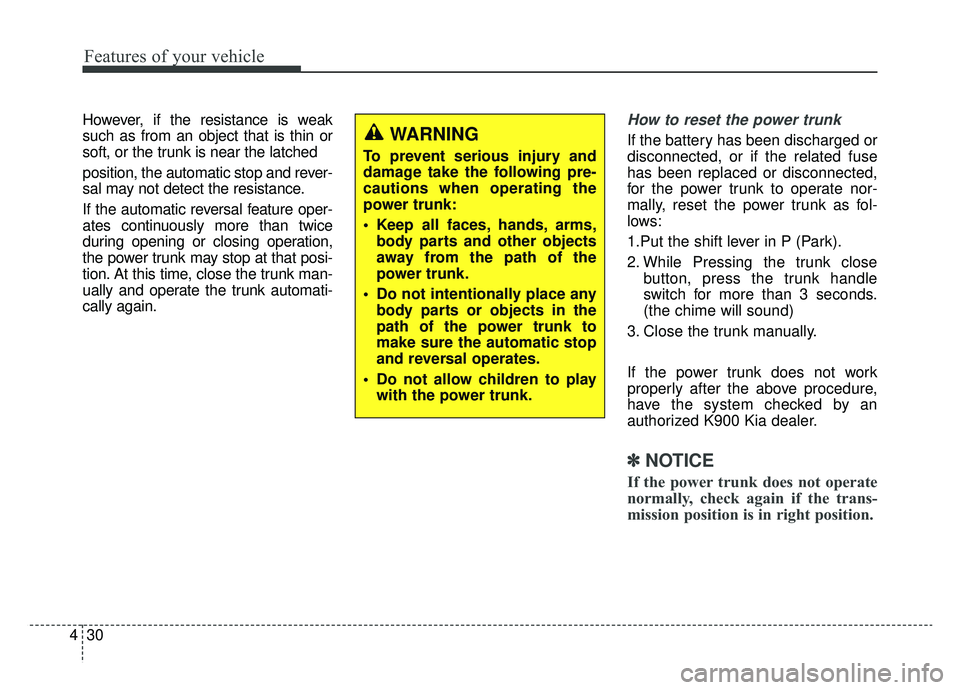

Features of your vehicle
30
4
However, if the resistance is weak
such as from an object that is thin or
soft, or the trunk is near the latched
position, the automatic stop and rever-
sal may not detect the resistance.
If the automatic reversal feature oper-
ates continuously more than twice
during opening or closing operation,
the power trunk may stop at that posi-
tion. At this time, close the trunk man-
ually and operate the trunk automati-
cally again.How to reset the power trunk
If the battery has been discharged or
disconnected, or if the related fuse
has been replaced or disconnected,
for the power trunk to operate nor-
mally, reset the power trunk as fol-
lows:
1.Put the shift lever in P (Park).
2. While Pressing the trunk close
button, press the trunk handle
switch for more than 3 seconds.
(the chime will sound)
3. Close the trunk manually.
If the power trunk does not work
properly after the above procedure,
have the system checked by an
authorized K900 Kia dealer.
✽ ✽ NOTICE
If the power trunk does not operate
normally, check again if the trans-
mission position is in right position.
WARNING
To prevent serious injury and
damage take the following pre-
cautions when operating the
power trunk:
• Keep all faces, hands, arms,
body parts and other objects
away from the path of the
power trunk.
Do not intentionally place any body parts or objects in the
path of the power trunk to
make sure the automatic stop
and reversal operates.
Do not allow children to play with the power trunk.

431
Features of your vehicle

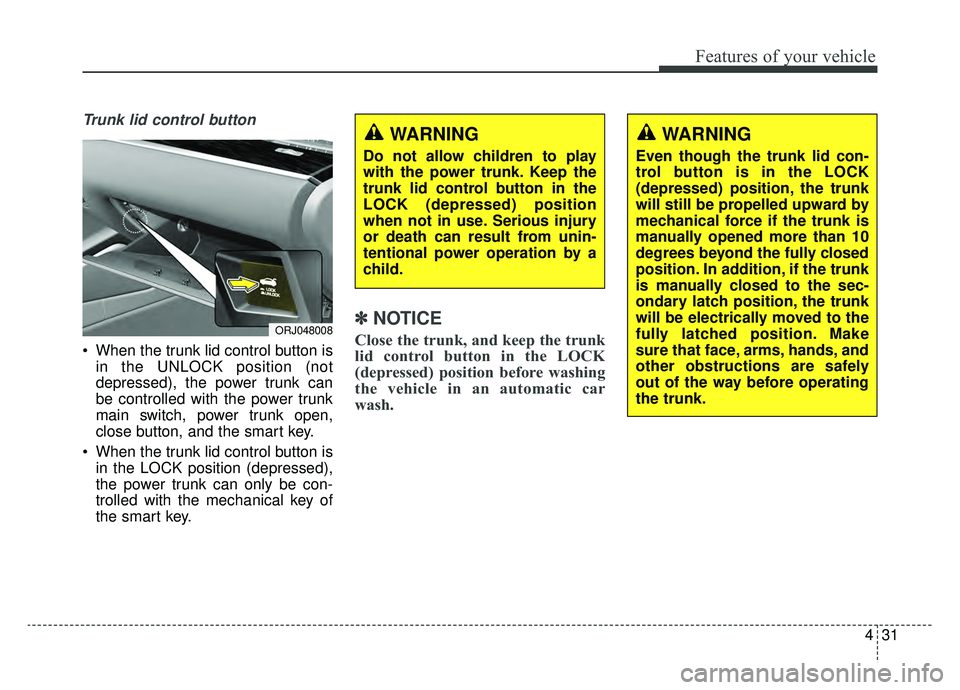

Trunk lid control button
When the trunk lid control button isin the UNLOCK position (not
depressed), the power trunk can
be controlled with the power trunk
main switch, power trunk open,
close button, and the smart key.
When the trunk lid control button is in the LOCK position (depressed),
the power trunk can only be con-
trolled with the mechanical key of
the smart key.
✽ ✽ NOTICE
Close the trunk, and keep the trunk
lid control button in the LOCK
(depressed) position before washing
the vehicle in an automatic car
wash.ORJ048008
WARNING
Do not allow children to play
with the power trunk. Keep the
trunk lid control button in the
LOCK (depressed) position
when not in use. Serious injury
or death can result from unin-
tentional power operation by a
child.
WARNING
Even though the trunk lid con-
trol button is in the LOCK
(depressed) position, the trunk
will still be propelled upward by
mechanical force if the trunk is
manually opened more than 10
degrees beyond the fully closed
position. In addition, if the trunk
is manually closed to the sec-
ondary latch position, the trunk
will be electrically moved to the
fully latched position. Make
sure that face, arms, hands, and
other obstructions are safely
out of the way before operating
the trunk.

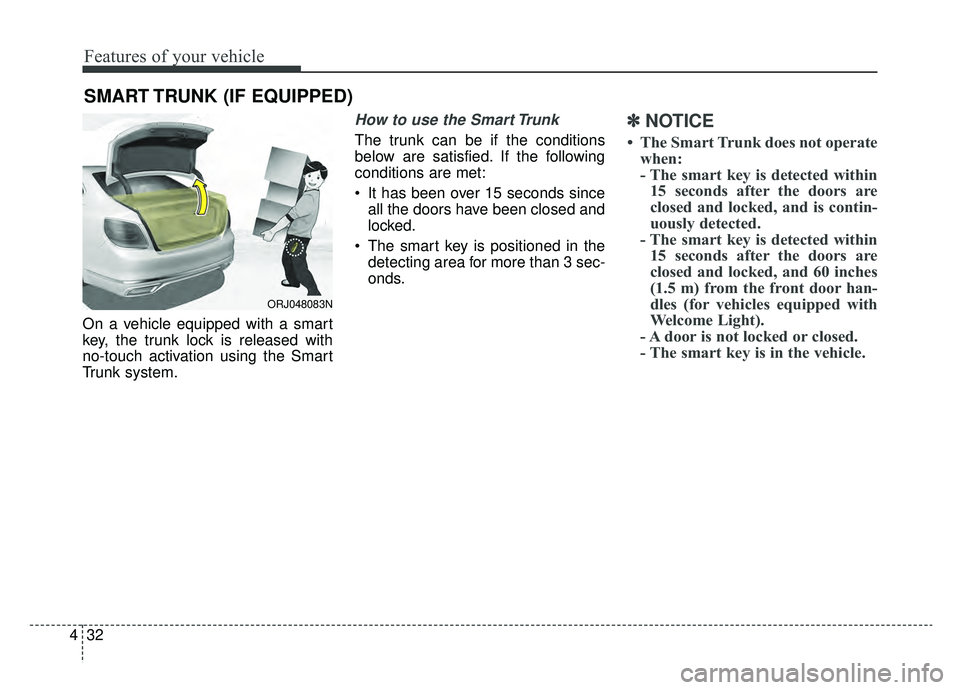

Features of your vehicle
32
4
On a vehicle equipped with a smart
key, the trunk lock is released with
no-touch activation using the Smart
Trunk system.
How to use the Smart Trunk
The trunk can be if the conditions
below are satisfied. If the following
conditions are met:
It has been over 15 seconds since
all the doors have been closed and
locked.
The smart key is positioned in the detecting area for more than 3 sec-
onds.
✽ ✽ NOTICE
• The Smart Trunk does not operate
when:
- The smart key is detected within15 seconds after the doors are
closed and locked, and is contin-
uously detected.
- The smart key is detected within 15 seconds after the doors are
closed and locked, and 60 inches
(1.5 m) from the front door han-
dles (for vehicles equipped with
Welcome Light).
- A door is not locked or closed.
- The smart key is in the vehicle.
SMART TRUNK (IF EQUIPPED)
ORJ048083N

433
Features of your vehicle

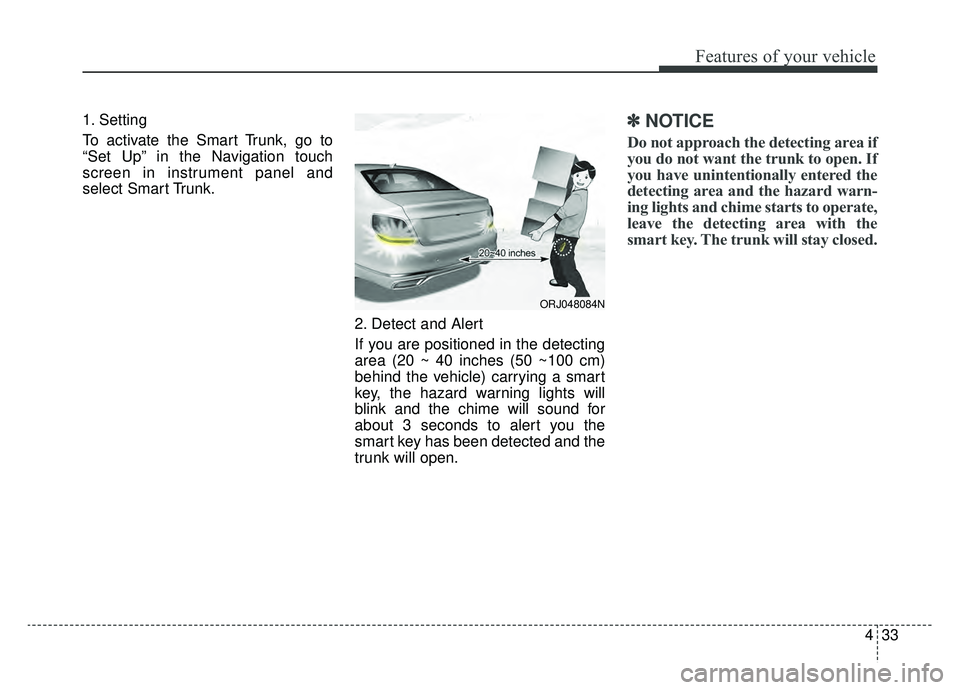

1. Setting
To activate the Smart Trunk, go to
“Set Up” in the Navigation touch
screen in instrument panel and
select Smart Trunk.2. Detect and Alert
If you are positioned in the detecting
area (20 ~ 40 inches (50 ~100 cm)
behind the vehicle) carrying a smart
key, the hazard warning lights will
blink and the chime will sound for
about 3 seconds to alert you the
smart key has been detected and the
trunk will open.✽ ✽NOTICE
Do not approach the detecting area if
you do not want the trunk to open. If
you have unintentionally entered the
detecting area and the hazard warn-
ing lights and chime starts to operate,
leave the detecting area with the
smart key. The trunk will stay closed.
ORJ048084N

Features of your vehicle
34
4

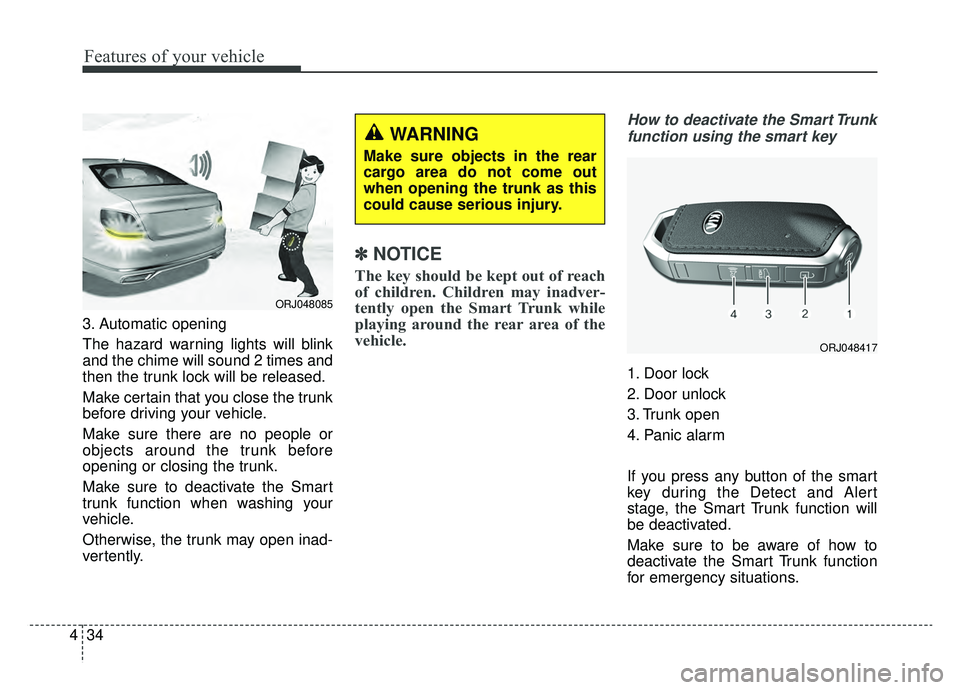

3. Automatic opening
The hazard warning lights will blink
and the chime will sound 2 times and
then the trunk lock will be released.
Make certain that you close the trunk
before driving your vehicle.
Make sure there are no people or
objects around the trunk before
opening or closing the trunk.
Make sure to deactivate the Smart
trunk function when washing your
vehicle.
Otherwise, the trunk may open inad-
vertently.
✽ ✽
NOTICE
The key should be kept out of reach
of children. Children may inadver-
tently open the Smart Trunk while
playing around the rear area of the
vehicle.
How to deactivate the Smart Trunk
function using the smart key
1. Door lock
2. Door unlock
3. Trunk open
4. Panic alarm
If you press any button of the smart
key during the Detect and Alert
stage, the Smart Trunk function will
be deactivated.
Make sure to be aware of how to
deactivate the Smart Trunk function
for emergency situations.
ORJ048417
ORJ048085
WARNING
Make sure objects in the rear
cargo area do not come out
when opening the trunk as this
could cause serious injury.

435
Features of your vehicle

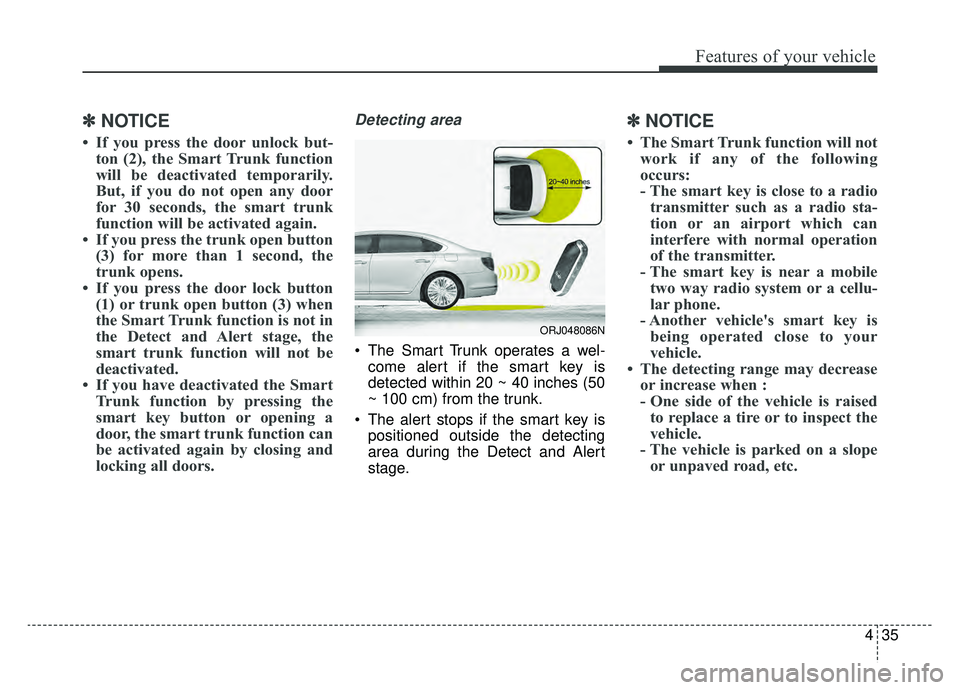

✽ ✽NOTICE
• If you press the door unlock but-
ton (2), the Smart Trunk function
will be deactivated temporarily.
But, if you do not open any door
for 30 seconds, the smart trunk
function will be activated again.
• If you press the trunk open button (3) for more than 1 second, the
trunk opens.
• If you press the door lock button (1) or trunk open button (3) when
the Smart Trunk function is not in
the Detect and Alert stage, the
smart trunk function will not be
deactivated.
• If you have deactivated the Smart Trunk function by pressing the
smart key button or opening a
door, the smart trunk function can
be activated again by closing and
locking all doors.
Detecting area
The Smart Trunk operates a wel-
come alert if the smart key is
detected within 20 ~ 40 inches (50
~ 100 cm) from the trunk.
The alert stops if the smart key is positioned outside the detecting
area during the Detect and Alert
stage.
✽ ✽ NOTICE
• The Smart Trunk function will not
work if any of the following
occurs:
- The smart key is close to a radiotransmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the transmitter.
- The smart key is near a mobile two way radio system or a cellu-
lar phone.
- Another vehicle's smart key is being operated close to your
vehicle.
• The detecting range may decrease or increase when :
- One side of the vehicle is raisedto replace a tire or to inspect the
vehicle.
- The vehicle is parked on a slope or unpaved road, etc.
ORJ048086N

Features of your vehicle
36
4

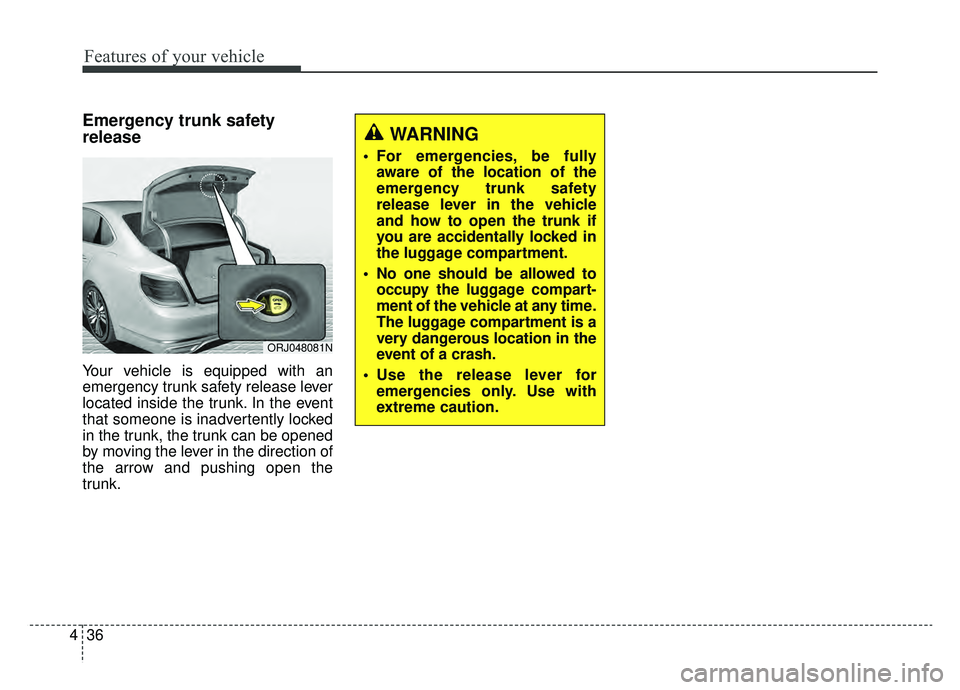

Emergency trunk safety
release
Your vehicle is equipped with an
emergency trunk safety release lever
located inside the trunk. In the event
that someone is inadvertently locked
in the trunk, the trunk can be opened
by moving the lever in the direction of
the arrow and pushing open the
trunk.
WARNING
For emergencies, be fully
aware of the location of the
emergency trunk safety
release lever in the vehicle
and how to open the trunk if
you are accidentally locked in
the luggage compartment.
No one should be allowed to occupy the luggage compart-
ment of the vehicle at any time.
The luggage compartment is a
very dangerous location in the
event of a crash.
Use the release lever for emergencies only. Use with
extreme caution.
ORJ048081N

437
Features of your vehicle

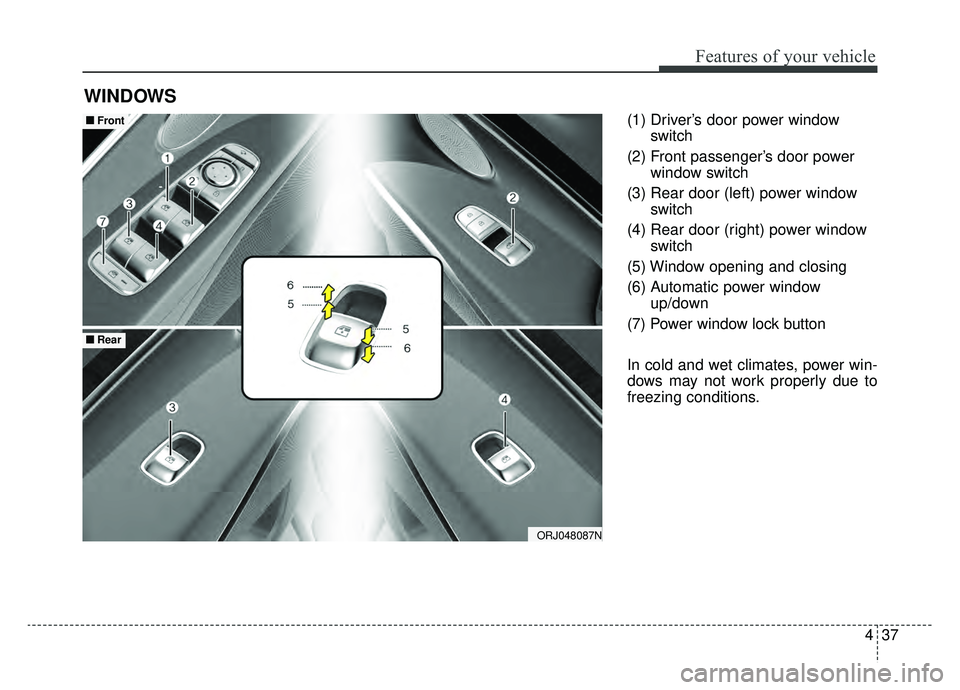

(1) Driver’s door power windowswitch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down
(7) Power window lock button
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
ORJ048087N
■ ■ Front
■ ■Rear
