KIA K900 2020 Owners Manual

771
Maintenance

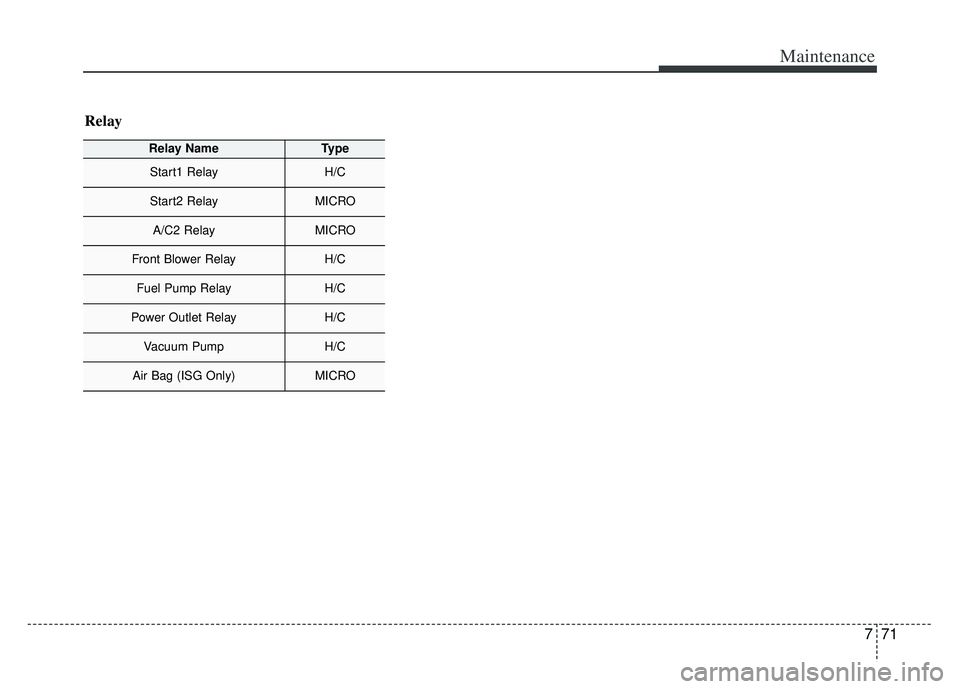

Relay NameType
Start1 RelayH/C
Start2 RelayMICRO
A/C2 RelayMICRO
Front Blower RelayH/C
Fuel Pump RelayH/C
Power Outlet RelayH/C
Vacuum PumpH/C
Air Bag (ISG Only)MICRO
Relay

Maintenance
72
7

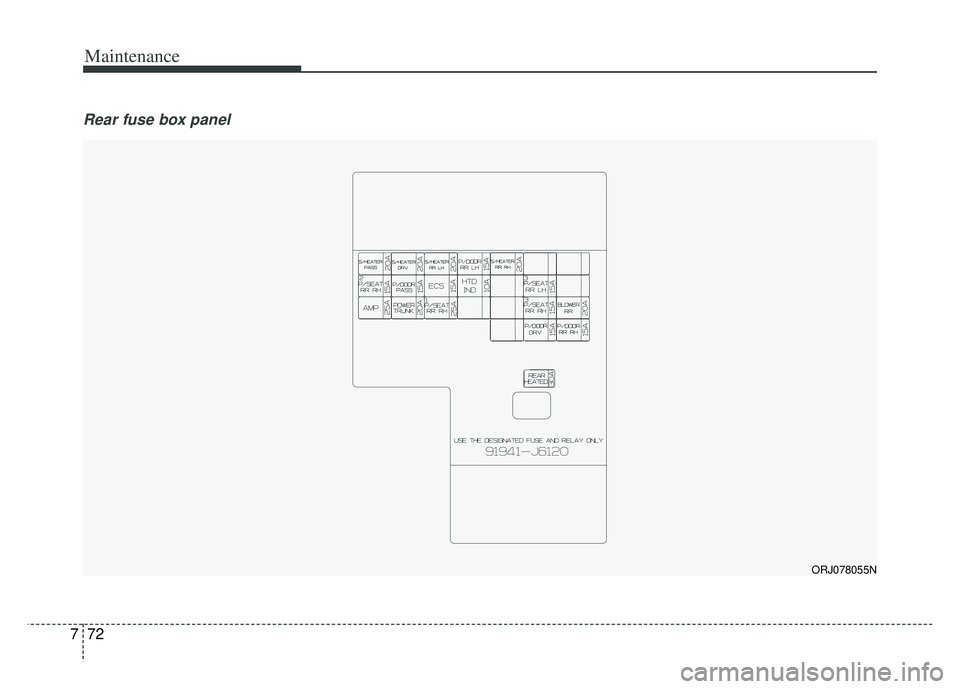

Rear fuse box panel
ORJ078055N

773
Maintenance

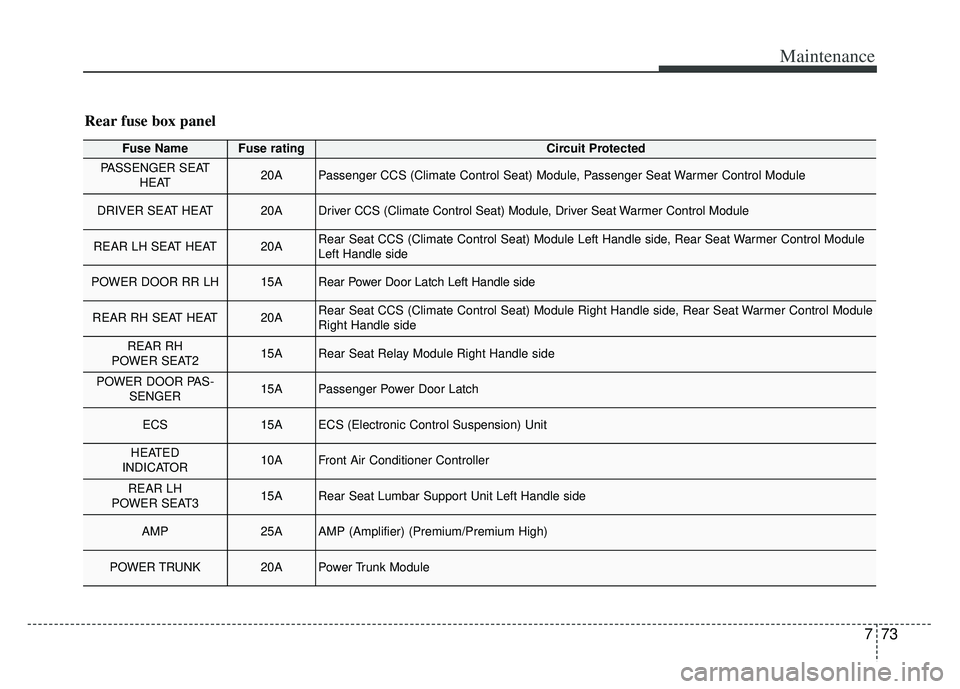

Fuse NameFuse ratingCircuit Protected
PASSENGER SEATHEAT20APassenger CCS (Climate Control Seat) Module, Passenger Seat Warmer Control Module
DRIVER SEAT HEAT20ADriver CCS (Climate Control Seat) Module, Driver Seat Warmer Control Module
REAR LH SEAT HEAT20ARear Seat CCS (Climate Control Seat) Module Left Handle side, Rear Seat Warmer Control Module
Left Handle side
POWER DOOR RR LH15ARear Power Door Latch Left Handle side
REAR RH SEAT HEAT20ARear Seat CCS (Climate Control Seat) Module Right Handle side, Rear Seat Warmer Control Module
Right Handle side
REAR RH
POWER SEAT215ARear Seat Relay Module Right Handle side
POWER DOOR PAS- SENGER15APassenger Power Door Latch
ECS15AECS (Electronic Control Suspension) Unit
HEATED
INDICATOR10AFront Air Conditioner Controller
REAR LH
POWER SEAT315ARear Seat Lumbar Support Unit Left Handle side
AMP25AAMP (Amplifier) (Premium/Premium High)
POWER TRUNK20APower Trunk Module
Rear fuse box panel

Maintenance
74
7

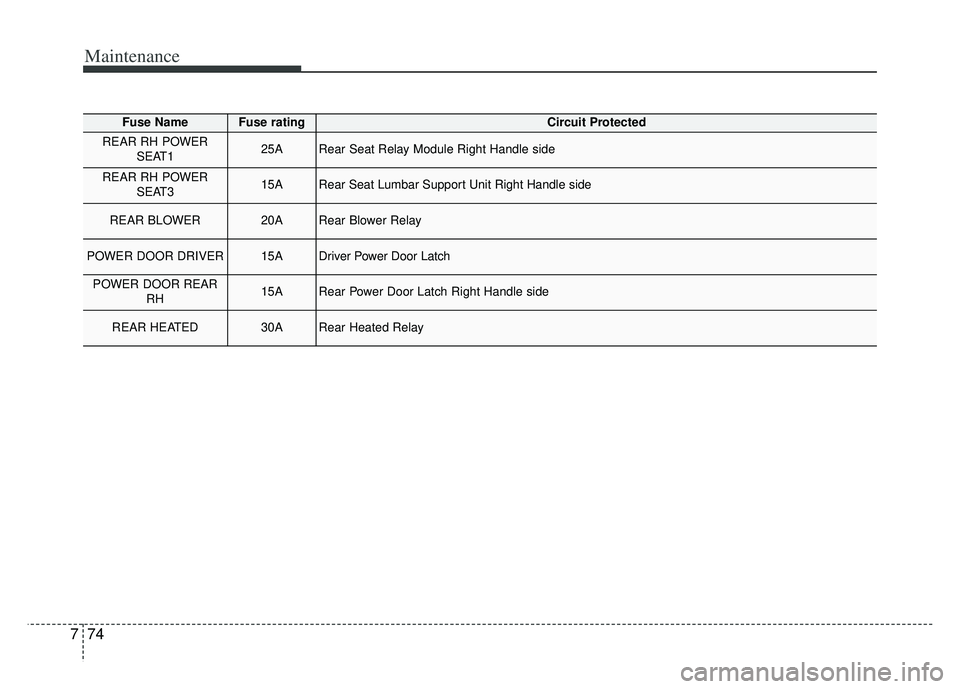

Fuse NameFuse ratingCircuit Protected
REAR RH POWER
SEAT125ARear Seat Relay Module Right Handle side
REAR RH POWERSEAT315ARear Seat Lumbar Support Unit Right Handle side
REAR BLOWER20ARear Blower Relay
POWER DOOR DRIVER15ADriver Power Door Latch
POWER DOOR REAR RH15ARear Power Door Latch Right Handle side
REAR HEATED30ARear Heated Relay

775
Maintenance

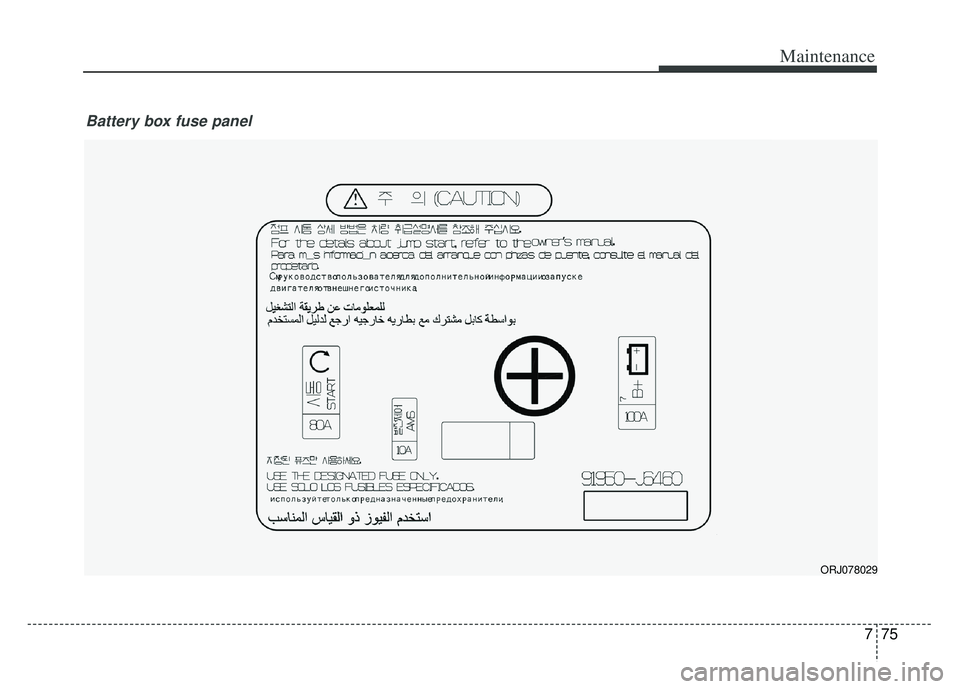

Battery box fuse panel
ORJ078029

Maintenance
76
7
Fuse NameFuse ratingCircuit Protected
START80A
Engine Room Junction Block
(a) NON ISG : FUSE-TCU2/ECU3/START1
(b) ISG : FUSE-TCU2/ECU3/START1/POWER OUT-
LET1/ACC/IG1
B+7100ARear fuse box panel
AMS10ABattery Sensor
Battery box fuse panel

777
Maintenance
LIGHT BULBS
Lamp (LED type) bulb replace-
ment
Only LED lamps are used in this
vehicle.
If the LED lamp does not operate,
have the vehicle checked by an
authorized K900 Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit.The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the license plate lamp (LED),
for it may damage related parts of
the vehicle.
net-work failure
The headlamp, taillight, and fog light
may light up when the head lamp
switch is turned ON, and not light up
when the taillight or fog light switch is
turned ON. This may be cause by
network failure or vehicle electrical
control system malfunction. If there is
a problem, we recommend the sys-
tem be serviced by an authorized
K900 Kia dealer.
trical control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to the stabilization
function of the vehicle's electrical
control system. If the lamp stops
flickering after a few moments, the
vehicle does not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
K900 Kia dealer.
CAUTION -Headlamp
Lens
To prevent damage, do not clean the headlamp lens withchemical solvents or strongdetergents.

Maintenance
78
7
✽ ✽

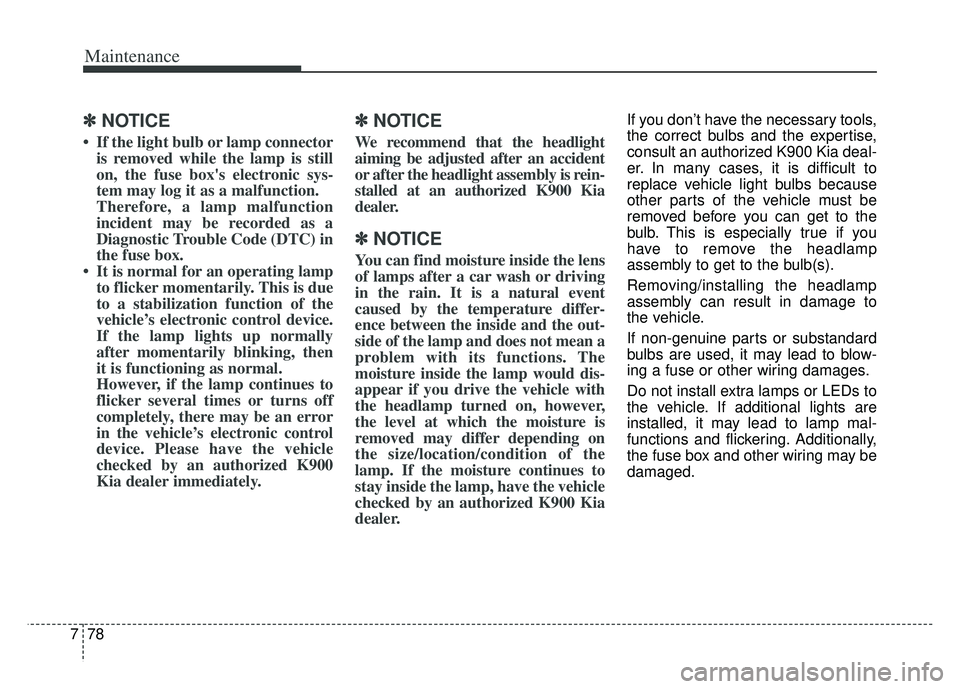

NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized K900
Kia dealer immediately.
✽ ✽ NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized K900 Kia
dealer.
✽ ✽NOTICE
You can find moisture inside the lens
of lamps after a car wash or driving
in the rain. It is a natural event
caused by the temperature differ-
ence between the inside and the out-
side of the lamp and does not mean a
problem with its functions. The
moisture inside the lamp would dis-
appear if you drive the vehicle with
the headlamp turned on, however,
the level at which the moisture is
removed may differ depending on
the size/location/condition of the
lamp. If the moisture continues to
stay inside the lamp, have the vehicle
checked by an authorized K900 Kia
dealer.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized K900 Kia deal-
er. In many cases, it is difficult to
replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the
bulb. This is especially true if you
have to remove the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other wiring may be
damaged.

779
Maintenance

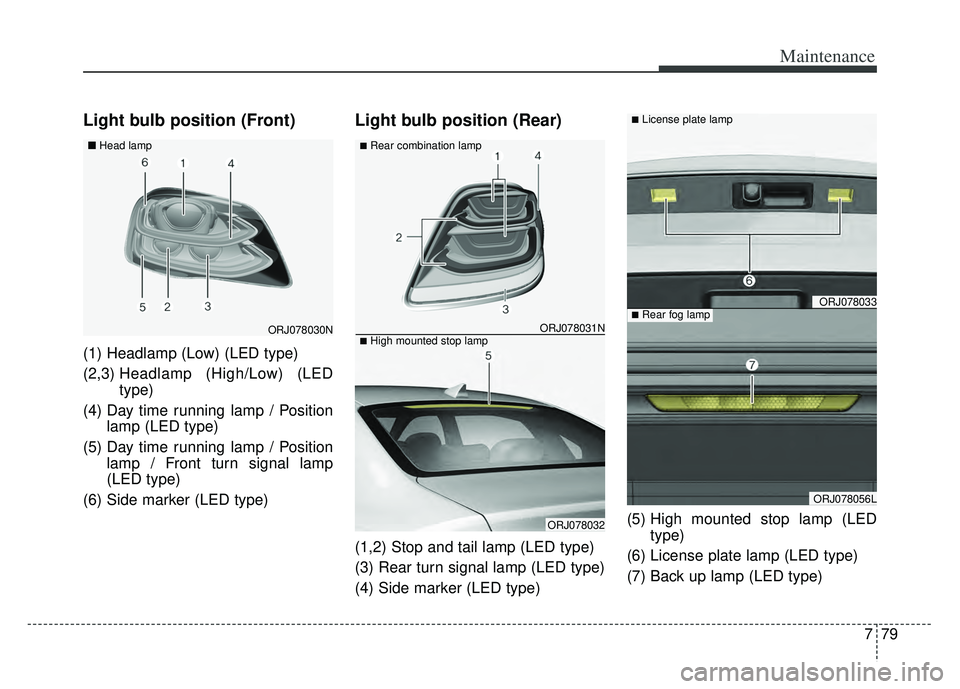

Light bulb position (Front)
(1) Headlamp (Low) (LED type)
(2,3) Headlamp (High/Low) (LED
type)
(4) Day time running lamp / Position lamp (LED type)
(5) Day time running lamp / Position lamp / Front turn signal lamp
(LED type)
(6) Side marker (LED type)
Light bulb position (Rear)
(1,2) Stop and tail lamp (LED type)
(3) Rear turn signal lamp (LED type)
(4) Side marker (LED type) (5) High mounted stop lamp (LED
type)
(6) License plate lamp (LED type)
(7) Back up lamp (LED type)
ORJ078030N
■ Head lamp
ORJ078031N
■Rear combination lamp
ORJ078032
■High mounted stop lamp
ORJ078033
■License plate lamp
ORJ078056L
■Rear fog lamp

Maintenance
80
7

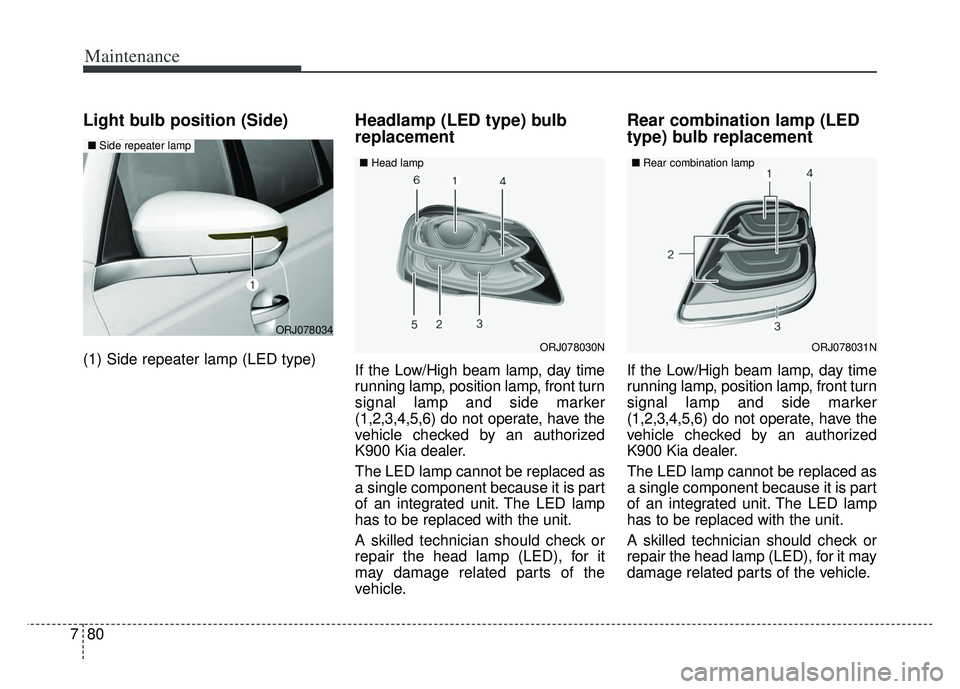

Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (LED type) bulb
replacement
If the Low/High beam lamp, day time
running lamp, position lamp, front turn
signal lamp and side marker
(1,2,3,4,5,6) do not operate, have the
vehicle checked by an authorized
K900 Kia dealer.
The LED lamp cannot be replaced as
a single component because it is part
of an integrated unit. The LED lamp
has to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
Rear combination lamp (LED
type) bulb replacement
If the Low/High beam lamp, day time
running lamp, position lamp, front turn
signal lamp and side marker
(1,2,3,4,5,6) do not operate, have the
vehicle checked by an authorized
K900 Kia dealer.
The LED lamp cannot be replaced as
a single component because it is part
of an integrated unit. The LED lamp
has to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it may
damage related parts of the vehicle.
ORJ078034
■ Side repeater lamp
ORJ078030N
■Head lamp
ORJ078031N
■Rear combination lamp
