Fuse NameFuse ratingCircuit Protected
DRIVER POWER
SEAT225ADriver Power Seat Module, Driver Seat Relay Module, Driver Lumbar Support Unit
TRUNK LID10ATrunk Lid Relay, Fuel Lid Relay, Fuel Filler Door & Trunk Lid Switch
MODULE910AMultifunction Switch, Cooling Fan Controller (BLDC (Brushless Direct Current) Type), Surround View
Monitor Unit, Rear Seat Armrest Console Switch
MODULE610AIBU (Integrated Body Control Unit), 4WD (4 Wheel Drive) ECM (Electronic Control Module), ESC
(Electronic Stability Control) Unit, Lane Keeping Assist Unit (Line), Crash Pad Switch, Steering Tilt &
Telescopic Module
POWER HANDLE15ASteering Tilt & Telescopic Module
REAR LH POWER SEAT215ARear Seat Relay Module Left Handle side (8WAY)
PASSENGER
POWER SEAT225APassenger Power Seat Module, Passenger Seat Relay Module, Passenger Lumbar Support Unit
MODULE310AData Link Connector, Front Console Switch, Rain Sensor, Blind-Spot Collision Warning Unit Left Handle
side/Right Handle side, Rear Seat Armrest Console Switch, Rain Sensor
MODULE710A
Multipurpose Check Connector, Multifunction Switch, Keyboard, Audio/Video & Navigation Head Unit, MTS
(Mozen Telematics System) E-Call Module, Air Quality Sensor, AMP (Amplifier), Air Conditioner Control
Module, Electro Chromic Mirror, Front Air Conditioner Controller, Driver/Passenger Seat Relay Module,
Driver/Passenger Seat Warmer Control Module, Rear Seat Warmer Control Module Left Handle side/Right
Handle side, Driver/Passenger Power Seat Module, Driver/Passenger CCS (Climate Control Seat) Module,
Rear Seat CCS (Climate Control Seat) Module Left Handle side/Right Han\
dle side, Rear Seat Armrest
Console Switch
SUNROOF20ASunroof Control Unit (Glass)

769
Maintenance
Fuse NameFuse ratingCircuit Protected
ECU315AECM (Engine Control Module)
START130AStart1 Relay
ESC310AESC (Electronic Stability Control) Control Module
R-MDPS210ARack-MDPS (Motor Driven Power Steering) Unit
POWER
OUTLET220AFront Tray Power Outlet
HORN20AHorn Relay
WIPER30AWiper Motor
WASHER15AWasher Relay
TCU115ATCM (Transmission Control Module), Start2 Relay
POWER
OUTLET320AFront Power Outlet
SENSOR115AFuel Pump Relay
IGNITION COIL20A[Lambda II 3.3L/3.8L GDI Engine] Ignition Coil #1/#2/#3/#4/#5/#6

Maintenance
70
7
Fuse NameFuse ratingCircuit Protected
MODULE110AActive Air Flap
ECU210AECM (Engine Control Module)
MODULE210AActive Air Flap, Smart Cruise Control Radar
BURGLAR
ALARM10ABurglar Alarm Horn Relay
ECU120AECM (Engine Control Module)
SENSOR315A[Lambda II 3.3L Engine] Oxygen Sensor #1 (B1/S1), Oxygen Sensor #2 (B\
2/S1), Oxygen Sensor #3
(B1/S2), Oxygen Sensor #4 (B2/S2)
WIPER10A[Lambda II 3.3L/3.8L GDI Engine] Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Oil Pressure Solenoid
Valve, Electronic Thermostat, Purge Control Solenoid Valve, Variable Intake Solenoid Valve #1/#2, A/C2
Relay

Maintenance
76
7
Fuse NameFuse ratingCircuit Protected
START80A
Engine Room Junction Block
(a) NON ISG : FUSE-TCU2/ECU3/START1
(b) ISG : FUSE-TCU2/ECU3/START1/POWER OUT-
LET1/ACC/IG1
B+7100ARear fuse box panel
AMS10ABattery Sensor
Battery box fuse panel

Maintenance
84
7
APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign mate-
rials. Make sure the drain holes in the
lower edges of the doors and rocker
panels are kept clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish. High-pressure washing
When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water.

I5
Index
Forward Collision-Avoidance Assist (FCA) system - sensor fusion type (front camera + front radar) . . 5-53
System setting and activation . . . . . . . . . . . . . . . . . . 5-53
FCA warning message and system control . . . . . . . 5-55
FCA sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-58
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-60
Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-62
Recognizing pedestrians or cyclists . . . . . . . . . . . . . 5-66
Forward Collision-Avoidance Assist-Lane-Change Oncoming function (FCA-LO) . . . . . . . . . . . . . . . . 5-69
Function operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-69
Warning message and function control . . . . . . . . . . 5-69
Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-70
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44 Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-44
Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-44
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-45
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-53 Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 7-55
Engine compartment fuse replacement . . . . . . . . . . 7-57
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-59
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6 Head Up Display (HUD) . . . . . . . . . . . . . . . . . . . . . . 4-104
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Head Up Display On/Off . . . . . . . . . . . . . . . . . . . . 4-105
Head Up Display information . . . . . . . . . . . . . . . . 4-105
Head Up Display setting . . . . . . . . . . . . . . . . . . . . 4-105
Highway Driving Assist (HDA) system . . . . . . . . . . . 5-142 Setting and activating HDA system . . . . . . . . . . . . 5-143
Operating conditions . . . . . . . . . . . . . . . . . . . . . . . 5-143
HDA system operation . . . . . . . . . . . . . . . . . . . . . . 5-143
Warning related to steering wheel . . . . . . . . . . . . . 5-144
When the hands-off warning lasts for a certain period of time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-145
HDA malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . 5-146
Radio frequency radiation exposure information. . 5-148
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-42 Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
If the engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
If the engine will not start . . . . . . . . . . . . . . . . . . . . . . . 6-4 If engine doesn't turn over or turns over slowly . . . . 6-4
If engine turns over normally but does not start . . . . 6-4
F
G
H
I

I9

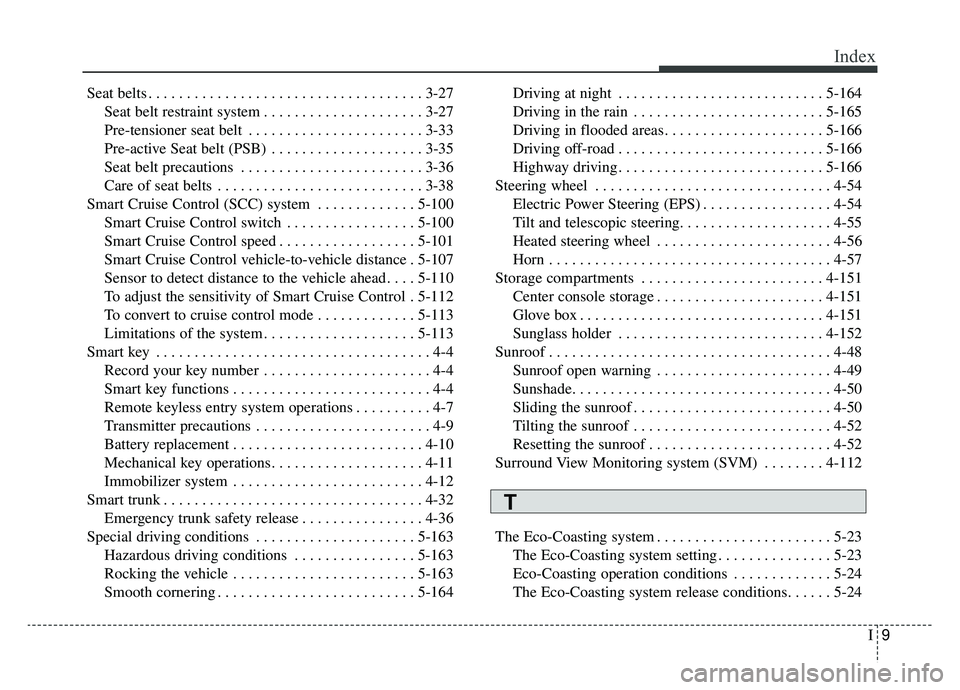

Index
