KIA Magnetis 2006 2.G Owner's Manual

3. If leaks are found, if the warning
light remains ON, or if the brakes do
not operate properly, do not drive the
vehicle. Have it towed to an
Authorized Kia Dealer for a brake
system inspection and necessary
repairs.
To check bulb operation, the warning
light illuminates when the ignition switch
is in the ON position.
IMMOBILIZER
INDICATOR
(IF EQUIPPED)This light illuminates when the
immobilizer key is inserted and turned to
the ON position to start the engine.
If this light turns off or blinks when the
ignition switch is in the ON position
before starting the engine, have the
system checked by an authorized Kia
Dealer. AIR BAG WARNING This warning light will remain ON for
approximately 6 seconds each time you
turn the ignition switch ON. If the
system does not operate as described or
if the light comes on while the vehicle is
being driven, see an Authorized Kia
Dealer for immediate assistance.
SAFETY BELT WARNINGAs a reminder to the driver and
passenger, safety belt warning light will
blink for approximately 6 seconds each
time you turn the ignition switch ON.
If the driver's lap/shoulder belt is not
fastened when the key is turned ON or if
it is unfastened after the key is turned
ON, the safety belt warning light blinks
for approximately 6 seconds. SAFETY BELT WARNING
CHIME If the driver's seat belt is not fastened
when the ignition key is turned “ON” or
if it is disconnected after the key is ON,
the safety belt warning chime will sound
for approximately 6 seconds.
DRIVING YOUR VEHICLE
4-22
WARNING -
Brake
Warning Lights
Driving the vehicle with a
warning light ON is dangerous.
If the brake warning light
remains ON, have the brakes
checked and repaired
immediately.
AIR
BAG
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 22

CHARGING SYSTEM
WARNING
(IF EQUIPPED)This warning light indicates a
malfunction of either the generator or
electrical charging system.
If the warning light illuminates while
driving:
1. Drive to the nearest safe location and
carefully stop your vehicle.
2. With the engine OFF, check the
generator drive belt for looseness or
breakage.
3. If the belt is adjusted properly, a
problem exists somewhere in the
electrical charging system. Have an
Authorized Kia Dealer or other
competent locate and correct the
problem as soon as possible.
ENGINE OIL PRESSURE
WARNING This warning light indicates the engine
oil pressure is low.
If the warning light illuminates while
driving:
1. Drive safely to the side of the road
and stop.
2. With the engine OFF, check the
engine oil level. If the level is low,
add oil as required.
If the warning light remains ON after
adding oil or if oil is not available, call
an Authorized Kia Dealer.
LOW FUEL LEVEL
WARNING This warning light indicates the fuel tank
is near empty. The warning light will
come on when the fuel level has dropped
to about 8.5 L (2.2 US gal.).
Refuel as soon as possible.
4-23
✻
NOTICE
Do not drive the vehicle with a
loose or broken generator belt; the
engine could be damaged by over-
heating because this belt also drives
the water pump.
✻
NOTICE
Do not drive the vehicle when the
Engine Oil Warning Light is ON.
If the engine is not stopped as soon
as possible, severe engine damage
could result.
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 23

MALFUNCTION
INDICATOR LIGHT
(IF EQUIPPED)The CHECK ENGINE or malfunction
indicator light is installed in your
vehicle’s instrument panel and responds
to signals from the vehicle’s On Board
Diagnostic (OBD -II) System. The OBD-
II System monitors the performance of the
vehicle’s Emission Control System
(ECS), which is designed to reduce the
amount of air pollutants in engine exhaust
to the levels required by government
regulations.
When you first start the engine, the check
engine light will illuminate briefly as a
system check to confirm that the OBD-II
System is operating properly. As the
engine starts, this light turns off.
However, if at any time the OBD-II
system detects a faulty signal or
determines that the ECS is not performing
to specification, the CHECK ENGINE
light will illuminate continuously or flash.
Continuously ON :If the CHECK ENGINE light comes ON
while driving and illuminates continuously,
a potential problem has been discovered in
the ECS or one of the exhaust system
components. Generally, the vehicle will
continue to be driveablebut it should
be checked by an Authorized Kia Dealer
as soon as possible. This condition is
unlikely to lead to engine damage unless
a decrease in vehicle power or poor
running conditions is immediately
apparent.
Flashing ON and OFF :If the CHECK ENGINE light begins to
flash ON and OFF, a more serious
problem with the ECS or exhaust system
component has been detected. If this
happens, and there is no degradation
to performance, the vehicle is still
driveable(avoid high speeds) but should
be checked by an Authorized Kia Dealer
at your earliest possible convenience. If
the flashing CHECK ENGINE light is
accompanied by a decrease in power or
poor running conditions, safely stop the
vehicle and immediately contact Kia
Roadside Assistance.
Note that the CHECK ENGINE light
will illuminate for a problem like a loose
or missing gas cap, but will not
illuminate as a result of low engine oil or
coolant, low automatic transaxle fluid or
engine overheating. The driver will be
alerted to these conditions by other
indicators on the instrument panel.
DRIVING YOUR VEHICLE
4-24
CHECK
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 24

4-25
KEY REMINDER WARNING
CHIMEIf the driver’s door is opened and the
ignition key is left in the ignition switch,
the key reminder warning chime will
sound. This is to remind you to remove
your keys from the ignition before you
lock the vehicle.
HEADLIGHT HIGH
BEAM INDICATORThis indicator illuminates when the
headlights are on and in the high beam
position or when the turn signal lever is
pulled into the Flash-to-Pass position.DOOR AJAR WARNINGThis warning light comes on when a
door is not closed securely with the
ignition switch in any position.
CAUTION
 Prolonged driving with the On
Board Diagnostic System
Malfunction Indicator Light ( )
illuminated may cause damage to
the emission control systems
which could effect driveability
and/or fuel economy.
 If the On Board Diagnostic
System Malfunction Indicator
Light ( ) begins to flash ON
and OFF, potential catalytic con-
verter damage is possible which
could result in loss of engine
power. Have the On Board
Diagnostic System inspected as
soon as possible by an
Authorized Kia Dealer or other
competent repair shop.
CHECK
CHECK
✻
NOTICE
A loose fuel filler cap may cause the
On Board Diagnostic System
Malfunction Indicator Light ( ) in
the instrument panel to illuminate
unnecessarily. Always ensure that
the fuel filler cap is tight.
CHECK
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 25

ANTI-LOCK BRAKE SYSTEM
(ABS) WARNING LIGHT
(IF EQUIPPED)This light illuminates when you start the
engine. The light will go off if the ABS
is operating normally. Also, this light
comes on if the key is turned to ON, and
then goes off in 2-3 seconds if the system
is operating normally. If this warning
light illuminates while the vehicle is
being driven, have the vehicle checked
by an Authorized Kia Dealer or other
competent repair shop as soon as
possible.
FRONT FOG INDICATOR
(IF EQUIPPED)This light comes on when the fog lights
are ON.CRUISE INDICATOR
(IF EQUIPPED)The cruise indicator light in the
instrument cluster is illuminated only
when the vehicle cruising speed has been
set using the control switch. The
indicator light does not illuminate when
the main cruise control switch is
activated.TRUNK LID OPEN
WARNING LIGHT This light remains on unless the trunk lid
is completely closed.
TRACTION CONTROL
INDICATOR LIGHTS
(IF EQUIPPED)The TCS indicator will illuminate when
the ignition key is turned to the “ON”
position, but should go off after 3
seconds. It means the TCS is in the
stand-by status and at the moment of the
actual operation of the TCS, the indicator
will blink.
Press the TCS switch, then the system
will be deactivated and the TCS
indicator will illuminate.
If the TCS indicator stays on in the TCS
ON mode, take your car to your
Authorized Kia Dealer and have the
system checked.
DRIVING YOUR VEHICLE
4-26
ABS
CRUISE
TCS
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 26

4-27
LIGHTINGSINSTRUMENT PANEL
LIGHT CONTROLThe instrument panel lights can be made
brighter or dimmer by turning the
instrument panel light control knob.
AUTO LIGHT CONTROL
( IF EQUIPPED )To activate the auto light feature, twist
the knob on the end of the control lever.
If you set the knob to “AUTO” the tail
lights and headlights will turn on or off
automatically depending on the external
illumination.
CRUISETCS
MMSA4023
MMSA4061
✻
NOTICE - Battery Saver
FunCtion
• This function operates in order
to prevent the battery from
being discharged by turning off
the small light (except head-
lights) automatically when the
driver removes the ignition key
and opens the driver-side door.
• By applying this function, the
tail light will be turned off auto-
matically if the ignition key is
removed. Therefore, to keep the
tail light on when the ignition
key is removed.
1) Open the driver-side door.
2) Turn the multi function
switch off and on again.
✻
NOTICE
To ensure proper operation of the
Auto Light Control System, never
place items on the sensor located in
the instrument panel.
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 27

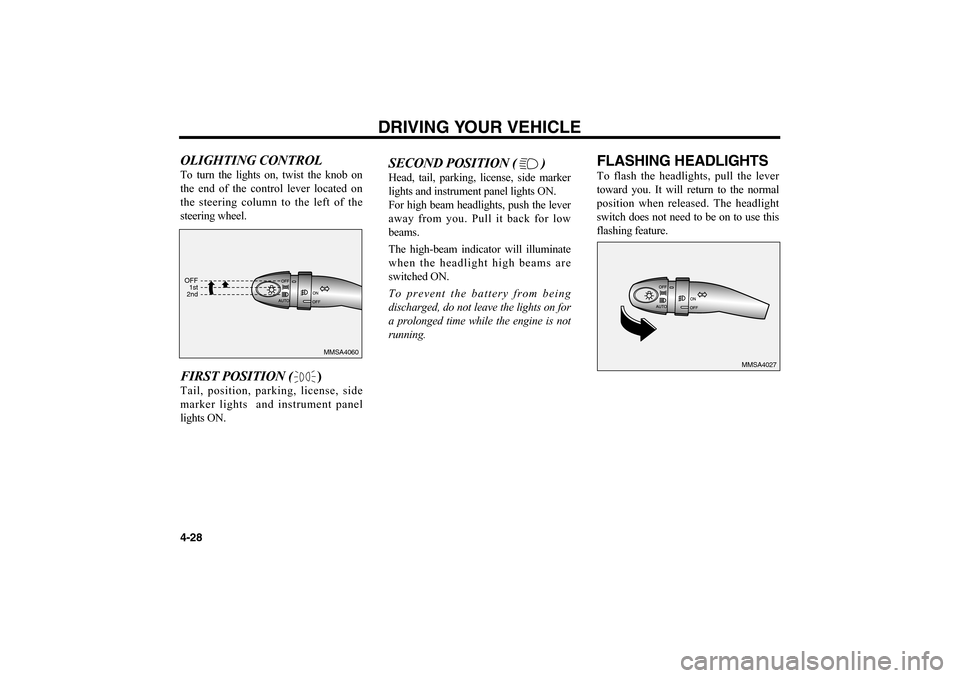

OLIGHTING CONTROLTo turn the lights on, twist the knob on
the end of the control lever located on
the steering column to the left of the
steering wheel.FIRST POSITION ()Tail, position, parking, license, side
marker lights and instrument panel
lights ON.
SECOND POSITION ( )Head, tail, parking, license, side marker
lights and instrument panel lights ON.
For high beam headlights, push the lever
away from you. Pull it back for low
beams.
The high-beam indicator will illuminate
when the headlight high beams are
switched ON.
To prevent the battery from being
discharged, do not leave the lights on for
a prolonged time while the engine is not
running.
FLASHING HEADLIGHTSTo flash the headlights, pull the lever
toward you. It will return to the normal
position when released. The headlight
switch does not need to be on to use this
flashing feature.
DRIVING YOUR VEHICLE
4-28
MMSA4060
MMSA4027 OFF
1st
2nd
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 28

TURN SIGNALSThe same lever that controls the head-
lights also controls the turn signals. The
ignition switch must be ON for the turn
signals to function. Move the lever up or
down to activate the turn signals. The
turn signals will self-cancel after a turn is
completed. If the indicator continues to
flash after a turn, manually return the
lever to the OFF (middle) position.
LANE CHANGE SIGNALSTo signal a lane change, move the turn
signal lever slightly and hold it in
position. The lever will return to the
OFF(middle) position when released.
Green arrow indicators on the instrument
panel indicate which turn signal is
operating. If an indicator stays ON and
does not flash or if it flashes abnormally,
one or more of the turn signal bulbs may
be burned out and will require
replacement.
DAYTIME RUNNING
LIGHTS (DRL) Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day. DRL can
be helpful in many different driving
conditions, but they can be especially
helpful in the short periods after dawn
and before sunset.
The DRL system will make your High-
beam headlights turn OFF when:
• the headlight switch is ON.
• the parking brake is engaged.
• the engine stops.
4-29
MMSA4028
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 29

FRONT FOG LIGHT SWITCH
(IF EQUIPPED)To turn on the front fog lights, place the
switch in the “ON” position. They will
come on when the headlight switch is in
the first or second position.
WIPERS AND WASHERSWINDSHIELD WIPERSThe ignition switch must be ON.
To turn the wipers ON, pull the
windshield wiper control lever down.
INT - Intermittent wiper operation
LO - Normal wiper speed
HI - Fast wiper speed
VARIABLE-SPEED
INTERMITTENT WIPERS
(IF EQUIPPED)Set the knob to the INT position and
choose the desired speed of the wipers
by turning the ring.
DRIVING YOUR VEHICLE
4-30
MMSA4029
INT
INT
TIME
PULL
MMSA4030
INT
TIME
PULL
MMSA4031
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 30

ONE-TOUCH WIPERSFor a single wiping cycle, push the
operation switch with the lever in the
OFF position.
WINDSHIELD WASHERTo use the windshield washer, pull the
lever toward the steering wheel.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, add an appropriate, non-
abrasive, windshield washer fluid to the
washer reservoir. The reservoir filler
neck is located in the front of the engine
compartment, on the passenger’s side.
4-31
INT
TIME
PULL
MMSA4032switch
INT
TIME
PULL
MMSA4033
✻
NOTICE
• To prevent possible damage to the
wipers or windshield, do not oper-
ate the wipers when the windshield
is dry.
• To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
• To prevent damage to the wiper
arms and other compo-nents, do
not attempt to move the wipers
manually.
MS-CNA-Eng 4(~39).QXD 7/25/2005 5:16 PM Page 31
