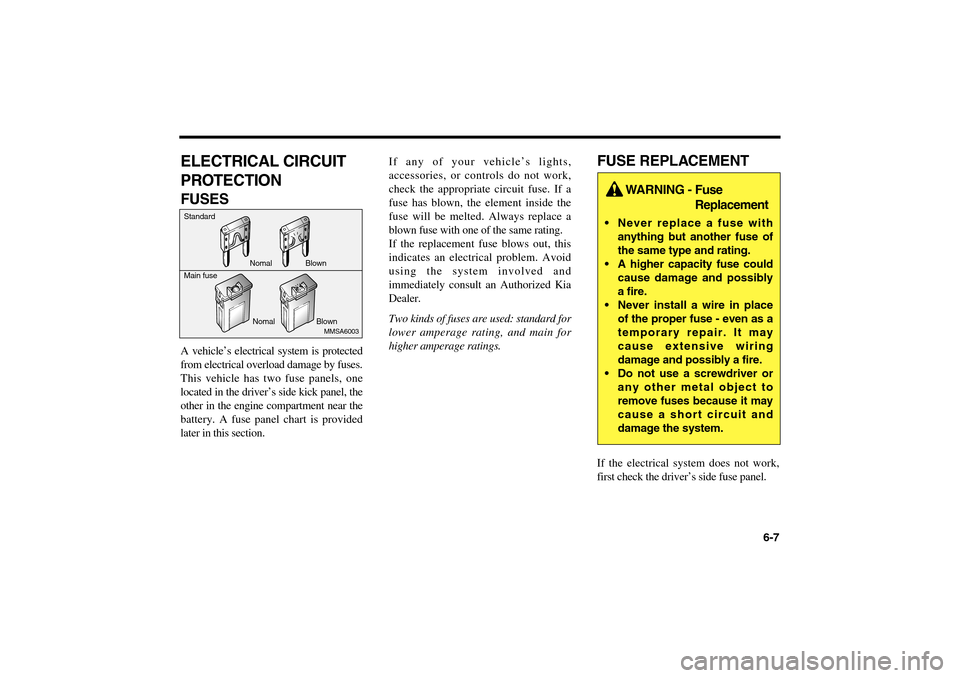

ELECTRICAL CIRCUIT
PROTECTIONFUSESA vehicle’s electrical system is protected
from electrical overload damage by fuses.
This vehicle has two fuse panels, one
located in the driver’s side kick panel, the
other in the engine compartment near the
battery. A fuse panel chart is provided
later in this section.If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted. Always replace a
blown fuse with one of the same rating.
If the replacement fuse blows out, this
indicates an electrical problem. Avoid
using the system involved and
immediately consult an Authorized Kia
Dealer.
Two kinds of fuses are used: standard for
lower amperage rating, and main for
higher amperage ratings.
FUSE REPLACEMENTIf the electrical system does not work,
first check the driver’s side fuse panel.
6-7
MMSA6003
Standard
Main fuse
Nomal Blown Nomal Blown
WARNING - Fuse
Replacement
 Never replace a fuse with
anything but another fuse of
the same type and rating.
 A higher capacity fuse could
cause damage and possibly
a fire.
 Never install a wire in place
of the proper fuse - even as a
temporary repair. It may
cause extensive wiring
damage and possibly a fire.
 Do not use a screwdriver or
any other metal object to
remove fuses because it may
cause a short circuit and
damage the system.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 7

1. Turn the ignition switch and all other
switches off.
2. Pull the suspected fuse straight out.
Use the removal tool provided on the
main fuse box in the engine
compartment. Refer to the fuse panel
chart on the fuse panel cover to
identify the likely problem fuse or
electrical circuit.
3. Check the removed fuse; replace if it
is blown.
Four (4) spare fuses are provided in the
engine compartment fuse panel cover.4. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips.
If it fits loosely, consult an
Authorized Kia Dealer.
If you do not have a spare, use a fuse of
the same rating from a circuit you may
not need for operating the vehicle, such
as the radio or clock (Room) fuse.
If the headlights or other electrical
components do not work and the fuses
are OK, check the fuse box in the engine
compartment. If a fuse is blown, it must
be replaced.
1. Turn the ignition switch and all other
switches OFF.
2. Remove the fuse box cover by
turning the plastic knob located in the
cover counterclockwise until the
cover can be removed.
3. Check the fuses. If one is blown,
replace it with a new one of the same
rating.
IN CASE OF EMERGENCY
6-8
MMSA6020
MMSA6005
Fuse box
CAUTION
After checking the fuse box in the
engine compartment, please
securely install the fuse box cover.
If not, some electrical failures may
occur causing from the water.
