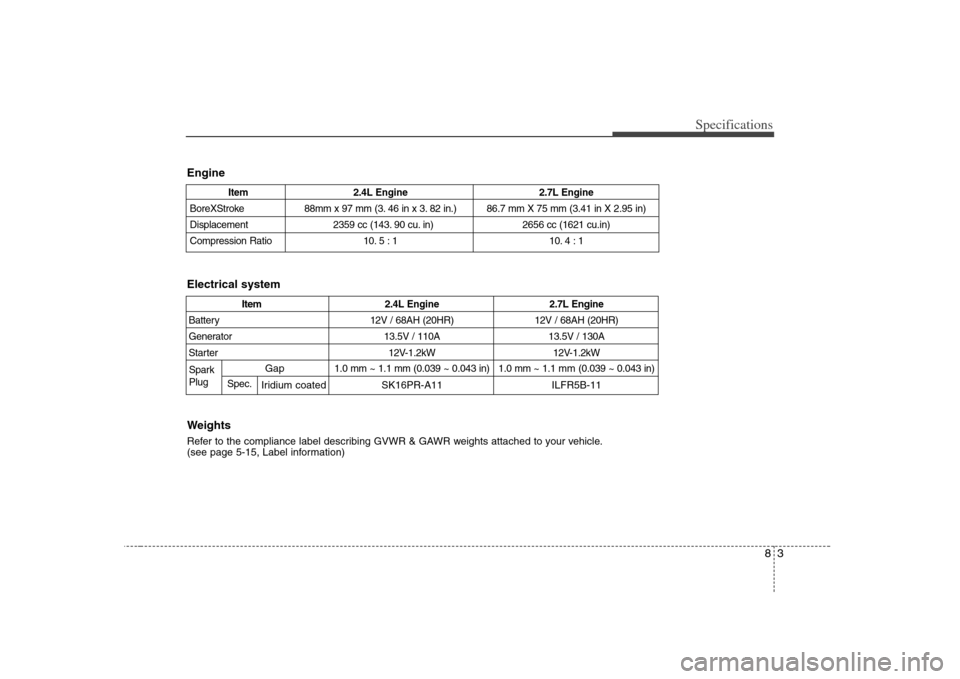

Specifications
Engine
Item 2.4L Engine 2.7L Engine
BoreXStroke 88mm x 97 mm (3. 46 in x 3. 82 in.) 86.7 mm X 75 mm (3.41 in X 2.95 in)
Displacement 2359 cc (143. 90 cu. in) 2656 cc (1621 cu.in)
Compression Ratio 10. 5 : 1 10. 4 : 1
Item 2.4L Engine 2.7L Engine
Battery 12V / 68AH (20HR) 12V / 68AH (20HR)
Generator 13.5V / 110A 13.5V / 130A
Starter 12V-1.2kW 12V-1.2kW
Gap
1.0 mm ~ 1.1 mm (0.039 ~ 0.043 in) 1.0 mm ~ 1.1
mm
(0.039 ~ 0.043 in
)
Iridium coated SK16PR-A11 ILFR5B-11
Spark
Plug
Spec.Electrical system
WeightsRefer to the compliance label describing GVWR & GAWR weights attached to your vehicle.
(see page 5-15, Label information)
