center console KIA MOHAVE 2014 Owners Manual

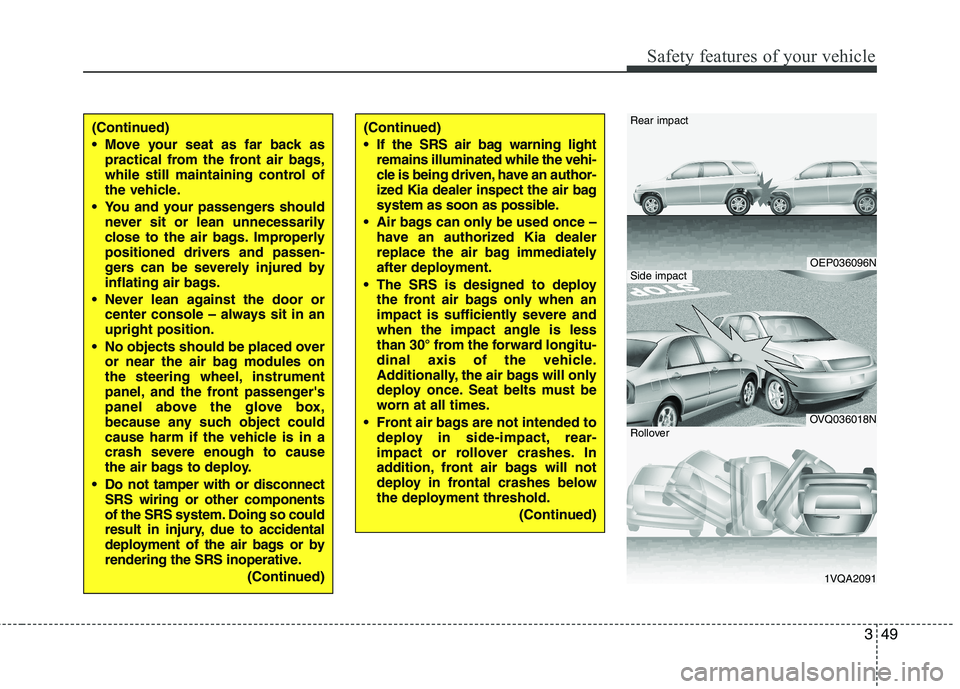

349
Safety features of your vehicle
(Continued)
Move your seat as far back aspractical from the front air bags,
while still maintaining control of
the vehicle.
You and your passengers should never sit or lean unnecessarily
close to the air bags. Improperly
positioned drivers and passen-
gers can be severely injured by
inflating air bags.
Never lean against the door or center console – always sit in an upright position.
No objects should be placed over or near the air bag modules on
the steering wheel, instrument
panel, and the front passenger's
panel above the glove box,
because any such object could
cause harm if the vehicle is in a
crash severe enough to cause
the air bags to deploy.
Do not tamper with or disconnect SRS wiring or other components
of the SRS system. Doing so could
result in injury, due to accidental
deployment of the air bags or by
rendering the SRS inoperative.
(Continued)(Continued)
If the SRS air bag warning lightremains illuminated while the vehi-
cle is being driven, have an author-
ized Kia dealer inspect the air bag
system as soon as possible.
Air bags can only be used once – have an authorized Kia dealer
replace the air bag immediately
after deployment.
The SRS is designed to deploy the front air bags only when an
impact is sufficiently severe andwhen the impact angle is less
than 30° from the forward longitu-
dinal axis of the vehicle.
Additionally, the air bags will only
deploy once. Seat belts must be
worn at all times.
Front air bags are not intended to deploy in side-impact, rear-
impact or rollover crashes. In
addition, front air bags will not
deploy in frontal crashes below
the deployment threshold.
(Continued)
OEP036096N
OVQ036018N
1VQA2091
Side impact
Rear impact
Rollover

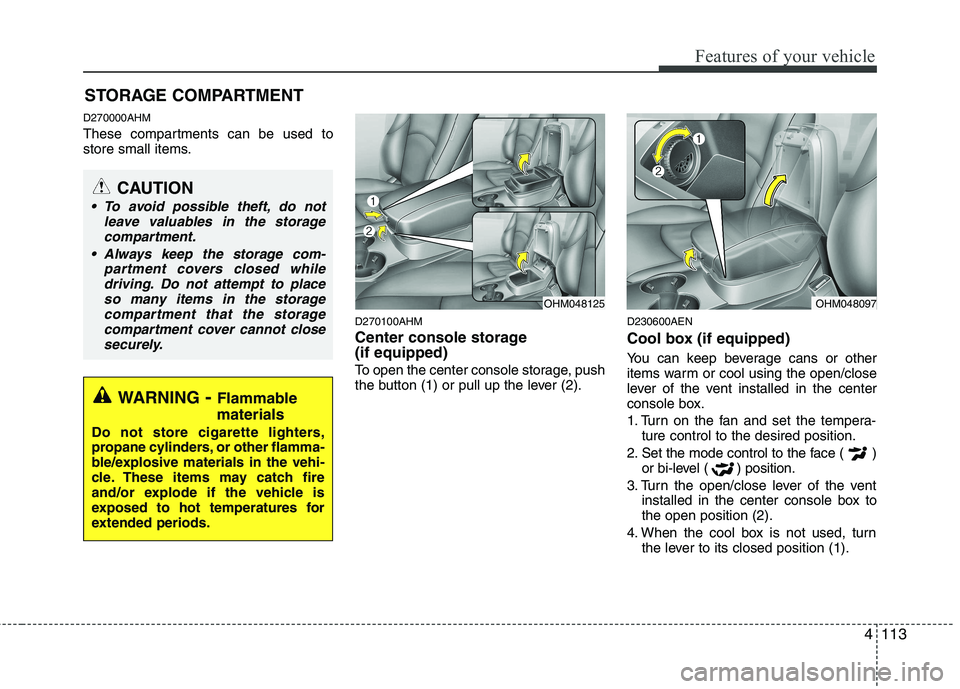

4113
Features of your vehicle
D270000AHM
These compartments can be used to
store small items.D270100AHM
Center console storage (if equipped)
To open the center console storage, push
the button (1) or pull up the lever (2).D230600AEN
Cool box (if equipped)
You can keep beverage cans or other
items warm or cool using the open/close
lever of the vent installed in the center
console box.
1. Turn on the fan and set the tempera-
ture control to the desired position.
2. Set the mode control to the face ( ) or bi-level ( ) position.
3. Turn the open/close lever of the vent installed in the center console box to the open position (2).
4. When the cool box is not used, turn the lever to its closed position (1).
STORAGE COMPARTMENT
WARNING - Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
OHM048125
CAUTION
To avoid possible theft, do not leave valuables in the storage
compartment.
Always keep the storage com- partment covers closed whiledriving. Do not attempt to place
so many items in the storage compartment that the storagecompartment cover cannot close securely.
OHM048097

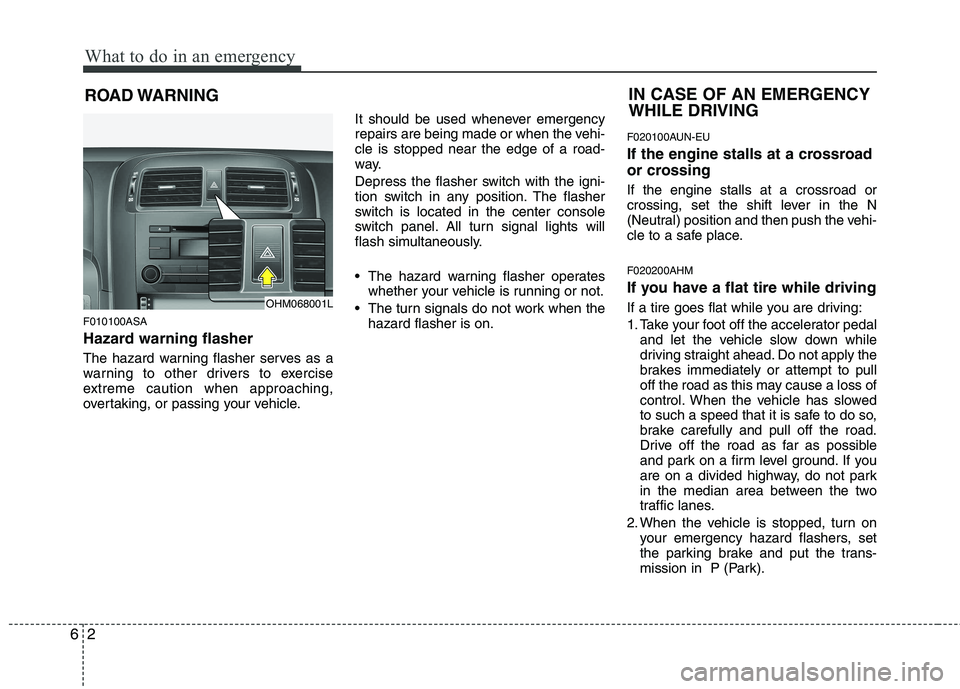

What to do in an emergency
2
6
ROAD WARNING
F010100ASA
Hazard warning flasher
The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle. It should be used whenever emergency
repairs are being made or when the vehi-cle is stopped near the edge of a road-
way.
Depress the flasher switch with the igni-
tion switch in any position. The flasher
switch is located in the center console
switch panel. All turn signal lights will
flash simultaneously.
• The hazard warning flasher operates
whether your vehicle is running or not.
The turn signals do not work when the hazard flasher is on. F020100AUN-EU
If the engine stalls at a crossroad
or crossing If the engine stalls at a crossroad or
crossing, set the shift lever in the N
(Neutral) position and then push the vehi-
cle to a safe place. F020200AHM
If you have a flat tire while driving
If a tire goes flat while you are driving:
1. Take your foot off the accelerator pedal
and let the vehicle slow down while
driving straight ahead. Do not apply the
brakes immediately or attempt to pull
off the road as this may cause a loss of
control. When the vehicle has slowed
to such a speed that it is safe to do so,
brake carefully and pull off the road.
Drive off the road as far as possible
and park on a firm level ground. If you
are on a divided highway, do not park
in the median area between the two
traffic lanes.
2. When the vehicle is stopped, turn on your emergency hazard flashers, set
the parking brake and put the trans-
mission in P (Park).
IN CASE OF AN EMERGENCY WHILE DRIVING
OHM068001L

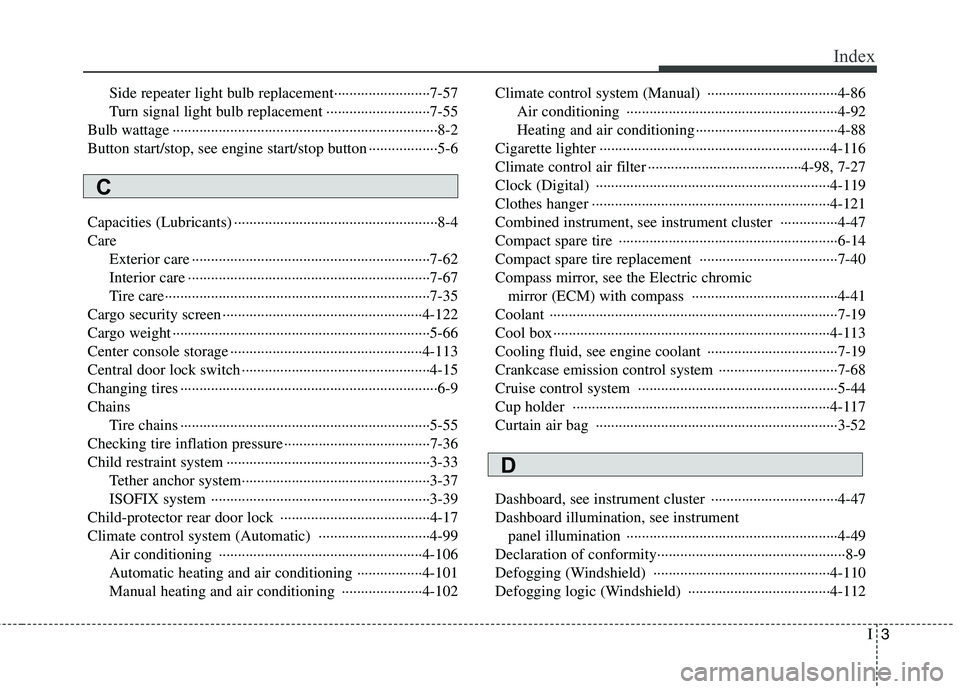

I3
Index
Side repeater light bulb replacement·························7-57
Turn signal light bulb replacement ···························7-55
Bulb wattage ·····································································8-2
Button start/stop, see engine start/stop button ··················5-6
Capacities (Lubricants) ·····················································8-4 Care Exterior care ······························································7-62
Interior care ·······························································7-67
Tire care·····································································7-35
Cargo security screen ····················································4-122
Cargo weight ···································································5-66
Center console storage ··················································4-113
Central door lock switch ·················································4-15
Changing tires ···································································6-9Chains Tire chains ·································································5-55
Checking tire inflation pressure ······································7-36
Child restraint system ·····················································3-33 Tether anchor system·················································3-37
ISOFIX system ·························································3-39
Child-protector rear door lock ·······································4-17
Climate control system (Automatic) ·····························4-99 Air conditioning ·····················································4-106Automatic heating and air conditioning ·················4-101
Manual heating and air conditioning ·····················4-102 Climate control system (Manual) ··································4-86
Air conditioning ·······················································4-92
Heating and air conditioning ·····································4-88
Cigarette lighter ····························································4-116
Climate control air filter ········································4-98, 7-27
Clock (Digital) ·····························································4-119
Clothes hanger ······························································4-121
Combined instrument, see instrument cluster ···············4-47
Compact spare tire ·························································6-14
Compact spare tire replacement ····································7-40
Compass mirror, see the Electric chromic mirror (ECM) with compass ······································4-41
Coolant ···········································································7-19
Cool box········································································4-113
Cooling fluid, see engine coolant ··································7-19
Crankcase emission control system ·······························7-68
Cruise control system ····················································5-44
Cup holder ···································································4-117
Curtain air bag ·······························································3-52
Dashboard, see instrument cluster ·································4-47
Dashboard illumination, see instrument panel illumination ·······················································4-49
Declaration of conformity·················································8-9
Defogging (Windshield) ··············································4-110
Defogging logic (Windshield) ·····································4-112
C
D

I9
Index
Side impact air bag ························································3-50
Side repeater light bulb replacement ·····························7-57
Side step ········································································4-125
Smart key ·········································································4-6
Smooth cornering ···························································5-51
Snow tires ······································································5-54Spare tire
Compact spare tire ···················································6-14
Compact spare tire replacement ·······························7-40
Removing and storing the spare tire ··························6-8
Special driving conditions ·············································5-50 Driving at night ························································5-51
Driving in flooded areas ···········································5-52
Driving in the rain ····················································5-52
Hazardous driving conditions ··································5-50
Highway driving ·······················································5-53
Rocking the vehicle ··················································5-50
Smooth cornering ·····················································5-51
Speedometer ···································································4-49
Sports mode ···································································5-14
Starting difficulties, see engine will not start ··················6-3
Starting the engine ···························································5-8
Steering wheel ·······························································4-37 Heated steering wheel ···············································4-38Horn ··········································································4-39
Power steering ··························································4-37
Tilt steering ······························································4-37
Steering wheel audio control ·······································4-127 Storage compartment ···················································4-113
Center console storage ···········································4-113
Cool box ··································································4-113
Glove box ·······························································4-114
Luggage box ····························································4-115
Multi box ·································································4-115
Sunglass holder ······················································4-114
Sunroof, see panorama sunroof ·····································4-29
Sunvisor ·······································································4-118
Tachometer ·····································································4-50
Tailgate ···········································································4-18 Emergency tailgate safety release ····························4-19
Tether anchor system ·····················································3-37
Theft-alarm system ························································4-12
Tie-down hook ·······························································6-19
Tilt steering ····································································4-37
Tire specification and pressure label ·······························8-8
Tires and wheels ·····················································7-35, 8-3 Checking tire inflation pressure ·······························7-36
Compact spare tire replacement ·······························7-40
Recommended cold tire inflation pressures ·············7-35
Tire care ···································································7-35
Tire maintenance ······················································7-40
Tire replacement ·······················································7-39
Tire rotation ······························································7-37
T
