dimensions KIA MOHAVE 2014 Owners Manual

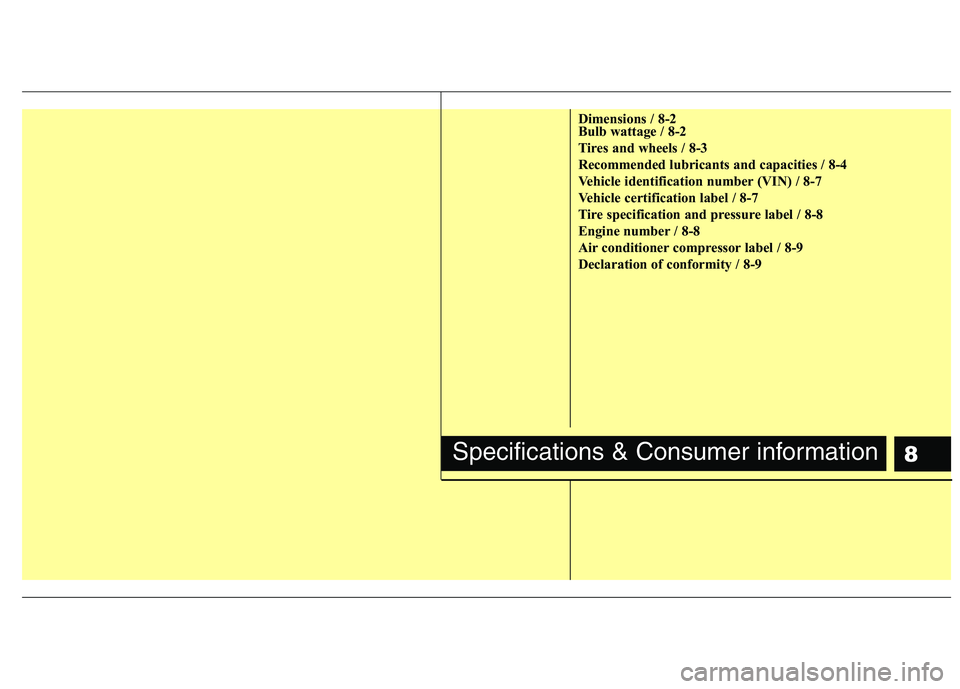

8
Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification and pressure label / 8-8
Engine number / 8-8
Air conditioner compressor label / 8-9
Declaration of conformity / 8-9
Specifications & Consumer information

Specifications & Consumer information
2
8
Item mm (in)
Overall length 4880 (192.1)
Overall width 1915 (75.4)
Overall height 1765 (69.5) / 1810 (71.3)* 1
Front tread 1630 (64.2)* 2
/ 1615 (63.6)* 3
Rear tread 1640 (64.6)* 2
/ 1625 (64.0)* 3
Wheelbase 2895 (114)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55 or 35 (HID)
Headlights (High) 55
Front turn signal lights 21
Position lights 5
Side repeater lights* LED
Front fog lights* 27
Rear fog light* 21
Stop and tail lights Except Middle East 21/5 or LED
For Middle East 27/8 or LED
Tail light* 5 or LED
Rear turn signal lights Except Middle East 21 or 27
For Middle East 27
Back-up lights 16
High mounted stop light* LED
License plate lights 5Map lamps 6
Room lamps 10
Luggage lamp* 5
Glove box lamp* 5
Vanity mirror lamps* 5
Door courtesy lamps* 5
BULB WATTAGE
* : If equipped
*
1
: with roof rack
* 2
: with 245/70R17 tire
* 3
: with 265/60R18 tire
I010000BHM-EE
I030000AHM-EE

Index
4
I
Defroster (Rear window) ···············································4-84
Defrosting (Windshield) ··············································4-110
Digital clock ·································································4-119Dimensions ······································································8-2
Displays, see instrument cluster ····································4-47
Display illumination, see instrument panel illumination ··· 4-49
Door courtesy lamp bulb replacement ····························7-60
Door locks ·······································································4-14 Central door lock switch ··········································4-15
Child-protector rear door lock ·································4-17
Downhill brake control (DBC) ······································5-37
Drinks holders, see cup holders ···································4-117
Driver's air bag ·······························································3-48
Driver position memory system······································4-33
Driving at night ······························································5-51
Driving in flooded areas ················································5-52
Driving in the rain ··························································5-52
Economical operation ····················································5-48
Electric chromic mirror (ECM) ·····································4-40
Electric chromic mirror (ECM) with compass ··············4-41
Electronic stability program (ESP) ·································5-33
Emergency starting ··························································6-4 Jump starting ······························································6-4
Push starting ·······························································6-5
Emergency tailgate safety release ··································4-19 Emergency towing ·························································6-17
Emergency while driving ·················································6-2
Emergency commodity ··················································6-20
Emission control system ················································7-68
Crankcase emission control system ·························7-68
Evaporative emission control system ·······················7-68
Exhaust emission control system ·····························7-69
Engine compartment ················································2-4, 7-2
Engine coolant ·······························································7-19
Engine number ·································································8-8
Engine oil ·······································································7-18
Engine overheats ······························································6-6
Engine start/stop button ···················································5-6
Engine temperature gauge ·············································4-50
Engine will not start ·························································6-3
Evaporative emission control system ····························7-68
Exhaust emission control system ···································7-69Explanation of scheduled maintenance items ················7-15
Exterior care ···································································7-62
Exterior features ···························································4-124 Roof rack ································································4-124
Side step ··································································4-125
Flat tire ·············································································6-7 Changing tires ····························································6-9
Compact spare tire ···················································6-14
