Features of your vehicle
80
4

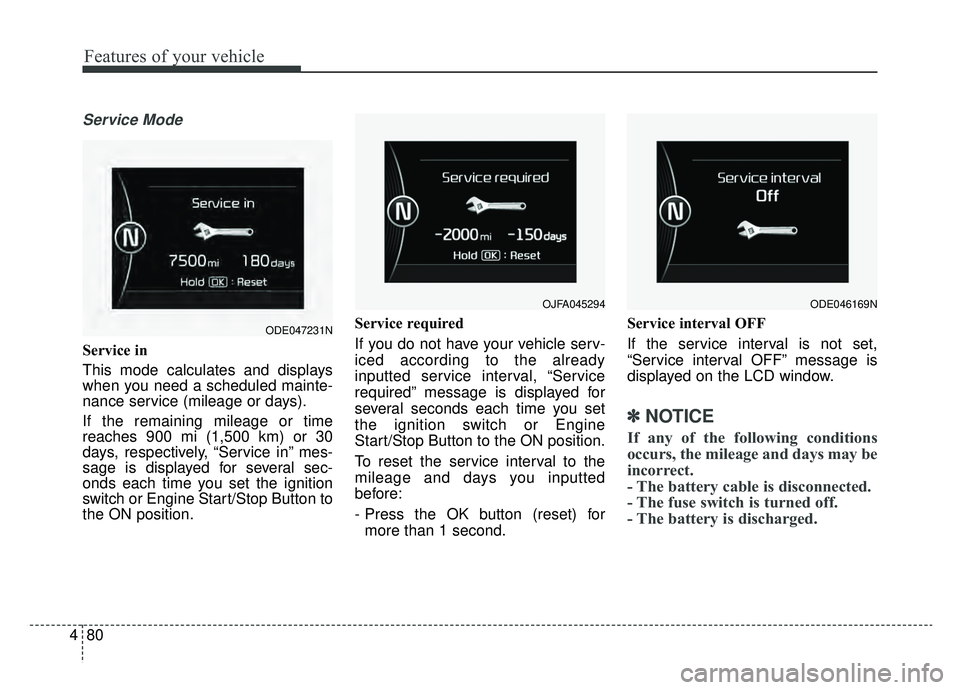

Service Mode
Service in
This mode calculates and displays
when you need a scheduled mainte-
nance service (mileage or days).
If the remaining mileage or time
reaches 900 mi (1,500 km) or 30
days, respectively, “Service in” mes-
sage is displayed for several sec-
onds each time you set the ignition
switch or Engine Start/Stop Button to
the ON position. Service required
If you do not have your vehicle serv-
iced according to the already
inputted service interval, “Service
required” message is displayed for
several seconds each time you set
the ignition switch or Engine
Start/Stop Button to the ON position.
To reset the service interval to the
mileage and days you inputted
before:
- Press the OK button (reset) for
more than 1 second. Service interval OFF
If the service interval is not set,
“Service interval OFF” message is
displayed on the LCD window.
✽ ✽
NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
OJFA045294
ODE047231N
ODE046169N

689
Driving your vehicle
Your vehicle's fuel economy depends
mainly on your style of driving, where
you drive and when you drive.
Each of these factors affects how
many miles (kilometers) you can get
from a gallon (liter) of fuel. To operate
your vehicle as economically as pos-
sible, use the following driving sug-
gestions to help save money in both
fuel and repairs:
Drive smoothly. Accelerate at amoderate rate. Don't make "jack-
rabbit" starts or full-throttle shifts
and maintain a steady cruising
speed. Don't race between stop-
lights. Try to adjust your speed to
the traffic so you don't have to
change speeds unnecessarily.
Avoid heavy traffic whenever pos- sible. Always maintain a safe dis-
tance from other vehicles so you
can avoid unnecessary braking.
This also reduces brake wear.
Drive at a moderate speed. The faster you drive, the more fuel your
vehicle uses. Driving at a moderate
speed, especially on the highway,
is one of the most effective ways to
reduce fuel consumption. Don't "ride" the brake pedal. This
can increase fuel consumption and
also increase wear on these com-
ponents. In addition, driving with
your foot resting on the brake pedal
may cause the brakes to overheat,
which reduces their effectiveness
and may lead to more serious con-
sequences.
Take care of your tires. Keep them inflated to the recommended pres-
sure. Incorrect inflation, either too
much or too little, results in unnec-
essary tire wear. Check the tire
pressures at least once a month.
Be sure that the wheels are aligned correctly. Improper align-
ment can result from hitting curbs
or driving too fast over irregular
surfaces. Poor alignment causes
faster tire wear and may also result
in other problems as well as
greater fuel consumption. Keep your vehicle in good condi-
tion. For better fuel economy and
reduced maintenance costs, main-
tain your vehicle in accordance
with the maintenance schedule in
chapter 8. If you drive your vehicle
in severe conditions, more frequent
maintenance is required (see
chapter 8 for details).
Keep your vehicle clean. For maxi- mum service, your vehicle should
be kept clean and free of corrosive
materials. It is especially important
that mud, dirt, ice, etc. not be
allowed to accumulate on the
underside of the vehicle. This extra
weight can result in increased fuel
consumption and also contribute to
corrosion.
Travel lightly. Don't carry unneces- sary weight in your vehicle. Weight
reduces fuel economy.
Don't let the engine idle longer than necessary. If you are waiting
(and not in traffic), turn off your
engine and restart only when
you're ready to go.
ECONOMICAL OPERATION

Driving your vehicle
98
6

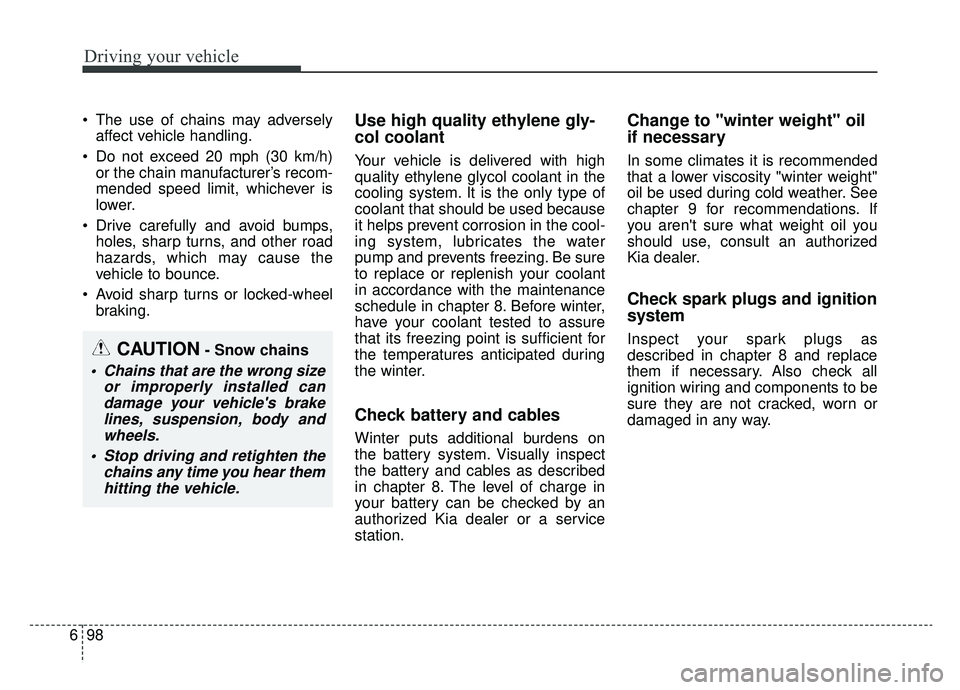

The use of chains may adversely
affect vehicle handling.
Do not exceed 20 mph (30 km/h) or the chain manufacturer’s recom-
mended speed limit, whichever is
lower.
Drive carefully and avoid bumps, holes, sharp turns, and other road
hazards, which may cause the
vehicle to bounce.
Avoid sharp turns or locked-wheel braking.Use high quality ethylene gly-
col coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in chapter 8. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in chapter 8. The level of charge in
your battery can be checked by an
authorized Kia dealer or a service
station.
Change to "winter weight" oil
if necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
chapter 9 for recommendations. If
you aren't sure what weight oil you
should use, consult an authorized
Kia dealer.
Check spark plugs and ignition
system
Inspect your spark plugs as
described in chapter 8 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.CAUTION- Snow chains
Chains that are the wrong size or improperly installed candamage your vehicle's brakelines, suspension, body andwheels.
Stop driving and retighten the chains any time you hear themhitting the vehicle.

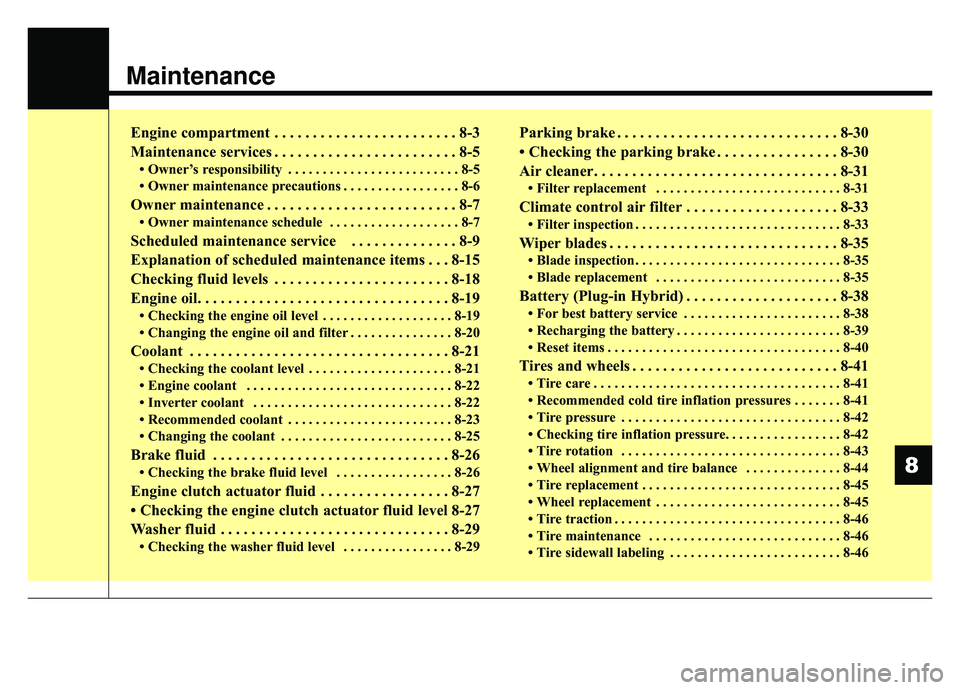

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 8-5
• Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Owner maintenance precautions . . . . . . . . . . . . . . . . . 8-6
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Owner maintenance schedule . . . . . . . . . . . . . . . . . . . 8-7
Scheduled maintenance service . . . . . . . . . . . . . . 8-9
Explanation of scheduled maintenance items . . . 8-15
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . 8-18
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19
Checking the engine oil level . . . . . . . . . . . . . . . . . . . 8-19
Changing the engine oil and filter . . . . . . . . . . . . . . . 8-20
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21\
Checking the coolant level . . . . . . . . . . . . . . . . . . . . . 8-21
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Inverter coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Recommended coolant . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . 8-25
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-26
Checking the brake fluid level . . . . . . . . . . . . . . . . . 8-26
Engine clutch actuator fluid . . . . . . . . . . . . . . . . . 8-27
• Checking the engine clutch actuator fluid level 8-27
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-29
Checking the washer fluid level . . . . . . . . . . . . . . . . 8-29
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30
• Checking the parking brake . . . . . . . . . . . . . . . . 8-30
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Climate control air filter . . . . . . . . . . . . . . . . . . . . 8-33
Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
Battery (Plug-in Hybrid) . . . . . . . . . . . . . . . . . . . . 8-38
For best battery service . . . . . . . . . . . . . . . . . . . . . . . 8-38
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . 8-39
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-40\
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-41
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-41
Recommended cold tire inflation pressures . . . . . . . 8-41
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42
Checking tire inflation pressure. . . . . . . . . . . . . . . . . 8-42
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-43
Wheel alignment and tire balance . . . . . . . . . . . . . . 8-44
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
8

85
Maintenance
MAINTENANCE SERVICES
You should exercise the utmost care
to prevent damage to your vehicle
and injury to yourself whenever per-
forming any maintenance or inspec-
tion procedures.
Should you have any doubts con-
cerning the inspection or servicing of
your vehicle, we strongly recom-
mend that you have an authorized
Kia dealer perform this work.
An authorized Kia dealer has factory-
trained technicians and genuine Kia
parts to service your vehicle proper-
ly. For expert advice and quality serv-
ice, see an authorized Kia dealer.
Inadequate, incomplete or insuffi-
cient servicing may result in opera-
tional problems with your vehicle that
could lead to vehicle damage, an
accident, or personal injury.Owner’s responsibility
✽ ✽NOTICE
Maintenance Service and Record
Retention are the owner's responsi-
bility.
You should retain documents that
show proper maintenance has been
performed on your vehicle in accor-
dance with the scheduled mainte-
nance service charts shown on the
following pages. You need this infor-
mation to establish your compliance
with the servicing and maintenance
requirements of your vehicle war-
ranties.
Detailed warranty information is
provided in your Warranty &
Consumer Information manual.
Repairs and adjustments required as
a result of improper maintenance or
a lack of required maintenance are
not covered.
We recommend you have your vehi-
cle maintained and repaired by an
authorized Kia dealer. An authorized
Kia dealer meets Kia’s high service
quality standards and receives tech-
nical support from Kia in order to pro-
vide you with a high level of service
satisfaction.
✽ ✽NOTICE - NHTSA Safety
Corrosion Alert
The National Highway Traffic
Safety Administration (NHTSA) has
issued a general warning to all vehi-
cle owners of all brands regarding
the risks associated with vehicle
underbody corrosion. From your
initial purchase, take the following
steps to prevent unsafe corrosion
damage to your vehicle:
(Continued)

89
Maintenance
SCHEDULED MAINTENANCE SERVICE
Follow the Normal Maintenance
Schedule if the vehicle is usually
operated where none of the following
conditions apply. If any of the following
conditions apply, follow the
Maintenance Under Severe Usage
Conditions.
Repeatedly driving short distanceof less than 5miles (8 km) in nor-
mal temperature or less than 10
miles (16 km) in freezing tempera-
ture.
Extensive engine idling or low speed driving for long distances.
Driving on rough, dusty, muddy, unpaved, graveled or salt-spread
roads.
Driving in areas using salt or other corrosive materials or in very cold
weather.
Driving in heavy dust condition.
Driving in heavy traffic area. Driving on uphill, downhill, or
mountain roads repeatedly.
Towing a trailer or using a camper on roof rack.
Driving for patrol car, taxi, other commercial use of vehicle towing.
Driving over 106 mph (170 km/h).
Frequently driving in stop-and-go conditions.If your vehicle is operated under theabove conditions, you shouldinspect, replace or refill more fre-quently than the following NormalMaintenance Schedule. After 120months or 150,000 miles continue tofollow the prescribed maintenanceintervals.

Maintenance
10
8

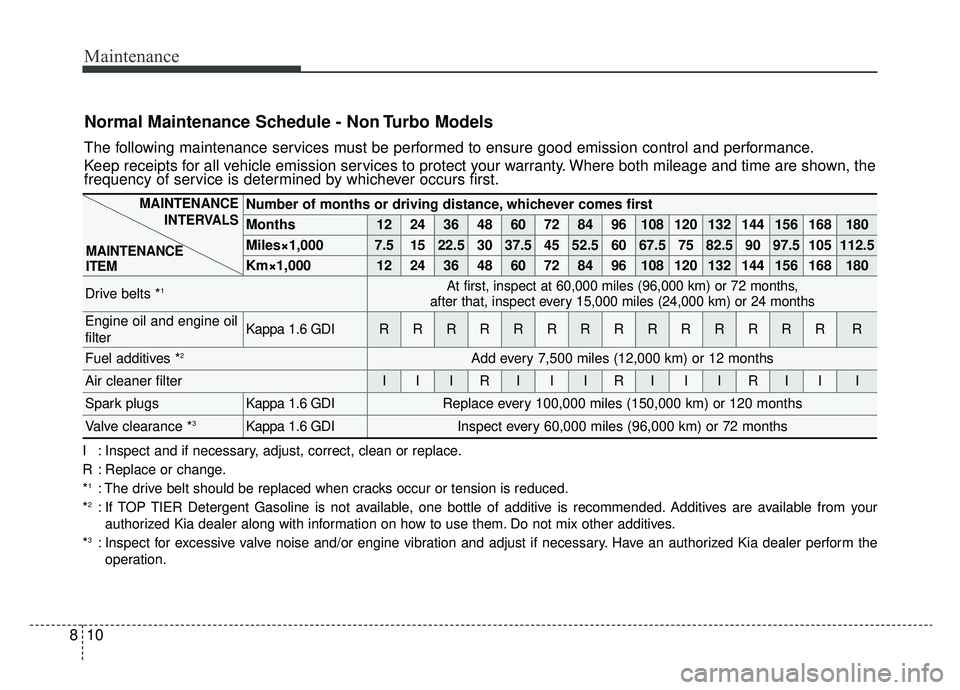

Normal Maintenance Schedule - Non Turbo Models
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the
frequency of service is determined by whichever occurs first.
Number of months or driving distance, whichever comes first
Months1224364860728496108120132144156168180
Miles×1,0007.51522.530 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5
Km×1,00012 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Drive belts *1At first, inspect at 60,000 miles (96,000 km) or 72 months,
after that, inspect every 15,000 miles (24,000 km) or 24 months
Engine oil and engine oil
filterKappa 1.6 GDIRRRRRRRRRRRRRRR
Fuel additives *2Add every 7,500 miles (12,000 km) or 12 months
Air cleaner filterIIIRIIIRIIIRIII
Spark plugsKappa 1.6 GDIReplace every 100,000 miles (150,000 km) or 120 months
Valve clearance *3Kappa 1.6 GDIInspect every 60,000 miles (96,000 km) or 72 months
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
1: The drive belt should be replaced when cracks occur or tension is reduced.
*2: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.
*
3: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized Kia dealer perform the operation.

I7
Index

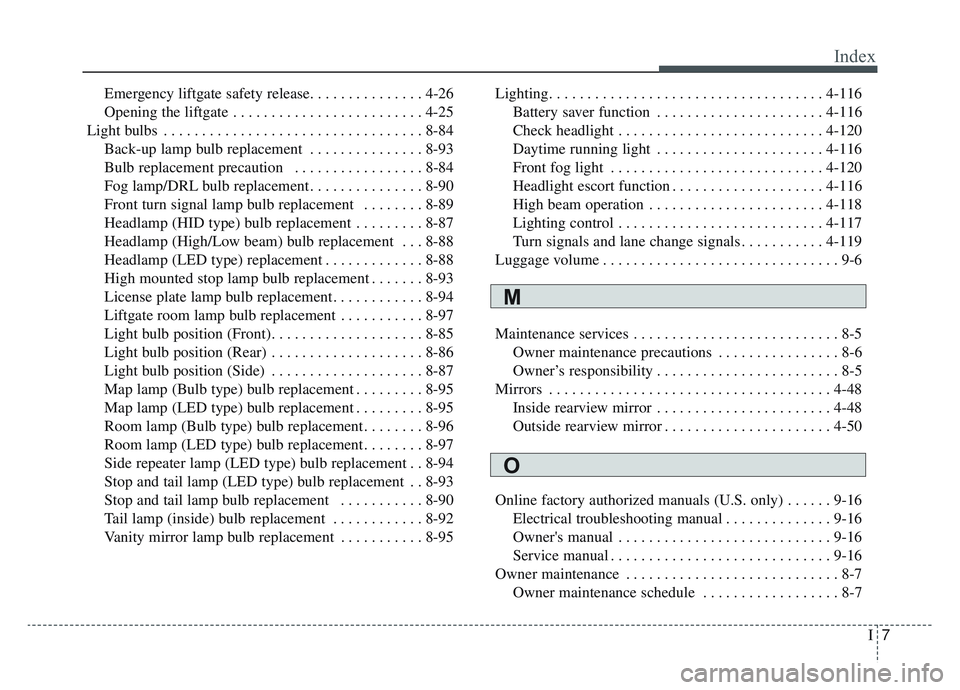

Emergency liftgate safety release. . . . . . . . . . . . . . . 4-26
Opening the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-84\
Back-up lamp bulb replacement . . . . . . . . . . . . . . . 8-93
Bulb replacement precaution . . . . . . . . . . . . . . . . . 8-84
Fog lamp/DRL bulb replacement . . . . . . . . . . . . . . . 8-90
Front turn signal lamp bulb replacement . . . . . . . . 8-89
Headlamp (HID type) bulb replacement . . . . . . . . . 8-87
Headlamp (High/Low beam) bulb replacement . . . 8-88
Headlamp (LED type) replacement . . . . . . . . . . . . . 8-88
High mounted stop lamp bulb replacement . . . . . . . 8-93
License plate lamp bulb replacement. . . . . . . . . . . . 8-94
Liftgate room lamp bulb replacement . . . . . . . . . . . 8-97
Light bulb position (Front). . . . . . . . . . . . . . . . . . . . 8-85
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . 8-86
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . 8-87
Map lamp (Bulb type) bulb replacement . . . . . . . . . 8-95
Map lamp (LED type) bulb replacement . . . . . . . . . 8-95
Room lamp (Bulb type) bulb replacement. . . . . . . . 8-96
Room lamp (LED type) bulb replacement . . . . . . . . 8-97
Side repeater lamp (LED type) bulb replacement . . 8-94
Stop and tail lamp (LED type) bulb replacement . . 8-93
Stop and tail lamp bulb replacement . . . . . . . . . . . 8-90
Tail lamp (inside) bulb replacement . . . . . . . . . . . . 8-92
Vanity mirror lamp bulb replacement . . . . . . . . . . . 8-95 Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-116
Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-116
Check headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-116
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Headlight escort function . . . . . . . . . . . . . . . . . . . . 4-116
High beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-118
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Turn signals and lane change signals . . . . . . . . . . . 4-119
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 Owner maintenance precautions . . . . . . . . . . . . . . . . 8-6
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-48 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-48
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-50
Online factory authorized manuals (U.S. only) . . . . . . 9-16 Electrical troubleshooting manual . . . . . . . . . . . . . . 9-16
Owner's manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16
Service manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7 Owner maintenance schedule . . . . . . . . . . . . . . . . . . 8-7
M
O

Index
8I

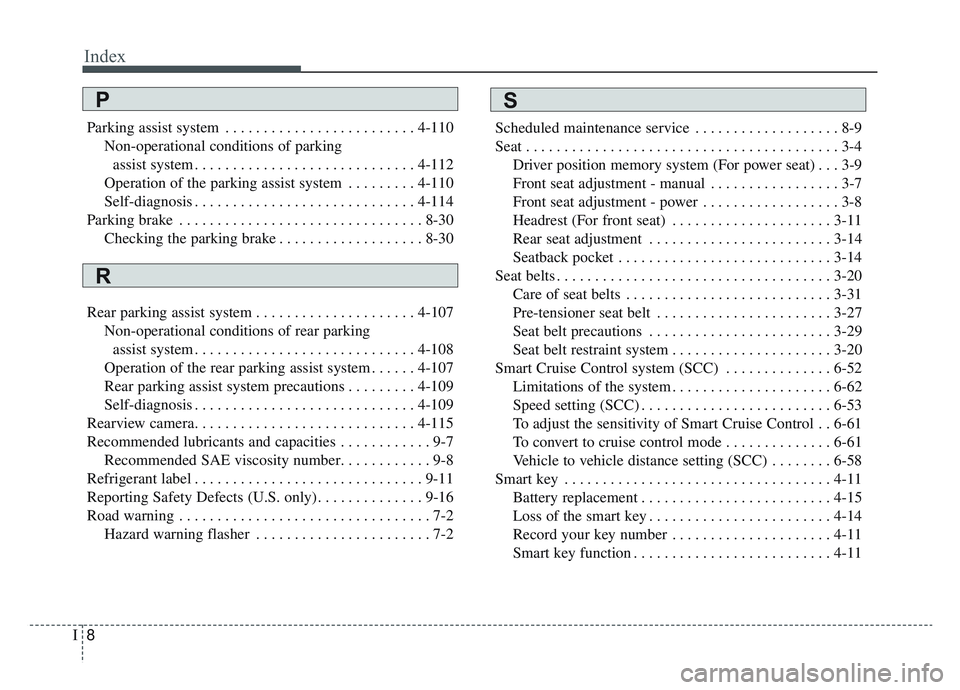

Parking assist system . . . . . . . . . . . . . . . . . . . . . . . . . 4-110Non-operational conditions of parkingassist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Operation of the parking assist system . . . . . . . . . 4-110
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30 Checking the parking brake . . . . . . . . . . . . . . . . . . . 8-30
Rear parking assist system . . . . . . . . . . . . . . . . . . . . . 4-107 Non-operational conditions of rear parkingassist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Operation of the rear parking assist system . . . . . . 4-107
Rear parking assist system precautions . . . . . . . . . 4-109
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Rearview camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Recommended lubricants and capacities . . . . . . . . . . . . 9-7 Recommended SAE viscosity number. . . . . . . . . . . . 9-8
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Reporting Safety Defects (U.S. only) . . . . . . . . . . . . . . 9-16
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2 Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 7-2 Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 8-9
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 3-4
Driver position memory system (For power seat) . . . 3-9
Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-8
Headrest (For front seat) . . . . . . . . . . . . . . . . . . . . . 3-11
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-20 Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-27
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-20
Smart Cruise Control system (SCC) . . . . . . . . . . . . . . 6-52 Limitations of the system . . . . . . . . . . . . . . . . . . . . . 6-62
Speed setting (SCC) . . . . . . . . . . . . . . . . . . . . . . . . . 6-53
To adjust the sensitivity of Smart Cruise Control . . 6-61
To convert to cruise control mode . . . . . . . . . . . . . . 6-61
Vehicle to vehicle distance setting (SCC) . . . . . . . . 6-58
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
11 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Record your key number . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
PS
R
