headrest KIA NIRO 2021 Owners Manual

Safety features of your vehicle
43

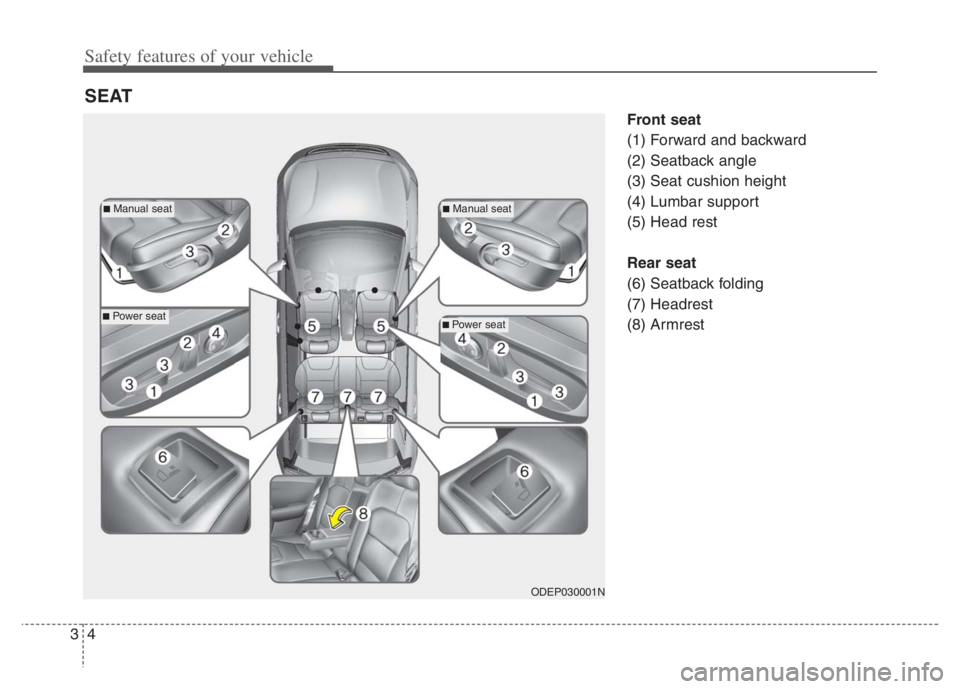

Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support
(5) Head rest
Rear seat
(6) Seatback folding
(7) Headrest
(8) Armrest
SEAT
ODEP030001N
■Manual seat
■Power seat
■Manual seat
■Power seat

Safety features of your vehicle
12 3
Easy access function (if equipped)
The system will move the driver's
seat automatically as follows:
Without smart key system
- It will move the driver’s seat rear-
ward when the ignition key is
removed and front driver’s door is
opened.
- It will move the driver’s seat forward
when the ignition key is inserted.
With smart key system
- It will move the driver’s seat rear-
ward when the engine start/stop
button is changed to the OFF
position.
- It will move the driver’s seat for-
ward when the engine start/stop
button is changed to the ACC or
START position.
- It will move the driver's seat for-
ward when you get in your vehicle
with the smart key after closing
the driver's door.
You can activate or deactivate this
feature. Refer to "User settings" in
chapter 4.
Headrest (for front seat)
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and comfort.
The headrest not only provides com-
fort for the driver and front passenger,
but also helps protect the head and
neck in the event of a rear collision.
For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
WARNING- Headrest
removal/adjustment
Do not operate the vehicle
with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest
height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
ODE036074L

313
Safety features of your vehicle

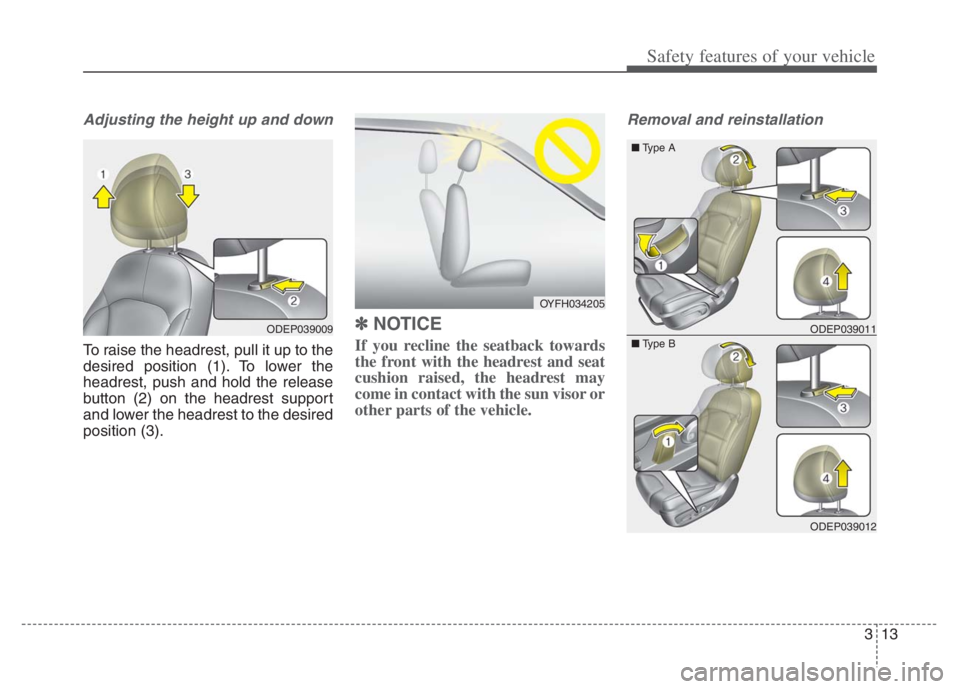

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
✽ ✽

NOTICE
If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may
come in contact with the sun visor or
other parts of the vehicle.
Removal and reinstallation
ODEP039009 ODEP039011
ODEP039012
■
Type B
■Type A
OYFH034205

Safety features of your vehicle
14 3

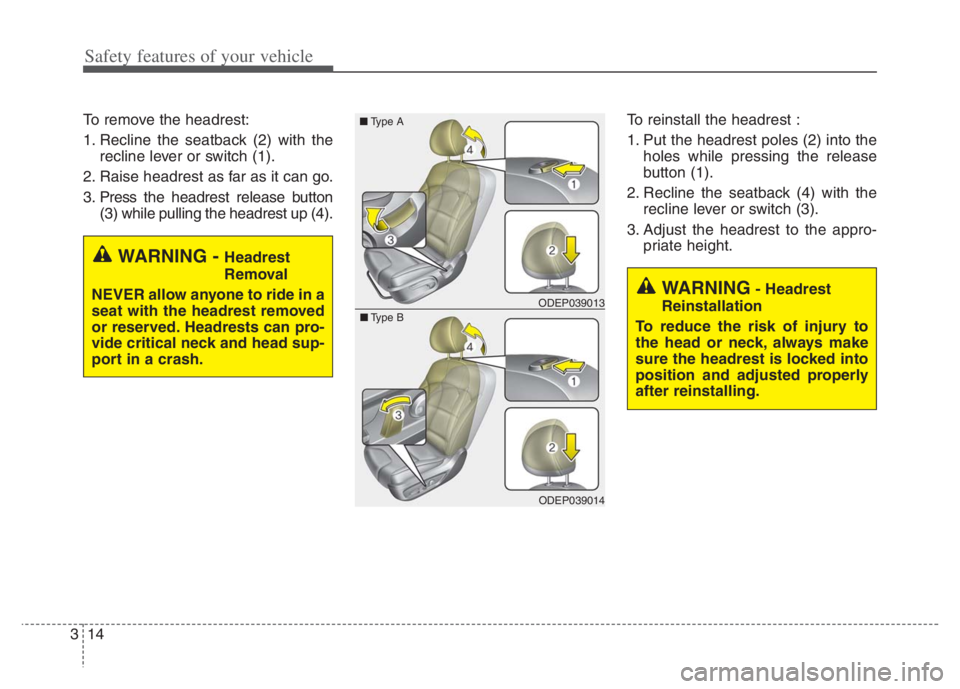

To remove the headrest:
1. Recline the seatback (2) with the
recline lever or switch (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button
(3) while pulling the headrest up (4).To reinstall the headrest :
1. Put the headrest poles (2) into the
holes while pressing the release
button (1).
2. Recline the seatback (4) with the
recline lever or switch (3).
3. Adjust the headrest to the appro-
priate height.
WARNING - Headrest
Removal
NEVER allow anyone to ride in a
seat with the headrest removed
or reserved. Headrests can pro-
vide critical neck and head sup-
port in a crash.
ODEP039013
ODEP039014 ■Type B
■Type A
WARNING- Headrest
Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly
after reinstalling.

315
Safety features of your vehicle

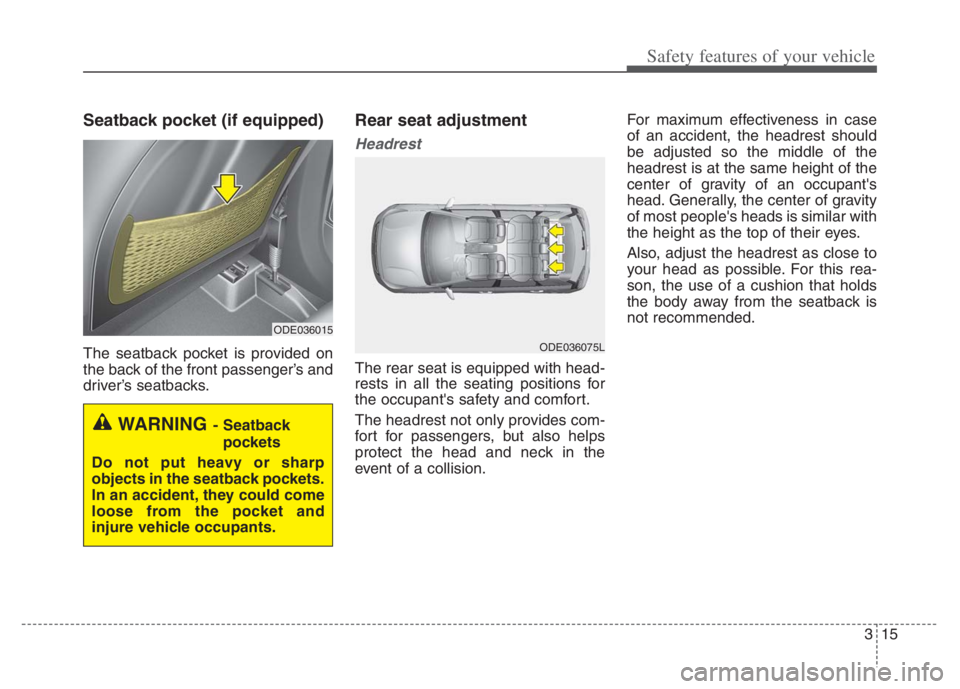

Seatback pocket (if equipped)
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
Rear seat adjustment
Headrest
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's heads is similar with
the height as the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
ODE036015
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident, they could come
loose from the pocket and
injure vehicle occupants.
ODE036075L

Safety features of your vehicle
16 3

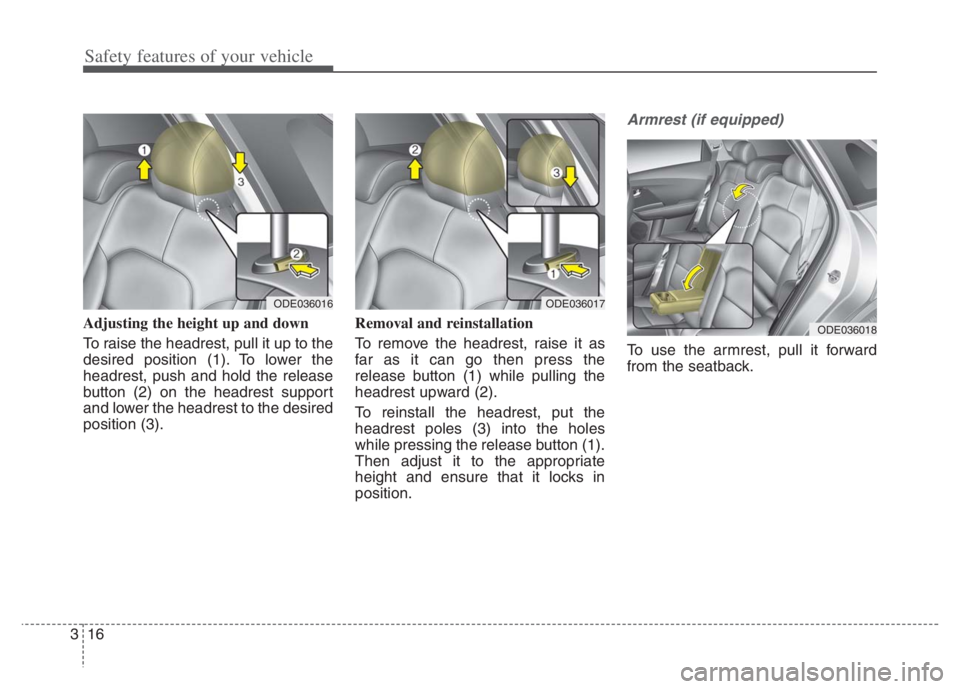

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).Removal and reinstallation
To remove the headrest, raise it as
far as it can go then press the
release button (1) while pulling the
headrest upward (2).
To reinstall the headrest, put the
headrest poles (3) into the holes
while pressing the release button (1).
Then adjust it to the appropriate
height and ensure that it locks in
position.
Armrest (if equipped)
To use the armrest, pull it forward
from the seatback.
ODE036016 ODE036017
ODE036018

317
Safety features of your vehicle

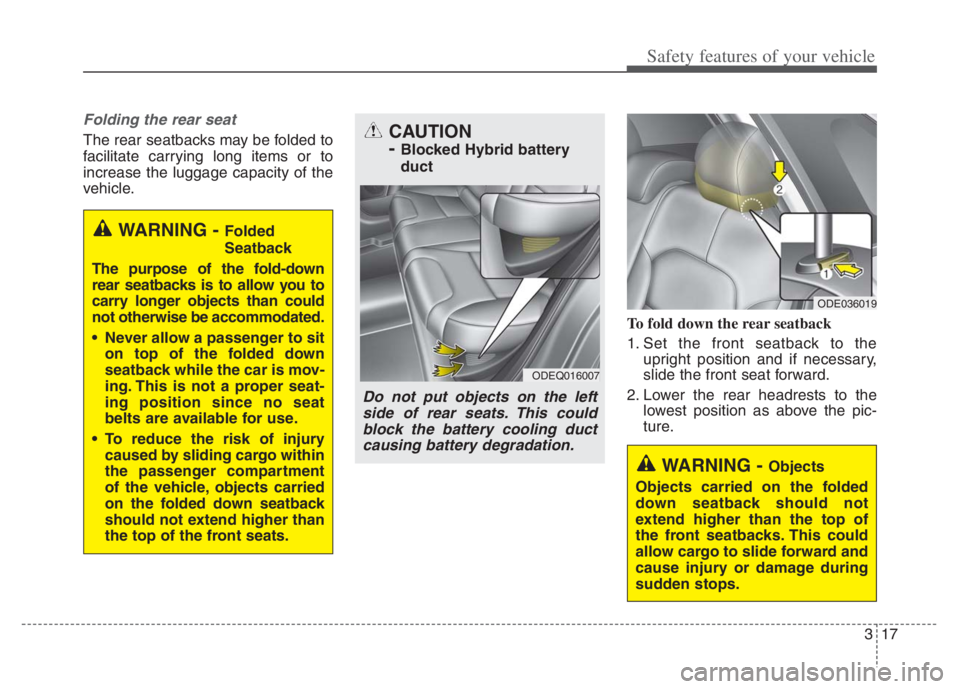

Folding the rear seat
The rear seatbacks may be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
To fold down the rear seatback
1. Set the front seatback to the
upright position and if necessary,
slide the front seat forward.
2. Lower the rear headrests to the
lowest position as above the pic-
ture.
WARNING - Folded
Seatback
The purpose of the fold-down
rear seatbacks is to allow you to
carry longer objects than could
not otherwise be accommodated.
Never allow a passenger to sit
on top of the folded down
seatback while the car is mov-
ing. This is not a proper seat-
ing position since no seat
belts are available for use.
To reduce the risk of injury
caused by sliding cargo within
the passenger compartment
of the vehicle, objects carried
on the folded down seatback
should not extend higher than
the top of the front seats.
CAUTION
-
Blocked Hybrid battery
duct
Do not put objects on the left
side of rear seats. This could
block the battery cooling duct
causing battery degradation.
ODEQ016007
WARNING - Objects
Objects carried on the folded
down seatback should not
extend higher than the top of
the front seatbacks. This could
allow cargo to slide forward and
cause injury or damage during
sudden stops.
ODE036019

I9

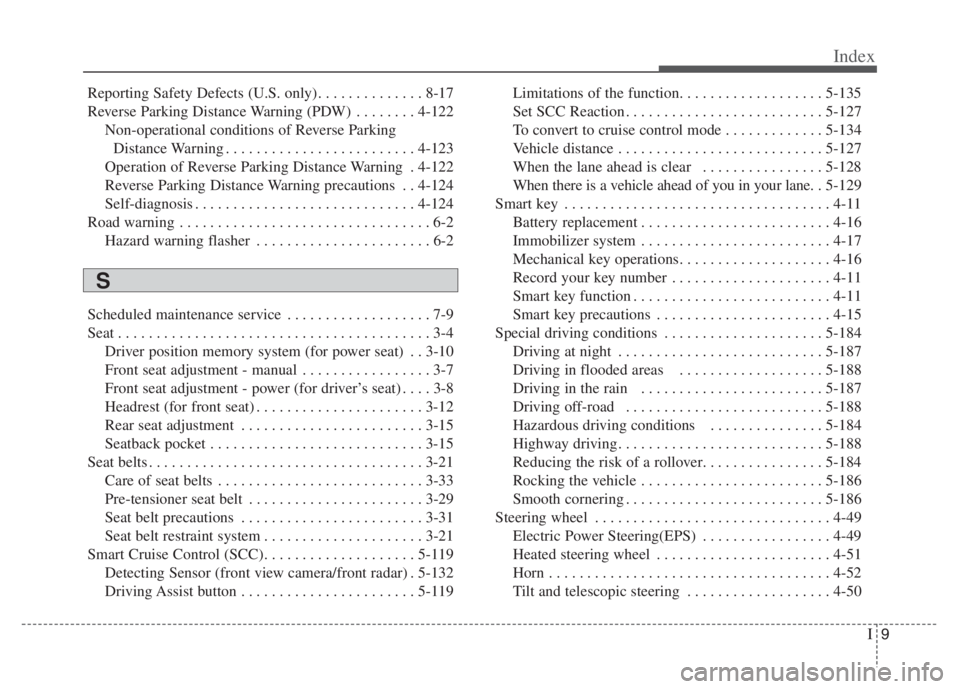

Index
Reporting Safety Defects (U.S. only) . . . . . . . . . . . . . . 8-17
Reverse Parking Distance Warning (PDW) . . . . . . . . 4-122
Non-operational conditions of Reverse Parking
Distance Warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-123
Operation of Reverse Parking Distance Warning . 4-122
Reverse Parking Distance Warning precautions . . 4-124
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 6-2
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-9
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Driver position memory system (for power seat) . . 3-10
Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment - power (for driver’s seat) . . . . 3-8
Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . 3-12
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-29
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-21
Smart Cruise Control (SCC). . . . . . . . . . . . . . . . . . . . 5-119
Detecting Sensor (front view camera/front radar) . 5-132
Driving Assist button . . . . . . . . . . . . . . . . . . . . . . . 5-119Limitations of the function. . . . . . . . . . . . . . . . . . . 5-135
Set SCC Reaction . . . . . . . . . . . . . . . . . . . . . . . . . . 5-127
To convert to cruise control mode . . . . . . . . . . . . . 5-134
Vehicle distance . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-127
When the lane ahead is clear . . . . . . . . . . . . . . . . 5-128
When there is a vehicle ahead of you in your lane. . 5-129
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Mechanical key operations. . . . . . . . . . . . . . . . . . . . 4-16
Record your key number . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . 4-15
Special driving conditions . . . . . . . . . . . . . . . . . . . . . 5-184
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-187
Driving in flooded areas . . . . . . . . . . . . . . . . . . . 5-188
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . 5-187
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . 5-188
Hazardous driving conditions . . . . . . . . . . . . . . . 5-184
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-188
Reducing the risk of a rollover. . . . . . . . . . . . . . . . 5-184
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 5-186
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . 5-186
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Electric Power Steering(EPS) . . . . . . . . . . . . . . . . . 4-49
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-51
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . 4-50
S
