power steering KIA NIRO 2023 Features and Functions Guide

2*IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview 03Indicators & Warning Lights 04Tire Pressure Monitoring System (TPMS) 05Hybrid / Plug-In Hybrid Indicators at Star tup 06EV But ton / Plug-In Hybrid Modes 06Drive Mode Integrated Control System* 07Green Zone Drive Mode* 07Fuel Economy / Tips for Economical Driving 08
VEHICLE SETTINGSTrip Modes / Trip Computer 09Instrument Cluster LCD Modes 09User Set tings - Instrument Cluster 10Vehicle Set tings* - Infotainment System 11Service Interval Mode 12
HYBRID / PLUG-IN HYBRID SYSTEMPlug-In Hybrid Display* - Infotainment System 13Instrument Cluster - Energy Flow 14Emergency Star ting* (Hybrid only) 15Charging the Plug-In Hybrid Vehicle 16Charging Connector Auto/Lock Mode 18Scheduled Charging* (Plug-In Hybrid only) 18Regenerative Braking with Paddle Switches* 19
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) 20Lane Keeping Assist (LK A)* 21Blind-Spot Collision Warning (BCW)* 22Blind-spot Collision-Avoidance Assist (BCA) 23Driver At tention Warning (DAW)* 24Leading Vehicle Depar ture Aler t (LVDA)* 25Cruise Control 25Navigation-based Smar t Cruise Control (NSCC)* 26Intelligent Speed Limit Assist (ISL A)* 28Lane Following Assist (LFA)* 29
ADAS CONTINUEDHighway Driving Assist (HDA)* 29Rear View Monitor (RVM) 30Safe Exit Warning (SEW) 30Forward/Reverse Parking Distance Warning (PDW)* 31Rear Cross-traffic Collision Avoidance Assist (RCCA) 32
DRIVER’S PANELInstrument Cluster Control 33Electronic Stability Control (ESC) 33Hill-Star t Assist Control (HAC) 33Reverse Parking Aid Function* 34Engine Star t/Stop But ton 34Power Windows, Window Lock & Central Door Lock 35Manual Folding Mirrors* 35Automatic Door Lock/Unlock 35Power/Heated Outside Mirrors 35Power Folding Outside Mirrors* 35
STEERING WHEEL CONTROLSHeadlights & High Beams 36High Beam Assist (HBA) 36Turn Signals & Fog Lights* 37Heated Steering Wheel But ton* 38Windshield/Rear Wipers & Washers 38Tilt/Telescoping Steering Wheel 39
INFOTAINMENT SYSTEMBluetooth® Wireless Technology 40 Audio Controls 41Android Auto™ / Apple CarPlay® S et up* 42Standard Audio System - Value* 43Kia Connect Activation* / Kia Connect Assistance* 44Kia Access App Download 45Kia Access App Features Guide 45Kia Connect with Navigation* 46
CENTER PANELDigital Clock (Infotainment System) 47Multimedia USB Por t, Charger Por ts / AC Inver ter* 47Wireless Smar tphone Charging System* 48Automatic Climate Control 49Automatic Gear Shift with Spor tmatic® Shifting* 50Dual Clutch Transmission 50Rotary Dial Shifter* (Plug-In Hybrids only) 51Paddle Shifters* 51Auto Hold / Electronic Parking Brake (EPB) 52Seat Warmers* / Ventilated Seats* 53
SEATINGDriver Position Memory System* 54Front Seat Headrest Adjustment 54Rear Occupant Aler t (ROA) with Door Monitoring 55Power Adjustable Driver ’s Seat* 566-Way Manual Adjustable Driver ’s Seat* 56Folding Rear Seats 57
OTHER KEY FEATURESRemote Keyless Entry (Folding Key)* 57Digital Key 2 Touch* 58Smar t Key / Remote Star t* 60Map/Room Lamps / Sunroof Operation* 61Hood Release Lever and Latch / Sunvisor 62Fuel Cap / Malfunction Indicator 62Fuel Filler Lid 62Power Liftgate* 63Liftgate Release But ton* 64Hybrid Bat tery Cooling Duct (Hybrids only) 64Child-Protector Rear Door Locks (Manual) 65Tire Mobility Kit 65
SAFETY FEATURESOccupant Detection System (ODS) /Passenger Airbag Off Indicator 66Seat Belts 66
LEGAL DISCLAIMERS Inside Back Cover
MAINTENANCE CHART Back Cover

4*IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
High Beam Indicator
Light ON Indicator
Front Fog Light Indicator*
Master Warning Indicator
For ward Safet y Warning Indicator*
Lane Safet y Indicator
Electronic Brake Force (EBD) System Warning Indicator(Two separate indicators on Instrument Cluster lit at same time)
Immobilizer Indicator*
READY Indicator
EVEV Mode Indicator
ECO Indicator
SPORT Mode Indicator
Hybrid System Warning Indicator

Engine Coolant Temperature Warning
Engine Oil Pressure Warning Indicator
Charging System Warning Indicator
Seat Belt Warning Indicator
Malfunction Indicator
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction IndicatorElectronic Stabilit y Control (ESC) Indicator / ESC Malfunction Indicator

Electronic Stabilit y Control (ESC) OFF Indicator
Parking Brake & Brake Fluid Warning Indicator
Motor Driven Power Steering(MDPS) Warning Indicator
Airbag Warning Indicator
Parking Brake Indicator
Anti-lock Braking System (ABS) Warning Indicator
Low Fuel Level Warning Indicator
Cruise Indicator*
Trunk Open Warning Indicator
Door Ajar Warning Indicator
(red color)
(yellow color)
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
❄Icy Road Warning Indicator
LED Headlamp Warning Indicator*
Charging Cable Connection Indicator (Plug-In Hybrid)*
Exhaust System (GPF) Warning Indicator (Gasoline Engine)
Green Zone Drive Mode Indicator
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 5 of the Owner ’s Manual
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
EF
75°F
１ 2 .１0 １0 20 30
324mi2400mi
AUTO
HOLD
MPH
EPB
HEV
ABS EPB
CHARGE

POWER
L
H
(LCD Type B Cluster)
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

7*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
REMINDER: The engine may star t in cer tain situations
The drive modes may be changed according to the driver ’s preferences or road conditions To cycle through the drive modes, press the Drive Mode button A When a drive mode is selected (ECO or SPORT), the drive mode indicator will illuminate in the Instrument Cluster
Refer to section 5 in the Owner ’s Manual for more information
Refer to section 6 in the Owner ’s Manual for more information
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
(But tons located on Steering Wheel–Type B)
EF
75°F
0 １0 20 30
324mi
AUTO
HOLD
MPH
EPB
HEV
READY
ABS EPB
CHARGEPOWER
L
H
ECO
C
BSPORT
ECO
REMINDERS:
•
When ECO mode is selected, the following may occur to help improve fuel economy: -Acceleration may be slightly reduced when the accelerator is fully depressed -Air conditioner per formance may be limited -Shift pat tern of the automatic transmission may change -Engine noise may decrease -System’s power will be limited when driving uphill
•When SPORT mode is selected, fuel economy may decrease
•The system defaults to ECO mode when ignition is in the ON position
•Steering effor t may be slightly increased in SPORT mode
Drive Mode Integrated Control System*Green Zone Drive Mode*
When Green Zone Drive Mode is enabled, the vehicle switches to EV mode when entering “green zone” registration points, like schools, hospitals, parks, etc, based on navigation information provided and driving history
To enable, go to User Settings* in the Instrument Cluster or Vehicle Settings* in the Infotainment System Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button B on the Steering Wheel to toggle to User Settings Press the OK button C up/down to toggle to ECO Vehicle and then Green Zone EV Drive
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select ECO Vehicle and then Green Zone EV Drive
96%Lv １READY
DRIVE
MODE
96%
L v １
READY
DRIVE
MODE
A
(Center left side of steering wheel)

10*IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
To enter the User Settings mode in the LCD Instrument Cluster Modes, ensure that the vehicle is at a standstill, put the shift lever in Park, and place the Engine Start/Stop button or Key in the ON position Then press the Mode button A and select User Settings
You can navigate the selections on the display by pressing the OK button B up/down and then select the item by pressing the OK button B again
Driving Assistance*: •Driving Convenience •Speed Limit* •Warning Timing •Warning Volume •Driver Attention Warning (DAW) •Forward Safety •Lane Safety •Blind-spot Safety •Parking Safety*
ECO Vehicle: •Green Zone EV Drive* •Coasting Guidance* •Start Coasting* •Locking Charging Cable •Charge Guidance Sound
Cluster: •Theme Selection •Wiper/Lights Display •Traffic Signs •Icy Road Warning •Cluster Voice Guidance Volume •Welcome Sound
Lights: •Illumination •One-Touch Turn Signal •Ambient Light Brightness •Ambient Light Color •Headlamp Delay •High Beam Assist
Door: •Automatically Lock/Unlock •Two-press Unlock •Horn Feedback •Power Liftgate •Power Liftgate Opening Speed/Height •Smart Liftgate •Remote Window Control*
Convenience: •Seat Easy Access* •Rear Occupant Alert •Service Interval •Welcome Mirror/Light* •Wireless Charging System •Auto Rear Wiper
Units: •Speedometer Unit* •Fuel Economy Unit* •Temperature Unit* •Tire Pressure Unit*
Language •Language: Set the language
Reset •Choosing reset will restore defaults for all User Settings menusRefer to Section 5 in the Owner ’s Manual for more information
Driving while distracted is dangerous and should be avoided Do not at tempt to change vehicle system set tings while driving
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
User Settings* - Instrument Cluster
(But tons located on Steering Wheel – Type B)
B
A
QR CODES
VEHICLE SETTINGS
VEHICLESETTINGS

15*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Before Jump-Starting:
1
If the vehicle appears to have a dead battery, first press the 12V Battery Reset button A Then immediately start the vehicle by pressing the brake and turning the ignition on or pressing the Engine Start/Stop button
2
If the vehicle does not start after completing the above steps, then jump-start the vehicle (as described below)
REMINDERS:
•After star ting, idle or drive the vehicle for more than 30 minutes to help charge the 12V bat ter y
•
If the vehicle does not star t immediately after pressing the 12V Bat ter y Reset but ton A, then the power of the 12V bat ter y is automatically disconnected to save any additional discharge
•
Repeated use of the 12V Bat ter y Reset but ton may cause over discharge which will prevent the vehicle from star ting
Jump-Starting:
1 Remove the fusebox cover B under the front hood
2 The {+} jump start terminal C is located in the fuse box; the suitable ground point D is located
in the engine compartment (See Owner ’s Manual for detailed description)
3
Connect cables coming from the battery booster source in the following order and disconnect in reverse order
•Connect the {+} clamp of your jumper cable to the {+} jump start terminal C
•Connect the {-} clamp of your jumper cable to the suitable ground point D
4
Press the 12V Battery Reset button A then immediately start the vehicle by pressing the brake and turning the ignition on or pressing the Engine Start/Stop button
REMINDER: Jump-star ting your vehicle can be dangerous if done incorrectly Follow the above jump-star ting procedures to avoid harm to yourself or damage to your vehicle and any of its components You should also consult your Owner's Manual for fur ther detailed instructions for jump-star ting your vehicle If in doubt, we strongly recommend that you have a competent technician or towing ser vice jump-star t your vehicle
For more information on Emergency Star ting, please refer to section 7 of the Owner ’s Manual
(Located in Driver's Panel to the left of Steering Wheel)
(Niro engine compar tment shown)
Emergency Starting* (Hybrid only)
HYBRID / PLUG-IN HYBRID SYSTEM
HYBRID/PLUG-IN

HYBRID
B
A
C
D

EF
324mi
MPH
CHARGE
ECO
POWER
L H
D
E F
324mi
MPH
CHARGE
ECO
POWER
L H
D
E F
324mi
MPH
CHARGE
ECO
POWER
L H
D
E F
324mi
MPH
CHARGE
ECO
POWER
L H
D
When LK A detects the lane markers, both lanes are displayed white
When LK A does not detect the lane markers, the lanes are displayed gray
When LK A detects the vehicle moving outside of the lane being traveled in, a yellow lane marker will illuminate either on the left or right lane (shown in both images above)
(But tons are located left of the Steering Wheel)
21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Lane Keeping Assist is not a substitute for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane Always drive safely and use caution
Actual User Set tings steps may var y by model Refer to section 6 in the Owner ’s Manual for more information
For illustrative purposes only Your actual display, but tons and/or features may var y
Lane Keeping Assist (LKA)*†3
Lane Keeping Assist (LK A) is designed to detect the lane markers on the road with a front view camera on the windshield, and may assist the driver ’s steering to potentially help keep the vehicle in the lane When turned on, the instrument cluster indicator will initially illuminate white It will remain white when the vehicle is traveling slower than 40 mph or when LK A does not detect the lane markers When LK A detects the lane markers and can assist the steering, the LK A icon will illuminate green
If the LK A detects that you are moving outside of your lane, without using the turn signal, LK A may give an audible warning and display Lane Departure Warning on the instrument cluster or LK A may provide steering inputs, trying to prevent the vehicle from moving outside its lane
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster And if hands on the Steering Wheel is not detected continually, LFA will be turned off with additional emergency warning
LKA Settings:
•Press and hold the Lane Driving Assist button A to turn LK A on or off, when it is first enabled in the User Settings* in the Instrument Cluster or Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button B on the Steering Wheel to toggle to User Settings Press the OK button C up/down to toggle to Driver Assistance and then Lane Safety
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, Driving Safety and then Lane Safety
LK A will operate under the following conditions:
•The vehicle speed exceeds approximately 40 mph
•
LK A recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is between the lane markers
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Lane Keeping Assist (LK A) Video
QR CODE

The Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the infotainment system Go to Driver Assistance, Warning Method, then Warning Volume
QUICK TIP
REMINDERS:
•
LK A will not issue a warning if the turn signals or hazard lights are activated
•
When the ignition is cycled, LK A will return to the previously set state
A
B
C

29†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
The Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the infotainment system Go to Driver Assistance, Warning Method, then Warning Volume
QUICK TIP
EF
324mi
MPH
CHARGE
ECO
POWER
L H
D
Lane Following Assist (LFA)*†3
REMINDER: LFA is not a substitute for safe and proper driving Always drive safely and use caution
Lane Following Assist (LFA) is designed to help ensure that the vehicle stays centered in its lane A by monitoring the detected lane markings ahead and adjusting the steering The instrument cluster indicator will initially illuminate white when turned ON It will remain white when LFA does not detect the lane markers When LFA detects the lane markers and can assist the steering, the Lane Following Assist icon will illuminate green B
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster And if hands on the Steering Wheel is not detected continually, LFA will be turned off with additional emergency warning
•Press the Lane Driving Assist button C to turn LFA on or off, when it is first enabled in the User Settings* in the Instrument Cluster or Vehicle Settings* in the Infotainment System
•LFA will operate only when these conditions are met:
– LFA recognizes both sides of the lane markers the vehicle is traveling in
– The vehicle is traveling slower than 90 mph
(But tons located on steering wheel)
REMINDER: When the ignition is cycled, the system returns to its previous state, on or off
Highway Driving Assist (HDA)*†3
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways/freeways
When HDA is activated C and the conditions are met, the HDA indicator F will illuminate green If proper conditions are not met, HDA will be in standby mode and the indicator light F will illuminate white When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green F
HDA User Settings:
To enable HDA , access settings through the Vehicle Settings in the Infotainment System Press the SETUP key, then press VEHICLE on the screen to enter Vehicle Settings Select Driver Assistance, Driving Convenience and then Highway Driving Assist
HDA will operate only when these conditions are met:
•
The vehicle is traveling slower than 110 mph or the highway speed limit
•
When driving on limited/controlled access highways/freeways
•
When the SCC is on and operating
•
When the SCC speed is set to current posted highway speed or slower
Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways Always drive safely and use caution
See section 6 in the Owner ’s Manual for more detailed information, limitations and conditions
Images are for illustrative purposes only and may not reflect actual feature or operation
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
Lane Following Assist (LFA) Video
QR CODEQR CODE
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
60 MPH
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
60 MPHHDA
HDA
L FA is supplemental
Do not solely rely on L FA and always pay at tention to the road and its conditions
Actual User Set tings steps may var y by model See section 6 in the Owner ’s Manual for more detailed information, limitations and conditions
B
A
F
D
E
F
C

Rear Cross-traffic Collision-Avoidance Assist (RCCA)†3
REMINDERS:
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
When engaged, RCCA is a supplemental system Do not solely rely on this system and always pay at tention to the road and its conditions
Refer to section 6 in the Owner ’s Manual for more information
0
7
8
6
１
60
20
１40
40
１20
60
１00
80
3FGFS
UP
UIF
JOTJEF
GSPOU
DPWFS
GPS

NPSF
JOGPSNBUJPO
PO
23
DPEFT XXXZPVUVCF DPN,JB'FBUVSF7JEFPT
Rear Cross-traffic Collision-Avoidance Assist (RCCA) Video
QR CODE
A
B
The Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the Infotainment System Go to Driver Assistance, Warning Method, then Warning Volume
QUICK TIP
C
D
(But tons located on steering wheel)
32†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Rear Cross-traffic Collision-Avoidance Assist (RCCA) is designed to warn the driver under certain conditions It may temporarily apply braking if it detects cross traffic approaching the vehicle when the vehicle is in reverse
When the rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A, RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B and the Infotainment System If RCCA detects that the collision risk has increased, RCCA automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision
RCCA is designed to operate under the following conditions:
•When the gear shift is in Reverse
•When the vehicle is moving slower than 6 mph
RCCA Settings:
•RCCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings Press the OK D up/down to toggle to Driver Assistance, then Parking Safety Select Rear Cross-traffic Safety and press the OK button D
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Parking Safety and select Rear Cross-traffic Safety

34†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
•To use electrical accessories:
ACC position
-When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton once
ON position
-When already in the ACC position and without depressing the brake pedal, press the ENGINE START/STOP but ton again
-
When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice
-Keeping the vehicle in ACC or ON position without turning the engine on may discharge the vehicle’s battery
QUICK TIPS
Refer to section 5 in the Owner ’s Manual for more information
LR
LR
8IFO
UIF
HFBS
TIJGU
MFWFS
JT
NPWFE
JOUP
3
3FWFSTF

BOE

UIF
WFIJDMF
JT
ESJWFO
CBDLXBSET

UIF
PVUTJEF
SFBSWJFX
NJSSPST

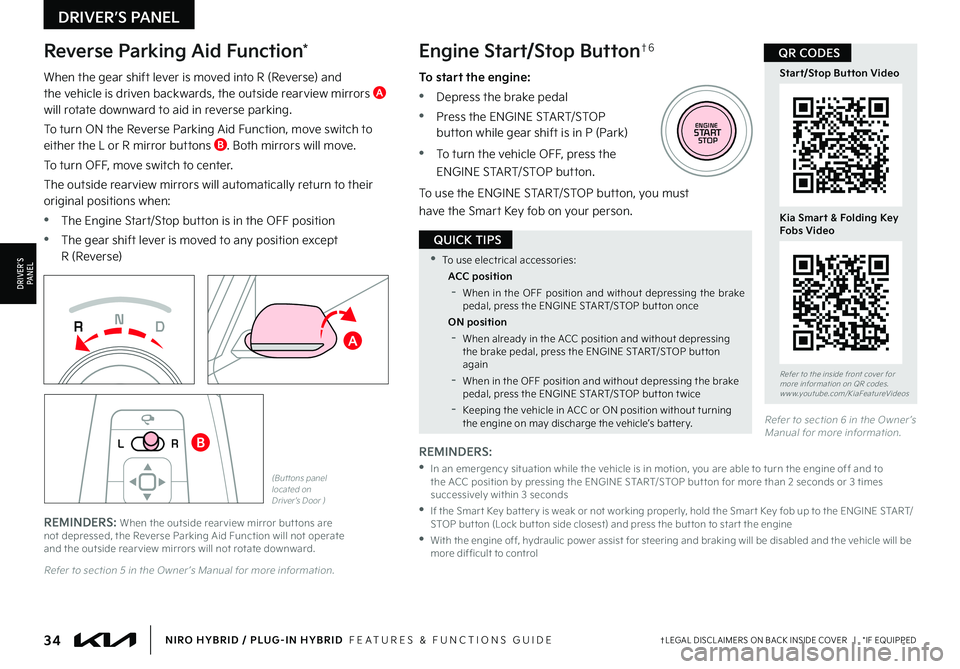

A will rotate downward to aid in reverse parking
To turn ON the Reverse Parking Aid Function, move switch to either the L or R mirror buttons B Both mirrors will move
To turn OFF, move switch to center
The outside rearview mirrors will automatically return to their original positions when:
•The Engine Start/Stop button is in the OFF position
•The gear shift lever is moved to any position except
R (Reverse)
Reverse Parking Aid Function*Engine Start/Stop Button†6
(But tons panel located on Driver's Door )
REMINDERS: When the outside rear view mirror but tons are not depressed, the Reverse Parking Aid Function will not operate and the outside rear view mirrors will not rotate downward
Refer to section 6 in the Owner ’s Manual for more information
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the ENGINE START/STOP but ton for more than 2 seconds or 3 times successively within 3 seconds
•
If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the ENGINE START/STOP but ton (Lock but ton side closest) and press the but ton to star t the engine
•
With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more dif ficult to control
To start the engine:
•Depress the brake pedal
•
Press the ENGINE START/STOP button while gear shift is in P (Park)
•To turn the vehicle OFF, press the
ENGINE START/STOP button
To use the ENGINE START/STOP button, you must
have the Smart Key fob on your person
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Start/Stop Button Video
Kia Smart & Folding Key Fobs Video
QR CODES
ENGINESTARTSTOP
AUTO
HOLD
EV
R N
P D
DRIVER’S PANEL
DRIVER’SPA N EL
A
B
L
R

38*IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
If ignition is cycled, the Heated Steering Wheel turns OFF Press but ton again to turn ON
QUICK TIP
•Pressing lever up increases Intermit tent wipe frequency and wipe speed Pressing lever down decreases frequency of wipes
•Set the wiper to OFF position when the wiper is not in use
•LO and HI sets wiper speed No intermit tent wipe function on Rear Wipers
QUICK TIPS
(Located beside gear shift dial)
Heated Steering Wheel Button*
REMINDER: If the steering wheel becomes too warm, turn the system off The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time
Windshield/Rear Wipers & Washers
To operate Rear Wiper & Washer:
•Rotate Rear Wiper switch to change Wiper modes
•Push to spray and wipe
Refer to section 5 in the Owner ’s Manual for more information
Refer to section 5 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wipers and Wipers Stalk Video
QR CODE
Press button A to turn ON/OFF steering wheel heater while the ignition or Engine Start/Stop button is in the ON position
Steering wheel heater will turn off automatically in 30 minutes, or when button is pressed again to deactivate Steering wheel heater will turn ON or OFF automatically depending on the steering wheel temperature
To operate Windshield Wipers and Washers:
•Move lever Up/Down to change Wiper modes
•Press switch B Up/Down to adjust Intermittent Wipe Speed
•Pull lever to spray and wipe
Rain Sensing (Auto Control Wipe):
The rain sensor located on the upper end of the windshield glass senses the amount of rainfall and controls the wiping cycle for the interval selected The more it rains, the faster the wiper operates When the rain stops, the wiper stops
To vary the speed setting, press the Wiper Switch C up/down
If the wiper lever is set in AUTO mode when the Power button is ON, the wiper will operate once to per form a self-check of the system
B
C
AUTO
WINDSHIELD MIST: Single wipeOFF: Wiper offINT/AUTO: Auto control wipe (rain sensing)LO: Slow wipeHI: Fast wipe
ENGINESTARTSTOP
AUTO
HOLD
EV
R N
P
D
STEERING WHEEL CONTROLS
STEERING

WHEEL CONTROLS
A
