KIA NIRO 2023 Navigation System Quick Reference Guide

5
Be sure to keep the following instructions. Otherwise, it may cause serious injury or accident.
ÝDriving
Obey all traffic laws while driving.
 Relying solely on the navigation system may cause violation of traffic rules and regulations, resulting in an
accident.
In order to check the vehicle speed, see the speedometer first, not the speed on the
navigation system.
The speed on the navigation system may differ from actual vehicle speed.
While driving, refrain from watching the screen.
An accident may occur by negligence in keeping your eyes forward.
To manipulate the screen or buttons requiring multiple steps, be sure to stop your vehicle.
To use your mobile phone, first stop your vehicle.
When you use your mobile phone while driving, it may disperse your attention, resulting in an accident.
If necessary, use handsfree (Bluetooth) calling when driving and minimize the call time.
Make sure that the volume of the phone is sufficiently low so that the external sound is
audible.
When you drive with no external sound present may cause a traffic accident.
When you drive for a long time with a loud audio volume, it may affect your hearing.
For emergency services (e.g. hospital, fire station), do not rely solely on the navigation
system.
Some emergency services may not be included in the navigation map. Check relevant information in advance
to stay prepared for an emergency.
ÝSystem handling
Do NOT arbitrarily disassemble or modify the system.
 It may cause an accident, fire, or electric shock.
Exercise caution to make sure that no liquid or foreign materials enter the system.
It may cause smoke generation, fire ignition, or system failure.
When the screen is not displayed, the volume is muted, or other system failures occur,
immediately stop using the system.
Otherwise, it may cause fire, electric shock, or fatal system failure.

A
If you experience any problems with the system, contact your place of purchase or dealer.
Safety Warnings

6

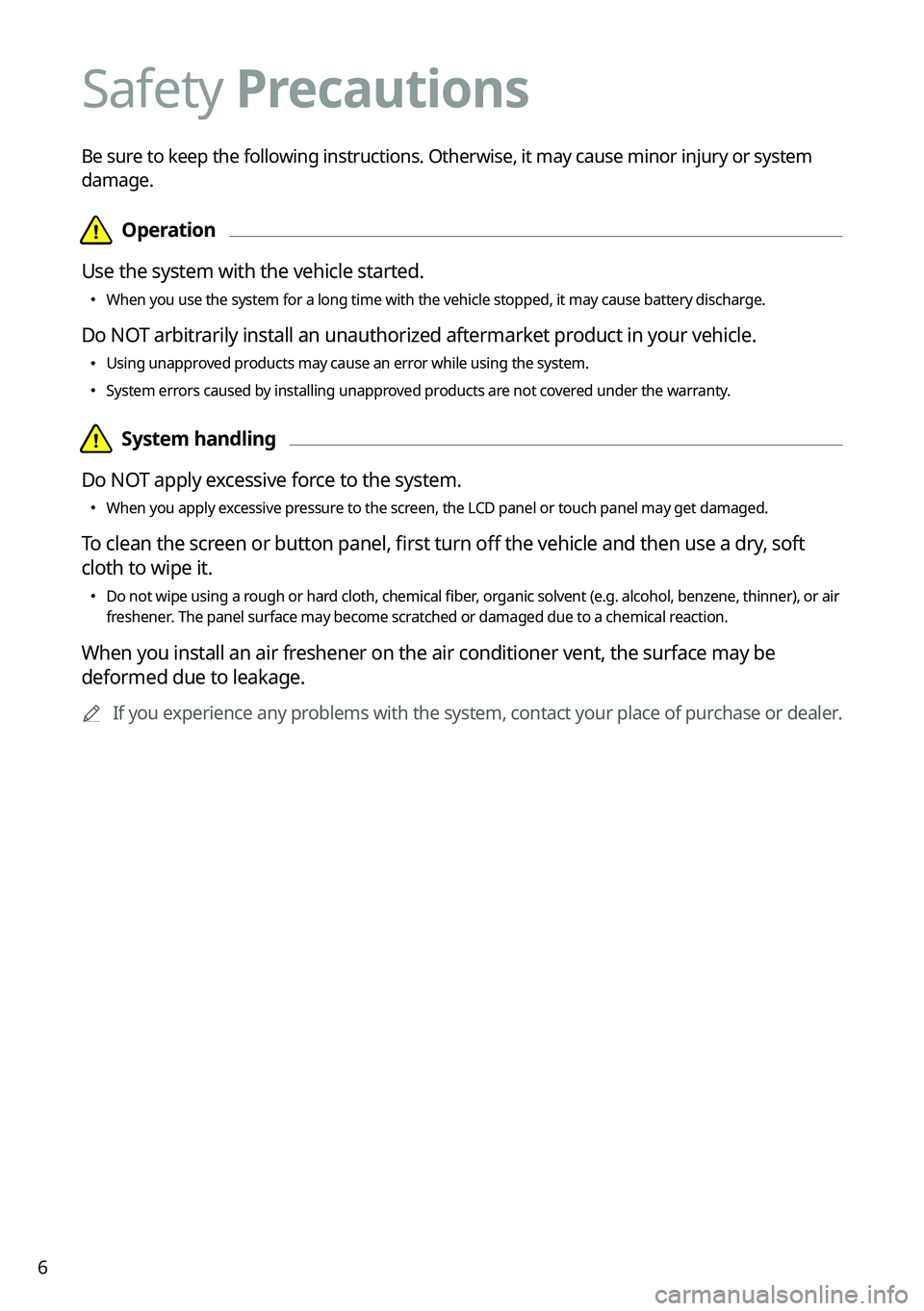

Safety Precautions
Be sure to keep the following instructions. Otherwise, it may cause minor injury or system
damage.

7
Contents
01 System overview
Component names and functions 1-2
Turning on/off the system 1-6
Using the touch screen 1-8
Using the Home screen 1-11
Accessing the All Menus screen 1-15
Using the split screen 1-15
02 Useful functions
Using the First Run Setup 2-2
Using the phone projection function 2-3
Viewing the driving assistance screen 2-8
Using the climate control function 2-13
Using the rear-seat climate control function 2-16
Using the rear-seat conversation mode 2-18
Using the rear-seat view 2-19
Using the rear-seat quiet mode 2-20
Using the sound mood lamp 2-21
Playing Sounds of Nature 2-22
Using the HD Radio™ Data 2-23
Viewing the driving information 2-26
Viewing notifications 2-27
Using the Valet mode 2-28

8
Using the Hybrid menu 2-29
03 Radio
Turning on the radio 3-2
Listening to HD Radio™ 3-15
Listening to SiriusXM™ radio 3-17
04 Media
Using media 4-2
05 Navigation
Navigation functions 5-2
Various ways to find routes 5-10
Using saved favorite places 5-23
Viewing traffic Information 5-28
Searching for gas stations 5-29
Searching for EV (Electric Vehicle) charging stations 5-30
END USER LICENSE AGREEMENT 5-31

9
06 Phone
Connecting a Bluetooth device 6-2
Making a call via Bluetooth 6-6
Accepting an incoming call over Bluetooth 6-15
Checking new messages over Bluetooth 6-17
07 Voice functions
Voice recognition 7-2
Using the Siri Eyes Free 7-29
Voice Memo 7-30
08 Kia Connect
Kia Connect service 8-2
Running the Kia Connect menu 8-4
Route guidance service 8-13

10

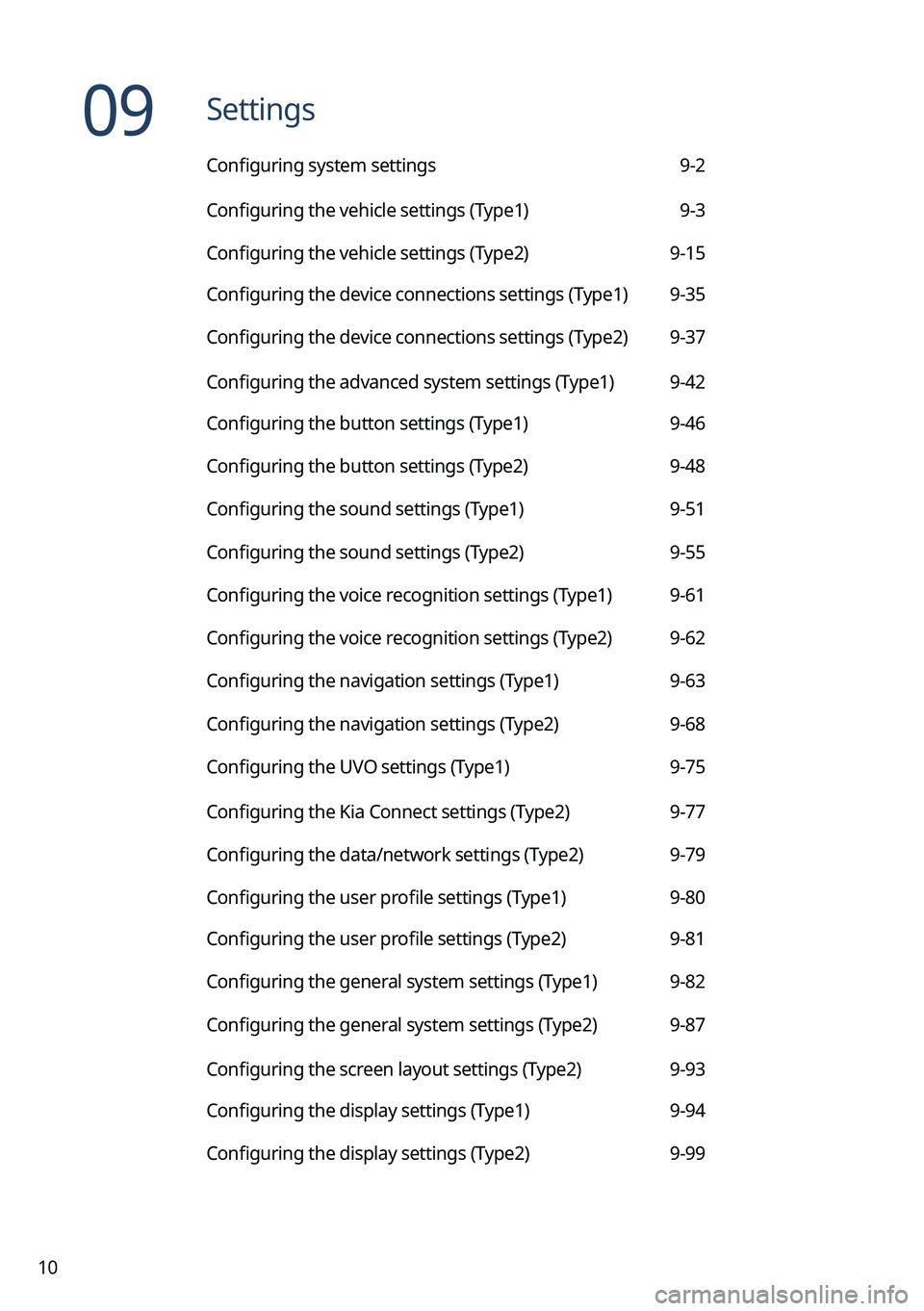

09 Settings
Configuring system settings 9-2
Configuring the vehicle settings (Type1) 9-3
Configuring the vehicle settings (Type2) 9-15
Configuring the device connections settings (Type1) 9-35
Configuring the device connections settings (Type2) 9-37
Configuring the advanced system settings (Type1) 9-42
Configuring the button settings (Type1) 9-46
Configuring the button settings (Type2) 9-48
Configuring the sound settings (Type1) 9-51
Configuring the sound settings (Type2) 9-55
Configuring the voice recognition settings (Type1) 9-61
Configuring the voice recognition settings (Type2) 9-62
Configuring the navigation settings (Type1) 9-63
Configuring the navigation settings (Type2) 9-68
Configuring the UVO settings (Type1) 9-75
Configuring the Kia Connect settings (Type2) 9-77
Configuring the data/network settings (Type2) 9-79
Configuring the user profile settings (Type1) 9-80
Configuring the user profile settings (Type2) 9-81
Configuring the general system settings (Type1) 9-82
Configuring the general system settings (Type2) 9-87
Configuring the screen layout settings (Type2) 9-93
Configuring the display settings (Type1) 9-94
Configuring the display settings (Type2) 9-99

11
Configuring the media settings (Type1) 9-105
How to Update the Map and Software for your
Infotainment System 9-106
10 Wireless Update
Wireless update 10-2
11 Appendix
Solutions 11-2
System status indicator icons 11-9
FAQ 11-12
Product specifications 11-14
Important information 11-19
Index 11-21
Trademarks 11-25
Open Source Information 11-26

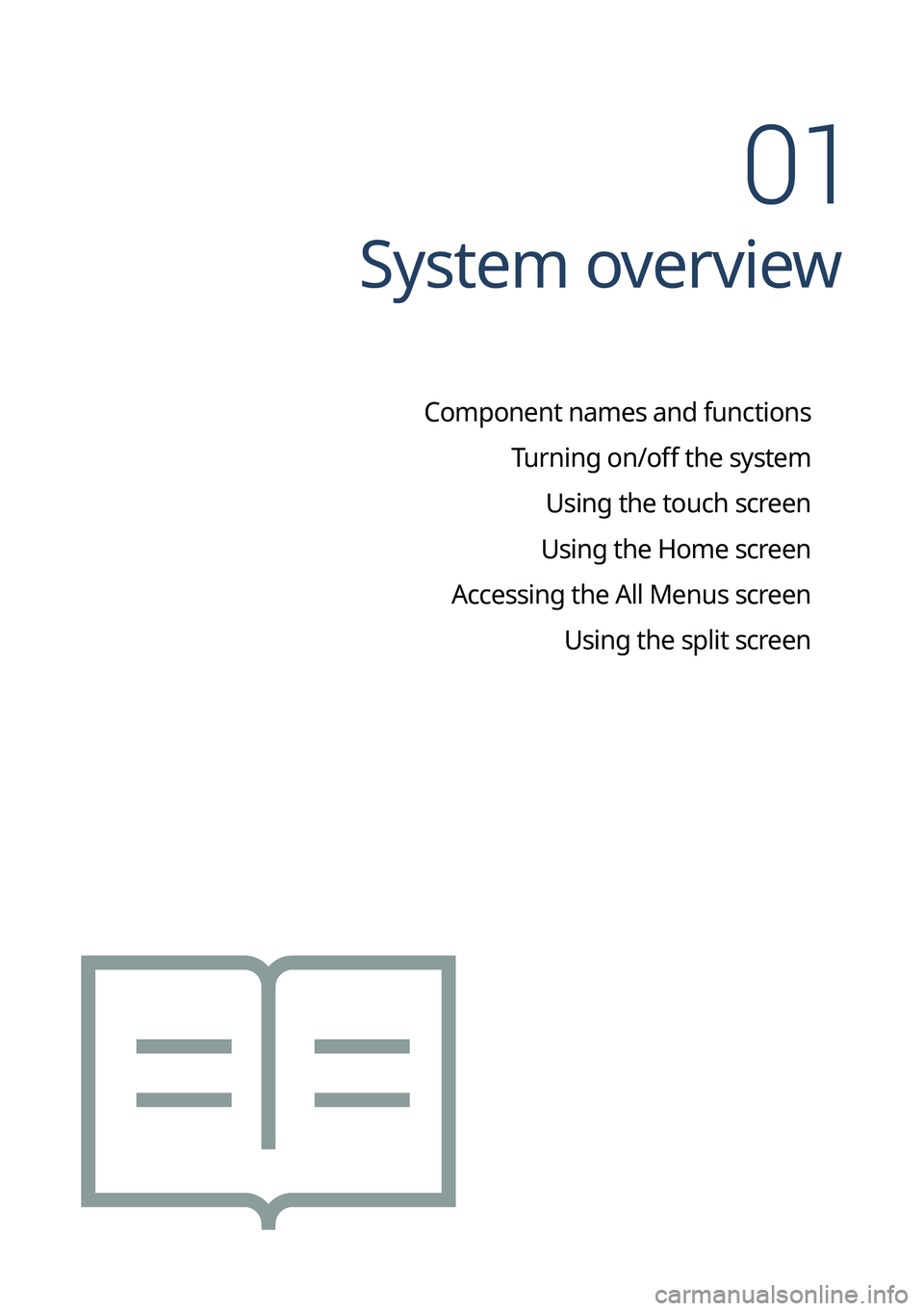

System overview
Component names and functionsTurning on/off the systemUsing the touch screen
Using the Home screen
Accessing the All Menus screen Using the split screen
01

1-2
Component names and functions
The following describes the part names and controls on the control panel and steering wheel.
Control panel

A
The shape may differ depending on the vehicle model and specifications. For more
information, see "Quick Reference Guide" that is separately provided.

A
For more information about the infotainment / climate control panel, refer to http://
webmanual.kia.com/SwitchableController/index.html.
POWER button
(POWER/PWR)/
VOLUME knob
(VOLUME/VOL)  Turn on or off the Radio/Media.
Press and hold the button to turn off the screen and
sound.
Turn the knob to adjust the system volume (except for
navigation sound).
MAP button
 Returns to the current location on the map.
While in guidance on the navigation screen, press to
repeat the voice guidance.
NAV button
 Displays the Navigation Menu screen.
Press and hold the button to display the Places screen.
> See "
Searching by keyword."
RADIO button  Turns on the radio.
When the radio is on, press the button repeatedly to
toggle between FM, AM and SiriusXM modes.
Press and hold the button to display the Radio/Media
selection window (if equipped).
MEDIA button
 Runs the connected media.
Press and hold the button to display the Radio/Media
selection window.
