KIA NIRO EV 2022 Features and Functions Guide

19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Blind-Spot Collision Warning with Lane Change Assist Video
QR CODEBlind-Spot Collision Warning (BCW)*†4
The BCW system uses radar sensors to help alert the driver if it detects an approaching vehicle in the driver ’s blind spot before changing lanes . The light on the BCW button A will illuminate when turned ON . The outside rearview mirror warning lights will also illuminate for 3 seconds .
The system will become active when the vehicle is traveling more than approximately 20 mph and will alert the driver if another vehicle is detected by the radar sensor .
1st-stage alert: When another vehicle is detected within the BCW boundary B, or when a vehicle is detected within the Lane Change Assist (LCA) boundary C, a yellow indicator will illuminate on the outside rearview mirrors .
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn signal,
a flashing yellow indicator will illuminate on the outside rearview mirrors and the system will sound an alert .
Rear Cross-Traffic Collision Warning (RCCW)*†4
If the RCCW system sensors detect approaching vehicles from the left or right side D, the system will sound an audible alert, the warning indicators on the outside rearview mirror will illuminate, and a message will appear on the LCD screen, if the following conditions are met:
•When Rotary Dial Shifter Knob is in Reverse
•When the vehicle is moving slower than 6 mph
•When the vehicle moves in reverse from a parked position
REMINDERS:
•If the BCW is turned ON/OFF and the ignition is cycled, the BCW system returns to ON/OFF
•The RCCW feature can be turned OFF/ON in User Set tings
•
The BCA and RCCW Warning Volume can be adjusted in the Vehicle Set tings on the audio head unit . Adjusting this volume set ting may also change other Driver Assistance systems’ volume set ting
REMINDER: The above images are for illustration purposes only and may not reflect actual operation .
AUTO
OFF
#VU UPOT
BSF
MPDBUFE
MFGU
PG
UIF
4UFFSJOH
8IFFM

5IF
#$8
BOE
3$$8
TZTUFNT
BSF
TVQQMFNFOUBM
TZTUFNT

%P
OPU
SFMZ
TPMFMZ
PO
UIFTF
TZTUFNT
BOE
BMXBZT
ESJWF
TBGFMZ
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO

AUTO
OFF
A
B
C
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
D

20†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Lane Keeping Assist Video
QR CODE
Lane Keeping Assist and Lane Depar ture Warning are not substitutes for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane . Always drive safely and use caution .
Actual User Set tings steps may var y by model .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Refer to section 4 in the Owner ’s Manual for more information .
AUTO
OFF
#VU UPOT
BSF
MPDBUFE
MFGU
PG
UIF
4UFFSJOH
8IFFM

AUTO
OFF

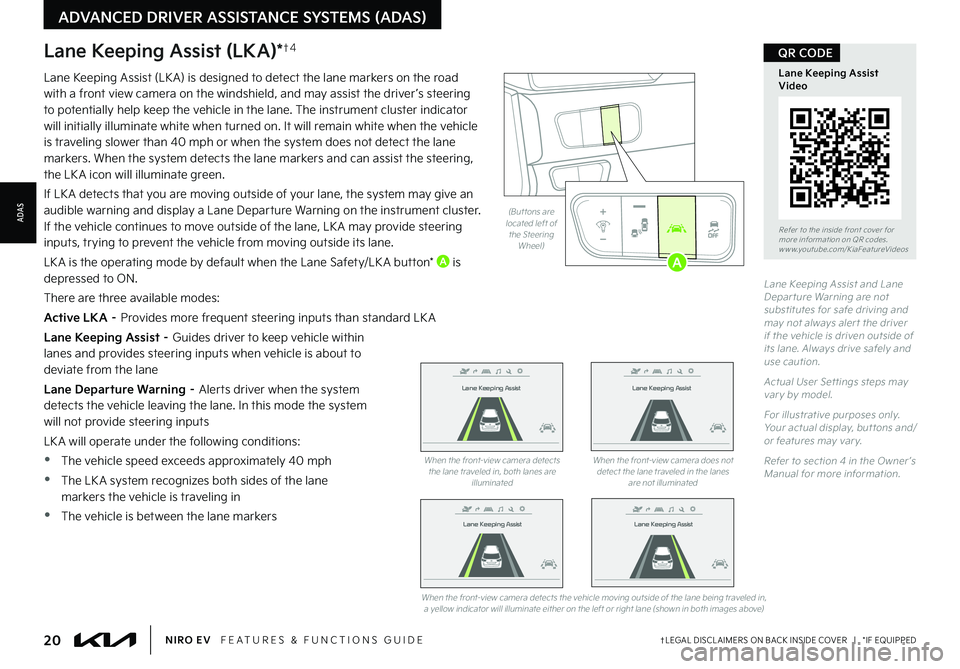

Lane Keeping Assist (LKA)*†4
Lane Keeping Assist (LK A) is designed to detect the lane markers on the road with a front view camera on the windshield, and may assist the driver ’s steering to potentially help keep the vehicle in the lane
. The instrument cluster indicator will initially illuminate white when turned on . It will remain white when the vehicle is traveling slower than 40 mph or when the system does not detect the lane markers . When the system detects the lane markers and can assist the steering, the LK A icon will illuminate green .
If LK A detects that you are moving outside of your lane, the system may give an audible warning and display a Lane Departure Warning on the instrument cluster . If the vehicle continues to move outside of the lane, LK A may provide steering inputs, trying to prevent the vehicle from moving outside its lane .
LK A is the operating mode by default when the Lane Safety/LK A button* A is depressed to ON .
There are three available modes:
Active LKA – Provides more frequent steering inputs than standard LK A
Lane Keeping Assist – Guides driver to keep vehicle within lanes and provides steering inputs when vehicle is about to deviate from the lane
Lane Departure Warning – Alerts driver when the system detects the vehicle leaving the lane . In this mode the system will not provide steering inputs
LK A will operate under the following conditions:
•The vehicle speed exceeds approximately 40 mph
•The LK A system recognizes both sides of the lane markers the vehicle is traveling in
•The vehicle is between the lane markers
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist Lane Keeping Assist
Lane Keeping Assist
When the front-view camera detects the lane traveled in, both lanes are illuminated
When the front-view camera does not detect the lane traveled in the lanes are not illuminated
When the front-view camera detects the vehicle moving outside of the lane being traveled in, a yellow indicator will illuminate either on the left or right lane (shown in both images above)
Lane Keeping Assist
Lane Keeping Assist Lane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping Assist
A
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS

21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
LKA User Settings:
•
To turn LK A ON, with the ignition on or the Engine Start/Stop button* in the ON position, press the Lane Safety/LK A button* A . The instrument cluster indicator will initially illuminate white indicating the system is on
•To turn LK A on in the user settings, go to the User Settings menu in the
Instrument Cluster, press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the
Engine Start/Stop button* in the ON position, and select User Settings
•To switch between LK A modes (Lane Keeping Assist, Lane Departure Warning,
Off), go to User Settings in the Instrument Cluster . Press the Move (OK)
button C up/down, select desired setting and press the OK button C
REMINDERS:
•LK A will not issue a warning if the turn signals or hazard lights are activated
•
When the ignition is cycled, LK A will return to the previously set state
•
Some models access set tings through the Vehicle Set tings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Set tings
(But tons are located left of the Steering Wheel)
AUTO
OFF
A

The LK A Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit
.
QUICK TIP
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
(But tons located on Steering Wheel – Type B)
B
C
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Lane Keeping Assist (LKA)*†4 (continued)

Lane Following Assist (LFA)*†4
REMINDERS:
•
If the ignition is cycled, LFA returns to its previous state, on or off, if activated in the User Set tings menu and when combined with SCC . If using the Steering Wheel LFA but ton, then LFA defaults to off
•
LFA is not a substitute for safe and proper driving . Always drive safely and use caution
Lane Following Assist (LFA) is designed to help ensure that the vehicle stays centered in its lane A by monitoring the detected lane markings ahead and adjusting the steering . The instrument cluster indicator will initially illuminate white when turned ON, and on some vehicles, when SCC is engaged . It will remain white when the system does not detect the lane markers . When the system detects the lane markers and can assist the steering, the LFA icon will illuminate green B . When LFA is enabled in the User or Vehicle Settings*, press the LFA button C to turn LFA on or off .
LFA will operate only when these conditions are met:
•LFA recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is traveling slower than 95 mph
LFA User Settings:
•To go to User Settings in the Instrument Cluster, press the Mode button D on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To enable LFA , when in User Settings, press the Move (OK) button E up/down and Select Driver Assistance then Driving Assist and select Lane Following Assist . Press the OK button E
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the SETUP hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•
Some vehicles have a Lane Driving Assist / Lane Safety button* on the Driver ’s Panel or the Steering Wheel . Press to activate Lane Following Assist
(But tons located on steering wheel)
Images are for illustrative purposes only and may not reflect actual feature or operation .
LFA is supplemental . Do not solely rely on this system and always pay at tention to the road and its conditions .
Actual User Set tings steps may var y by model . See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
Lane Following Assist (LFA)* is not a substitute for safe and proper driving . Always drive safely and use caution . LFA may not always aler t the driver when the vehicle is approaching another vehicle .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Lane Following Assist (LFA) Video
QR CODE
CNCLRES
CRUISE
SET
A
B
D
E
C
The LFA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit
.
QUICK TIP
22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS

Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Forward Collision-Avoidance Assist Video
QR CODE
(But tons located on steering wheel)

FCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume .
QUICK TIP
Collision Warning
Emergency Braking
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, temporarily apply emergency braking . Initially, FCA provides Forward Collision Warning (FCW) when it detects a potential collision with a vehicle, pedestrian, or cyclist, emitting an audible warning and visual alert on the instrument cluster A .
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision .
FCA User Settings:
•FCA is ON by default in most Kia models . FCA can be turned ON/ OFF by going to the User Settings in the Instrument Cluster
•To go to User Settings , press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position
•Press the OK button C up/down and select User Settings then Driver Assistance
– In some models, go to Driving Assist, then Forward Collision-Avoidance Assist or Forward Collision Warning and press the OK button C
– In other models, go to Forward Safety and select Active Assist, Warning Only or Off
Then select one of the following modes:
– Active Assist: Vehicle will provide a warning (audible & visual) and may apply the brakes if needed
– Warning Only: Vehicle will provide a warning only (audible & visual)
– Off: System is off, no warnings or braking provided
•To adjust the FCA initial warning activation time, go to User Settings , Driver Assistance, Warning Timing then select Fast, Normal or Slow, depending on your Kia model:
– F a s t : When this condition is selected, the initial Forward Collision Warning is activated earlier than normal
– Normal: This setting allows for a nominal amount of distance between the vehicles before the initial warning occurs
– Slow: Reduces the amount of distance between the vehicles before the initial warning occurs
FCA/FCW will become active when the:
•Ignition is on or the Engine Start/Stop button* is ON
•Vehicle is traveling faster than 5 mph
•Electronic Stability Control (ESC) is ON
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
Forward Collision-Avoidance Assist (FCA)†4
For ward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle
. Always drive safely and use caution . Actual User Set tings steps may var y by model . Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
REMINDERS:
•
FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA system is automatically turned off
•
When the FCA system is off, the FCA warning indicator is on in the Instrument Cluster
23†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
A
B
C

24†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
(But tons located on steering wheel)
REMINDERS:
•
Current highway speeds and controlled or limited access road information may var y . Future navigation updates may change this information
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
•
When the ignition is cycled, the system returns to its previous state, on or off
CNCLRES
CRUISE
SET
60mph
Highway Driving Assist (HDA)*†4
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways/freeways
. The system can adjust the vehicle’s speed based on available highway speed information . The automatic speed setting mode is designed to set the speed automatically by adjusting to the current speed limits of the highway the vehicle is traveling on .
To activate HDA , turn Smar t Cruise Control (SCC) on by pressing the Driving Assist CRUISE / Driving Assist Mode button* A on the Steering Wheel . When HDA is activated and the conditions are met, the Instrument Cluster indicator B will illuminate green . If proper conditions are not met, HDA will be in standby mode and the indicator light B will illuminate white . When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green B .
If HDA is activated, conditions are met and the SCC speed is set by the driver (at the posted highway
speed limit or slower), HDA will enter the automatic speed setting mode . The set speed and AUTO will be displayed C in green and an audible alert will sound .
HDA will operate only when these conditions are met:
•
The vehicle is traveling slower than 110 mph or the highway speed limit
•
When driving on limited/controlled access highways/freeways
•
When the SCC is on and operating
•
When the SCC speed is set to current posted highway speed or slower
HDA User Settings:
To enable HDA , press the Mode button D on the Steering Wheel and go to User Settings in the Instrument Cluster . Press the Move (OK) button E up/down and press to Driver Assistance, then Driving Assist, Highway Driving Assist . Then press the OK button E to enable .
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press Vehicle on the screen to enter Vehicle Settings .
Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways . Always drive safely and use caution .
See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
A
B
C
D
E

25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Leading Vehicle Departure Alert (LVDA) Video
QR CODE
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
Leading Vehicle Departure Alert is designed to inform the driver when the vehicle in front starts moving or departs from a stop
. When LVDA is on, your vehicle is stopped and detects that the leading vehicle is driving away, LVDA sounds an alert to let you know you can start driving . If no action is taken after the vehicle in front drives away, then a message A will appear on the Instrument Cluster LCD .
LVDA User Settings:
•
To turn LVDA on, press the Mode button B on the Steering Wheel, and go to User Settings in the Instrument Cluster . Press the Move (OK) button C up/down and select Driver Assistance, then press the OK button C to select . Go to Driver Attention Warning and then Leading Vehicle Departure Alert
•Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press VEHICLE on the screen to enter Vehicle Settings
To adjust the LVDA initial warning activation time, go to User Settings, Driver Assistance, Warning
Timing then select Normal, or Late, depending on your Kia model:
– Normal: This setting allows for a nominal amount of distance between the vehicles before
the initial warning occurs
– Late: Reduces the amount of distance between the vehicles before the initial warning occurs
The Leading Vehicle Depar ture Aler t system is not a substitute for safe and proper driving . Always drive safely and use caution .
Images are for illustrative purposes only and may not reflect actual feature or operation .
Leading vehicle
is driving away
(But tons located on steering wheel)
Leading Vehicle Departure Alert (LVDA)†4
REMINDERS:
•When the ignition is cycled, the system returns to its previous state, on or off
•
Always check the front of the vehicle and road conditions before depar ture
A
B
C
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)

The Smart Cruise Control with Stop & Go* system is designed to maintain a predetermined distance from vehicles detected ahead by automatically adjusting the driving speed as needed . When traffic is detected, the vehicle will automatically slow to maintain a set distance between traffic without depressing the accelerator or brake pedal .
When SCC is on and activated, the vehicle distance set, and the system detects a vehicle slowing or stopping, the system can bring the vehicle to a complete stop . When the vehicle ahead starts to move forward, the SCC system re-engages . If the vehicle ahead stops for more than 3 seconds, the accelerator pedal or the RES+ button must be pressed to start moving the vehicle .
On some models, press the Driving Assist Mode button* on the Steering Wheel to activate and the speed will be set to the current vehicle speed . SCC may decrease the speed to maintain the distance with the vehicle in front .
To set/adjust the SCC speed:
•Push the Driving Assist CRUISE / Driving Assist Mode but ton* A to turn the system ON & set the current speed (One-Touch Set) . The cruise indicator will illuminate on the instrument cluster
•Accelerate/decelerate to the desired speed and press lever B down to set the speed
•Press the RES+/SET- (+/-) button* B up/down to increase/decrease the set speed
•The SET indicator light, set speed and vehicle distance will illuminate on the instrument cluster ’s LCD screen C
To set the vehicle distance: Press the Vehicle Distance button D on the steering wheel . The image on the LCD screen C will change when scrolling through the settings . Each time the button is pressed, the vehicle distance changes .
To cancel or pause SCC operation: Press the CANCEL* or pause button* B . The cruise indicator on the instrument cluster will turn OFF .
To turn SCC OFF: Press the CRUISE button A . The cruise indicator on the instrument cluster will turn OFF .
To adjust the sensitivity of the SCC system: Press the mode button E on the Steering Wheel . With the OK button F, select Driver Assistance, then SCC Response . Then select Fast, Normal or Slow .
CNCLRES
CRUISE
SET
26†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
The SCC system is a supplemental system and is not a substitute for safe driving
. It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead .
See section 5 in the Owner ’s Manual for more information . Images are for illustrative purposes only and may not reflect actual feature or operation .
Smart Cruise Control (SCC) with Stop & Go*†4
A
B
D
E
F
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Smart Cruise Control with Stop & Go Video
QR CODE
CRUISE100 MPHCRUISE100 MP H
CRUISE60 MPHCRUISE100 MPHSmart Cruise Control
ModeCruise Control Mode
The distance set tings are approximations and may var y depending on the vehicle speed at the time .172ft130ft
82ft
106ftC
(Type B Steering Wheel shown; but tons located on right side of Steering Wheel)

27†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
•Cruise Control is designed to function above 20 mph
•The Cruise Control system will not activate until the brake pedal has been depressed at least once after ignition ON or engine star t
QUICK TIPS
Cruise Control†4
B CRUISE Control ON/OFF button – Press to turn the Cruise Control ON/OFF
C Cruising Speed button:
•
Press up to resume or increase Cruising Speed
•Press down to set or decrease Cruising Speed
•
Cruise Control CNCL button – To cancel Cruise Control setting, do one of the following:
•Press the brake pedal
•Press the CNCL button
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
See section 5 in the Owner ’s Manual for more information
.
B
C
D
•The speed set ting for SCC can be adjusted under the following conditions:
•You must be travelling at a minimum speed of 5 mph (may var y on newer models)
•
When following a vehicle, there is no minimum speed requirement
•
When following a vehicle, the system can automatically adjust your cruise speed based on the vehicle detected ahead . If the vehicle detected ahead remains at a standstill and your vehicle is also stopped for longer than 3 seconds, the system will need to be reactivated by pressing the accelerator or pressing the RES but ton
QUICK TIPS
Navigation-based Smart Cruise Control (NSCC)* †4
Navigation-based Smart Cruise Control can automatically adjust the vehicle speed when it detects a curved road ahead and when it receives road information from the navigation system .
To turn on NSCC, go to the User Settings in the instrument cluster or the Vehicle Settings* in the audio head unit, by selecting Driving Convenience, Highway Auto Speed Change . When SCC is on and operating, the vehicle is driving on limited/controlled access highways and NSCC is turned on, then NSCC is enabled and the AUTO icon A will illuminate white on the Instrument Cluster .
When NSCC detects a curve ahead, NSCC activates and reduces the vehicle speed, the AUTO icon A will turn green . When the vehicle passes the curved road, the vehicle may return to its previously set SCC speed .
Autoset (Automatic change of set speed): If the set speed is set to the current speed limit on the highway during NSCC operation, the set speed is changed automatically whenever the speed limit changes .
REMINDERS:
•NSCC requires an active navigation subscription
•NSCC is only available on controlled access roads and highways
See section 5 in the Owner ’s Manual for more information . For more set ting information, refer to the Car Infotainment System Quick Reference Guide . NSCC and Cruise Control are supplemental systems and are not substitutes for safe driving . It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead .
CRUISE65mphAUTO
(Display on LCD screen)
Smart Cruise Control (SCC) with Stop & Go*†4 (Continued)
REMINDERS:
•
The cruise control system will not activate until the brake pedal has been depressed at least once after the ignition is ON or engine star ts
•
When following a vehicle, the system will automatically adjust your cruise speed based on the vehicle detected in front
•
SCC is also canceled when the driver ’s door is opened, gear shift is changed out of D (Drive), EPB is activated and various other conditions . See the Owner ’s Manual for other conditions
•
If SCC is left on, it can be activated inadver tently . Keep the system off when not in use to avoid set ting a speed which the driver is not aware of
A

28†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Driver Attention Warning (DAW) Video
QR CODE
Driver At tention Warning is not a substitute for safe driving and may not detect all instances of inat tentive driving practices . Failure to pay at tention to travel conditions and vehicle operation could result in loss of vehicle control . Always drive safely and use caution .
Refer to section 5 in the Owner ’s Manual for more information .
Driver Attention Warning is designed to alert the driver if it detects inattentive driving practices and, in certain situations, can give a warning signal to take a break from driving . There are three modes:
•Normal Sensitivity: Driver Attention Warning warns the driver of his/her inattentive driving practices
•
High Sensitivity: Driver Attention Warning warns the driver of his/her inattentive driving practices faster than Normal mode
•
Off: Driver Attention Warning is deactivated
If DAW is activated, the DAW information A will appear on the Instrument Cluster LCD when you select the Driving Assist/Assist mode menu in User Settings . A message, “Consider taking a break,” B appears on the LCD and a warning sounds to suggest the driver take a break when the driver ’s attention level becomes low .
DAW User Settings:
To turn DAW on/off, with the ignition on, press the Mode button C on the Steering Wheel and go to User Settings in the Instrument Cluster . Then go to Driver Assistance and select Driver Attention Warning . Set DAW to Normal Sensitivity, High Sensitivity or Off .
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press VEHICLE on the screen to enter Vehicle Settings
REMINDERS:
•
The setup of DAW will be maintained, as selected, when the ignition is cycled
•
When activated, DAW does not display “Consider taking a break ” message when the total trip driving time is less than 10 minutes
•
DAW will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Driver Attention Warning (DAW)*†5
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
Consider taking a break
Attention Level
High
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
AB
C
