Page 41 of 62
39†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Voice Recognition Tips Video
QR CODEBluetooth® Wireless Technology†3 , 1 5 (Continued)
Voice Recognition and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names . Improve the per formance by making a few simple changes to your phone contacts, listed below . To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips:
•Use full names (first and last names) vs . short or single-syllable names (e .g ., “John Smith” vs . “Dad,” “Smith Residence” vs . “Home”)
•Avoid using special characters, emojis or hyphenated names (e .g ., @, &, #, /, -, *, +, etc .)
•Avoid using acronyms (e .g ., “In Case of Emergency” vs . “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (e .g ., “Doctor Smith” vs . “Dr . Smith”)
•
Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•
When placing a call, speak in a natural, moderate tone, with clear pronunciation . The system may have trouble recognizing commands if you speak too softly or too loudly
•
Always wait for the beep before speaking any commands
•
Close windows and turn off A /C – Open windows, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•
Press the talk but ton and say “Help” to get a list of available commands
•
The system may register or pair multiple Bluetooth® devices . See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
QUICK TIP
AUDIO SYSTEMS
AUDIOSYSTEMS
Page 43 of 62
41†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death . The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle .
For fur ther UVO link operation, refer to the Car Infotainment System Quick Reference Guide . For fur ther audio system operations, refer to pages 37-4 3 .
Virtual Assistant A - Press to connect to a virtual assistant to hear information about the UVO features
UVO Voice Local Search B - Press to connect to the search function to find points of interest or other locations, like “cafe”
UVO Voice Local Search B (non-navigation systems) – Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable . See previous page for availability and setup
Roadside Assist C - Press to connect to a Roadside Assistant where you can request vehicle towing services
REMINDER: These but tons may be located in the rear view mirror or the overhead console .
UVO Assistance*†1
(But tons on overhead console*)
UVO
FRONTREAR
ONOFFDOOR
UVO link Activation*†1
Follow these steps to activate your UVO link system:
1
. Enter the activation screen on your vehicle’s head unit:
a . Press SETUP key
b . Press UVO icon
c . Press Activate UVO
2 .
Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3 .
Enter number or email address to receive a verification code, then press SUBMIT
4 .
Follow these steps to receive your verification code using your phone SMS or email:
a . Check your phone SMS or email for verification code
b . Open the link in your SMS or email . A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code .
c . Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT . A page will open displaying your verification code
d . Enter the code in the head unit and press ACTIVATE
e . Go back to the page with your verification code and press “I have entered my verification code .” A link will be provided to download the Kia Access with UVO link app from your app store . After installing the app, log in and enjoy
REMINDER: This vehicle is not equipped with over-the-air system updates .
For fur ther UVO link operations, refer to the Car Infotainment System Quick Reference Guide .
UVO link may be unavailable for model year 2022 vehicles sold or purchased in Massachuset ts .
AUDIO SYSTEMS
AUDIOSYSTEMS
ABC
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Kia Access with UVO link app Video
UVO Assistance Video
QR CODE
Page 45 of 62
43†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
UVO link with Navigation Videos
QR CODE
ENTER
PWR VOL
FILE
TUNE
MAPN AV RADIOMEDIA SETUPSEEK
TRACK
In Radio/SiriusXM®/ Media modes, rotate knob to search for stations/ channels/tracks/songs/files
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• SiriusXM® mode: Change the channel• MEDIA mode: Change the track, file or title (except for AUX)Press and hold to do the following (over 0 .8 seconds):• FM/AM mode: Move quickly through all of the frequencies . When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to Power ON/OFF . Rotate to adjust Volume
Press to display the Nav screenPress to display the Map screen for the current position/ Voice mode
Press to go to Custom (Set) Menu
Press to display SETUP/Set tings mode
Press to select MEDIA mode
Press to change Radio/SiriusXM®* Station/Media tracks/ files
UVO link with Navigation*†1 , 8 – FM/AM/SiriusXM®†1 5/Media (USB, Bluetooth®†3 Audio)
Sound Settings – To adjust the sound settings:
1 .
Press the SETUP key on the audio head unit . Select the onscreen SOUND button
2 . Select the menu item (Position, Tone, Priority, Advanced, Default)
3 .
Use the onscreen but tons to adjust set tings . Press the return but ton to save set tings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations . To save a preset, press and hold the desired slot or the STAR but ton next to or below the Radio Station display . This saves the current station in the selected slot .
SiriusXM® Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment . In Radio mode, choose SiriusXM®, then select any of the first ten favorites . During song or program play, tap the Skip Backward icon to star t from the beginning of the song or program . Tap the Play Live icon to return to the live broadcast .
Custom Key H A programmable key to provide quick access to one of several available system features . To program the Custom Key, press the SETUP key, then press and hold the Custom Key H 4 F M F D U P O F P G U I F B W B J M B C M F G F B U V S F T Z P V X P V M E M J L F U I F $ V T U P N , F Z U P P Q F O
Map/software updates - To keep your map and software up to date, free of charge, visit the of ficial Kia update webpage at ht tps://update .kia .com/US/EN/Main . Note, visiting a dealer for software update may include an additional charge .
REMINDER: To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .
Your vehicle’s audio system may differ from that in the illustration . For fur ther UVO link with Navigation operations, refer to the Car Infotainment System Quick Reference Guide . For other audio system information, see pages 37-42 .
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving . To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .
•Volume level bet ween different audio modes:
-When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc .), the audio system saves the previous volume level you were listening to . For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-
When using Bluetooth® Audio, the overall volume is dependent on your device’s volume . If the volume is turned down low on your device it will remain low even if the system volume is turned up
•To download map updates for the navigation system, go to ht tps://update .kia .com/US/EN/Main . Check for updates that are generally available t wice a year
•When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation system may also be available
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
•A warning screen may appear periodically to remind users that the navigation system should be operated when the vehicle power is on to prevent bat ter y discharge
•At any time, you can interrupt UVO link Command Feedback by pressing the TALK but ton on the steering wheel
QUICK TIPS
UVO link may be unavailable for model year 2022 vehicles sold or purchased in Massachuset ts . See UVO Terms of Ser vice at owners .kia .com for more information .
AUDIO SYSTEMS
AUDIOSYSTEMS
Page 47 of 62
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Wireless Charging Video
QR CODE
REMINDERS:
•
Wireless charging technology allows for a device to be charged using inductive charging . See your Owner ’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through cable . As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance - Device position on the wireless charging system can affect charging per formance . Other factors that may affect the charging rate includes foreign objects, such as coins or pens, and phone case thickness
•If driver door is opened, charging will be disabled
Wireless Smartphone Charging System*
Charge a compatible smartphone wirelessly by placing it on the charging pad A at the front of the console, near the Multimedia USB ports and the charging indicator, while the ignition is on .
1 . Enable Wireless Charging in the User Settings
2 . Place a compatible smartphone on the center of the charging pad A
3 . Indicator light B may change to amber once the wireless charging begins
4 . Once charging is complete, the amber light may change to green
(Located below Climate Control)
Requires QI enabled device or QI enabled case
USB
12V 180W
12V 180W
12V 180W12V 180WUSB
USB
12V 180W
12V 180W
12V 180W12V 180WUSB
Charging system only works with select devices . Refer to the section 4 in the Owner ’s Manual for warnings and instructions .
Images are for illustrative purposes only and may not reflect actual feature or operation .
CENTER PANEL
CENTERPA N EL
•
The smar tphone must be a compatible phone with QI function available
•Wireless charging must be enabled in user set tings
•
If wireless charging does not work, move smar tphone around the pad until the charging indicator turns amber . Avoid placing other metal items in the bin while charging so as to not to impede the charging area
•
For wireless charging to occur, all doors (excluding rear hatch) must be closed & the Smar t Key Fob must be detected inside the vehicle and driver ’s seat belt on
QUICK TIPS
45*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
A
B
Page 49 of 62
47*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Rotary Dial Shifter Knob
Rotate dial for the following:
P: Park - Press to place in Park
R: Reverse
N: Neutral
D: Drive
P Release: (Park Release) – Press brake pedal and press the P Release button A to release the Parking Brake and rotate dial to R, D or N . P Release is for emergency/towing use and not used in normal daily driving
(Located to the right of Rotar y Dial Shifter Knob)
Heated Steering Wheel Button*
Press button B to turn ON/OFF the steering wheel heater, while the POWER button is in the ON or READY position .
The steering wheel heater will turn off automatically after 30 minutes, or when button is pressed again to deactivate .
REMINDER: If the steering wheel becomes too warm, turn the system off . The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time .
N
P
PRELEASE
AUTO
HOLD
DRIVE
MODE
D
R
N
P
PRELEASE
AUTO
HOLD
DRIVE
MODE
D
R
REMINDER: The vehicle is equipped with a shift-by-wire system and a shift-lock system that prevents you from shifting gears without depressing the brake pedalRefer to section 4 in the Owner ’s Manual for more information .
Refer to section 5 in the Owner ’s Manual for more information .
CENTER PANEL
CENTERPA N EL
If ignition is cycled, the Heated Steering Wheel turns OFF . Press but ton again to turn ON .
QUICK TIP
A
B

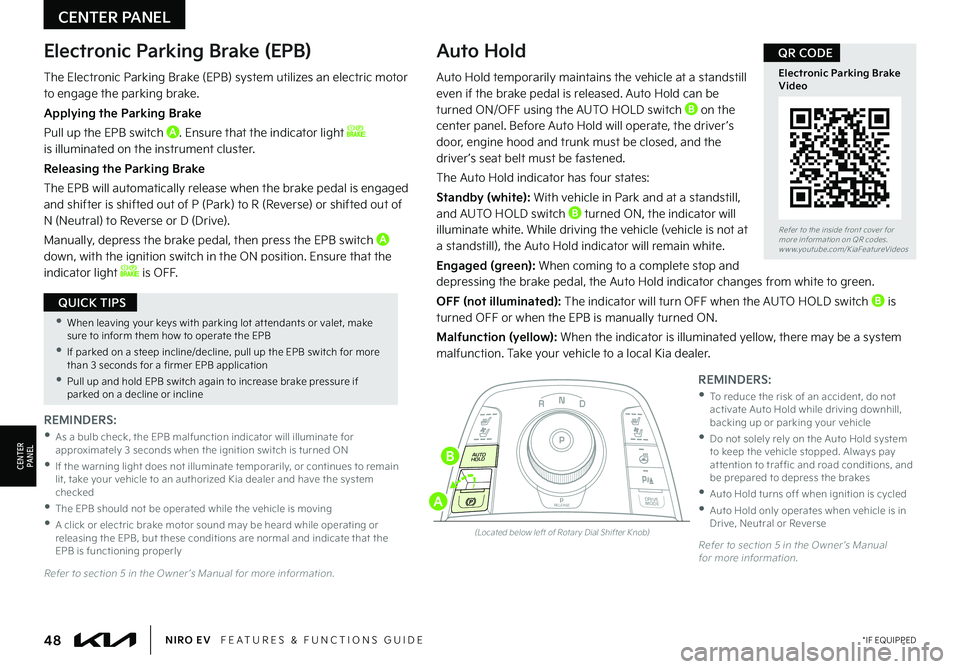

Page 50 of 62
(Located below left of Rotar y Dial Shifter Knob)
Electronic Parking Brake (EPB)Auto Hold
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
REMINDERS:
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped . Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
•Auto Hold turns off when ignition is cycled
•
Auto Hold only operates when vehicle is in Drive, Neutral or Reverse
N
P
PRELEASE
AUTO
HOLD
DRIVE
MODE
D
R
Auto Hold temporarily maintains the vehicle at a standstill even if the brake pedal is released . Auto Hold can be turned ON/OFF using the AUTO HOLD switch B on the center panel . Before Auto Hold will operate, the driver ’s door, engine hood and trunk must be closed, and the driver ’s seat belt must be fastened .
The Auto Hold indicator has four states:
Standby (white): With vehicle in Park and at a standstill, and AUTO HOLD switch B turned ON, the indicator will illuminate white . While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white .
Engaged (green): When coming to a complete stop and depressing the brake pedal, the Auto Hold indicator changes from white to green .
OFF (not illuminated): The indicator will turn OFF when the AUTO HOLD switch B is turned OFF or when the EPB is manually turned ON .
Malfunction (yellow): When the indicator is illuminated yellow, there may be a system malfunction . Take your vehicle to a local Kia dealer .
Refer to section 5 in the Owner ’s Manual for more information .
Refer to section 5 in the Owner ’s Manual for more information .
A
B
CENTER PANEL
CENTERPA N EL
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
•Pull up and hold EPB switch again to increase brake pressure if parked on a decline or incline
QUICK TIPS
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake .
Applying the Parking Brake
Pull up the EPB switch A . Ensure that the indicator light is illuminated on the instrument cluster .
Releasing the Parking Brake
The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse) or shifted out of N (Neutral) to Reverse or D (Drive) .
Manually, depress the brake pedal, then press the EPB switch A
down, with the ignition switch in the ON position . Ensure that the indicator light is OFF .
48*IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electronic Parking Brake Video
QR CODE
Page 51 of 62
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Seat Warmers /Ventilated Seats Video
QR CODESeat Warmers / Ventilated Seats*†1 4 (Driver & Front Passenger)
Seat Warmers — Press top of the button once for high setting (3 amber LEDs lit), again for middle setting (2 amber LEDs lit), again for low setting (1 amber LED lit) . Press again to turn OFF .
Ventilated Seats — Press bottom of button once for high setting (3 blue LEDs lit), again for middle setting (2 blue LEDs lit), again for low setting (1 blue LED lit) . Press again to turn OFF .
Amber Color: WarmingBlue Color: Ventilating
N
P
PRELEASE
AUTO
HOLD
DRIVE
MODE
D
R
Refer to section 4 in the Owner ’s Manual for more information . REMINDERS:
•Use extreme caution when using the seat warmers to avoid burns . Refer to the Owner ’s Manual for more information
•You can also press and hold but tons to turn off the seat heater / ventilation
CENTER PANEL
CENTERPA N EL
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System is OFF by default
QUICK TIPS
49†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Page 53 of 62
51†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Folding Rear Seats
To Fold:
1 . Ensure the belt strap is out of way of the Seatback folding D . Insert the metal seat belt tab into the holder E
2 . Adjust the Front Seatback to the upright position and lower the rear headrest to the lowest position
3 . Pull on the Rear Seatback lock release lever F, then fold the seat toward the front
To Unfold:
1 . Pull the lock release lever F and lift the Seatback backward until it clicks firmly in place
2 . Return the rear seat belt to the proper position
REMINDERS:
•
Before unfolding Seatback, ensure the seat belt is placed into the holder
•
Always make sure the Seatback is locked in place when unfolded
For illustration purposes only . Actual vehicle might be slightly different . Refer to section 3 in the Owner ’s Manual for more information .
SEATING
S E AT I N G
•It may be necessar y to adjust the Front Seatbacks to fully lower rear seats
•Ensure seat is locked by pressing down on Seatback and ensuring red line is NOT visible on bot tom of Folder Lever
QUICK TIPS
D
E
F
Page 55 of 62
53†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Remote Start - Smart Key Video
Kia Smart & Folding Key Fobs Video
QR CODESmart Key†1 0
Smart Key Fob:
A Press to lock All Doors; Press twice within 2 seconds to sound the horn
B Press to unlock Driver ’s Door . Press twice in 4 seconds to unlock All Doors
C Press and hold for more than 1 second to unlock Liftgate . Then lift the liftgate handle to manually open Liftgate
REMINDER: The Liftgate unlocks when the Smar t Key fob is within close proximit y of the vehicle Liftgate .
D Press and hold more than 1 second for Panic Alarm . To turn off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
Driver’s Door Lock/Unlock button F:
•
Press button once to unlock Driver ’s Door
•Press again within 4 seconds to unlock All Doors
•Press again to lock All Doors
Mechanical Key G:
•Use to lock/unlock Driver ’s Door by turning once or all doors by turning twice
•
Use to enable/disable Child Safety Locks
•Use to unlatch rear center seatbelt lower anchor
Remote Start* H: Lock the doors by pressing the door lock button A within 32 feet distance from the vehicle . Within four (4) seconds of pressing the door lock button A, press and hold the Remote Start
button D for more than two (2) seconds to start the vehicle . To stop the Remote Start operation, press the button again . If driver does not enter vehicle within three minutes of starting the vehicle, the vehicle will automatically turn off .
REMINDERS:
•
Remote but ton configuration may var y depending on vehicle options
•
One/t wo but ton turn logic can be changed in User Set tings
•
When reinser ting the mechanical key, make sure it is pushed all the way in until there is a click sound .
Double-Turn Lock/Unlock All
•Turn counterclockwise once to unlock Driver ’s Door
•Turn counterclockwise again within 4 seconds to unlock All Doors
•Turn clockwise once to lock All Doors
Lock
Unlock
HOLDHOLD
HOLD
OTHER KEY FEATURES
OTHER KEY F E AT U R E S •If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the POWER but ton (Lock but ton side closest) and press to start vehicle
•The Smar t Key ’s signal can be blocked by the normal operation of a cell phone or smar tphone . To help prevent this, store each device separately
QUICK TIPSG
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 4 in the Owner ’s Manual for more information .
A
B
C
D
E
FG
H
Page 57 of 62
55†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
•The Liftgate must be unlocked before it can be opened by the Liftgate Release But ton
•The Liftgate unlocks automatically and then can be opened manually when the Smar t Key* is within close proximit y to the vehicle
QUICK TIPS
OTHER KEY FEATURES
OTHER KEY F E AT U R E S
Child-Protector Rear Door Lock
Locate these locks on the rear edge of the rear passenger doors . Move the Child-Protector Rear Door Lock, with the mechanical ignition key, to the lock position to disable the inner door handles from opening the rear doors .
REMINDER: Child-Protector Rear Door Lock is located on rear passenger ’s door jamb .
REMINDER: Pressing the Smar t Key remote liftgate but ton only unlocks the liftgate . To open liftgate, also press the Liftgate Release but ton & pull the liftgate up by the handle to open .
Tire Mobility Kit
The Tire Mobility Kit is designed to temporarily seal certain types of tire damage .
For operational information, please refer to the Owner ’s Manual .
B Sealant Bottle
C Compressor
REMINDERS:
•
The above images are for illustration purposes only and may not reflect actual operation
•
After tire is properly sealed, drive cautiously and never exceed 50 mph or 120 miles on a tire that has been properly sealed with the Tire Mobilit y Kit
•Accessor y spare tire kit is available for purchase
Liftgate Release Button*†2 0
The button is located on the bottom of the Liftgate lid . With doors unlocked, press the Liftgate Release button A and pull the Liftgate up by the handle to open .
Refer to section 6 in the Owner ’s Manual for more information .
Refer to section 3 in the Owner ’s Manual for more information .
Refer to section 4 in the Owner ’s Manual for more information .
•The Tire Mobilit y Kit is a temporar y fix and is to be used for one tire only; the tire should be inspected as soon as possible
•The kit should only be used for sealing/inflating passenger car tires; do not use for inflating any other t ype of tires
•Some damaged tires cannot be sealed completely; do not use the kit if it appears a tire is damaged beyond repair
QUICK TIPS
A
B
C
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Tire Mobility KitVideo
QR CODE
