As you get to know your new Kia, you can explore this booklet to better understand
how to operate its many features and systems. You can find the complete Table of
Contents on the next two pages, but first, be sure to review the following to better
understand some of your Kia’s most used features:
1 Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
2 Power Adjustable Driver’s Seat / Front Seat Headrest Adjustment . . . . . . . 50
3 Seat Warmers* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4 Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6 Smart Cruise Control (SCC)* with Stop & Go . . . . . . . . . . . . . . . . . . . . . 26
7 Normal Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . Back Cover
8 User Settings – Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9 Vehicle Settings* - Audio Head Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . 38-39
11 UVO link Activation* / UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . 41
12 Kia Access with UVO link App Download . . . . . . . . . . . . . . . . . . . . . . 42
13 Kia Access with UVO link App Features Guide . . . . . . . . . . . . . . . . . . . 42
14 UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
15 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . . . . 40
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, at-tention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www .kia .com Consumer Affairs – Roadside Assistance†11: 1-800-333-4KIA (800-333-4542)
Always check the Owner’s Manual for complete operating information and safety warnings .
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
GETTING STARTED
1
Page 4 of 62
2†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . . . . 04Electric Vehicle (EV) Indicators . . . . . . . . . . . . . . . . . . . 05Energy Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05Charge Warning Messages on LCD Display . . . . . . . 06Tire Pressure Monitoring System (TPMS) . . . . . . . . . 08Drive Mode Integrated Control System . . . . . . . . . . . 12
VEHICLE SETTINGSLCD Instrument Cluster Modes . . . . . . . . . . . . . . . . . . 09Trip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . . . . 09User Set tings – Instrument Cluster . . . . . . . . . . . . . . . 10Vehicle Set tings* – Audio Head Unit . . . . . . . . . . . . . . . 11Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ELECTRIC VEHICLE (EV) FEATURESCharging Connector Auto/Lock Mode . . . . . . . . . . . . 13Scheduled Charging* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Charging Your Electric Vehicle . . . . . . . . . . . . . . . . . . . 14EV Mode - UVO link with Navigation* . . . . . . . . . . . . . 16Regenerative Braking with Paddle Shifters . . . . . . . 18
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Blind-Spot Collision-Avoidance Warning (BCW) . . . 19Rear Cross-Traffic Collision Warning (RCCW) . . . . . 19Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . . . 20Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . . . 22Forward Collision-Avoidance Assist (FCA) . . . . . . . . 23Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . . . 24Leading Vehicle Depar ture Aler t (LVDA) . . . . . . . . . . 25Smar t Cruise Control (SCC) with Stop & Go* . . . . . . 26Navigation-based Smar t Cruise Control - (NSCC)* 27Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Driver At tention Warning (DAW)* . . . . . . . . . . . . . . . . . 28Rear Occupant Aler t (ROA) with Door Monitoring . 29Reverse Parking Distance Warning (PDW)* . . . . . . .30 Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . . .30
DRIVER’S PANELInstrument Cluster Control . . . . . . . . . . . . . . . . . . . . . . . 31Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . . 31Hill-Star t Assist Control (HAC) . . . . . . . . . . . . . . . . . . . . 31Power But ton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Power Windows, Window Lock & Central Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Automatic Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Power/Heated Outside Mirrors . . . . . . . . . . . . . . . . . . . 33Power Folding Outside Mirrors . . . . . . . . . . . . . . . . . . . 33
STEERING WHEEL CONTROLSHeadlights & High Beams . . . . . . . . . . . . . . . . . . . . . . . . 34Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . . . 35Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . . . 35Windshield/Rear Wipers & Washers . . . . . . . . . . . . . . 36
AUDIO SYSTEMSAudio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . .38Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . .40UVO link Activation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41Kia Access with UVO link App Download . . . . . . . . . 42Kia Access with UVO link App Features Guide . . . . 42UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . 43
CENTER PANELDigital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44USB Charger Por ts* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44Multimedia USB Por ts & Power Outlets* . . . . . . . . . . 44Wireless Smar tphone Charging System* . . . . . . . . . . 45Automatic Climate Control . . . . . . . . . . . . . . . . . . . . . . . 46Rotary Dial Shifter Knob . . . . . . . . . . . . . . . . . . . . . . . . . 47Heated Steering Wheel But ton* . . . . . . . . . . . . . . . . . . 47Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . . . . . 48Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . . 49
SEATINGFront Seat Headrest Adjustment . . . . . . . . . . . . . . . . . 50Power Adjustable Driver ’s Seat* . . . . . . . . . . . . . . . . . . 50Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
OTHER KEY FEATURESHood Release Lever and Latch . . . . . . . . . . . . . . . . . . . 52Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Smar t Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . . 53Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54Liftgate Release But ton* . . . . . . . . . . . . . . . . . . . . . . . . .55Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . . .55Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . 56Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
MAINTENANCE CHART . . . . . . . . . Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
TABLE OF CONTENTS
Page 15 of 62
13*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Niro EV Charging – Connecting & Disconnecting Video
QR CODE
AUTO
OFF
AUTO
OFF
(But tons are located left of the Steering Wheel)
Scheduled Charging*Charging Connector Auto/Lock Mode
Charging times can be set using UVO link with Navigation* system screen
. You can also use the Scheduled Charging* feature on the Kia Access with UVO link app .
Charging with the Kia Access with UVO link app:
The Kia Access with UVO link app can help you find the nearest charging station, and also displays charging status and Scheduled Charging information . On your smartphone, go to an app store or marketplace to download the Kia Access with UVO link app .
REMINDER: When Scheduled Charging is set and the charger is plugged in, charging of the electric vehicle will not begin until the time and date set .
Deactivate Scheduled Charging - Depress the Deactivate Scheduled Charging button B to temporarily disable the scheduled charging feature when immediate charging is required .
The Charging Connector can be set to be locked or unlocked while in the charging inlet and charging . Press the AUTO button A (LED lit) for the connector to lock while charging and unlock automatically when charging is complete .
When the AUTO button A is not pressed (LED not lit), the mode will be set to LOCK . The connector will be locked when charging and remain locked until all doors are unlocked .
REMINDERS:
•
For more detail and/or subsequent steps in charging your vehicle, including safet y precautions that should be taken, please see the Owner ’s Manual
•Reser ved charging may not be available at public chargers
ELECTRIC VEHICLE (EV) FEATURES
ELECTRIC VEHICLE (EV) F E AT U R E S
•If in lock mode & the doors are unlocked, the charging connector unlocks, but if the charging cable is not disconnected within 10 seconds, the connector will be automatically locked again
•If the charging connector is unlocked but all the doors are locked again, immediately, the connector will be automatically locked again
•If charging does not work, disconnect the connector and tr y charging again
QUICK TIPS
When you press the Deactivate Scheduled Charging but ton the reser ved charging set ting will temporarily disable, and star t immediate charging mode . If you need to completely deactivate the scheduled charge set ting, change the set ting from the audio control unit, or the smar tphone Kia Access with UVO link app .
QUICK TIP
REMINDER: If the connector cannot be unlocked, refer to section H4 in the Owner ’s Manual on how to unlock the connector in an emergency .
AB
Page 18 of 62
16 *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
EV Mode - UVO link with Navigation*
EV Mode on the UVO link with Navigation system screen allows you to navigate to a total of five menus that include information on available driving range, energy usage, energy information, ECO driving, charging and climate settings, and EV settings .
(But ton located on Center Panel)
EV Button - Press the EV button A on the Climate Control panel to access the EV Mode screen or press the EV Mode button* on the touchscreen .
EV Mode menu - The EV Mode menu allows you to access five EV menus including Available Range, Energy information, ECO driving, Charge management and EV settings .
Available Range - Displays the available driving distance according to the vehicle’s current location and charge amount . The projected available driving distance is marked in red on the map .
The estimated range is based on a number of factors and assumes optimal driving conditions, efficient driving habits and a straight road . Actual range will vary with options, driving conditions, driving habits, vehicle maintenance, charging practice, battery age, weather, temperature and your vehicle’s condition . Battery capacity will decrease with time and use . For more information on range, please see www .fueleconomy .gov .
Energy Information – Displays battery charge information and electrical power consumption .
See Owner ’s Manual for more detailed information on screens .
These illustrations are for demonstration purposes only .
Some items may appear different or var y in illustrations .
3:00PM
Range List
Anytown
3
Jun 2
+
–
130 mi
Anytown
3:00PM
Electric vehicle
97%
Energy information
Charging limit
DC charger 100% AC charger 100%
Charge management ECO drivingEV settings
Next departure : On : On
Jul 9 (Mon) 3:30 PM
0.4 lb
3.9 mi Anytown Solar
CO2
3:00PM
DC Charger
AC Charger 240V
AC Charger 120V100% (About 264 mi) 1h 23m
2h 35m
13h 20m
The charging time may vary depending on charging conditions.
Range150 miWith Climate Off150 miBattery97% Menu
Energy Information
100% (About 264 mi)
i
DRIVERAUTOACHEAT
CLIMATEOFF
ONLYEV
PASSENGER
AIR BAG
OFF
ELECTRIC VEHICLE (EV) FEATURES
ELECTRIC VEHICLE (EV) F E AT U R E S
A
Page 19 of 62
17 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
See Owner ’s Manual for more detailed information on screens .
These illustrations are for demonstration purposes only . Some items may appear different or var y in illustrations .
EV Mode - UVO link with Navigation* (Continued)
Electricity Use – Displays current energy consumption for each system of the vehicle .ECO Driving – Displays ECO level information and ECO driving history .
Charge Management – Allows you to select the time and date you wish to reserve for automatic charging and automatic climate control .
EV Settings – Allows the user to change the Winter mode, warning and EV Route settings .
3:00PM
Instant
Cumulative(Ignition on - Now)Driving
256 kw
--- % 83 % 17 %--- %
0.00 kw
0.54 kw0.20 kw
Climate
ElectronicsBattery care
Electricity Use
3:00
Nov. 27PM
Charge Management
Charging
and ClimateNext Departure
Jul 9 (Mon) 3:30 PM
Scheduled Charging
Scheduled Charging is not set.
Scheduled ClimateClimate is not set.
Charging
Location
Charging
Current
Max %
Charge
3:00PM
EV settings
Winter mode Range warning
Warning
EV Route
The range warning is displayed if the distance to
the destination exceeds the available vehicle range.
3:00PM
ECO driving
Eco contrib. Carbon dioxide reduction
Reduced 2.0 lb compared to the carbon
dioxide emitted when driving a gasoline
vehicle in the same segment.
EV Economy
History
CO22.0 lb(2 mi)
ELECTRIC VEHICLE (EV) FEATURES
ELECTRIC VEHICLE (EV) F E AT U R E S
Page 26 of 62
24†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
(But tons located on steering wheel)
REMINDERS:
•
Current highway speeds and controlled or limited access road information may var y . Future navigation updates may change this information
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
•
When the ignition is cycled, the system returns to its previous state, on or off
CNCLRES
CRUISE
SET
60mph

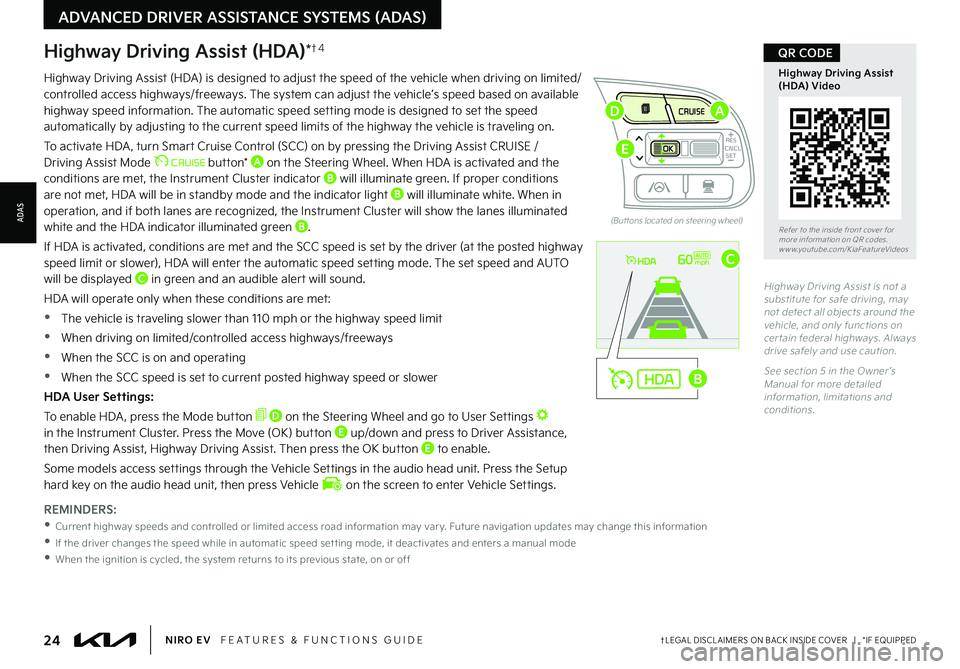

Highway Driving Assist (HDA)*†4
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways/freeways
. The system can adjust the vehicle’s speed based on available highway speed information . The automatic speed setting mode is designed to set the speed automatically by adjusting to the current speed limits of the highway the vehicle is traveling on .
To activate HDA , turn Smar t Cruise Control (SCC) on by pressing the Driving Assist CRUISE / Driving Assist Mode button* A on the Steering Wheel . When HDA is activated and the conditions are met, the Instrument Cluster indicator B will illuminate green . If proper conditions are not met, HDA will be in standby mode and the indicator light B will illuminate white . When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green B .
If HDA is activated, conditions are met and the SCC speed is set by the driver (at the posted highway
speed limit or slower), HDA will enter the automatic speed setting mode . The set speed and AUTO will be displayed C in green and an audible alert will sound .
HDA will operate only when these conditions are met:
•
The vehicle is traveling slower than 110 mph or the highway speed limit
•
When driving on limited/controlled access highways/freeways
•
When the SCC is on and operating
•
When the SCC speed is set to current posted highway speed or slower
HDA User Settings:
To enable HDA , press the Mode button D on the Steering Wheel and go to User Settings in the Instrument Cluster . Press the Move (OK) button E up/down and press to Driver Assistance, then Driving Assist, Highway Driving Assist . Then press the OK button E to enable .
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press Vehicle on the screen to enter Vehicle Settings .
Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways . Always drive safely and use caution .
See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
A
B
C
D
E
Page 29 of 62
27†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
•Cruise Control is designed to function above 20 mph
•The Cruise Control system will not activate until the brake pedal has been depressed at least once after ignition ON or engine star t
QUICK TIPS
Cruise Control†4
B CRUISE Control ON/OFF button – Press to turn the Cruise Control ON/OFF
C Cruising Speed button:
•
Press up to resume or increase Cruising Speed
•Press down to set or decrease Cruising Speed
•
Cruise Control CNCL button – To cancel Cruise Control setting, do one of the following:
•Press the brake pedal
•Press the CNCL button
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
See section 5 in the Owner ’s Manual for more information
.
B
C
D
•The speed set ting for SCC can be adjusted under the following conditions:
•You must be travelling at a minimum speed of 5 mph (may var y on newer models)
•
When following a vehicle, there is no minimum speed requirement
•
When following a vehicle, the system can automatically adjust your cruise speed based on the vehicle detected ahead . If the vehicle detected ahead remains at a standstill and your vehicle is also stopped for longer than 3 seconds, the system will need to be reactivated by pressing the accelerator or pressing the RES but ton
QUICK TIPS
Navigation-based Smart Cruise Control (NSCC)* †4
Navigation-based Smart Cruise Control can automatically adjust the vehicle speed when it detects a curved road ahead and when it receives road information from the navigation system .
To turn on NSCC, go to the User Settings in the instrument cluster or the Vehicle Settings* in the audio head unit, by selecting Driving Convenience, Highway Auto Speed Change . When SCC is on and operating, the vehicle is driving on limited/controlled access highways and NSCC is turned on, then NSCC is enabled and the AUTO icon A will illuminate white on the Instrument Cluster .
When NSCC detects a curve ahead, NSCC activates and reduces the vehicle speed, the AUTO icon A will turn green . When the vehicle passes the curved road, the vehicle may return to its previously set SCC speed .
Autoset (Automatic change of set speed): If the set speed is set to the current speed limit on the highway during NSCC operation, the set speed is changed automatically whenever the speed limit changes .
REMINDERS:
•NSCC requires an active navigation subscription
•NSCC is only available on controlled access roads and highways
See section 5 in the Owner ’s Manual for more information . For more set ting information, refer to the Car Infotainment System Quick Reference Guide . NSCC and Cruise Control are supplemental systems and are not substitutes for safe driving . It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead .
CRUISE65mphAUTO
(Display on LCD screen)
Smart Cruise Control (SCC) with Stop & Go*†4 (Continued)
REMINDERS:
•
The cruise control system will not activate until the brake pedal has been depressed at least once after the ignition is ON or engine star ts
•
When following a vehicle, the system will automatically adjust your cruise speed based on the vehicle detected in front
•
SCC is also canceled when the driver ’s door is opened, gear shift is changed out of D (Drive), EPB is activated and various other conditions . See the Owner ’s Manual for other conditions
•
If SCC is left on, it can be activated inadver tently . Keep the system off when not in use to avoid set ting a speed which the driver is not aware of
A
Page 32 of 62
30†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
N
PRELEASE
AUTO
HOLD
D
R
DRIVE
MODE
P
Reverse Parking Distance Warning (PDW)*†4
Reverse Parking Distance Warning (PDW) is a supplemental system that is designed to warn the driver by chiming if any object is detected within the sensing area to the front and rear of the vehicle when moving forward or backing up .
PDW is activated when the ignition is ON/Ready and the vehicle is in R (Reverse) . To deactivate PDW, press the PDW button A (LED illuminated), when vehicle is in D (Drive) or R (Reverse) .
To activate, press button A again (LED not illuminated) .
REMINDERS:
•If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than t wo objects are sensed at the same time, the closest one will be recognized first
•
The above images are for illustration purposes only . Operational details may var y
•
Reverse Parking Distance Warning (PDW) is not a substitute for proper and safe parking and backing-up procedures . Always drive safely and use caution when backing up . Reverse Parking Distance Warning (PDW) may not detect ever y object in front of or behind the vehicle .
Refer to section 4 in the Owner ’s Manual for more information .
Rear View Monitor (RVM)†4
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the audio system screen while the vehicle is in Reverse .
The Rear View Monitor activates when the:
•POWER button is in the ON/READY position
•Rotary Dial Shifter Knob is in the R (Reverse) position
REMINDERS:
•
The images shown are for illustration purposes only and may not reflect actual operation
•
UVO link – While camera is active, only the audio controls on the Audio System can be operated
•
UVO link with Navigation* – While camera is active, only the Audio System can be operated on the Steering Wheel and Audio Head Unit . All other features are disabled
•
Rear View Monitor may not display ever y object behind the vehicle
Rear View Monitor is not a substitute for proper and safe backing-up procedures . Rear View Monitor may not display ever y object behind the vehicle . Always drive safely and use caution when backing up .
N
P
PRELEASE
AUTO
HOLD
DRIVE
MODE
D
R
3 F G F S U P T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
Forward/Reverse Parking Distance Warning (PDW) Video
QR CODE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
A
Page 40 of 62
38†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
A
Volume button: Press up/down to raise/lower speaker volume Mute button: Push to mute the microphone during a call
B
Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system . Press and hold to exit voice recognition
B
UVO link with Navigation system* – When enrolled with a UVO link subscription, press this button to activate the UVO Voice Assist to use navigation guidance and search destinations
C Receive/Place Call button: Press to receive/place calls . In vehicles with navigation, if no phone is paired, press button to pair a phone
D End Call button: Press to end a call, reject an incoming call or cancel a function
Bluetooth® Wireless Technology†3 , 1 5
Bluetooth® wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device (sold separately) .
Your vehicle’s steering wheel but tons may differ from those in the illustrations . See your Owner ’s Manual for more details .
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
For more information, refer to the Car Infotainment System Quick Reference Guide . For Bluetooth® Wireless Technology FAQs, go to w w w .kia .com, Owners section, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA . Refer to your Owner ’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions .
(Type B shown)
Pairing a Phone
For instructions on how to pair a phone, refer to the Car Multimedia System User's Manual or your vehicle’s Quick Start Guide .
How to Place a Call
•Option 1: Press the Receive/Place Call button C (displays the phone screen with call history)
•Option 2: Press the Talk button B . Then say the command “Call {name}” or “Dial {number}” followed by contact name or number
During the pairing process, be sure to accept the connection requests on the phone for contacts download and to allow acceptance of all future Bluetooth® connection requests .
QUICK TIP
When using the voice command feature, wait for the system BEEP before speaking the command .
QUICK TIP •
Phone book transfer upload time varies by phone model and with number of phone book entries
•When using the voice command feature, wait for the system BEEP before speaking the command
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
•The system may register or pair multiple Bluetooth® devices . See the Car Multimedia System User ’s Manual for more information on setup and limitations
QUICK TIPS
AUDIO SYSTEMS
AUDIOSYSTEMS
A
B
CD
Page 42 of 62
40†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Apple CarPlay® & Android Auto™ Video
QR CODE
Cable Connection setup for Apple CarPlay®:
1 . Connect the Apple CarPlay® compatible iPhone® with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®
2 . Press the SETUP key on the audio head unit
3 . Press DEVICE CONNECTION on the screen and select Apple CarPlay®
4 . Select ENABLE APPLE CARPL AY® . Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Apple CarPlay®
5 . From the audio head unit home screen, select the Apple CarPlay® but ton, where you’ll see all the Apple CarPlay® supported apps
Android Auto™†3 / Apple CarPlay®†3 Setup
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death . The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle .
Android Auto™ compatible smartphone setup – Download the Android Auto™ app from the Google Play™ Store†1 1 . Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device .
Cable Connection setup for Android Auto™:
1 . Press the SETUP key on the audio head unit
2 . Press DEVICE CONNECTION, select Android Auto™ and then select ENABLE ANDROID AUTO . Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Android Auto™
3 . Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4 . From the vehicle’s home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
REMINDERS:
•Android Auto™ compatibilit y requirements for connection:
-UVO link with Navigation (USB cable connection only): OS Android™ 5 .0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s)
•Apple CarPlay® compatibilit y requirements for connection:
-
UVO link with Navigation (USB cable connection only): iOS soft ware 8 .0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s)
-
(Connection only): iOS soft ware 10 .0 and higher with data plan for applicable feature(s)
•It is recommended to always update your phone to the latest operating system release
•
Wireless Android Auto™ system only works for cer tain Android models . Use the manufacturer ’s USB cable when wireless feature is not available
Refer to the Car Infotainment System Quick Reference Guide for more information .
•If Android Auto™ / Apple CarPlay® randomly disconnects:
-Ensure the USB cable is cer tified by the phone manufacturer for both power and data
-
Clean the phone’s por t, which the USB cable connects to, as instructed by the phone’s manufacturer .
-
The phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
-
Visit the phone manufacturer ’s website for Android Auto™/ Apple CarPlay® app concerns
QUICK TIPS
AUDIO SYSTEMS
AUDIOSYSTEMS
