sound KIA NIRO EV 2023 Navigation System Quick Reference Guide

3-7
m m The list of menu items appears.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Enter Station: Can select or directly enter the desired radio frequency.
Scan FM (Available only with FM): Select a broadcast of your choice after listening
briefly to broadcasts from different radio stations.
Scan AM (Available only with AM): Select a broadcast of your choice after listening
briefly to broadcasts from different radio stations.
Tune FM Manually (Available only with FM): Tune the radio frequency manually.
Tune AM Manually (Available only with AM): Tune the radio frequency manually.
Delete Presets: Can delete a registered channel from the presets list. > See "
Deleting a
registered channel."
 Reorder Presets: Rearrange the presets list.
SoundHound History: Can see recently searched music files through the
SoundHound service (if equipped).

A
To use the SoundHound service, subscribe to the Kia Connect service.
> See "Subscribing to the service."
 Radio Noise (Available only with FM): Customize sound quality when listening to F\
M
radio by adjusting background noise of the original sound (if equipped).
Sound Settings: Displays the system sound settings screen. > See "
Configuring the
sound settings (Type2)."
 User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

A
The sound effect settings button may appear on the screen depending on the amp.
ÝWarning
Driving while distracted can result in a loss of vehicle control that may lead to an accident,
severe bodily injury, or death. The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any vehicle systems, including the \
touch screen and
steering wheel controls, which take the driver's eyes, attention, and focus away from the safe
operation of the vehicle, or which are not permissible by law, should never be used during
the operation of the vehicle.

3-16
HD Radio™ Technology
Program Info: Presents song name, artist, station IDs,
and other relevant data streams.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today's FM and FM sounds like
a CD.
FM stations can provide additional digital-only audio
programming on HD2/HD3 Channels.
Real-Time Traffic reports, alerts, and flow data
displayed on screen via interactive traffic maps and/or
data.

3-18
k k Can turn on or off the split screen mode.
l l Displays the options list.
Channel List: Can see the list of available SiriusXM channels.
What is on My Presets?: Displays the broadcast schedule.
Featured Favorites: Can listen to groups of channels provided by SiriusXM.
Delete Presets: Can delete a registered channel from the presets list.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The
icon appears next to the first 10 SiriusXM channels saved. Once preset
channels have been saved, the broadcasts from them are buffered automatically for your
convenience each time you start the vehicle.
Changing to SiriusXM mode (Type2)
On the Radio screen, press Radio Mode button repeatedly.
AThe screen may differ depending on the vehicle model and specifications.
SiriusXM mode screen
eh
a
cd
fgi
j
b
nm
k
l
a a Returns to the previous step.
b b Switches to live broadcast mode. This button is activated when you have moved to the
previous segment while listening to a live broadcast.

3-19
c c Moves to the previous segment. Press and hold to rewind the broadcast.
d d Pauses or restarts the broadcast.
e e Moves to the next segment. Press and hold to fast-forward the broadcast.
f f Can change the radio mode.
g g You can go to the previous or next channel.
h h Can enter channel number to select the channel directly.
i i You can delete or save the current frequency to the presets list.
j j Presets list
k k Can see the list of available SiriusXM channels (if equipped).
l l Can turn on or off the split screen mode.
m m You can change radio channels by using voice commands. > See "Changing the channel by
using voice commands."
n n Displays the options list.
 Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Channel List: Can see the list of available SiriusXM channels.
Scan SXM Channels: Scan and play each SiriusXM channel for 5 seconds.
Delete Presets: Can delete a registered channel from the presets list.
What is on My Presets?: Displays the broadcast schedule.
Featured Favorites: Can listen to groups of channels provided by SiriusXM.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

A
The
icon appears next to the first 10 SiriusXM channels saved. Once preset
channels have been saved, the broadcasts from them are buffered automatically for your
convenience each time you start the vehicle.

3-21
m m Displays the options list.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Scan SXM Channels: Scan and play each SiriusXM channel for 5 seconds.
Delete Presets: Can delete a registered channel from the presets list.
Reorder Presets: Rearrange the presets list.
What is on My Presets?: Displays the broadcast schedule.
Featured Favorites: Can listen to groups of channels provided by SiriusXM.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

A
The
icon appears next to the first 10 SiriusXM channels saved. Once preset
channels have been saved, the broadcasts from them are buffered automatically for your
convenience each time you start the vehicle.
Searching for SiriusXM radio channels (Type1)
You can select a channel from available SiriusXM channels.
1 On the Radio screen, press Band >
SiriusXM.
2 On the SiriusXM radio screen, press Menu >
Channel List.
3 Select a category and a channel.

A
To skip a channel when scanning with the [ SEEK] and [TRACK ] buttons or Search
knob, press Skip.

A
The current channel is added to the presets list when pressing
.

4-3
a a Returns to the previous step.
b b Moves to the file list screen.
c c Displays the sequence number of the current file and the total number of files for
playback.
d d Displays the information of the current music. Press the artist or album info of the current
song to go to list of songs by the artist or from the album.
e e Used to change the repeat playback mode.
f f Used to turn on or off the shuffle playback mode.
g g Restart playing the current file or previous file.
h h Can pause or resume playback.
i i Can play the next file.
j j Can see the duration of the playing song and the current playback position.
k k The list of menu items appears.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Media Sources: Opens the Radio/Media selection window.
Songs by this Artist: Moves to the list of the artist's songs.
Songs from this Album: Moves to the list of music albums that contain the current
song.
Hide Current File: You can hide the file that is playing.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The sound effect settings button may appear on the screen depending on the amp
specifications.
ÝWarning
Driving while distracted can result in a loss of vehicle control that may lead to an accident,
severe bodily injury, or death. The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any vehicle systems, including the touch screen and
steering wheel controls, which take the driver's eyes, attention, and focus away from the safe
operation of the vehicle, or which are not permissible by law, should never be used during
the operation of the vehicle.

4-6
Turning on/off the shuffle playback mode for USB music
You can turn on or off the shuffle playback mode for USB music.
On the USB music playback screen, press repeatedly.
Each time the icon is pressed, the shuffle playback mode is turned on and off. When the
shuffle playback is active, the files are played randomly with no sequence.
USB music list screen
You can search and play the desired music from the list by pressing List on the USB music
playback screen.
ag
e
d
bc
f
a a Returns to the previous step.
b b Moves to the upper folder or category.
c c Play all songs in this category.
d d Can see music files for each category. In the artist or album category, you can select
multiple artists or albums to play their songs.
e e Set to play media files in all sub-folders included in the current playlist.
f f Return to the playback screen (if equipped).
g g The list of menu items appears.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Media Sources: Opens the Radio/Media selection window.
Now Playing
: You can return to the folder of the playing file while searching in the list.
Split Screen: Can turn on or off the split screen mode.

A
The sound effect settings button may appear on the screen depending on the amp
specifications.

4-9
f f Can see the duration of the playing song and the current playback position.
g g Find and connect other Bluetooth devices.
h h Moves to the music list screen.
A
The list of Bluetooth audio files may not appear depending on the connected device
or app.
i i Displays the sequence number of the current file and the total number of files for
playback.
j j The list of menu items appears.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Media Sources: Opens the Radio/Media selection window.
Change Device: Find and connect other Bluetooth devices.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

A
The sound effect settings button may appear on the screen depending on the amp
specifications.
Pause/Resume
You can pause or resume playback of a Bluetooth audio file.
On the Bluetooth audio playback screen, press or .
Resuming playback of the current Bluetooth audio file
You can play the current Bluetooth audio file from the beginning.
Perform any of the following methods:
On the Bluetooth audio playback screen, press .
On the control panel, press the [
SEEK] button (if equipped).

A
The actions required may differ depending on the connected device.

A
You can also run the function by using the Move lever/button on the steering wheel.

5-6

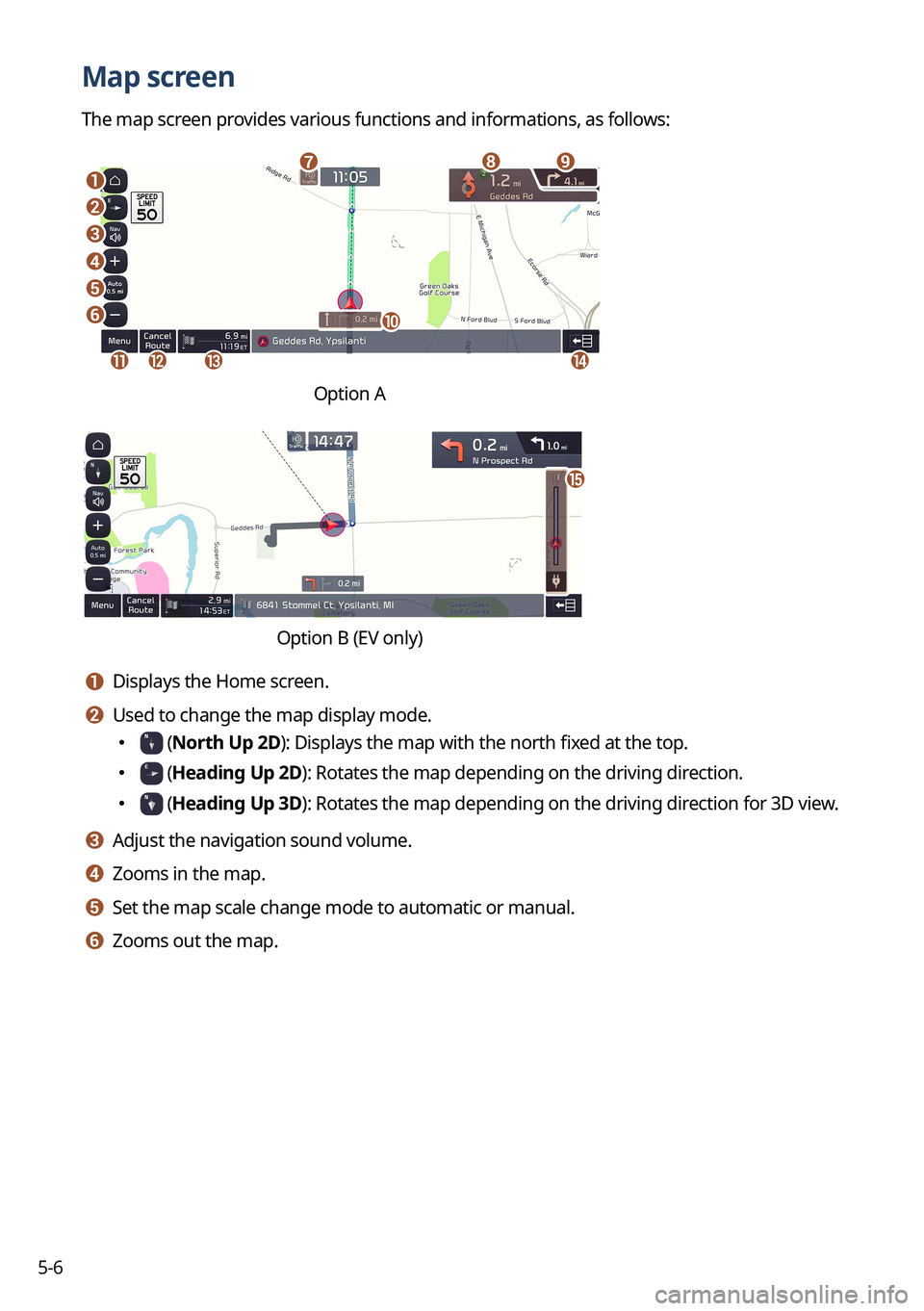

Map screen
The map screen provides various functions and informations, as follows:
j
ih
k
a
b
c
d
e
f
lmn
g
Option A
o
2SWLRQ%(9\
RQO\\f
a a Displays the Home screen.
b b Used to change the map display mode.
 (North Up 2D): Displays the map with the north fixed at the top.
 (Heading Up 2D): Rotates the map depending on the driving direction.
 (Heading Up 3D): Rotates the map depending on the driving direction for 3D view.
c c Adjust the navigation sound volume.
d d Zooms in the map.
e e Set the map scale change mode to automatic or manual.
f f Zooms out the map.

5-9
Adjusting the navigation volume
You can adjust the volume of navigation or GPS warning sound.
On the map screen, press and then press or , or use the control bar
to adjust the volume.

A
To have the navigation sound always output first over media sound, check Navigation
Volume Priority.

A
To turn off the navigation voice, press
and then press .

A
To turn off the navigation sound effects, press and then press .
Canceling the route guidance
To cancel route guidance, press Cancel Route. Alternatively, press
Navigation Menu >
Cancel Route on the All Menus screen.
The destination displayed at the bottom of the screen disappears and changes to .

A
Press to search for the target destination to obtain an optimum route.

A
To maintain the specified destination and stop the route guidance, press and hold Cancel
Route at the bottom of the screen. The guidance stops and the Resume Route button
appears. You can use the button to search for a previous destination and resume route
guidance.
