Driving your vehicle
98
6
The use of chains may adversely
affect vehicle handling.
Do not exceed 20 mph (30 km/h) or the chain manufacturer’s recom-
mended speed limit, whichever is
lower.
Drive carefully and avoid bumps, holes, sharp turns, and other road
hazards, which may cause the
vehicle to bounce.
Avoid sharp turns or locked-wheel braking.Use high quality ethylene gly-
col coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in chapter 8. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in chapter 8. The level of charge in
your battery can be checked by an
authorized Kia dealer or a service
station.
Change to "winter weight" oil
if necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
chapter 9 for recommendations. If
you aren't sure what weight oil you
should use, consult an authorized
Kia dealer.
Check spark plugs and ignition
system
Inspect your spark plugs as
described in chapter 8 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.CAUTION- Snow chains
Chains that are the wrong size or improperly installed candamage your vehicle's brakelines, suspension, body andwheels.
Stop driving and retighten the chains any time you hear themhitting the vehicle.

Maintenance
10
8
Normal Maintenance Schedule - Non Turbo Models
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the
frequency of service is determined by whichever occurs first.
Number of months or driving distance, whichever comes first
Months1224364860728496108120132144156168180
Miles×1,0007.51522.530 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5
Km×1,00012 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Drive belts *1At first, inspect at 60,000 miles (96,000 km) or 72 months,
after that, inspect every 15,000 miles (24,000 km) or 24 months
Engine oil and engine oil
filterKappa 1.6 GDIRRRRRRRRRRRRRRR
Fuel additives *2Add every 7,500 miles (12,000 km) or 12 months
Air cleaner filterIIIRIIIRIIIRIII
Spark plugsKappa 1.6 GDIReplace every 100,000 miles (150,000 km) or 120 months
Valve clearance *3Kappa 1.6 GDIInspect every 60,000 miles (96,000 km) or 72 months
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
1: The drive belt should be replaced when cracks occur or tension is reduced.
*2: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.
*
3: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized Kia dealer perform the operation.

813
Maintenance
Maintenance Under Severe Usage Conditions - Non Turbo Models
The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer
to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if neces\
sary
MAINTENANCE ITEMMAINTENANCEOPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Engine oil and engine oil filterREvery 3,750 miles (6,000 km) or 6 monthsA, B, C, D, E,
F, G, H, I, J, K
Air cleaner filterRMore frequentlyC, E
Spark plugs RMore frequentlyA, B, F, G, H, I, K
Dual clutch transmission fluidREvery 75,000 miles (120,000 km)C, D, E, F, G, H, I, J
HSG (Hybrid Starter & Generator) belt
REvery 30,000 miles (48,000 km) or 24 monthsC, D, E, K
IEvery 3,750 miles (6,000 km)or 6 monthsC, D, E, K
Brake discs and pads, calipers and rotorsIMore frequentlyC, D, E, G, H
Parking brakeIMore frequentlyC, D, G, H
Steering gear rack, linkage and bootsIMore frequentlyC, D, E, F, G
Suspension ball jointsIMore frequentlyC, D, E, F, G

Maintenance
16
8
Vacuum crankcase ventilation
hoses
Inspect the surface of hoses for evi-
dence of heat and/or mechanical
damage. Hard and brittle rubber,
cracking, tears, cuts, abrasions, and
excessive swelling indicate deterio-
ration. Particular attention should be
paid to examine those hose surfaces
nearest to high heat sources, such
as the exhaust manifold.
Inspect the hose routing to assure
that the hoses do not come in con-
tact with any heat source, sharp
edges or moving component which
might cause heat damage or
mechanical wear. Inspect all hose
connections, such as clamps and
couplings, to make sure they are
secure, and that no leaks are pres-
ent. Hoses should be replaced
immediately if there is any evidence
of deterioration or damage.
Air cleaner filter
A Genuine Kia air cleaner filter is
recommended when the filter is
replaced.
Spark plugs
Make sure to install new spark plugs
of the correct heat range.
Cooling system
Check the cooling system compo-
nents, such as the radiator, coolant
reservoir, hoses and connections for
leakage and damage. Replace any
damaged parts.
Coolant (Engine / Inverter)
The coolant should be changed at
the intervals specified in the mainte-
nance schedule.
Dual clutch transmission Fluid
Inspect the dual clutch transmission
fluid according to the maintenance
schedule.
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and
any leakage. Replace any deteriorat-
ed or damaged parts immediately.

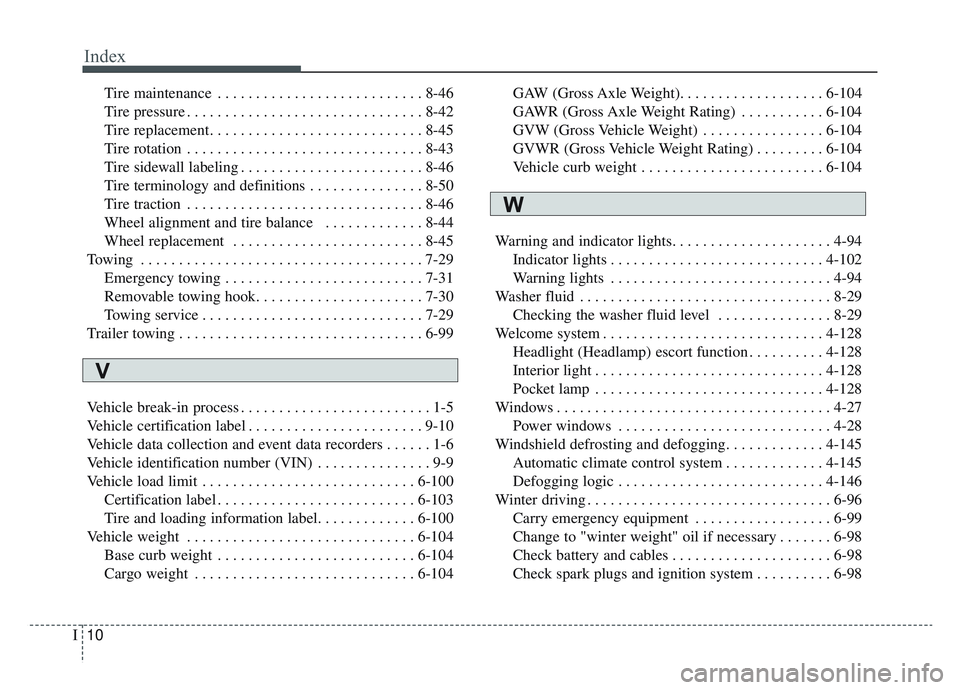

Index
10I
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-43
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Tire terminology and definitions . . . . . . . . . . . . . . . 8-50
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Wheel alignment and tire balance . . . . . . . . . . . . . 8-44
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . 8-45
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-29 Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Removable towing hook. . . . . . . . . . . . . . . . . . . . . . 7-30
Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-99
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . 9-10
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 9-9
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-100 Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 6-103
Tire and loading information label. . . . . . . . . . . . . 6-100
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-104 Base curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . 6-104
Cargo weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-104 GAW (Gross Axle Weight). . . . . . . . . . . . . . . . . . . 6-104
GAWR (Gross Axle Weight Rating) . . . . . . . . . . . 6-104
GVW (Gross Vehicle Weight) . . . . . . . . . . . . . . . . 6-104
GVWR (Gross Vehicle Weight Rating) . . . . . . . . . 6-104
Vehicle curb weight . . . . . . . . . . . . . . . . . . . . . . . . 6-104
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-94 Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-29 Checking the washer fluid level . . . . . . . . . . . . . . . 8-29
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128 Headlight (Headlamp) escort function . . . . . . . . . . 4-128
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-27 Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
Windshield defrosting and defogging. . . . . . . . . . . . . 4-145 Automatic climate control system . . . . . . . . . . . . . 4-145
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-96 Carry emergency equipment . . . . . . . . . . . . . . . . . . 6-99
Change to "winter weight" oil if necessary . . . . . . . 6-98
Check battery and cables . . . . . . . . . . . . . . . . . . . . . 6-98
Check spark plugs and ignition system . . . . . . . . . . 6-98
