Maintenance

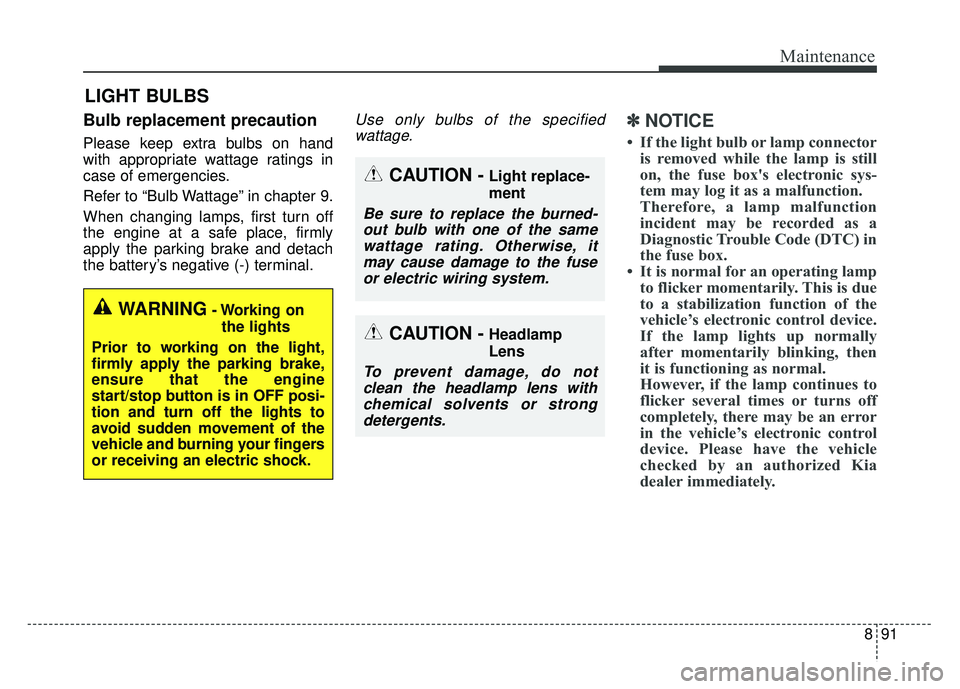

LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the engine
start/stop button is in OFF posi-
tion and turn off the lights to
avoid sudden movement of the
vehicle and burning your fingers
or receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

Maintenance
92
8

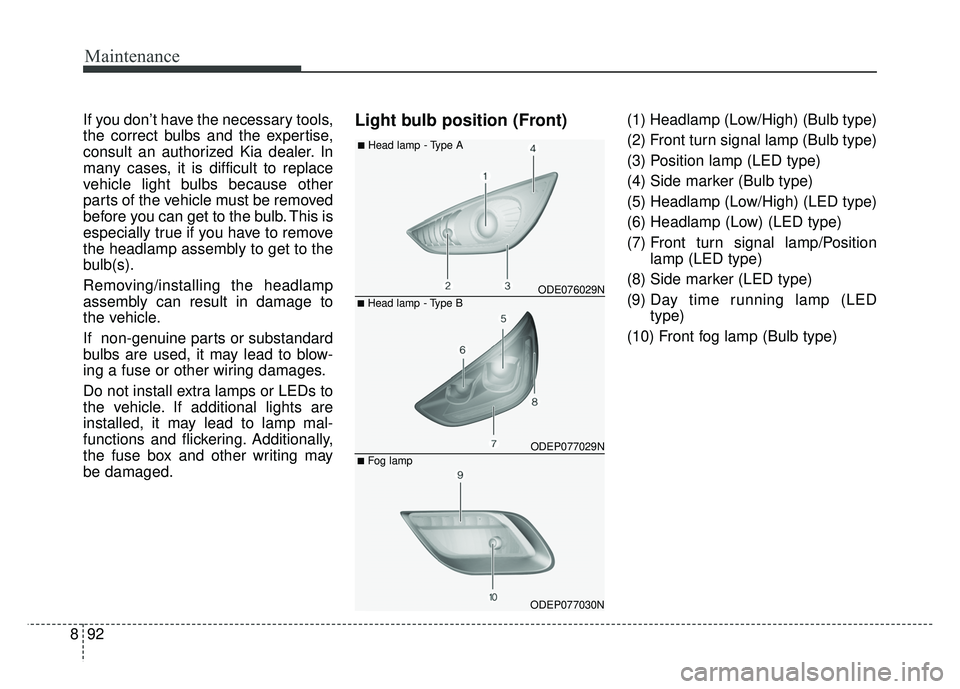

If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)(1) Headlamp (Low/High) (Bulb type)
(2) Front turn signal lamp (Bulb type)
(3) Position lamp (LED type)
(4) Side marker (Bulb type)
(5) Headlamp (Low/High) (LED type)
(6) Headlamp (Low) (LED type)
(7) Front turn signal lamp/Position
lamp (LED type)
(8) Side marker (LED type)
(9) Day time running lamp (LED type)
(10) Front fog lamp (Bulb type)
■Head lamp - Type B
■Head lamp - Type A
ODEP077029N■Fog lamp
ODE076029N
ODEP077030N

Maintenance
94
8

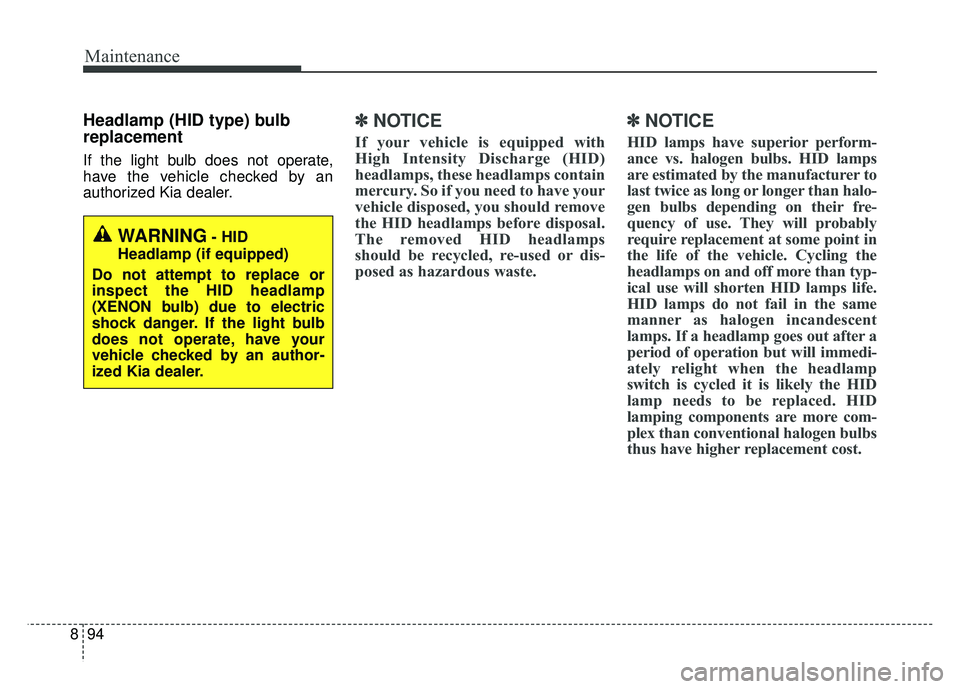

Headlamp (HID type) bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
✽ ✽
NOTICE
If your vehicle is equipped with
High Intensity Discharge (HID)
headlamps, these headlamps contain
mercury. So if you need to have your
vehicle disposed, you should remove
the HID headlamps before disposal.
The removed HID headlamps
should be recycled, re-used or dis-
posed as hazardous waste.
✽ ✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than halo-
gen bulbs depending on their fre-
quency of use. They will probably
require replacement at some point in
the life of the vehicle. Cycling the
headlamps on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID
lamping components are more com-
plex than conventional halogen bulbs
thus have higher replacement cost.
WARNING- HID
Headlamp (if equipped)
Do not attempt to replace or
inspect the HID headlamp
(XENON bulb) due to electric
shock danger. If the light bulb
does not operate, have your
vehicle checked by an author-
ized Kia dealer.

895
Maintenance

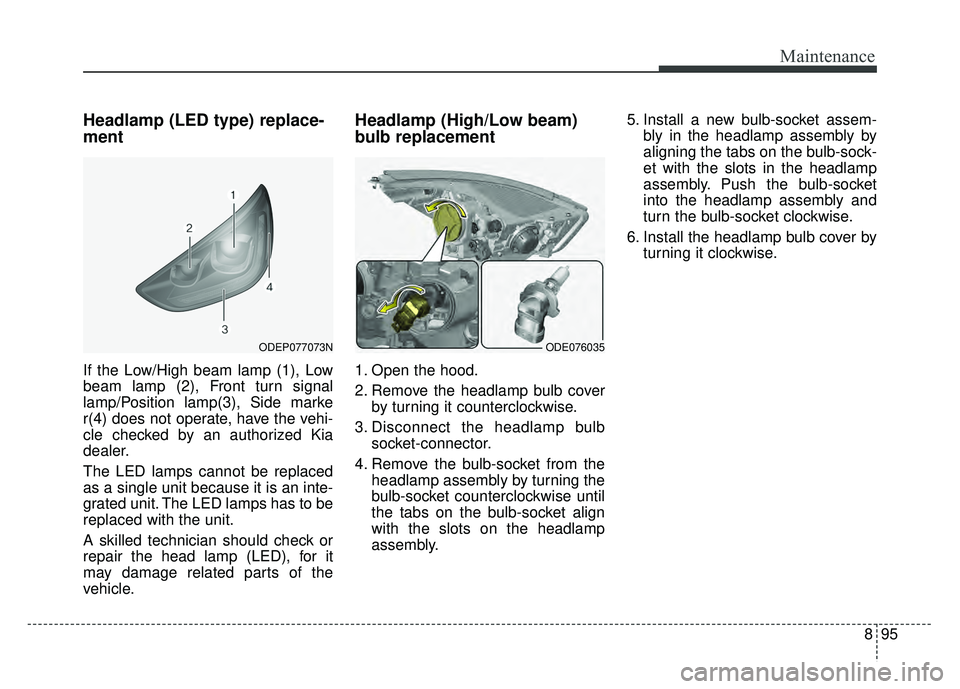

Headlamp (LED type) replace-
ment
If the Low/High beam lamp (1), Low
beam lamp (2), Front turn signal
lamp/Position lamp(3), Side marke
r(4) does not operate, have the vehi-
cle checked by an authorized Kia
dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
Headlamp (High/Low beam)
bulb replacement
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
ODE076035ODEP077073N

Maintenance
96
8

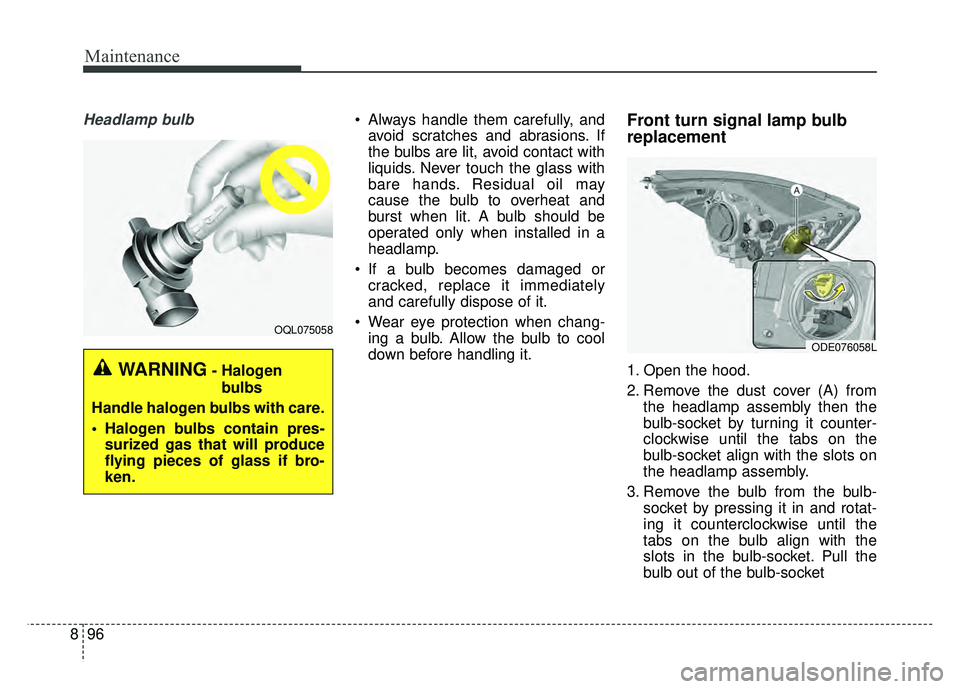

Headlamp bulb Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Front turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the dust cover (A) from the headlamp assembly then the
bulb-socket by turning it counter-
clockwise until the tabs on the
bulb-socket align with the slots on
the headlamp assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socketWARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
OQL075058
ODE076058L

897
Maintenance

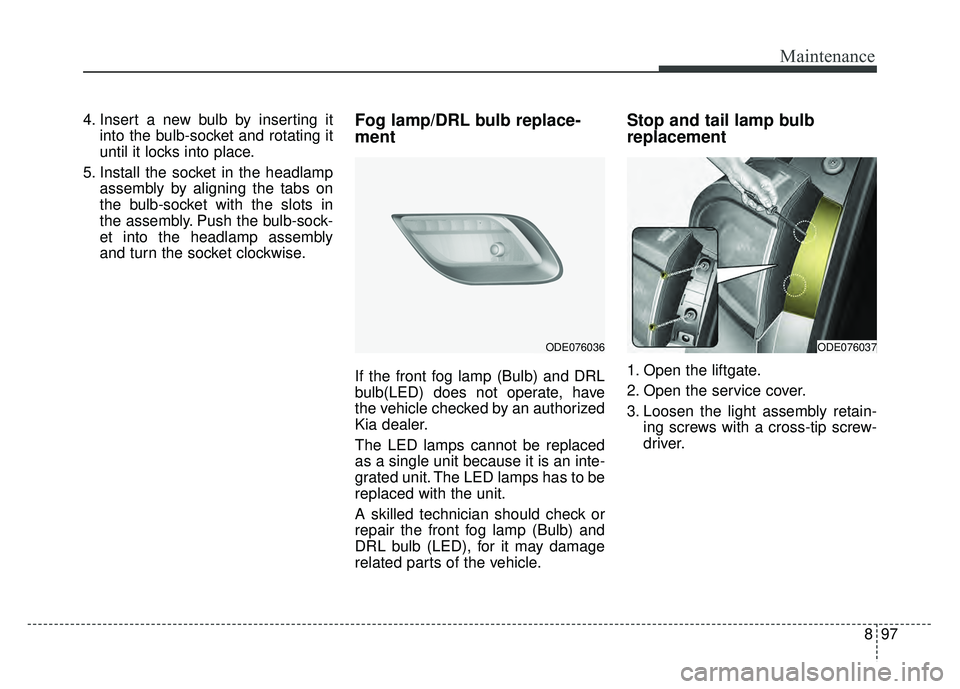

4. Insert a new bulb by inserting itinto the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.Fog lamp/DRL bulb replace-
ment
If the front fog lamp (Bulb) and DRL
bulb(LED) does not operate, have
the vehicle checked by an authorized
Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the front fog lamp (Bulb) and
DRL bulb (LED), for it may damage
related parts of the vehicle.
Stop and tail lamp bulb
replacement
1. Open the liftgate.
2. Open the service cover.
3. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver.
ODE076036ODE076037

93
Specifications, Consumer information, Reporting safety defects

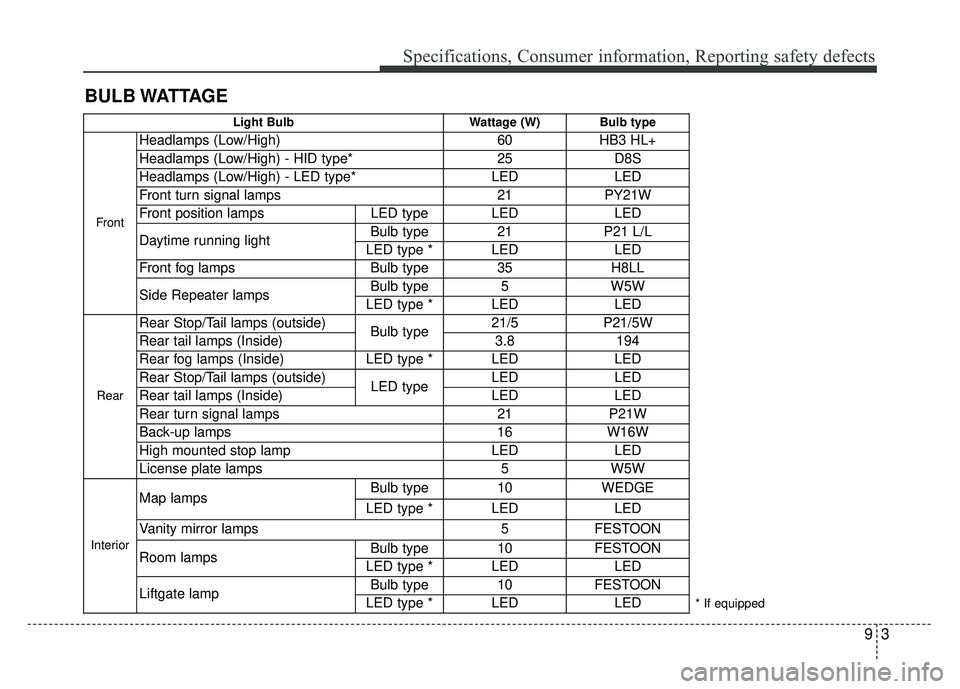

BULB WATTAGE
Light BulbWattage (W) Bulb type
Front
Headlamps (Low/High) 60HB3 HL+
Headlamps (Low/High) - HID type* 25D8S
Headlamps (Low/High) - LED type* LEDLED
Front turn signal lamps 21PY21W
Front position lamps LED type LED LED
Daytime running light Bulb type 21
P21 L/L
LED type *LEDLED
Front fog lamps Bulb type 35 H8LL
Side Repeater lamps Bulb type
5W5W
LED type * LED LED
Rear
Rear Stop/Tail lamps (outside)
Bulb type21/5 P21/5W
Rear tail lamps (Inside) 3.8194
Rear fog lamps (Inside) LED type * LED LED
Rear Stop/Tail lamps (outside) LED typeLED
LED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 21P21W
Back-up lamps 16W16W
High mounted stop lamp LEDLED
License plate lamps 5W5W
Interior
Map lamps Bulb type 10 WEDGE
LED type * LED LED
Vanity mirror lamps 5 FESTOON
Room lamps Bulb type 10 FESTOON
LED type * LED LED
Liftgate lamp Bulb type 10 FESTOON
LED type *LEDLED* If equipped

I7

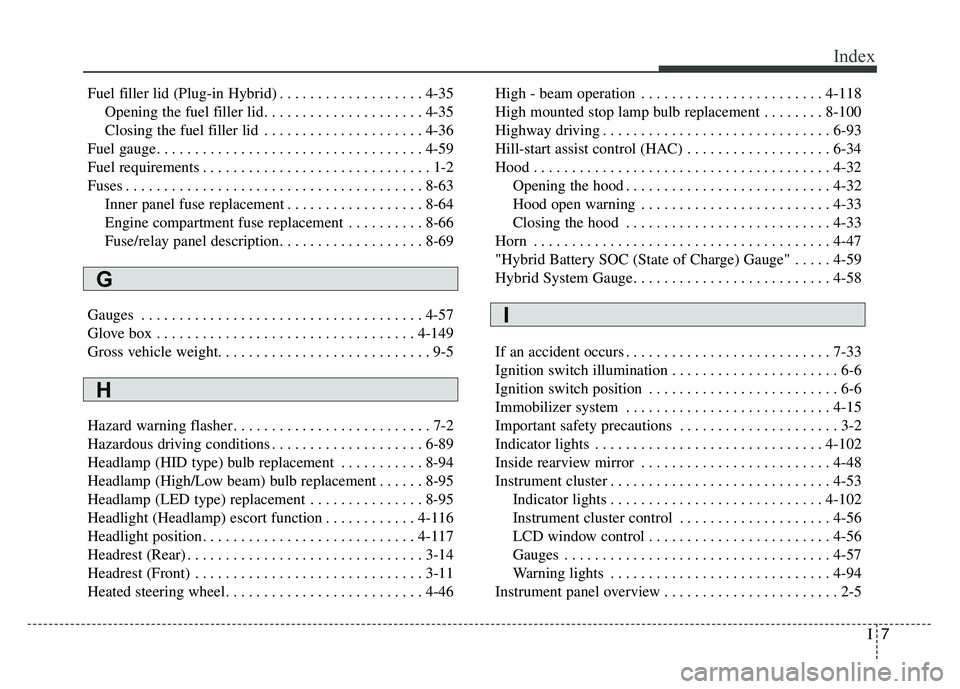

Index
Fuel filler lid (Plug-in Hybrid) . . . . . . . . . . . . . . . . . . . 4-35Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-35
Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-36
Fuel gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
59
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-63 Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 8-64
Engine compartment fuse replacement . . . . . . . . . . 8-66
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 8-69
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-57
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
9
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . . 6-89
Headlamp (HID type) bulb replacement . . . . . . . . . . . 8-94
Headlamp (High/Low beam) bulb replacement . . . . . . 8-95
Headlamp (LED type) replacement . . . . . . . . . . . . . . . 8-95
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-116
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Headrest (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Headrest (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-46 High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-118
High mounted stop lamp bulb replacement . . . . . . . . 8-100
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . . 6-34
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-32
Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Hood open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-47
"Hybrid Battery SOC (State of Charge) Gauge" . . . . . 4-59
Hybrid System Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
If an accident occurs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33
Ignition switch illumination . . . . . . . . . . . . . . . . . . . . . . 6-6
Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Important safety precautions . . . . . . . . . . . . . . . . . . . . . 3-2
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53 Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Instrument cluster control . . . . . . . . . . . . . . . . . . . . 4-56
LCD window control . . . . . . . . . . . . . . . . . . . . . . . . 4-56
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
57
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
H
I
G

I9

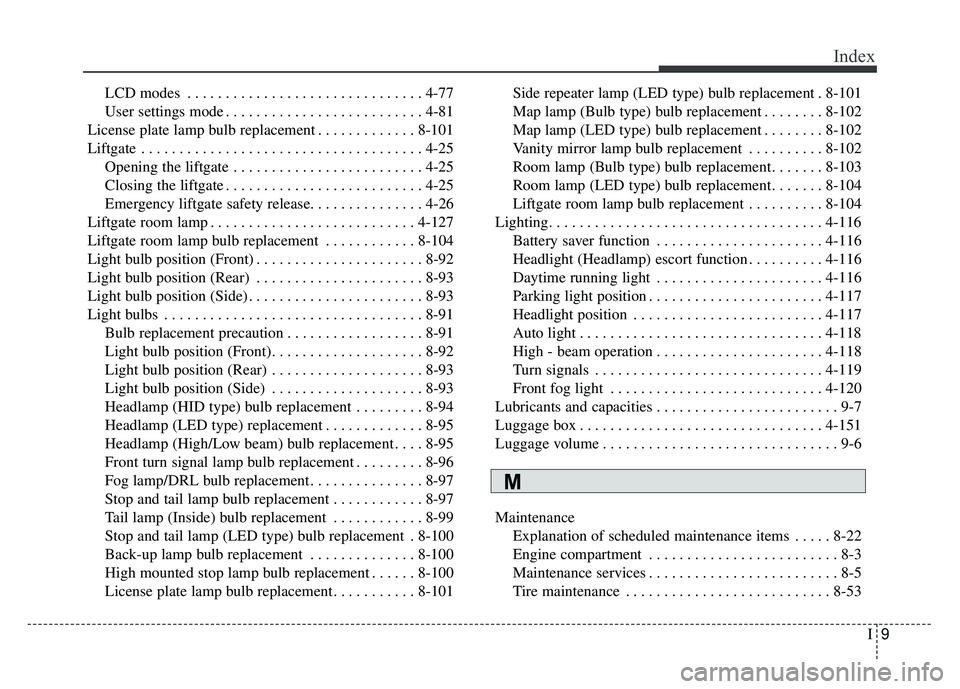

Index
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-81
License plate lamp bulb replacement . . . . . . . . . . . . . 8-101
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-25 Opening the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Closing the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Emergency liftgate safety release. . . . . . . . . . . . . . . 4-26
Liftgate room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Liftgate room lamp bulb replacement . . . . . . . . . . . . 8-104
Light bulb position (Front) . . . . . . . . . . . . . . . . . . . . . . 8-92
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . . 8-93
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . . 8-93
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-91\
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 8-91
Light bulb position (Front). . . . . . . . . . . . . . . . . . . . 8-92
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . 8-93
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . 8-93
Headlamp (HID type) bulb replacement . . . . . . . . . 8-94
Headlamp (LED type) replacement . . . . . . . . . . . . . 8-95
Headlamp (High/Low beam) bulb replacement . . . . 8-95
Front turn signal lamp bulb replacement . . . . . . . . . 8-96
Fog lamp/DRL bulb replacement . . . . . . . . . . . . . . . 8-97
Stop and tail lamp bulb replacement . . . . . . . . . . . . 8-97
Tail lamp (Inside) bulb replacement . . . . . . . . . . . . 8-99
Stop and tail lamp (LED type) bulb replacement . 8-100
Back-up lamp bulb replacement . . . . . . . . . . . . . . 8-100
High mounted stop lamp bulb replacement . . . . . . 8-100
License plate lamp bulb replacement. . . . . . . . . . . 8-101 Side repeater lamp (LED type) bulb replacement . 8-101
Map lamp (Bulb type) bulb replacement . . . . . . . . 8-102
Map lamp (LED type) bulb replacement . . . . . . . . 8-102
Vanity mirror lamp bulb replacement . . . . . . . . . . 8-102
Room lamp (Bulb type) bulb replacement. . . . . . . 8-103
Room lamp (LED type) bulb replacement . . . . . . . 8-104
Liftgate room lamp bulb replacement . . . . . . . . . . 8-104
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-116 Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-116
Headlight (Headlamp) escort function . . . . . . . . . . 4-116
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-116
Parking light position . . . . . . . . . . . . . . . . . . . . . . . 4-117
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-118
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 9-7
Luggage box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Maintenance Explanation of scheduled maintenance items . . . . . 8-22
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-53
M
