Maintenance
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.

Maintenance
116
7
Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.

7117
Maintenance
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE

Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-7
Recommended lubricants and capacities . . . . . . . . 8-8
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-9
Vehicle identification number (VIN) . . . . . . . . . . 8-10
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-11
Tire specification and pressure label . . . . . . . . . . 8-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Air conditioner compressor label . . . . . . . . . . . . . 8-12
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Consumer assistance (U.S. only) . . . . . . . . . . . . . . 8-13
• Toll free consumer assistance . . . . . . . . . . . . . . . . . . . 8-13
• Emergency roadside assistance . . . . . . . . . . . . . . . . . 8-13
• Trip interruption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
• Registering your vehicle in a foreign country . . . . . 8-15
Electrical Equipment (U.S. only) . . . . . . . . . . . . . 8-16
• Installation of a mobile two-way radio system . . . . . 8-16
Reporting Safety Defects (U.S. only) . . . . . . . . . . 8-17
Online factory authorized manuals (U.S. only) . . 8-17
• Service manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
• Electrical troubleshooting manual. . . . . . . . . . . . . . . 8-17
• Owner's manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
8

Specifications, Consumer information, Reporting safety defects
28
DIMENSIONS
ENGINE
ItemUnit : in (mm)
Overall length171.4 (4,355)
Overall width71.0 (1,805)
Overall heightWithout Roof rack60.4 (1,535)
With Roof rack60.8 (1,545)
Tread
Front205/60R1661.6 (1,565)
225/45R18 *61.2 (1,555)
Rear205/60R1662.2(1,579)
225/45R18 *61.8 (1,569)
Wheelbase106.3 (2,700)
ItemGasoline
Kappa 1.6L GDI
Displacement [cu. in (cc)]
96.4 (1,580)
Bore x Stroke [in. (mm)]
2.8 X 3.8 (72 X 97)
Firing order
1-3-4-2
No. of cylinders
4 In-line, DOHC
* This tire is only for the HEV (Hybrid Electric Vehicle) system

83
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
(Continued)
Light BulbWattage (W) Bulb type
FrontHeadlamps (Low/High)
Bulb type 60 HB3
LED type LED LED
Headlamps (Low) LED LED
Turn signal lamps Bulb type 28 PY28/8W
LED type LED LEDFront side markerBulb type5W5W
LED typeLEDLED
Position lampsLEDLED
Daytime running lamps LEDLED
Fog lamps Bulb type 51
HB4
LED type LED LED
Side repeater lamps LEDLED
Rear Stop/Tail lamps
Bulb type 28/8
P28/8W
LED type LED LED
Stop lamps LEDLED
Tail lamps Bulb type
5W5W
LED type LED LED
Turn signal lamps 27PY27W
Rear side marker Bulb type
5W5W
LED type LED LED
Back-up lamp 16W16W
License plate lamp 5W5W
High mounted stop lamp LEDLED

Specifications, Consumer information, Reporting safety defects
48
Light BulbWattage (W) Bulb type
InteriorMap lamp
Bulb type 10 WEDGE
LED type LED LED
Vanity mirror lamps5FESTOON
Room lampBulb type10FESTOON
LED typeLEDLED
Tailgate lampBulb type10FESTOON
LED typeLEDLED
(Continued)

85
Specifications, Consumer information, Reporting safety defects
TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
*4: Only for Hybrid Electric Vehicle (HEV)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly.
✽ ✽ NOTICE
• It is permissible to add 3psi to the standard tire pressure specification if colder temperatures are expected soon.
Tires typically loose 1psi for every 12°F temperature drop. If extreme temperature variations are expected, re-
check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5psi/km
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [bar(psi, kPa)]Wheel lug nut torque
[Kgf·m
(lbf·ft, N·m)]
Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire205/60 R16 6.5J X 1692630H2102.5 (36, 250)2.5 (36, 250)11~13
(79 ~ 94,
107 ~ 127)225/45 R18 *47.5J X 1891615V2402.5 (36, 250)2.5 (36, 250)
Compact
Spare tireT125/80 D16 *44T X 1697730M1304.2 (60, 420)4.2 (60, 420)

Specifications, Consumer information, Reporting safety defects
68

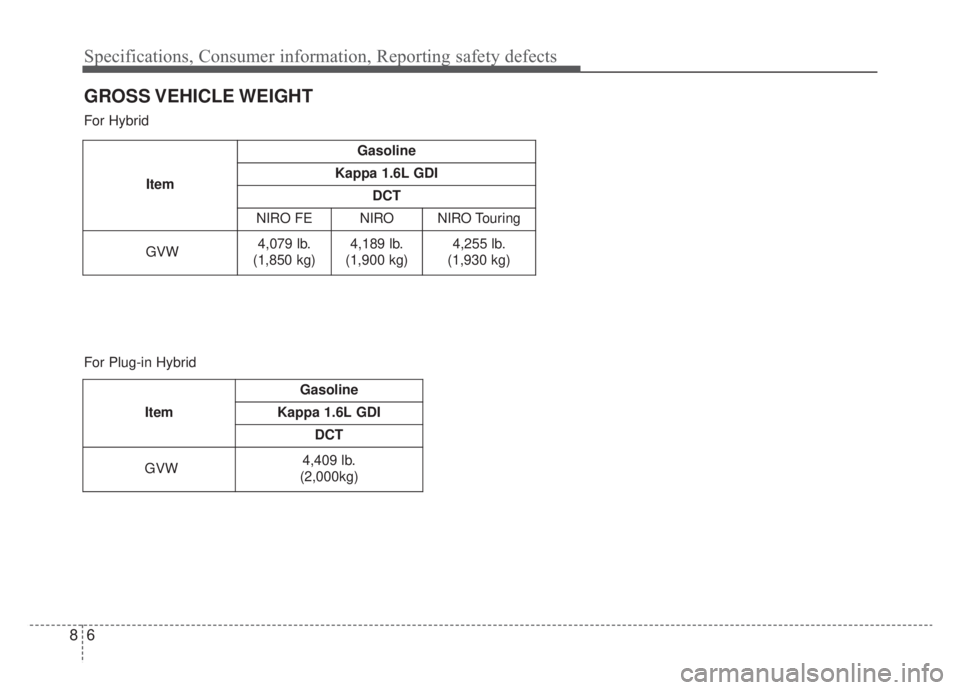

GROSS VEHICLE WEIGHT
Item
Gasoline
Kappa 1.6L GDI
DCT
NIRO FENIRONIRO Touring
GVW4,079 lb.
(1,850 kg)4,189 lb.
(1,900 kg)4,255 lb.
(1,930 kg)
For Hybrid
For Plug-in Hybrid
Item
Gasoline
Kappa 1.6L GDI
DCT
GVW4,409 lb.
(2,000kg)

87
Specifications, Consumer information, Reporting safety defects

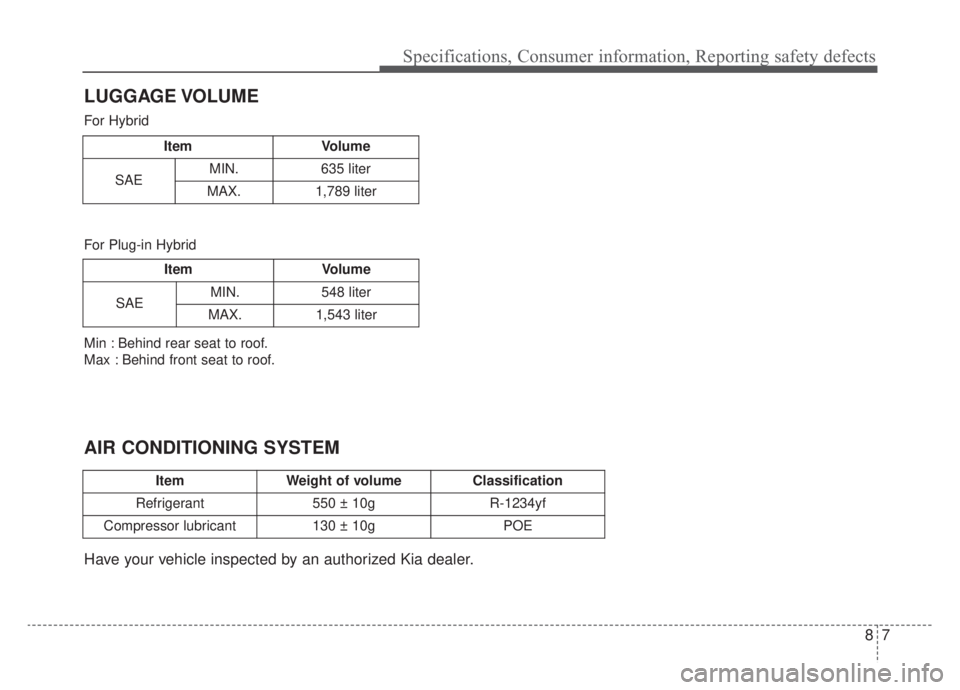

LUGGAGE VOLUME
Have your vehicle inspected by an authorized Kia dealer.
ItemWeight of volumeClassification
Refrigerant550 ± 10gR-1234yf
Compressor lubricant130 ± 10gPOE
AIR CONDITIONING SYSTEM
Min : Behind rear seat to roof.
Max : Behind front seat to roof.
ItemVolume
SAEMIN.635 liter
MAX.1,789 liter
ItemVolume
SAEMIN.548 liter
MAX.1,543 liter
For Plug-in Hybrid For Hybrid
