Maintenance
70 7

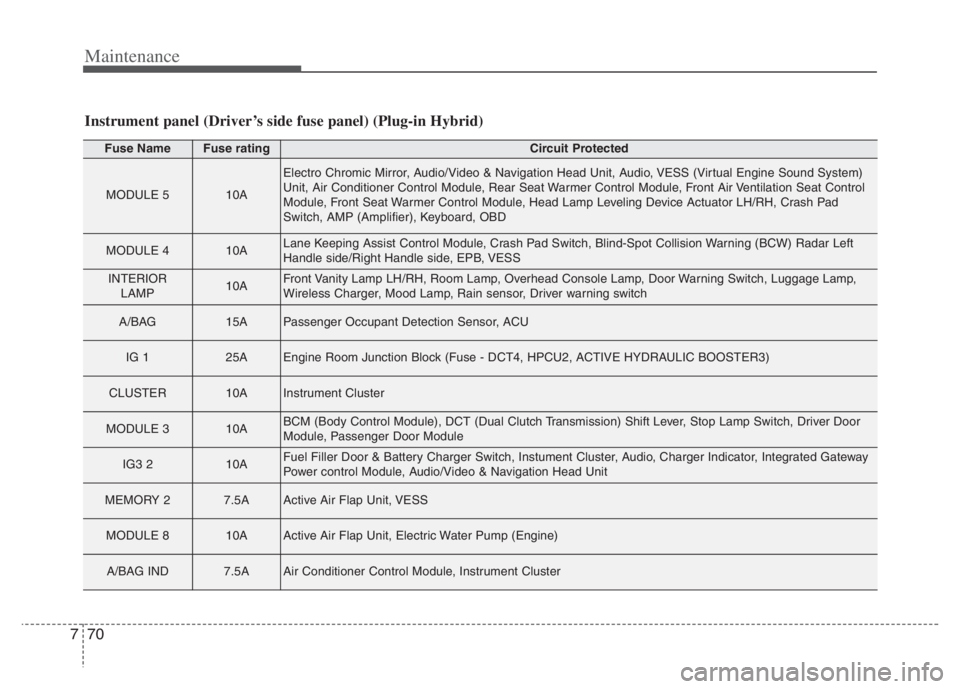

Instrument panel (Driver’s side fuse panel) (Plug-in Hybrid)
Fuse NameFuse ratingCircuit Protected
MODULE 510A
Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Audio, VESS (Virtual Engine Sound System)
Unit, Air Conditioner Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control
Module, Front Seat Warmer Control Module, Head Lamp Leveling Device Actuator LH/RH, Crash Pad
Switch, AMP (Amplifier), Keyboard, OBD
MODULE 410ALane Keeping Assist Control Module, Crash Pad Switch, Blind-Spot Collision Warning (BCW) Radar Left
Handle side/Right Handle side, EPB, VESS
INTERIOR
LAMP10AFront Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Door Warning Switch, Luggage Lamp,
Wireless Charger, Mood Lamp, Rain sensor, Driver warning switch
A/BAG15APassenger Occupant Detection Sensor, ACU
IG 125AEngine Room Junction Block (Fuse - DCT4, HPCU2, ACTIVE HYDRAULIC BOOSTER3)
CLUSTER10AInstrument Cluster
MODULE 310ABCM (Body Control Module), DCT (Dual Clutch Transmission) Shift Lever, Stop Lamp Switch, Driver Door
Module, Passenger Door Module
IG3 210AFuel Filler Door & Battery Charger Switch, Instument Cluster, Audio, Charger Indicator, Integrated Gateway
Power control Module, Audio/Video & Navigation Head Unit
MEMORY 27.5AActive Air Flap Unit, VESS
MODULE 810AActive Air Flap Unit, Electric Water Pump (Engine)
A/BAG IND7.5AAir Conditioner Control Module, Instrument Cluster

771
Maintenance

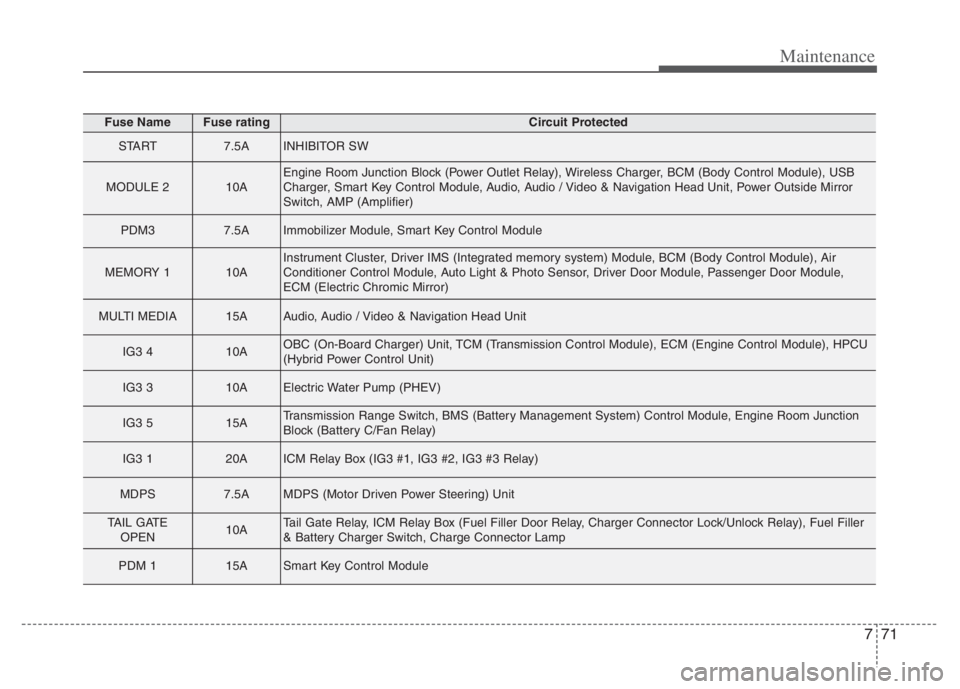

Fuse NameFuse ratingCircuit Protected
START7.5AINHIBITOR SW
MODULE 210AEngine Room Junction Block (Power Outlet Relay), Wireless Charger, BCM (Body Control Module), USB
Charger, Smart Key Control Module, Audio, Audio / Video & Navigation Head Unit, Power Outside Mirror
Switch, AMP (Amplifier)
PDM37.5AImmobilizer Module, Smart Key Control Module
MEMORY 110AInstrument Cluster, Driver IMS (Integrated memory system) Module, BCM (Body Control Module), Air
Conditioner Control Module, Auto Light & Photo Sensor, Driver Door Module, Passenger Door Module,
ECM (Electric Chromic Mirror)
MULTI MEDIA15AAudio, Audio / Video & Navigation Head Unit
IG3 410AOBC (On-Board Charger) Unit, TCM (Transmission Control Module), ECM (Engine Control Module), HPCU
(Hybrid Power Control Unit)
IG3 310AElectric Water Pump (PHEV)
IG3 515ATransmission Range Switch, BMS (Battery Management System) Control Module, Engine Room Junction
Block (Battery C/Fan Relay)
IG3 120AICM Relay Box (IG3 #1, IG3 #2, IG3 #3 Relay)
MDPS7.5AMDPS (Motor Driven Power Steering) Unit
TAIL GATE
OPEN10ATail Gate Relay, ICM Relay Box (Fuel Filler Door Relay, Charger Connector Lock/Unlock Relay), Fuel Filler
& Battery Charger Switch, Charge Connector Lamp
PDM 115ASmart Key Control Module

Index
8I
Tail lamp (inside) (Bulb type) bulb replacement . . . 7-95
Vanity mirror lamp (Bulb type) bulb replacement . 7-101
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-125
Check headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-125
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
Headlight escort function . . . . . . . . . . . . . . . . . . . . 4-125
High Beam Assist (HBA) . . . . . . . . . . . . . . . . . . . . 4-128
High beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-127
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Turn signals and lane change signals . . . . . . . . . . . 4-130
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Owner maintenance precautions . . . . . . . . . . . . . . . . 7-6
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-53
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . 4-63
Navigation-based Smart Cruise Control (NSCC). . . . 5-141
Function operation . . . . . . . . . . . . . . . . . . . . . . . . . 5-143
Function settings . . . . . . . . . . . . . . . . . . . . . . . . . . 5-142Highway Auto Curve Slowdown . . . . . . . . . . . . . . 5-142
Online factory authorized manuals (U.S. only) . . . . . . 8-17
Electrical troubleshooting manual . . . . . . . . . . . . . . 8-17
Owner's manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
Service manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Owner maintenance schedule . . . . . . . . . . . . . . . . . . 7-7
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-31
Rear Cross-Traffic Collision Warning (RCCW). . . . . 5-164
Function description . . . . . . . . . . . . . . . . . . . . . . . . 5-164
Function setting and activation . . . . . . . . . . . . . . . 5-164
Warning message and function control . . . . . . . . . 5-166
Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . 4-121
Recommended lubricants and capacities . . . . . . . . . . . . 8-8
Recommended SAE viscosity number. . . . . . . . . . . . 8-9
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Regenerative braking system . . . . . . . . . . . . . . . . . . . . 5-28
Regenerative Braking (Paddle Shifter) . . . . . . . . . . 5-28
M
P
O
R
N
