pairing phone KIA NIRO PHEV 2023 Navigation System Quick Reference Guide

2-4

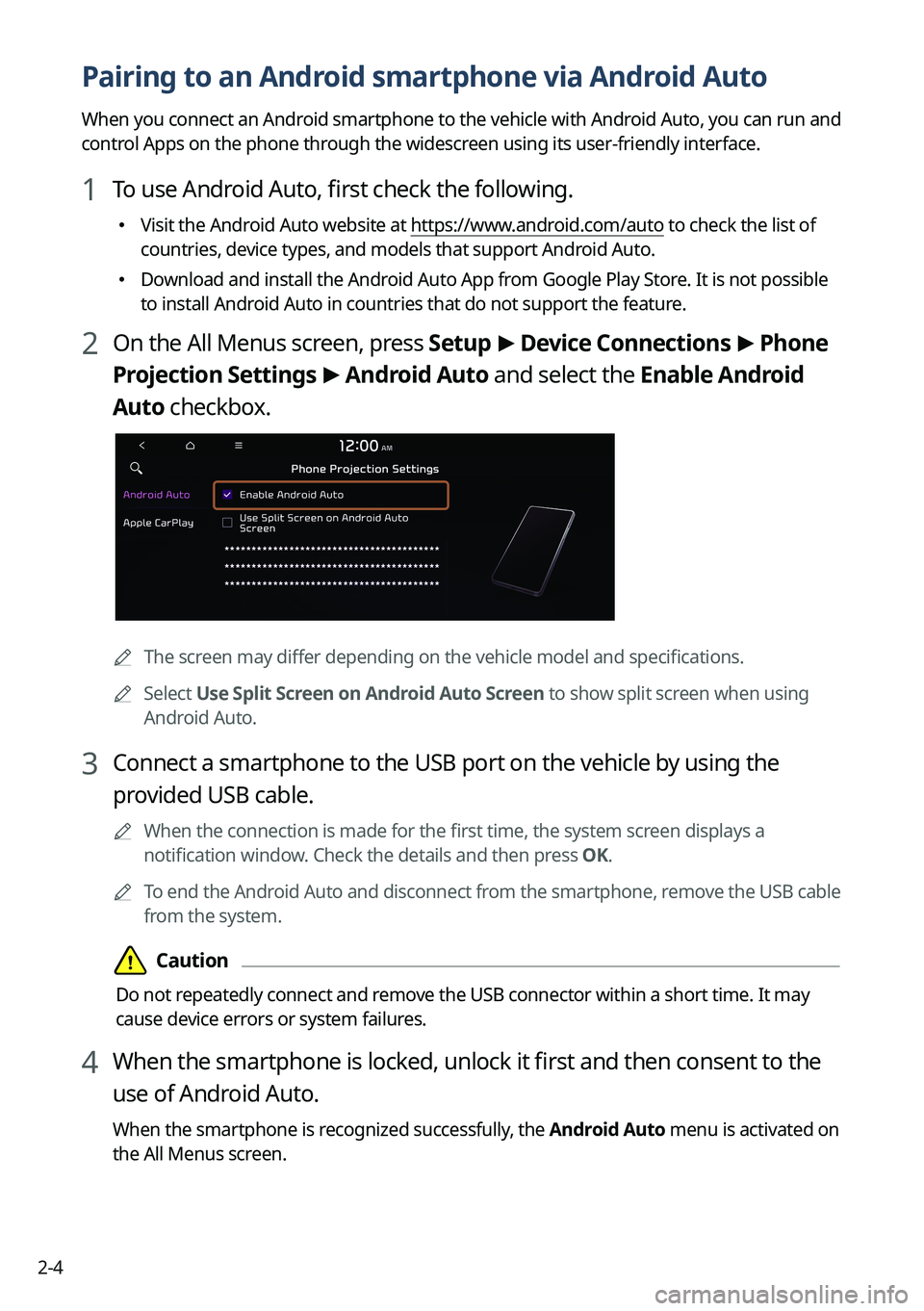

Pairing to an Android smartphone via Android Auto
When you connect an Android smartphone to the vehicle with Android Auto, you can run and
control Apps on the phone through the widescreen using its user-friendly interface.
1 To use Android Auto, first check the following.
Visit the Android Auto website at https://www.android.com/auto to check the list of
countries, device types, and models that support Android Auto.
Download and install the Android Auto App from Google Play Store. It is not possible
to install Android Auto in countries that do not support the feature.
2 On the All Menus screen, press Setup
>
Device Connections >
Phone
Projection Settings >
Android Auto and select the Enable Android
Auto checkbox.
A The screen may differ depending on the vehicle model and specifications.

A
Select Use Split Screen on Android Auto Screen to show split screen when using
Android Auto.
3 Connect a smartphone to the USB port on the vehicle by using the
provided USB cable.

A
When the connection is made for the first time, the system screen displays a
notification window. Check the details and then press OK.

A
To end the Android Auto and disconnect from the smartphone, remove the USB cable
from the system.

2-6
Pairing to an iPhone via Apple CarPlay
After you connect an iPhone to the vehicle with Apple CarPlay, you can run and control Apps
on the phone through the system screen.
1 To use Apple CarPlay, first check the following:
For iPhone models that support Apple CarPlay, visit the Apple website at
https://www.
apple.com/ios/carplay .
Make sure Apple CarPlay and Siri are enabled in your iPhone settings. If you do not
see options for Apple CarPlay or Siri, update to the latest iOS version.\
2 On the All Menus screen, press Setup
>
Device Connections >
Phone
Projection Settings >
Apple CarPlay and select the Enable Apple
CarPlay checkbox.
A The screen may differ depending on the vehicle model and specifications.

A
Select Use Split Screen on Apple CarPlay Screen to show split screen when using
Apple CarPlay.
3 Connect an iPhone to the USB port on the vehicle by using the provided
USB cable.

A
When the connection is made for the first time, the system screen displays a
notification window. Check the details and then press OK.

A
To end the Apple CarPlay and disconnect from the iPhone, remove the USB cable
from the system.
