stop start KIA NIRO PLUG-IN HYBRID 2018 Owners Manual

873
Maintenance
Fuse NameFuse ratingCircuit Protected
P/WINDOW RH25APower Window (RH) Relay, Passenger Safety Power Window Module
P/WINDOW LH25APower Window (LH) Relay, Driver Safety Power Window Module
PDM 27.5A[Without Smart Key] Immobilizer Module
[With Smart Key] Smart Key Control Module, Start/Stop Button Switch
BRAKE SWITCH7.5AStop Lamp Switch, Smart Key Control Module
A/CON7.5AAir Conditioner Control Module, Electronic Air Conditioner Compressor, Ionizer, Engine Room Junction
Block (Blower Relay, PTC Heater1 Relay, PTC Heater2 Relay)
WASHER15AMultifunction Switch
S/HEATER (FRT)25AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
BATTERY
MANAGEMENT10ABMS (Battery Management System) Control Module
P/SEAT (DRV)30A[Without IMS] Driver Seat Manual Switch
[With IMS] Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module
AMP30AAMP (Amplifier)
AMS10ANot Used
MODULE 110AData Link Connector, AEB Module, Hazard Switch, Driver/Passenger Door Module, Driver/Passenger Smart
Key Outside Handle, Key Interlock, Natural Vacuum Leak Detection

877
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 77.5AFront Seat Warmer Control Module, AC Inverter (220V), Front Air Ventilation Seat Control Module, Rear
Seat Warmer Module, AC Inverter Module
WIPER (REAR)15AEngine Room Junction Block (Wiper RR Relay), Rear Wiper Motor
HEATED
STEERING15ABCM (Body Control Module)
SUNROOF20ASunroof Motor
P/WINDOW RH25APower Window (RH) Relay, Power Window Main Switch, Passenger Power Window Switch, Rear Power
Window Switch RH, Passenger Safety Power Window Module
P/WINDOW LH25APower Window (LH) Relay, Power Window Main Switch, Rear Power Window Switch LH, Driver Safety
Power Window Module
PDM 27.5AImmobilizer Module, Smart Key Control Module, Start/Stop Button Switch
BRAKE SWITCH7.5AStop Lamp Switch, Smart Key Control Module
OBC10AOBC (On-Board Charger) Unit
A/CON7.5AAir Conditioner Control Module, Electronic Air Conditioner Compressor, Ionizer, Engine Room Junction
Block (Blower Relay, PTC Heater1 Relay, PTC Heater2 Relay)
WASHER15AMultifunction Switch
S/HEATER (FRT)25AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module

891
Maintenance
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the engine
start/stop button is in OFF posi-
tion and turn off the lights to
avoid sudden movement of the
vehicle and burning your fingers
or receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

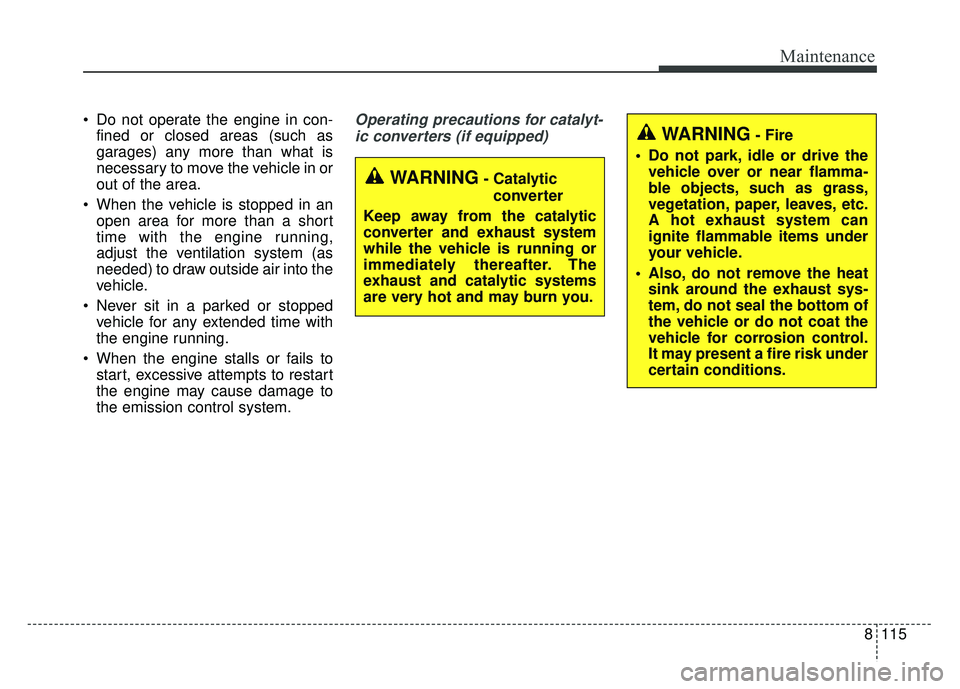

8115
Maintenance
Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

I3
Index
Back-up lamp bulb replacement . . . . . . . . . . . . . . . . . 8-100
Battery (Plug-in hybrid) . . . . . . . . . . . . . . . . . . . . . . . . 8-45For best battery service . . . . . . . . . . . . . . . . . . . . . . 8-45
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 8-46
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
Battery replacement (for smart key) . . . . . . . . . . . . . . . 4-15
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Before Jump starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Blind Spot Detection System(BSD) . . . . . . . . . . . . . . . 6-66 BSD (Blind Spot Detection) /LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 6-67
RCTA (Rear cross traffic alert . . . . . . . . . . . . . . . . . 6-70
Limitations condition . . . . . . . . . . . . . . . . . . . . . . . . 6-72
Bonnet see the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33\
Checking the brake fluid level . . . . . . . . . . . . . . . . . 8-33
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23 Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . 6-27
Electronic stability control (ESC) . . . . . . . . . . . . . . 6-29
Vehicle stability management (VSM) . . . . . . . . . . . 6-32
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . 6-34
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-91
Bulb replacement precaution . . . . . . . . . . . . . . . . . . . . 8-91 Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Button start/stop, see engine start/stop button . . . . . . . . 6-9
California Perchlorate notice . . . . . . . . . . . . . . . . . . . 8-116
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7
Care
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-66
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-105
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-110
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-48\
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-22
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-101
Chains - Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . . . 8-25
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 8-49
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31 "Securing a child restraint withthe LATCH anchors system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37\
"Securing a child restraint seatwith" "Tether Anchor" "system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
"Securing a child restraint with alap/shoulder belt" . 3-39
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-23
B
C

I5
Index
"Driver's 3-point systemwith emergency locking retractor" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22\
Driver's and passenger's front air bag . . . . . . . . . . . . . . 3-57
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Driving in the rain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Dual clutch transmission . . . . . . . . . . . . . . . . . . . . . . . 6-14 Manual mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
Shift-lock override . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Dual clutch transmission shift indicator . . . . . . . . . . . . 4-63
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 6-87
"Electric chromatic mirror (ECM) with UVO service" . 4-50
Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
Electrical equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-15
Electrochromic mirror (ECM) . . . . . . . . . . . . . . . . . . . 4-49
Electronic stability control (ESC) . . . . . . . . . . . . . . . . 6-29
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5 Before Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
"Method to disconnect the (-) cable for regular maintenance" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . . 7-3 Emission control system . . . . . . . . . . . . . . . . . . . . . . . 8-113
Crankcase emission control system . . . . . . . . . . . . 8-113
Evaporative emission control (including ORVR:Onboard Refueling Vapor Recovery) system. . . . 8-113
Exhaust emission control system . . . . . . . . . . . . . . 8-114
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 9-2
Engine clutch actuator fluid . . . . . . . . . . . . . . . . . . . . . 8-34 Checking the Engine clutch actuator fluid level . . . 8-34
Engine compartment. . . . . . . . . . . . . . . . . . . . . . . . . 2-6,8-3
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
26 Checking the engine oil level . . . . . . . . . . . . . . . . . . 8-26
Changing the engine oil and filter . . . . . . . . . . . . . . 8-27
Engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 6-9 Starting the hybrid system . . . . . . . . . . . . . . . . . . . . 6-11
Illuminated engine start/stop button. . . . . . . . . . . . . . 6-9
Engine start/stop button position . . . . . . . . . . . . . . . . 6-9
Engine start/stop button illumination . . . . . . . . . . . . . . . 6-9
Engine start/stop button position . . . . . . . . . . . . . . . . . . 6-9
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system . . . . . . . . . . . . 8-113
Exhaust emission control system . . . . . . . . . . . . . . . . 8-114
Explanation of scheduled maintenance items . . . . . . . 8-22 Engine oil and filter . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
HSG (Hybrid starter & Generator) belt . . . . . . . . . . 8-22
Fuel filter (for Gasoline) . . . . . . . . . . . . . . . . . . . . . 8-22
E

I7
Index
Fuel filler lid (Plug-in Hybrid) . . . . . . . . . . . . . . . . . . . 4-35Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-35
Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-36
Fuel gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
59
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-63 Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 8-64
Engine compartment fuse replacement . . . . . . . . . . 8-66
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 8-69
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-57
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
9
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . . 6-89
Headlamp (HID type) bulb replacement . . . . . . . . . . . 8-94
Headlamp (High/Low beam) bulb replacement . . . . . . 8-95
Headlamp (LED type) replacement . . . . . . . . . . . . . . . 8-95
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-116
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Headrest (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Headrest (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-46 High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-118
High mounted stop lamp bulb replacement . . . . . . . . 8-100
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . . 6-34
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-32
Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Hood open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-47
"Hybrid Battery SOC (State of Charge) Gauge" . . . . . 4-59
Hybrid System Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
If an accident occurs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33
Ignition switch illumination . . . . . . . . . . . . . . . . . . . . . . 6-6
Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Important safety precautions . . . . . . . . . . . . . . . . . . . . . 3-2
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53 Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Instrument cluster control . . . . . . . . . . . . . . . . . . . . 4-56
LCD window control . . . . . . . . . . . . . . . . . . . . . . . . 4-56
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
57
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
H
I
G

Index
12I

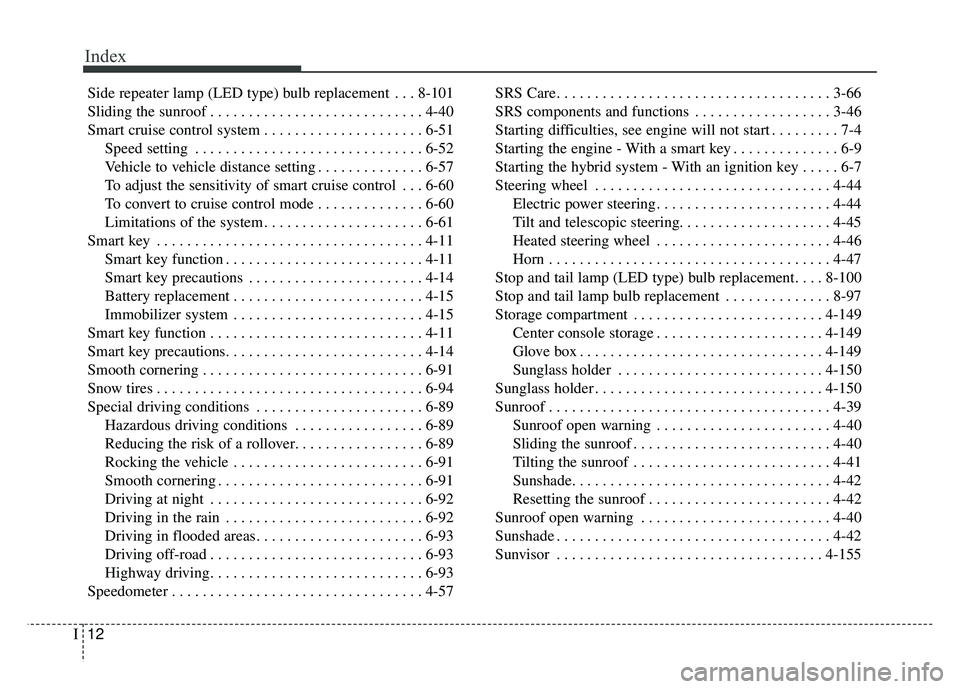

Side repeater lamp (LED type) bulb replacement . . . 8-101
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Smart cruise control system . . . . . . . . . . . . . . . . . . . . . 6-51Speed setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
Vehicle to vehicle distance setting . . . . . . . . . . . . . . 6-57
To adjust the sensitivity of smart cruise control . . . 6-60
To convert to cruise control mode . . . . . . . . . . . . . . 6-60
Limitations of the system . . . . . . . . . . . . . . . . . . . . . 6-61
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
11 Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . 4-14
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key precautions. . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-91
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-\
94
Special driving conditions . . . . . . . . . . . . . . . . . . . . . . 6-89 Hazardous driving conditions . . . . . . . . . . . . . . . . . 6-89
Reducing the risk of a rollover. . . . . . . . . . . . . . . . . 6-89
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 6-91
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-91
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 6-93
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57 SRS Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-66
SRS components and functions . . . . . . . . . . . . . . . . . . 3-46
Starting difficulties, see engine will not start . . . . . . . . . 7-4
Starting the engine - With a smart key . . . . . . . . . . . . . . 6-9
Starting the hybrid system - With an ignition key . . . . . 6-7
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
Electric power steering. . . . . . . . . . . . . . . . . . . . . . . 4-44
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-45
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-46
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-47
Stop and tail lamp (LED type) bulb replacement. . . . 8-100
Stop and tail lamp bulb replacement . . . . . . . . . . . . . . 8-97
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-149 Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-149
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-39 Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-40
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42\
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-42
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
155
