air filter KIA Opirus 2007 1.G Owner's Manual

7
Maintenance services / 7-2
Maintenance schedule / 7-3
Owner maintenance / 7-7
Engine compartment / 7-10
Engine oil and oil filter / 7-11
Engine cooling system / 7-12
Brakes / 7-14
Power steering / 7-15
Automatic transaxle / 7-16
Lubricants and fluids / 7-18
Air cleaner / 7-19
Climate control air filter / 7-19
Wiper blades / 7-20
Battery / 7-22
Tires and wheels / 7-25
Lubricant specifications / 7-36
Exterior care / 7-38
Interior care / 7-41
Maintenance

73
Maintenance

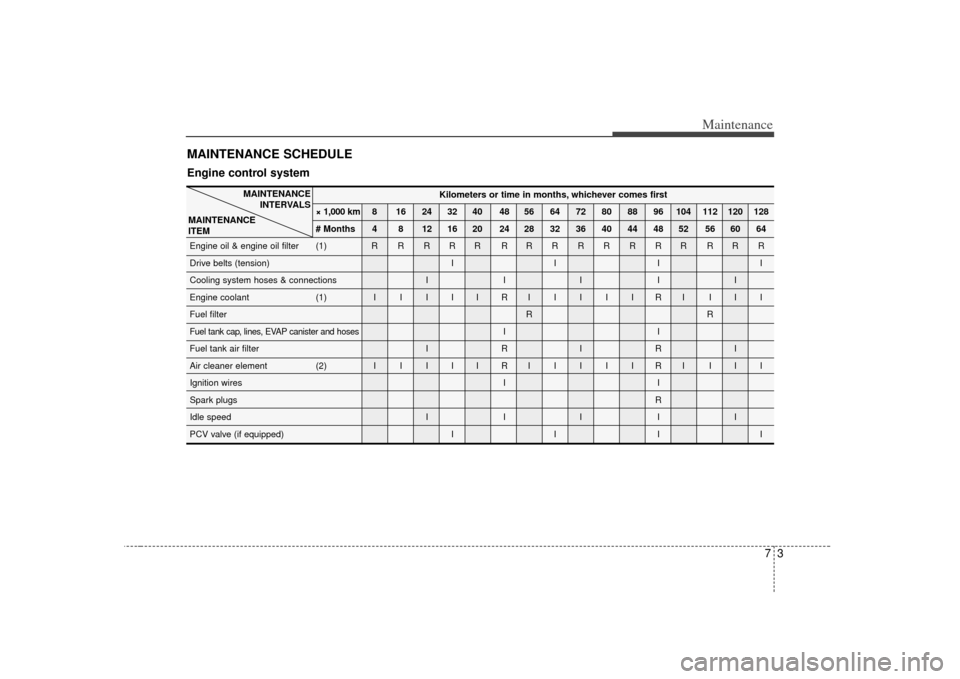

MAINTENANCE SCHEDULE
Kilometers or time in months, whichever comes first
× 1,000 km 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128
# Months 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Engine oil & engine oil filter (1) R R R R R R RRRRRRR RRR
Drive belts (tension) I I I I
Cooling system hoses & connections I I I I I
Engine coolant (1) I I I I I R IIIIIRI III
Fuel filter RR
Fuel tank cap, lines, EVAP canister and hoses
II
Fuel tank air filter I R I R I
Air cleaner element (2) I I I I I R IIIIIRI III
Ignition wires I I
Spark plugs R
Idle speed I I I I I
PCV valve (if equipped) I I I I
MAINTENANCE INTERVALS
MAINTENANCE
ITEM
Engine control system

719
Maintenance
AIR CLEANER Element replacement Have the air cleaner element checked
and replaced in accordance with the
maintenance schedule.The climate control air filter located
between the evaporator core and blower
filters the air coming into the vehicle.
If dust or other pollutants accumulate in
the filter for a period of time, the air flow
from the air vents may be decreased and
the dust intake may increase. Therefore
the air filter should be replaced at the
intervals shown in the maintenance
schedule. If the vehicle is operated in
dusty or sandy areas, replace the filter
more often than the recommended inter-
vals.
OGH056001
CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
OGH056911N
Evaporator core
Blower
Outside air
Recirculated air
Climate control air filter
Inside
vehicle
CAUTION
Do not drive with the air cleaner
removed; this will result in exces-sive engine wear.
Driving without an air cleaner encourages backfiring, whichcould cause a fire in the enginecompartment.
When removing the air cleaner element, be careful that dust ordirt does not enter the air intake,or damage may result.
