key KIA Optima 2008 2.G User Guide

311
Knowing your vehicle
✽ ✽
NOTICEAlways remove the ignition key, engage
the parking brake, close all windows
and lock all doors when leaving your
vehicle unattended. ✽ ✽
NOTICEIf the door is locked/unlocked multiple
times in rapid succession with either the
vehicle key or door lock switch, the sys-
tem may stop operating temporarily in
order to protect the circuit and prevent
damage to system components.
Operating door locks from inside
the vehicleWith the door lock button To unlock a door, push the door lock
button forward to the “Unlock” position
(red mark on button visible).
To lock a door, push the door lock but-
ton (1) forward to the “Lock” position. If
the door is locked properly, the red
mark (2) on the door lock button will
not be visible.
To open a door, pull the door handle
(3) outward.
If the inner door handle of front door is
pulled when the door lock button is in
lock position, the button is unlocked
and door opens. (if equipped) Front doors cannot be locked if the
ignition key is in the ignition switch and
door is open.
WARNING
- Door lock mal-
function
If a power door lock ever fails to
function while you are in the vehi-
cle, try one or more of the following
techniques to exit:
• Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.
Operate the other door locks and
handles, front and rear.
Lower a front window and use the
key to unlock the door from out-
side.
Lower the rear seats (if
equipped), move to the cargo
area and open the trunk using the
emergency release handle (if
equipped).
OMG035007
Lock
Unlock

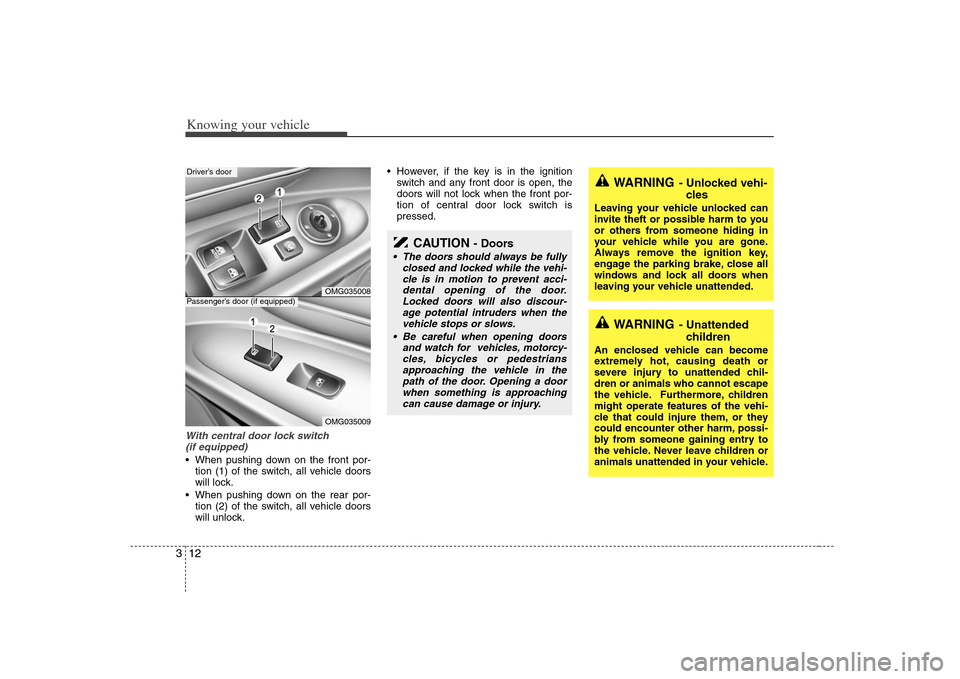

Knowing your vehicle12 3With central door lock switch
(if equipped) When pushing down on the front por-
tion (1) of the switch, all vehicle doors
will lock.
When pushing down on the rear por-
tion (2) of the switch, all vehicle doors
will unlock. However, if the key is in the ignition
switch and any front door is open, the
doors will not lock when the front por-
tion of central door lock switch is
pressed.
CAUTION
- Doors
The doors should always be fully
closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows.
Be careful when opening doors
and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.
WARNING
- Unlocked vehi-
cles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING
- Unattended
children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
OMG035008OMG035009
Driver’s doorPassenger’s door (if equipped)

Knowing your vehicle14 3

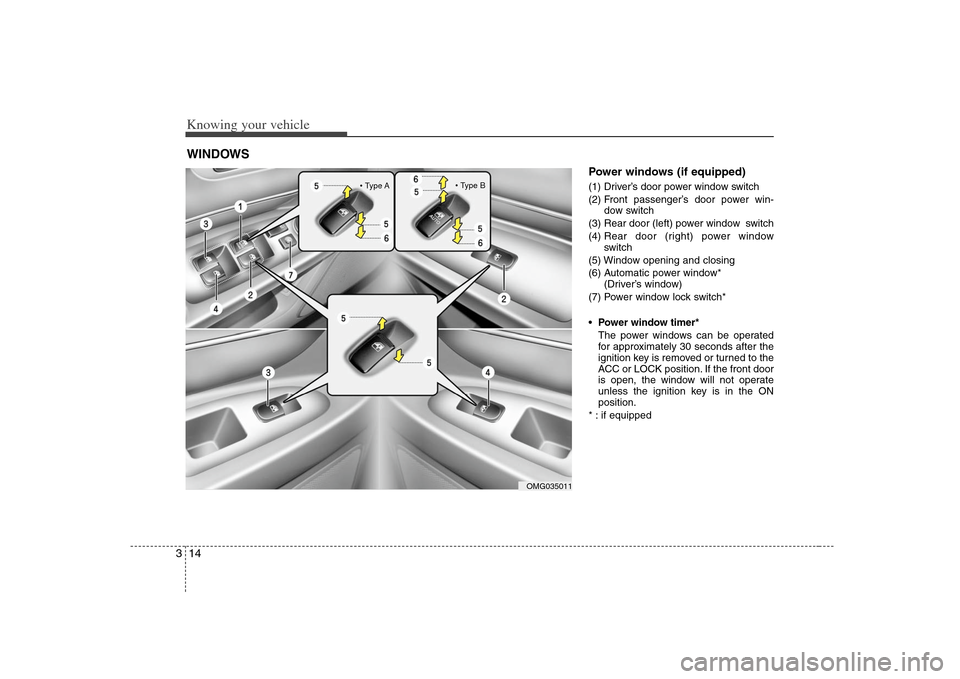

Power windows (if equipped)(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window*
(Driver’s window)
(7) Power window lock switch*
Power window timer*
The power windows can be operated
for approximately 30 seconds after the
ignition key is removed or turned to the
ACC or LOCK position. If the front door
is open, the window will not operate
unless the ignition key is in the ON
position.
* : if equipped
WINDOWS
OMG035011 • Type A• Type B

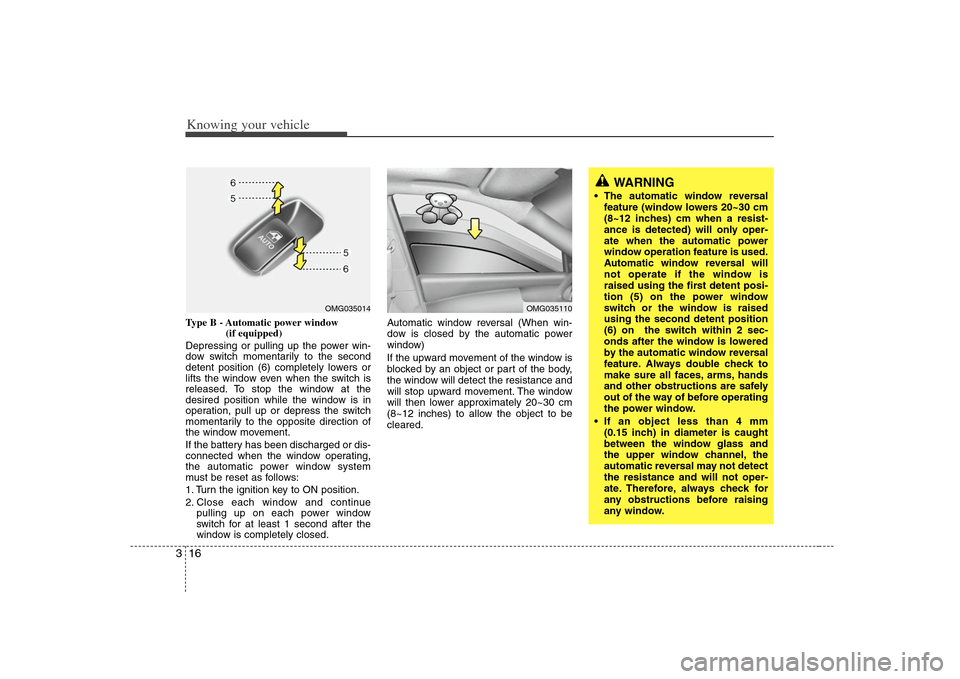

Knowing your vehicle16 3Type B - Automatic power window
(if equipped)
Depressing or pulling up the power win-
dow switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or depress the switch
momentarily to the opposite direction of
the window movement.
If the battery has been discharged or dis-
connected when the window operating,
the automatic power window system
must be reset as follows:
1. Turn the ignition key to ON position.
2. Close each window and continue
pulling up on each power window
switch for at least 1 second after the
window is completely closed.Automatic window reversal (When win-
dow is closed by the automatic power
window)
If the upward movement of the window is
blocked by an object or part of the body,
the window will detect the resistance and
will stop upward movement. The window
will then lower approximately 20~30 cm
(8~12 inches) to allow the object to be
cleared.
OMG035014
OMG035110
WARNING
The automatic window reversal
feature (window lowers 20~30 cm
(8~12 inches) cm when a resist-
ance is detected) will only oper-
ate when the automatic power
window operation feature is used.
Automatic window reversal will
not operate if the window is
raised using the first detent posi-
tion (5) on the power window
switch or the window is raised
using the second detent position
(6) on the switch within 2 sec-
onds after the window is lowered
by the automatic window reversal
feature. Always double check to
make sure all faces, arms, hands
and other obstructions are safely
out of the way of before operating
the power window.
If an object less than 4 mm
(0.15 inch) in diameter is caught
between the window glass and
the upper window channel, the
automatic reversal may not detect
the resistance and will not oper-
ate. Therefore, always check for
any obstructions before raising
any window.

325
Knowing your vehicle
1. Slide the front seat forward, and move
the seatback to the forward position.
2. Lower the headrest to the lowest posi-
tion.
3. To retract the rear center seatbelt,
insert the key or similar small rigid
device into the web release button (B)
on the anchor connector. Pull up on
the seat belt web (A) and allow the
webbing to retract automatically. (if
equipped)4. Open the trunk lid.
5. Pull the lock release lever (1).
6. Fold the seatback forward and down
firmly.
OMG035045
OMG035029
OMG035030OMG035031

329
Knowing your vehicle

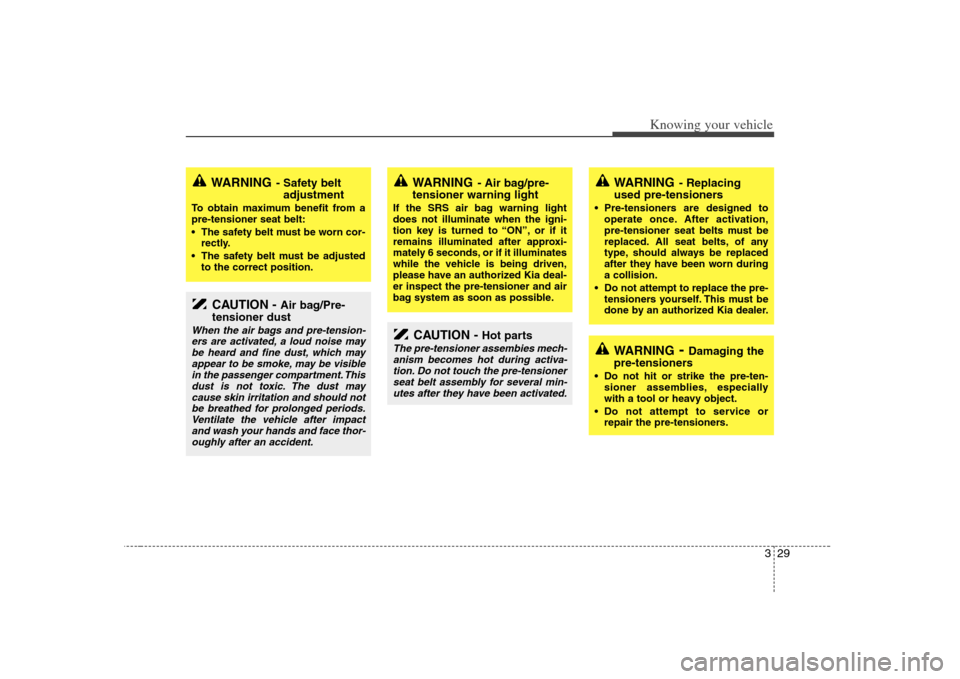

CAUTION -
Air bag/Pre-
tensioner dust
When the air bags and pre-tension-
ers are activated, a loud noise may
be heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment. This
dust is not toxic. The dust may
cause skin irritation and should not
be breathed for prolonged periods.
Ventilate the vehicle after impact
and wash your hands and face thor-
oughly after an accident.
WARNING
- Air bag/pre-
tensioner warning light
If the SRS air bag warning light
does not illuminate when the igni-
tion key is turned to “ON”, or if it
remains illuminated after approxi-
mately 6 seconds, or if it illuminates
while the vehicle is being driven,
please have an authorized Kia deal-
er inspect the pre-tensioner and air
bag system as soon as possible.
WARNING
- Safety belt
adjustment
To obtain maximum benefit from a
pre-tensioner seat belt:
The safety belt must be worn cor-
rectly.
The safety belt must be adjusted
to the correct position.
WARNING
- Replacing
used pre-tensioners
Pre-tensioners are designed to
operate once. After activation,
pre-tensioner seat belts must be
replaced. All seat belts, of any
type, should always be replaced
after they have been worn during
a collision.
Do not attempt to replace the pre-
tensioners yourself. This must be
done by an authorized Kia dealer.
CAUTION -
Hot parts
The pre-tensioner assembies mech-
anism becomes hot during activa-
tion. Do not touch the pre-tensioner
seat belt assembly for several min-
utes after they have been activated.
WARNING
- Damaging the
pre-tensioners
Do not hit or strike the pre-ten-
sioner assemblies, especially
with a tool or heavy object.
Do not attempt to service or
repair the pre-tensioners.

Knowing your vehicle32 3
Safety belt warning light and
chimeAs a reminder to the driver and passen-
ger, safety belt warning light will blink for
approximately 6 seconds each time you
turn the ignition switch ON.
If the driver's lap/shoulder belt is not fas-
tened when the key is turned ON or if it is
disconnected after the key is turn ON,
the safety belt warning light will blink for
approximately 6 seconds.If the driver's lap/shoulder belt is not fas-
tened when the key is turned ON or if it is
disconnected after the key is turned ON,
the safety belt warning chime will sound
for approximately 6 seconds. (if equipped)
If the driver’s lap/shoulder belt is not fas-
tened when you drive over 10 km/h, the
safety belt warning light and chime will
activate for six seconds. This cycle will
repeat 11 times with an interval of 24
seconds between cycles.
WARNING
- Safety belt
care
A damaged belt may not give you
the protection you need in an
accident.
Inspect your safety belts periodi-
cally for excessive wear or dam-
age. Pull out each belt fully and
look for fraying, cuts, burns or
other damage. Pull the safety belt
out and let it retract a number of
times. Make sure that the
lap/shoulder belts return smooth-
ly and easily into the retractor.
Check the latches to make sure
they latch and release without
interference or delay.
Never close the doors on any part
of the lap or shoulder belt.
Any belt not in good condition or
in good working order should be
promptly replaced.
CAUTION
Never close the doors on any part
of the lap or shoulder belt. It can
damage the safety belt or buckle
which could increase the risk of
injury in case of an accident.
1GQA2083

Knowing your vehicle38 3To unfasten the rear center belt 1. Press the release button on the buckle
(D) and remove the tongue plate (C)
from the buckle (D).2. To retract the rear center seatbelt,
insert the key or similar small rigid
device into the web release button (B)
on the anchor connector. Pull up on
the seat belt web (A) and allow the
webbing to retract automatically. (if
equipped)
Proper use and care of the safety
belt system To ensure that the safety belts provide
the maximum protection, please follow
these instructions:
Use the belts at all times - even on
short trips.
If the safety belt is twisted, straighten it
prior to use.
Keep sharp edges and damaging
objects away from the belts.
Periodically inspect belt webbing,
anchors, buckles and all other parts for
signs of wear and damage. Replace
damaged, excessively worn or ques-
tionable parts immediately.
To clean the belt webbing, use a mild
soap solution recommended for clean-
ing upholstery or carpets. Follow the
instructions provided with the soap.
Do not make modifications or additions
to the safety belt.
After wearing a safety belt, make sure
it fully retracts to the stowed position.
Do not allow the belt to get caught in
the door when you close it.
OMG035044
OMG035045H

Knowing your vehicle50 3
Air bag system components The main components of your SRS are:
To indicate that your vehicle is
equipped with air bags, the correspon-
ding air bag covers are marked with
“SRS AIR BAG”.
- Driver’s air bag
- Front passenger’s air bag
- Side air bag (if equipped)
- Curtain air bag (if equipped)
A diagnostic system that continually
monitors the system operation.
Air bag warning light to warn you of a
possible problem with the system.
Emergency power backup in case your
car’s electrical system is disconnected
in a crash.The SRS uses a collection of sensors to
gather information about the driver’s and
front passenger’s seat position, the dri-
ver’s and front passenger’s safety belt
usage and impact severity.
The driver's and front passenger's seat
position sensors, which are installed on
the seat track let the air bag control mod-
ule know where the seats are positioned.
Similarly, the safety belt usage sensors
measure if the driver and front passen-
ger’s safety belts are fastened. These
sensors provide the ability to control the
SRS deployment based on how close the
driver’s seat is to the steering wheel, how
close the passenger’s seat is to the
instrument panel, whether or not the
safety belts are fastened, and the severi-
ty of the impact.
The advanced SRS offers the ability to
control the air bag inflation with two lev-
els. A first stage level is provided for mod-
erate-severity impacts. A second stage
level is provided for more severe impacts.
According to the impact severity, seating
position and safety belt usage, the SRS
Control Module controls the air bag infla-
tion.
Failure to properly wear safety belts
can increase the risk or severity of
injury in an accident.
(Continued)
Driver’s and front passenger’s air
bag are designed to inflate only in
certain frontal collisions, and side
and curtain air bags are designed
to inflate in certain side impacts.
Frontal air bags are not designed
to provide protection in side
impacts, rear impacts, rollovers,
or less severe frontal collisions.
They will not provide protection
from later impacts in a multi-
impact collision.
If your vehicle has been subject-
ed to flood conditions (e.g.
soaked carpeting/standing water
on the floor of the vehicle, etc.) or
if your vehicle has become flood
damaged in any way, do not
attempt to start the vehicle or put
the key in the ignition. Have the
vehicle towed to an authorized
Kia dealer for inspection and nec-
essary repairs.
Disregarding this precaution may
cause an unexpected air bag
deployment, which could result in
serious personal injury or death.

351
Knowing your vehicle
Additionally, your SRS is equipped with
an occupant classification system in the
front passenger’s seat. The occupant
classification system detects the pres-
ence of a passenger in the front passen-
ger’s seat and will turn off the front pas-
senger’s air bag under certain conditions
in order to protect smaller front passen-
ger seat occupants. For more detail, see
“Occupant Classification System” later in
this section.
Driver’s air bag The driver’s air bag is stored in the cen-
ter of the steering wheel.
WARNING
- Seating sen-
sors malfunction
If the seat position sensor is not
working properly, the air bag warn-
ing light ( ) on the instrument
panel will illuminate because the air
bag warning light is connected with
the seat position sensor. If the air
bag warning light does not illumi-
nate when the ignition key is turned
to the "ON" position, if it remains
illuminated after illuminating for
approximately 6 seconds, or if it
illuminates while the vehicle is
being driven, have an authorized
Kia dealer inspect your vehicle as
soon as possible.
AIR
BAG
WARNING
- Seat usage
Modification to the seat structure
can damage the seat position
sensor and cause the air bag to
deploy at a different level than
should be provided.
Do not place any objects under-
neath the front seats since they
could damage the seat position
sensor or interfere with the occu-
pant classification system.
Do not place any objects that may
cause magnetic fields near the
front seat. These may cause a
malfunction of the seat position
sensor.
Have your car checked by a Kia
dealer as soon as possible if the
SRS warning light comes on.
Ignoring the indicator light can
result in serious or fatal injury.
Sitting improperly or out of posi-
tion can provide incorrect data to
the occupant classification sys-
tem and result in serious or fatal
injury in a crash. All occupants
should sit upright in their seats
with their feet on the floor.
HLZ2120
OMGA035047
