KIA Optima 2008 2.G Owner's Manual
Manufacturer: KIA, Model Year: 2008, Model line: Optima, Model: KIA Optima 2008 2.GPages: 289, PDF Size: 4.78 MB
Page 281 of 289

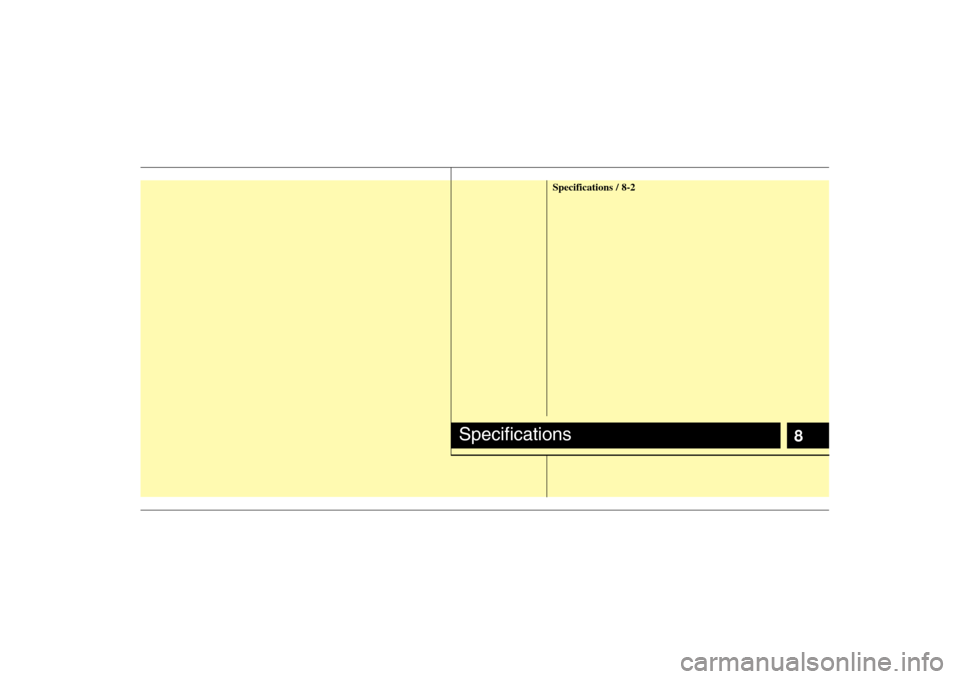

8
Specifications / 8-2
Specifications
Page 282 of 289
Specifications2 8
Item mm (in)
Overall length 4,735 (186.4)
Overall width 1,805 (71.1)
Overall height 1,480 (58.3)
Front tread 1563 (61.5)
Rear tread 1,552 (61.1)
Wheelbase 2,720 (107.1)
SPECIFICATIONSThe specifications given here are for general information only. Although this information was accurate at the time of printing, Kia
reserves the right to change its vehicles or their specifications without notice. Please check with an authorized Kia dealer for more
precise and more up-to-date information.Dimensions
Tires
ItemRecommended Cold Tire
Wheel lug nut torque
Tire WheelInflation Pressure
kPa (psi)kg·m (lb·ft, N·m)
P205/60R16 6.5J×16 210 (30) 9~11 (65~79, 88~107)
P215/50R17 6.5J×17 220 (32) 9~11 (65~79, 88~107)
Compact spare tire
T125/80D16 420 (60) 9~11 (65~79, 88~107)
Page 283 of 289
83
Specifications
Engine
Item 2.4L Engine 2.7L Engine
BoreXStroke 88mm x 97 mm (3. 46 in x 3. 82 in.) 86.7 mm X 75 mm (3.41 in X 2.95 in)
Displacement 2359 cc (143. 90 cu. in) 2656 cc (1621 cu.in)
Compression Ratio 10. 5 : 1 10. 4 : 1
Item 2.4L Engine 2.7L Engine
Battery 12V / 68AH (20HR) 12V / 68AH (20HR)
Generator 13.5V / 110A 13.5V / 130A
Starter 12V-1.2kW 12V-1.2kW
Gap
1.0 mm ~ 1.1 mm (0.039 ~ 0.043 in) 1.0 mm ~ 1.1
mm
(0.039 ~ 0.043 in
)
Iridium coated SK16PR-A11 ILFR5B-11
Spark
Plug
Spec.Electrical system
WeightsRefer to the compliance label describing GVWR & GAWR weights attached to your vehicle.
(see page 5-15, Label information)
Page 284 of 289

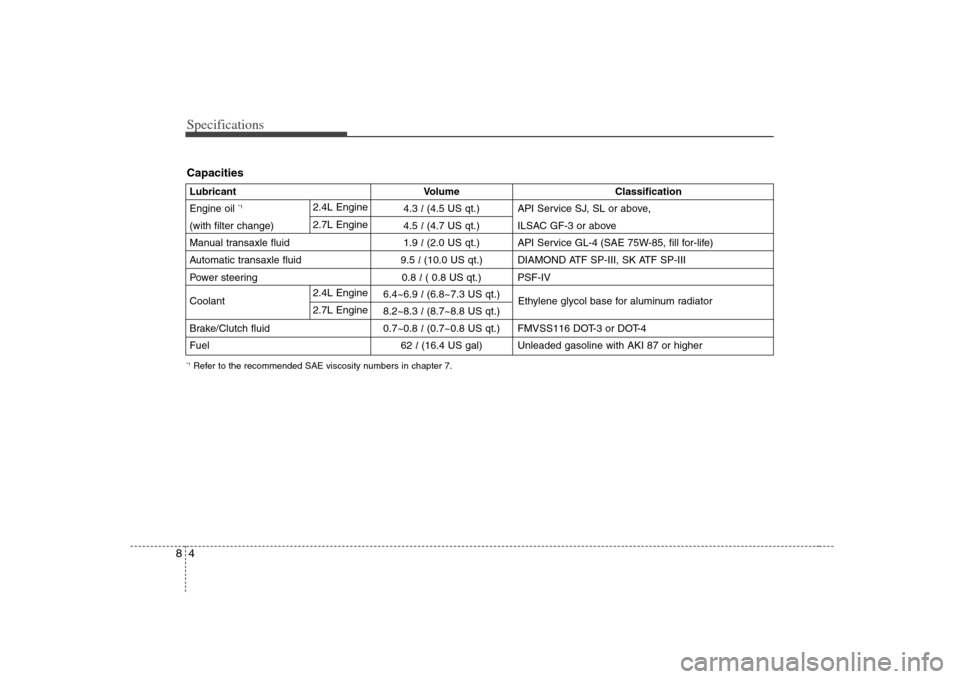

Specifications4 8*1Refer to the recommended SAE viscosity numbers in chapter 7.Lubricant Volume Classification
Engine oil
*1
4.3 l(4.5 US qt.) API Service SJ, SL or above,
(with filter change) 4.5 l(4.7 US qt.) ILSAC GF-3 or above
Manual transaxle fluid 1.9 l(2.0 US qt.) API Service GL-4 (SAE 75W-85, fill for-life)
Automatic transaxle fluid 9.5 l(10.0 US qt.) DIAMOND ATF SP-III, SK ATF SP-III
Power steering 0.8 l( 0.8 US qt.) PSF-IV
Coolant 6.4~6.9 l(6.8~7.3 US qt.)
Ethylene glycol base for aluminum radiator
8.2~8.3 l(8.7~8.8 US qt.)
Brake/Clutch fluid 0.7~0.8 l(0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel 62 l(16.4 US gal) Unleaded gasoline with AKI 87 or higher
2.4L Engine
2.7L Engine2.4L Engine
2.7L Engine
Capacities
Page 285 of 289
85
Specifications
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 21
Position lights 5
Side marker (if equipped) 5
Front fog lights (if equipped) 51
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 18
High mounted stop light (if equipped) 18
License plate lights 5
Front map lamp 10
Center dome lamp 10
Trunk room lamp 5
Door courtesy lamps (if equipped) 5
Foot lamp 5
Vanity mirror lamps 5
Light bulbs* : if equipped
Bulb No.
H7 or H11B*
H1*
Page 286 of 289

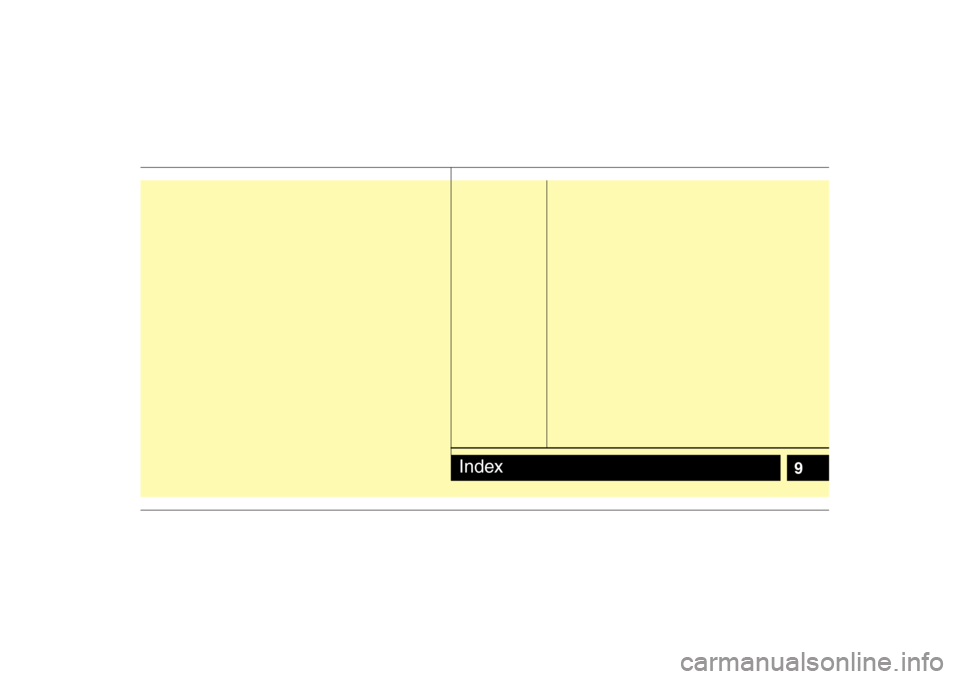

9
Index
Page 287 of 289
Index2 9Air bags-supplemental restraint system ····················3-48
Air cleaner ····································································7-18
Antenna ·········································································3-93
Audio remote control···················································3-94
Audio system ································································3-95
Automatic climate control···········································4-55
Automatic transaxle ·············································4-6, 7-16
Battery···········································································7-21
Before driving·································································5-4
Brake fluid ····································································7-14
Brake system ································································4-10
Climate control air filter ·············································7-19
Compass - Z-Nav™ compass ······································4-36
Cruise control system ··················································4-18
Defroster ·······································································4-46
Door locks ·····································································3-10
Drive belts ·····································································7-15Electrical circuit protection ··········································6-6
Electronic stability control ··········································4-21
Emergency starting························································6-3
Emission control system ················································5-2
Engine compartment ··············································2-4, 7-9
Engine cooling system ·················································7-12
Engine oil ······································································7-11
Exterior care·································································7-36
Fuel filler lid ·································································3-72
Fuel requirements ··························································5-2
Gauges ···········································································4-25
Hazard warning flasher ··············································4-47
Homelink® wireless control system ···························3-79
Hood ··············································································3-71
How to use this manual ·················································1-2ABC
E
D
FGH
Page 288 of 289
93
Index
If you have a flat tire ···················································6-18
Ignition switch ································································4-2
Immobilizer system ························································3-8
Instrument cluster ·······················································4-24
Instrument panel overview ···········································2-3
Interior care··································································7-38
Interior features ···························································3-86
Interior lights ·······························································3-83
Interior overview····························································2-2
Keys ·················································································3-2
Label information ························································5-15
Lighting ·········································································4-40
Lubricant specifications ··············································7-35
Lubricants and fluids ··················································7-17
Luggage net ··································································3-92
Maintenance schedule ···················································7-3
Maintenance services ·····················································7-2
Manual climate control system···································4-48
Manual transaxle ···························································4-4
Mirrors ··········································································3-75Overheating ····································································6-2
Overloading ··································································5-14
Owner maintenance ·······················································7-7
Power steering ······························································7-15
Rear parking assist system··········································4-46
Remote keyless entry ·····················································3-4
Road warning ·································································6-2
Safety belts····································································3-28
Seat ················································································3-18
Special driving conditions ·············································5-6
Specifications ··································································8-2
Starting the engine ·························································4-3
Steering wheel·······························································4-16
Storage compartment ··················································3-84
Suggestions for economical operation··························5-5
Sunroof ··········································································3-90KILM
OSPR
Page 289 of 289

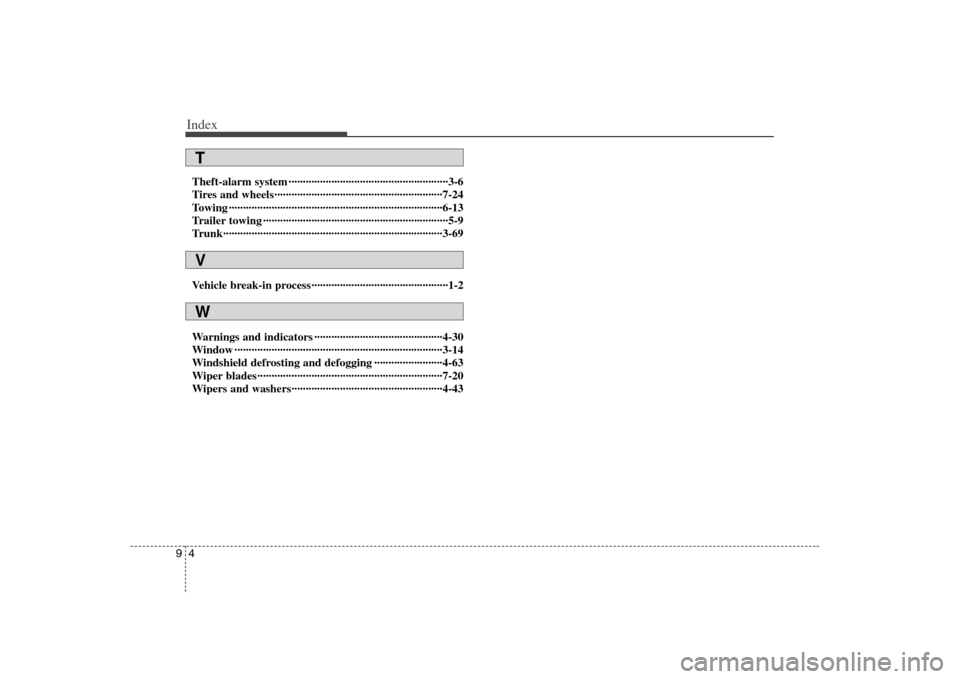

Index4 9Theft-alarm system ························································3-6
Tires and wheels···························································7-24
Towing ···········································································6-13
Trailer towing ·································································5-9
Trunk·············································································3-69
Vehicle break-in process ················································1-2
Warnings and indicators ·············································4-30
Window ·········································································3-14
Windshield defrosting and defogging ························4-63
Wiper blades·································································7-20
Wipers and washers·····················································4-43VWT
