Maintenance
Fuse Fuse ratingProtected component
SAFETY PWR 20A SAFETY WDW
MIRR HTD 10A RR MIRROR HTD
T/LID OPEN 15A F/FILLER ACTR, LATCH_T_LID, ETACS ADJ PEDAL 10A KEY SOL, ATM SOL, ADJ PEDAL SW, ADJ PEDAL MTR, ATM&K/LOCK CTRL UNIT STOP LP 15A STOP LAMP, HIGH MOUNTED STOP LAMPHAZARD 15A TURN LAMP, S/REPEATER LAMP, CLUSTER, ETACS, OBDII
TPMS (if equipped) 10A DR WARN PIC SW, PIC UNIT_A, FOB_HOLDER_EXTN
DR LOCK 25A D/LOCK MOTOR, T/TURN UNLOCK MTR, ETACSTAIL LH 10A FRT FOG RLY COIL, COMBI LP_LH, LICENSE LAMP_LH, POS.LP LH
TAIL RH 10A POS.LP RH, GLOVE BOX LP, COMBI LP_RH, LICENSE LAMP_RH, RR.FOG SW,
P/WINDOW SW, ESP SW, HAZARD SW, A/CON SW, SEAT WARMER SW, A.CON SW,
S_REMOCON_SW, SPORT_MODE_SW
BLOWER MTR 10A BLOWER_MTR SPARE 10A -PDM-1 10A PDM_UNIT_B, SSB
PDM-2 20A PDM_UNIT_A
Maintenance50

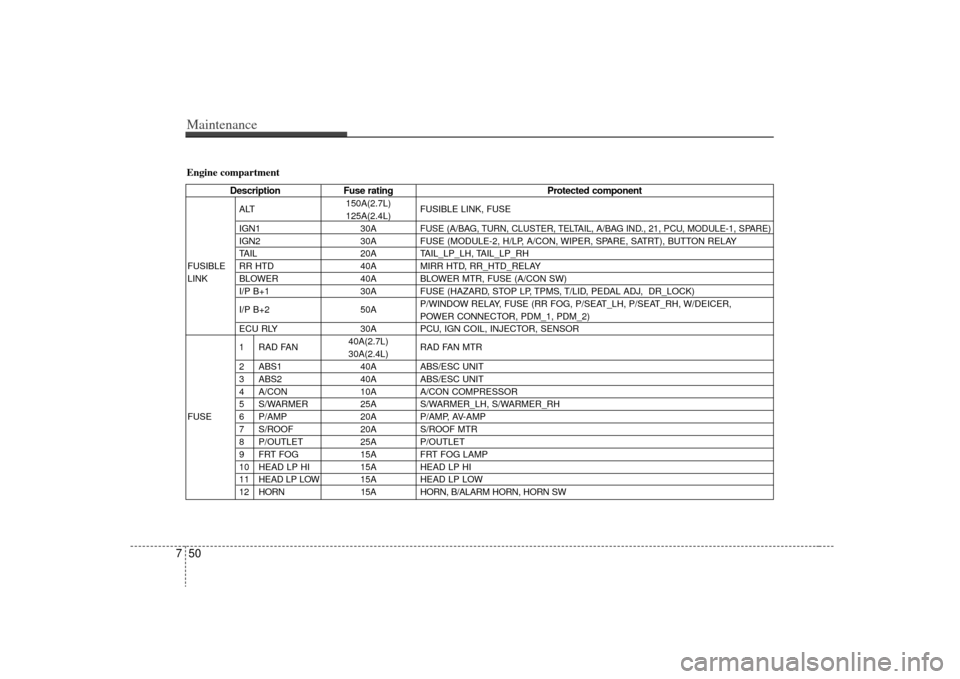

7Engine compartment
Description Fuse rating Protected componentALT150A(2.7L)
FUSIBLE LINK, FUSE
125A(2.4L)
IGN1 30A
FUSE (A/BAG, TURN, CLUSTER, TELTAIL, A/BAG IND., 21, PCU, MODULE-1, SPARE)
IGN2 30A FUSE (MODULE-2, H/LP, A/CON, WIPER, SPARE, SATRT), BUTTON RELAY
TAIL 20A TAIL_LP_LH, TAIL_LP_RH
FUSIBLE RR HTD 40A MIRR HTD, RR_HTD_RELAY
LINK BLOWER 40A BLOWER MTR, FUSE (A/CON SW)
I/P B+1 30A FUSE (HAZARD, STOP LP, TPMS, T/LID, PEDAL ADJ, DR_LOCK)
I/P B+2 50AP/WINDOW RELAY, FUSE (RR FOG, P/SEAT_LH, P/SEAT_RH, W/DEICER,
POWER CONNECTOR, PDM_1, PDM_2)
ECU RLY 30A PCU, IGN COIL, INJECTOR, SENSOR
1 RAD FAN 40A(2.7L)
RAD FAN MTR
30A(2.4L)
2 ABS1 40A ABS/ESC UNIT
3 ABS2 40A ABS/ESC UNIT
4 A/CON 10A A/CON COMPRESSOR
5 S/WARMER 25A S/WARMER_LH, S/WARMER_RH
FUSE 6 P/AMP 20A P/AMP, AV-AMP
7 S/ROOF 20A S/ROOF MTR
8 P/OUTLET 25A P/OUTLET
9 FRT FOG 15A FRT FOG LAMP
10 HEAD LP HI 15A HEAD LP HI
11 HEAD LP LOW 15A HEAD LP LOW
12 HORN 15A HORN, B/ALARM HORN, HORN SW
