air conditioning KIA Optima 2013 3.G Owner's Manual

Index
2I
Active eco ··················\
··················\
··················\
················5-36
Air bags··················\
··················\
··················\
··················\
··3-40Air bag warning label ··················\
··················\
··············3-66
Air bag warning light ··················\
··················\
··············3-43
Curtain air bag ··················\
··················\
··················\
·······3-58
Driver's and passenger's front air bag··········\
················3-52
Occupant detection system ··················\
··················\
······3-46
Side impact air bag ··················\
··················\
··················\
3-56
SRS components and functions ··················\
·················3-43\
Air cleaner ··················\
··················\
··················\
···············7-23
Alarm system ··················\
··················\
··················\
···········4-10
Antenna (Glass) ··················\
··················\
··················\
·····4-120
Anti-lock brake system (ABS) ··················\
··················\
··5-26
Appearance care··················\
··················\
··················\
·······7-56 Exterior care ··················\
··················\
··················\
··········7-56
Interior care ··················\
··················\
··················\
···········7-61
Audio system ··················\
··················\
··················\
·········4-120 Glass antenna ··················\
··················\
··················\
·······4-120
Steering wheel audio control ··················\
··················\
·4-121
Aux, USB and iPod port··················\
··················\
········4-122
Auto defogging system ··················\
··················\
············4-112
Automatic climate control system ··················\
·············4-101 Air conditioning ··················\
··················\
··················\
··4-107
Automatic heating and air conditioning ··················\
··4-102
Manual heating and air conditioning··················\
·······4-103 Automatic transaxle ··················\
··················\
··················\
·5-15
Ignition key interlock system ··················\
··················\
··5-20
Paddle shifter ··················\
··················\
··················\
·········5-19
Shift lock system ··················\
··················\
··················\
···5-19
Sports mode ··················\
··················\
··················\
···········5-18
Aux, USB and iPod port ··················\
··················\
··········4-122
Battery··················\
··················\
··················\
··················\
····7-28
Battery saver function ··················\
··················\
················4-80
Before driving ··················\
··················\
··················\
············5-3
Bottle holders, see cup holders ··················\
··················\
4-116
Brake system··················\
··················\
··················\
············5-23 Anti-lock brake system (ABS) ··················\
··················\
5-26
Electronic stability control (ESC) ··················\
·············5-28
Parking brake ··················\
··················\
··················\
·········5-24
Power brakes··················\
··················\
··················\
··········5-23
Hill-start assist control (HAC) ··················\
··················\
5-32
Vehicle stability management··················\
··················\
··5-33
Brakes/clutch fluid ··················\
··················\
··················\
···7-20
Bulb wattage ··················\
··················\
··················\
··············8-2
Button start/stop, see engine start/stop button ·················5-6
A
B

Index
6I
Interior light ··················\
··················\
··················\
·············4-88
Interior overview··················\
··················\
··················\
········2-2
Interlock system ··················\
··················\
··················\
·······5-20
Jack and tools··················\
··················\
··················\
·············6-7
Jump starting··················\
··················\
··················\
··············6-4
Key positions ··················\
··················\
··················\
·············5-4
Keys ··················\
··················\
··················\
··················\
·········4-2
LabelAir bag warning label ··················\
··················\
··············3-66
Tire sidewall labeling ··················\
··················\
··············7-37
Tire specification and pressure label ··················\
···········8-7
Vehicle certification label ··················\
··················\
··········8-6
Latch system, see lower anchor system··················\
·······3-37
Lighting··················\
··················\
··················\
··················\
··4-80 Battery saver function··················\
··················\
··············4-80
Headlight escort function ··················\
··················\
········4-80
Headlight leveling device ··················\
··················\
········4-80
Lower anchor system ··················\
··················\
·················3-37\
Lubricants and capacities··················\
··················\
·············8-4
Lumbar support ··················\
··················\
··················\
··3-5, 3-7 Maintenance
Explanation of scheduled maintenance items ·············7-12
Maintenance services·············\
··················\
··················\
····7-3
Maintenance under severe usage conditions ···············7-11
Owner maintenance ··················\
··················\
··················\
·7-5
Tire maintenance ··················\
··················\
··················\
···7-44
Maintenance services ··················\
··················\
··················\
·7-3
Manual climate control system··················\
··················\
··4-92 Air conditioning ··················\
··················\
··················\
····4-97
Climate control air filter ··················\
··················\
········4-100
Heating and air conditioning ··················\
··················\
···4-93
Manual transaxle··················\
··················\
··················\
······5-12
Memory fuse ··················\
··················\
··················\
············7-47
Mirrors ··················\
··················\
··················\
··················\
···4-39 Day/night rearview mirror ··················\
··················\
·······4-39
Electric chromic mirror (ECM) with homelink system
and compass ··················\
··················\
··················\
··········4-39
Inside rearview mirror ··················\
··················\
·············4-39
Outside rearview mirror ··················\
··················\
··········4-46
Moonroof, see panorama sunroof ··················\
················4-30
Multi fuse ··················\
··················\
··················\
·················7-48\
Neck restraints, see headrest ··················\
················3-8, 3-15
J
K
L
M
N

Features of your vehicle
92
4
MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Fan speed control knob
2. Front windshield defroster button
3. Rear window defroster button
4. Temperature control knob 5. Air conditioning button
6. Mode selection button
7. Air intake control button
OTF040120

493
Features of your vehicle
Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired position.To improve the effectiveness of heat-ing and cooling :
- Heating:
- Cooling:
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air or recirculated air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system (if equipped)
on.
OTF040122

495
Features of your vehicle

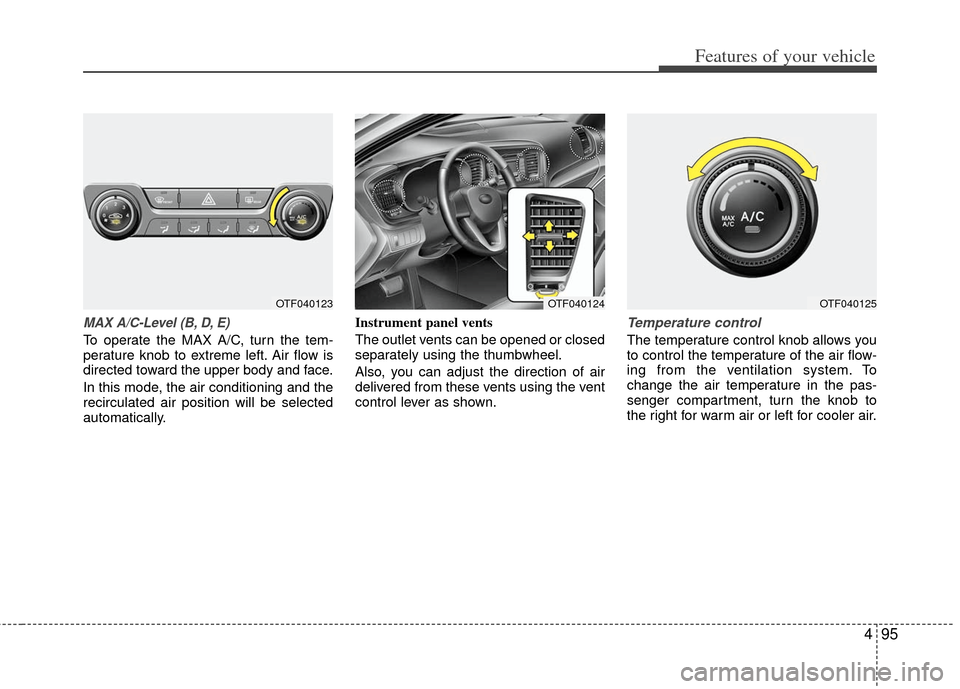

MAX A/C-Level (B, D, E)
To operate the MAX A/C, turn the tem-
perature knob to extreme left. Air flow is
directed toward the upper body and face.
In this mode, the air conditioning and the
recirculated air position will be selected
automatically.Instrument panel vents
The outlet vents can be opened or closed
separately using the thumbwheel.
Also, you can adjust the direction of air
delivered from these vents using the vent
control lever as shown.
Temperature control
The temperature control knob allows you
to control the temperature of the air flow-
ing from the ventilation system. To
change the air temperature in the pas-
senger compartment, turn the knob to
the right for warm air or left for cooler air.
OTF040124OTF040123OTF040125

Features of your vehicle
96
4

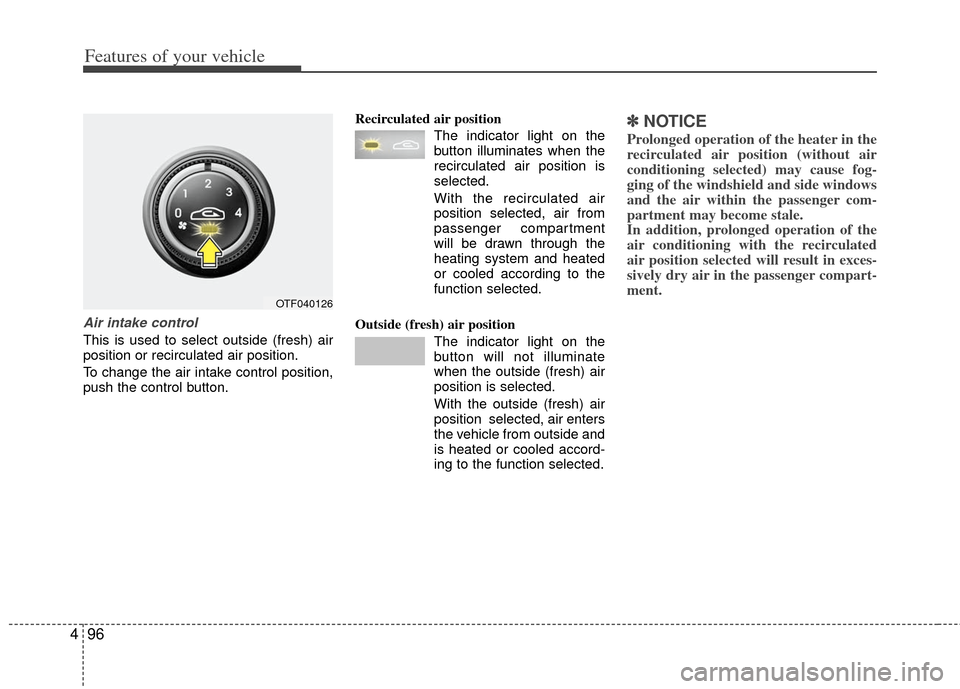

Air intake control
This is used to select outside (fresh) air
position or recirculated air position.
To change the air intake control position,
push the control button. Recirculated air position
The indicator light on the
button illuminates when the
recirculated air position is
selected.
With the recirculated air position selected, air from
passenger compartment
will be drawn through the
heating system and heated
or cooled according to the
function selected.
Outside (fresh) air position The indicator light on the
button will not illuminate
when the outside (fresh) air
position is selected.
With the outside (fresh) air
position selected, air enters
the vehicle from outside and
is heated or cooled accord-
ing to the function selected.
✽ ✽NOTICE
Prolonged operation of the heater in the
recirculated air position (without air
conditioning selected) may cause fog-
ging of the windshield and side windows
and the air within the passenger com-
partment may become stale.
In addition, prolonged operation of the
air conditioning with the recirculated
air position selected will result in exces-
sively dry air in the passenger compart-
ment.
OTF040126

497
Features of your vehicle

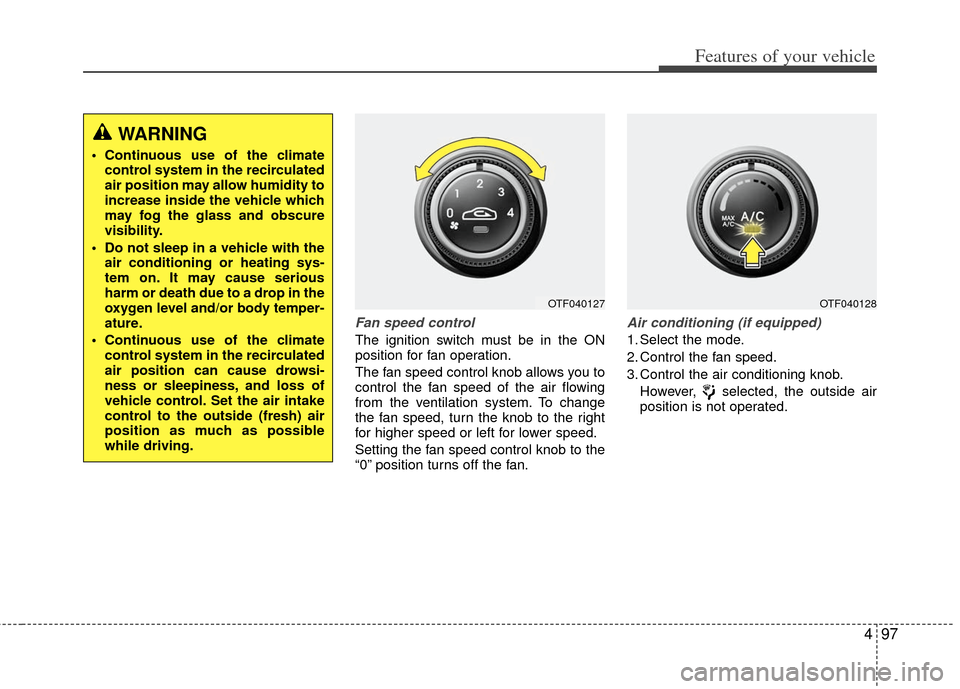

Fan speed control
The ignition switch must be in the ON
position for fan operation.
The fan speed control knob allows you to
control the fan speed of the air flowing
from the ventilation system. To change
the fan speed, turn the knob to the right
for higher speed or left for lower speed.
Setting the fan speed control knob to the
“0” position turns off the fan.
Air conditioning (if equipped)
1. Select the mode.
2. Control the fan speed.
3. Control the air conditioning knob.However, selected, the outside air
position is not operated.
OTF040127OTF040128
WARNING
Continuous use of the climatecontrol system in the recirculated
air position may allow humidity to
increase inside the vehicle which
may fog the glass and obscure
visibility.
Do not sleep in a vehicle with the air conditioning or heating sys-
tem on. It may cause serious
harm or death due to a drop in the
oxygen level and/or body temper-
ature.
Continuous use of the climate control system in the recirculated
air position can cause drowsi-
ness or sleepiness, and loss of
vehicle control. Set the air intake
control to the outside (fresh) air
position as much as possible
while driving.

Features of your vehicle
98
4

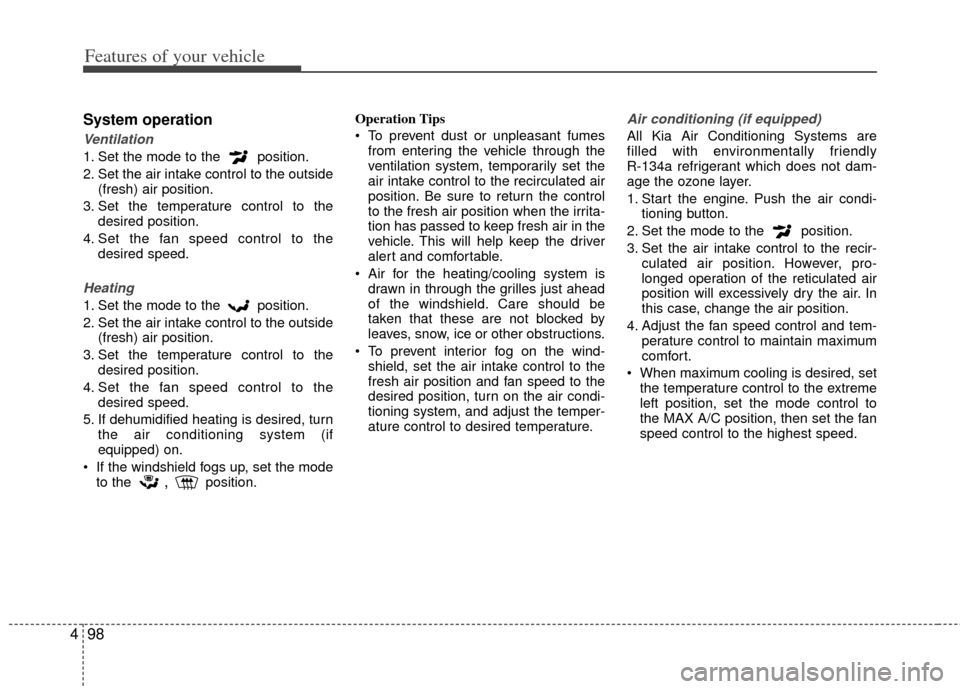

System operation
Ventilation
1. Set the mode to the position.
2. Set the air intake control to the outside
(fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Set the mode to the position.
2. Set the air intake control to the outside(fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If dehumidified heating is desired, turn the air conditioning system (if
equipped) on.
If the windshield fogs up, set the mode to the
,position. Operation Tips
To prevent dust or unpleasant fumes
from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculated air
position. Be sure to return the control
to the fresh air position when the irrita-
tion has passed to keep fresh air in the
vehicle. This will help keep the driver
alert and comfortable.
Air for the heating/cooling system is drawn in through the grilles just ahead
of the windshield. Care should be
taken that these are not blocked by
leaves, snow, ice or other obstructions.
To prevent interior fog on the wind- shield, set the air intake control to the
fresh air position and fan speed to the
desired position, turn on the air condi-
tioning system, and adjust the temper-
ature control to desired temperature.
Air conditioning (if equipped)
All Kia Air Conditioning Systems are
filled with environmentally friendly
R-134a refrigerant which does not dam-
age the ozone layer.
1. Start the engine. Push the air condi- tioning button.
2. Set the mode to the position.
3. Set the air intake control to the recir- culated air position. However, pro-
longed operation of the reticulated air
position will excessively dry the air. In
this case, change the air position.
4. Adjust the fan speed control and tem- perature control to maintain maximum
comfort.
When maximum cooling is desired, set the temperature control to the extreme
left position, set the mode control to
the MAX A/C position, then set the fan
speed control to the highest speed.

499
Features of your vehicle
✽
✽NOTICE
• While using the air conditioning sys-
tem, monitor the temperature gauge
closely while driving up hills or in
heavy traffic when outside tempera-
tures are high. Air conditioning sys-
tem operation may cause engine over-
heating. Continue to use the blower
fan but turn the air conditioning sys-
tem off if the temperature gauge indi-
cates engine overheating.
• While opening the windows in humid weather air conditioning may create
water droplets inside the vehicle.
Since excessive water droplets may
cause damage to electrical equipment,
air conditioning should only be used
with the windows closed.
Air conditioning system operation tips
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows for a short time to let the hot
air inside the vehicle escape.
To help reduce moisture inside of the windows on rainy or humid days,
decrease the humidity inside the vehi-
cle by operating the air conditioning
system.
During air conditioning system opera- tion, you may occasionally notice a
slight change in engine speed as the
air conditioning compressor cycles.
This is a normal system operation
characteristic.
Use the air conditioning system every month only for a few minutes to ensure
maximum system performance.
When using the air conditioning sys- tem, you may notice clear water drip-
ping (or even puddling) on the ground
under the passenger side of the vehi-
cle. This is a normal system operation
characteristic. Operating the air conditioning system
in the recirculated air position provides
maximum cooling, however, continual
operation in this mode may cause the
air inside the vehicle to become stale.
During cooling operation, you may occasionally notice a misty air flow
because of rapid cooling and humid air
intake. This is a normal system opera-
tion characteristic.

Features of your vehicle
100
4
Climate control air filter
The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the vehi-
cle from the outside through the heating
and air conditioning system. If dust or
other pollutants accumulate in the filter
over a period of time, the air flow from the
air vents may decrease, resulting in
moisture accumulation on the inside of
the windshield even when the outside
(fresh) air position is selected. If this hap-
pens, have the climate control air filter
replaced by an authorized Kia dealer.
✽ ✽
NOTICE
• Replace the filter according to the
Maintenance Schedule.
If the vehicle is being driven in severe
conditions such as dusty, rough roads,
more frequent climate control air fil-
ter inspections and changes are
required.
• When the air flow rate suddenly decreases, the system should be
checked at an authorized Kia dealer.
Checking the amount of air con-
ditioner refrigerant and compres-
sor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning is
reduced. Overfilling also has a negative
influence on the air conditioning system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized Kia dealer.
✽ ✽ NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur.
WARNING
The air conditioning system should
be serviced by an authorized Kia
dealer. Improper service may cause
serious injury to the person per-
forming the service.
OMG075033
Outside air
Recirculatedair
Climate control
air filter Blower
Evaporator
coreHeater core
