Features of your vehicle
Auto Door Unlock (if equipped)
Off:The auto door unlock operation will
be canceled.
Key Out or Power Off: All doors will be automatically
unlocked when the ignition key is
removed from ignition switch or
Engine Start/Stop Button is set to
the OFF position.
Shift Lever: All doors will be automatically
unlocked if the automatic transaxle
shift lever is shifted to the P (Park)
position. Two Press Unlock (if equipped)
Off:
The two press unlock function will
be deactivated. Therefore, all doors
will unlock if the door is unlocked.
On: The driver’s door will unlock if the
door is unlocked. When the door is
unlocked again within 4 seconds,
all doors will unlock.
Horn Feedback (if equipped)
Off: The Horn feedback operation will
be deactivated.
On: After locking the door by pressing
the lock button on the transmitter, if
you press the lock button again
within 4 seconds, the warning
sound will operate once to indicate
that all doors are locked.Lamp
One Touch Turn Lamp (if equipped)
If this item is checked, the lane
change signals will blink 3, 5 or 7
times when the turn signal lever is
moved slightly.
Head Lamp Delay (if equipped)
If this item is checked, the headlamp
delay and headlamp welcome func-
tion will be activated.
Welcome Light (if equipped)
If this item is checked, the welcome
light function of the puddle lamp will
be activated.

Maintenance
82
7

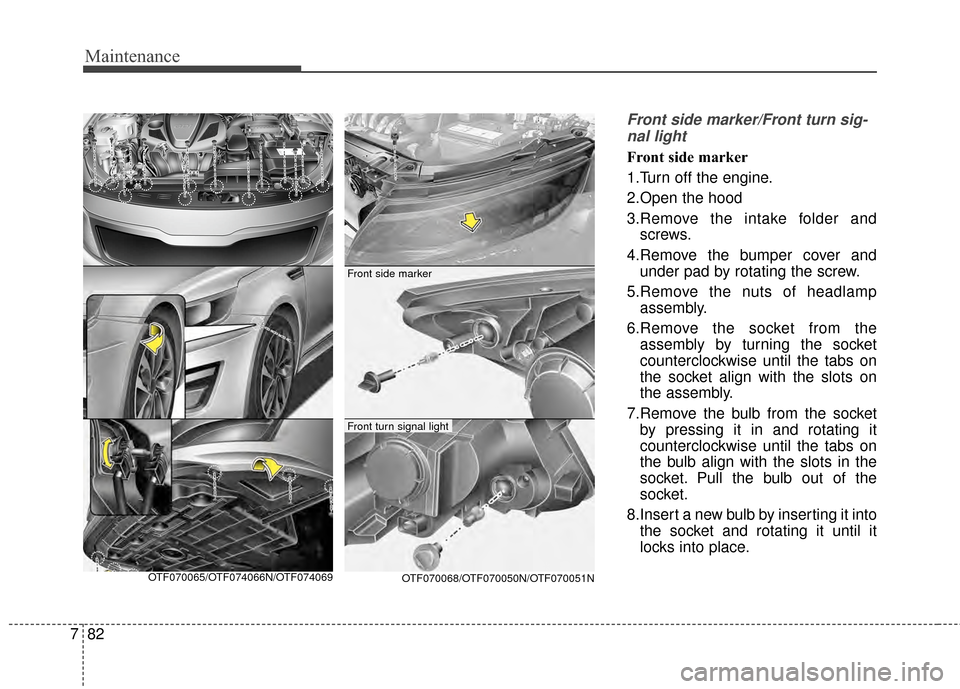

Front side marker/Front turn sig-
nal light
Front side marker
1.Turn off the engine.
2.Open the hood
3.Remove the intake folder and screws.
4.Remove the bumper cover and under pad by rotating the screw.
5.Remove the nuts of headlamp assembly.
6.Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
OTF070065/OTF074066N/OTF074069OTF070068/OTF070050N/OTF070051N
Front side marker
Front turn signal light

783
Maintenance
9.Install the socket in the assemblyby aligning the tabs on the socket
with the slots in the assembly.
Push the socket into assembly and
turn the socket clockwise.
10. Reinstall the headlamp assem- bly, under pad and bumper to the
body of the vehicle. Front turn signal light
1.Turn off the engine.
2.Open the hood
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
6.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into assembly and
turn the socket clockwise.Side repeater light bulb
replacement
Ty p e A
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
OTF070029

48
Specifications & Consumer information

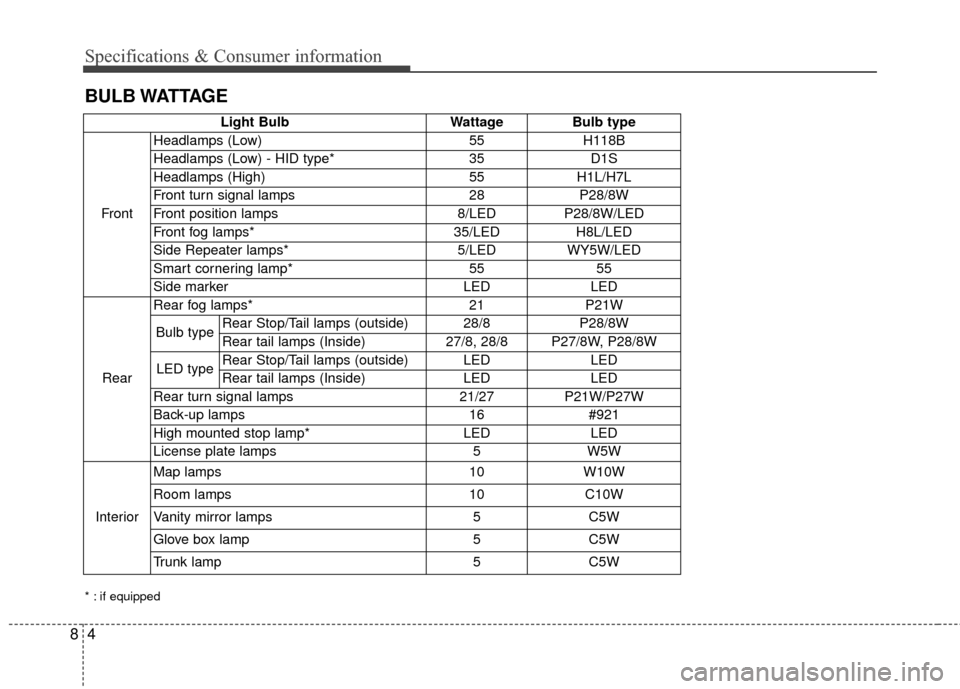

BULB WATTAGE
* : if equipped
Light BulbWattage Bulb type
Front Headlamps (Low)
55H118B
Headlamps (Low) - HID type* 35D1S
Headlamps (High) 55H1L/H7L
Front turn signal lamps 28P28/8W
Front position lamps 8/LED P28/8W/LED
Front fog lamps* 35/LEDH8L/LED
Side Repeater lamps* 5/LEDWY5W/LED
Smart cornering lamp* 5555
Side marker LEDLED
Rear Rear fog lamps*
21P21W
Bulb type Rear Stop/Tail lamps (outside) 28/8
P28/8W
Rear tail lamps (Inside) 27/8, 28/8 P27/8W, P28/8W
LED type Rear Stop/Tail lamps (outside) LED
LED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 21/27P21W/P27W
Back-up lamps 16#921
High mounted stop lamp* LEDLED
License plate lamps 5W5W
Interior Map lamps
10W10W
Room lamps 10C10W
Vanity mirror lamps5C5W
Glove box lamp5C5W
Trunk lamp 5C5W
