Maintenance
Description Fuse RatingProtected Component
RR HTD - E/R BOX RR HTD RLY COIL
HORN 15A HORN (LH, RH)
F/PUMP 20A FUEL PUMP MTR
ECU 3 15A PCU (TGDI) BATT. DIRECT
SENSOR 1 15A DN O2 SENSOR (TGDI), UP O2 SENSOR (TGDI), COOLING FAN RLY COIL (TGDI) INJECTOR 10A E/R BOX F/PUMP RLY COIL
SENSOR 3 10A CMP1, 2 (TGDI), SMATRA IMMOBILIZER
SENSOR 2 10A CKP (TGDI), VIS (GDI), OCV1, 2 (TGDI), PCSV (TGDI), RCV (TGDI) IGN COIL 20A ENGINE IG COIL ECU 1 30A ECU RLY
SPARE 10A -
SPARE 15A -
SPARE 20A -
WIPER 10A BCM, RAIN SNSR, WIPER MTR
VACUUM PUMP 20A BRAKE VACUUM PUMP IG1 AMS 10A BATTERY SENSOR
Engine Compartment fuse panel (for theta 2.0 T- GDI)
Maintenance
76
7
Description Fuse Rating Protected Component
TCU 1 20A TCU
STOP LAMP 15A RLY.10 (HAC Relay), STOP LAMP RELAY DEICER 20A RLY.7 (Deicer Relay)
IG1 40A IGN SW
B+ 1 50A B+
B+ 2 60A B+
C/ FAN 2 60A C/FAN RLY
IG 2 40A IGN SW, IG2 RLY
ESC 1 40A ESC UNIT MOTOR B+ , DIAGNOSIS ABS A/B VALVE B+
ESC 2 40A ESC UNIT SOLENOID B+
RR HTD 40A RLY.1 (RR HTD Relay)
B+ 3 60A B+
MDPS 80A EPS CONTROL MODULE
SPARE 25A -
C/FAN 1 50A COOLING FAN RLY TGDI
BLOWER 40A E/R BOX BLOWER RLY SWITCH
777
Maintenance

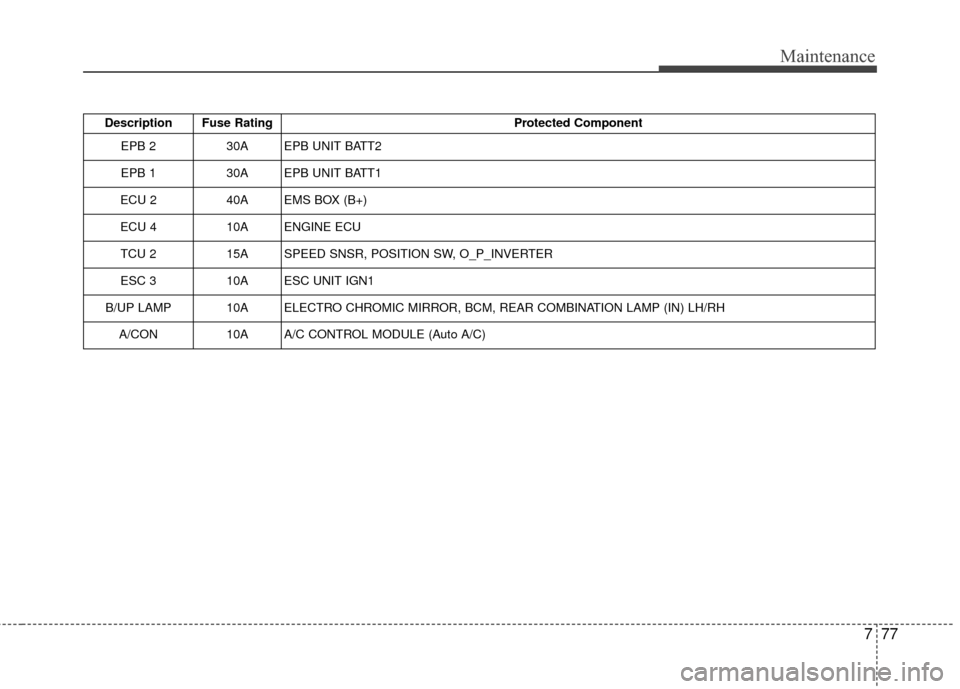

Description Fuse RatingProtected Component
EPB 2 30A EPB UNIT BATT2
EPB 1 30A EPB UNIT BATT1
ECU 2 40A EMS BOX (B+)
ECU 4 10A ENGINE ECU
TCU 2 15A SPEED SNSR, POSITION SW, O_P_INVERTER
ESC 3 10A ESC UNIT IGN1
B/UP LAMP 10A ELECTRO CHROMIC MIRROR, BCM, REAR COMBINATION LAMP (IN) LH/RH A/CON 10A A/C CONTROL MODULE (Auto A/C)
