515
Driving your vehicle
For smooth operation, depress thebrake pedal when shifting from N(Neutral) to a forward or reversegear.
When stopped on an incline, do not
hold the vehicle with engine power.
Use the service brake or the parking
brake.
Transaxle ranges
The indicator light in the instrument
cluster displays the shift lever posi-
tion when the ignition switch is in the
ON position.
P (Park)
Always come to a complete stop
before shifting into P (Park). This
position locks the transaxle and pre-
vents the front wheels from rotating.
Shifting into P (Park) while the vehi-
cle is in motion will cause the drive
wheels to lock which will cause you
to lose control of the vehicle.CAUTION - Transaxle
To avoid damage to yourtransaxle, do not accelerate theengine in R (Reverse) or any for-ward gear position with thebrakes on. The transaxle may bedamaged if you shift into P(Park) while the vehicle is inmotion.
WARNING- Automatic
Transaxle
Before leaving the driver's seat,
always make sure the shift lever
is engaged in P (Park), set the
parking brake fully and shut the
engine off. Unexpected and
sudden vehicle movement may
occur if these precautions are
not followed.

539
Driving your vehicle

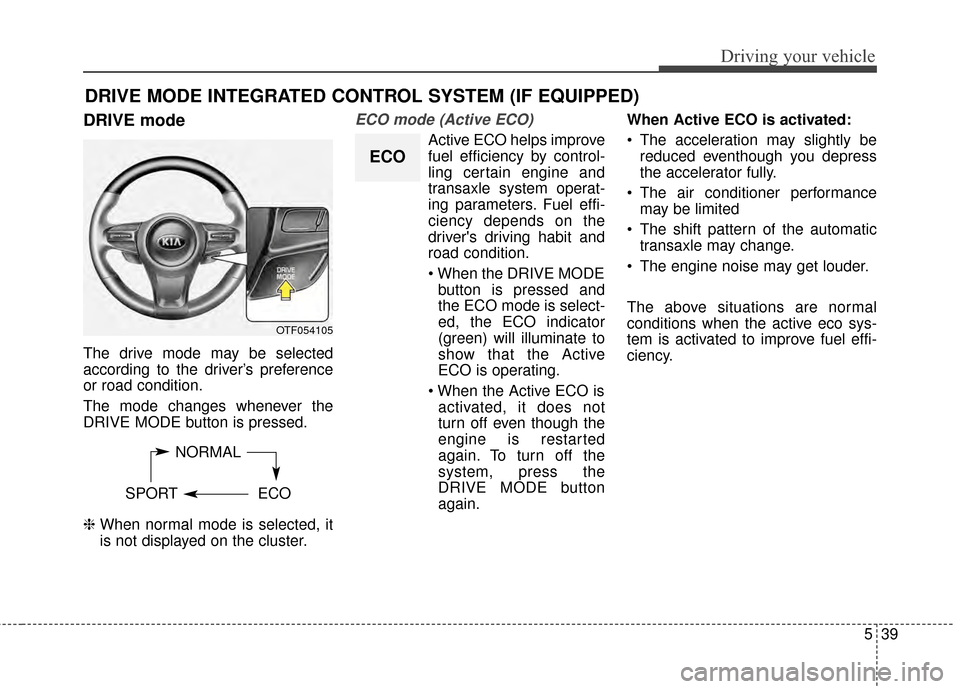

DRIVE mode
The drive mode may be selected
according to the driver’s preference
or road condition.
The mode changes whenever the
DRIVE MODE button is pressed.
❈ When normal mode is selected, it
is not displayed on the cluster.
ECO mode (Active ECO)
Active ECO helps improve
fuel efficiency by control-
ling certain engine and
transaxle system operat-
ing parameters. Fuel effi-
ciency depends on the
driver's driving habit and
road condition.

button is pressed and
the ECO mode is select-
ed, the ECO indicator
(green) will illuminate to
show that the Active
ECO is operating.
activated, it does not
turn off even though the
engine is restarted
again. To turn off the
system, press the
DRIVE MODE button
again. When Active ECO is activated:
The acceleration may slightly be
reduced eventhough you depress
the accelerator fully.
The air conditioner performance may be limited
The shift pattern of the automatic transaxle may change.
The engine noise may get louder.
The above situations are normal
conditions when the active eco sys-
tem is activated to improve fuel effi-
ciency.
DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED)
NORMAL
SPORT ECO
OTF054105
ECO

619
What to do in an emergency

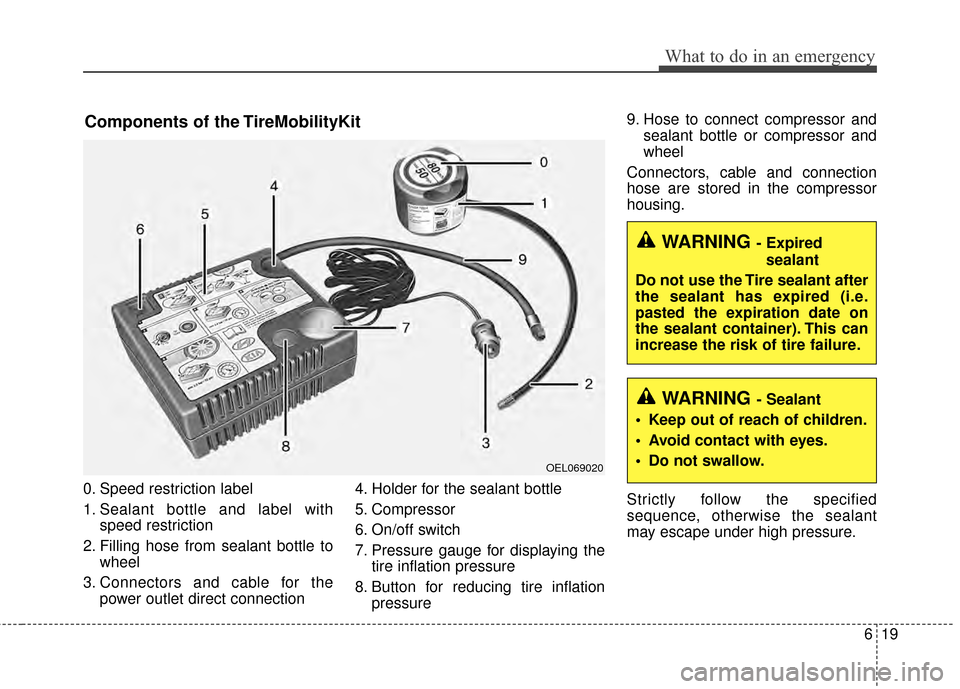

0. Speed restriction label
1. Sealant bottle and label withspeed restriction
2. Filling hose from sealant bottle to wheel
3. Connectors and cable for the power outlet direct connection 4. Holder for the sealant bottle
5. Compressor
6. On/off switch
7. Pressure gauge for displaying the
tire inflation pressure
8. Button for reducing tire inflation pressure 9. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly follow the specified
sequence, otherwise the sealant
may escape under high pressure.
OEL069020
WARNING - Sealant
• Keep out of reach of children.
Avoid contact with eyes.
Do not swallow.
Components of the TireMobilityKit
WARNING - Expired sealant
Do not use the Tire sealant after
the sealant has expired (i.e.
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.

Maintenance
54
7

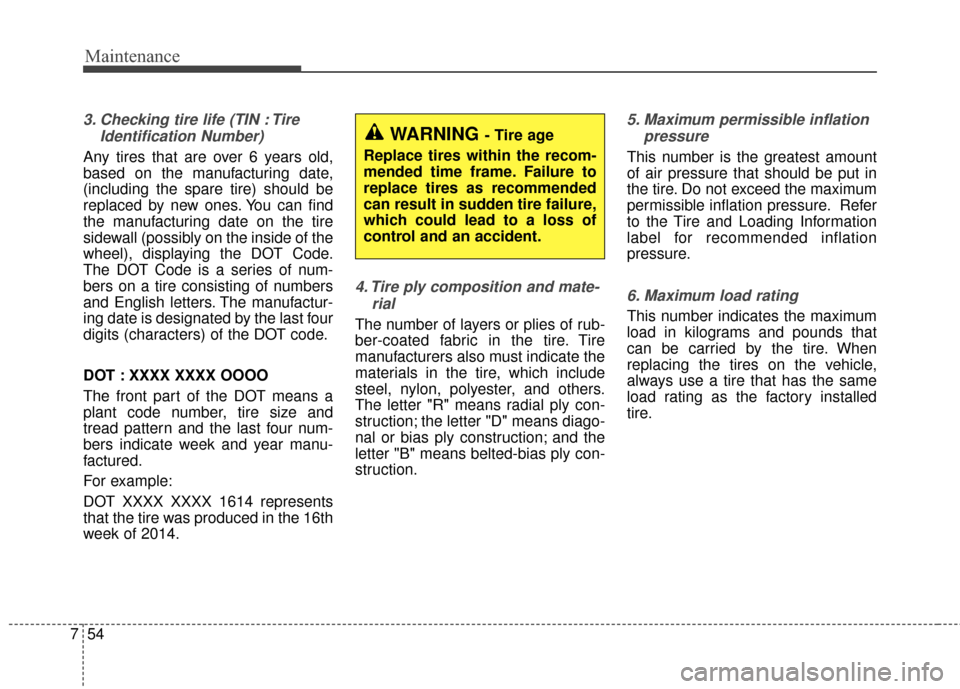

3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over 6 years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 1614 represents
that the tire was produced in the 16th
week of 2014.
4. Tire ply composition and mate-rial
The number of layers or plies of rub-
ber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and the
letter "B" means belted-bias ply con-
struction.
5. Maximum permissible inflationpressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
WARNING - Tire age
Replace tires within the recom-
mended time frame. Failure to
replace tires as recommended
can result in sudden tire failure,
which could lead to a loss of
control and an accident.

I5
Index
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22
Using the Tire Mobility Kit . . . . . . . . . . . . . . . . . . . 6-20
In case of an emergency while driving . . . . . . . . . . . . . . 6-3 If engine stalls while driving . . . . . . . . . . . . . . . . . . . 6-3
If the engine stalls at a crossroad or crossing . . . . . . 6-3
If you have a flat tire while driving . . . . . . . . . . . . . . 6-3
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
60
Instrument Cluster Control. . . . . . . . . . . . . . . . . . . . 4-59
LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . 4-59
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . 4-63
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142 Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-144
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Navigation system . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108 Automatic turn off function . . . . . . . . . . . . . . . . . . 4-108
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . 5-6
Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 5-6
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 4-4 Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64 A/V Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . 4-70
User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-79\
Front light replacement . . . . . . . . . . . . . . . . . . . . . . 7-79
High mounted stop light bulb replacement . . . . . . . 7-88
Interior light bulb replacement. . . . . . . . . . . . . . . . . 7-91
License plate light bulb replacement . . . . . . . . . . . . 7-88
Rear combination light bulb replacement . . . . . . . . 7-85
Side repeater light bulb replacement . . . . . . . . . . . . 7-83
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-99 Battery saver function . . . . . . . . . . . . . . . . . . . . . . . 4-99
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-100K
L

Index
6I
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Headlight escort function . . . . . . . . . . . . . . . . . . . . . 4-99
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . 4-99
High beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-102
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Turn signals and lane change signals . . . . . . . . . . . 4-103
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4 Owner maintenance precautions . . . . . . . . . . . . . . . . 7-5
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Manual climate control system. . . . . . . . . . . . . . . . . . 4-113 Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-121
Heating and air conditioning . . . . . . . . . . . . . . . . . 4-114
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-45 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-45
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . 4-55
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6 Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-6 Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-36
Rear camera display . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended sae viscosity number . . . . . . . . . . . . . 8-8
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Remote keyless entry system operations . . . . . . . . . . 4-9
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . 4-10
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 6-2
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-8
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 3-2 Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
16
Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-4
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-6
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-14
M
O
P
R
S
