Driving your vehicle
56
5
Use high quality ethylene gly-
col coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in chapter 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in chapter 7. The level of charge in
your battery can be checked by an
authorized Kia dealer or a service
station.
Change to "winter weight" oil
if necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
chapter 8 for recommendations. If
you aren't sure what weight oil you
should use, consult an authorized
Kia dealer.
Check spark plugs and igni-
tion system
Inspect your spark plugs as
described in chapter 7 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.
To keep locks from freezing
To keep the locks from freezing,
squirt an approved de-icer fluid or
glycerine into the key opening. If a
lock is covered with ice, squirt it with
an approved de-icing fluid to remove
the ice. If the lock is frozen internally,
you may be able to thaw it out by
using a heated key. Handle the heat-
ed key with care to avoid injury.
Use approved window washer
anti-freeze in system
To keep the water in the window
washer system from freezing, add an
approved window washer anti-freeze
solution in accordance with instruc-
tions on the container. Window wash-
er anti-freeze is available from an
authorized Kia dealer and most auto
parts outlets. Do not use engine
coolant or other types of anti-freeze
as these may damage the paint fin-
ish.

Maintenance
12
7
72,000 km (45,000 miles) or 36 months
❑ Rotate tire
❑ Inspect battery condition
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Inspect air conditioning refrigerant
❑ Inspect brake hoses and lines
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front brake disc/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Replace climate control air filter
(for evaporator and blower unit)
❑ Inspect rear brake disc/pads, parking brake
❑ Replace engine oil and filter (2.4 GDI)
(72,000 km (45,000 miles) or 72 months)
❑ Add fuel additive *
1
(12,000 km (7,500 miles) or 12 months)
❑ Replace spark plugs (iridium coated, 2.0 T-GDI)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
60,000 km (37,500 miles) or 30 months
❑Rotate tire
❑ Inspect battery condition
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Inspect manual transaxle fluid (if equipped)
❑ Replace engine oil and filter (2.4 GDI)
(60,000 km (37,500 miles) or 60 months)
❑ Add fuel additive *
1
(12,000 km (7,500 miles) or 12 months)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
NORMAL MAINTENANCE SCHEDULE
(Continued)
❑Add fuel additive *1
(12,000 km (7,500 miles) or 12 months)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

717
Maintenance
NORMAL MAINTENANCE SCHEDULE
(Continued)
❑Replace air cleaner filter
❑ Replace engine oil and filter (2.4 GDI)
(144,000 km (90,000 miles) or 144 months)
❑ Add fuel additive *
1
(12,000 km (7,500 miles) or 12 months)
❑ Replace spark plugs (iridium coated, 2.0 T-GDI)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
156,000 km (97,500 miles) or 78 months
❑Rotate tire
❑ Inspect battery condition
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Replace engine oil and filter (2.4 GDI)
(156,000 km (97,500 miles) or 156 months)
❑ Add fuel additive *
1
(12,000 km (7,500 miles) or 12 months)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
18
7
(Continued)
❑ Add fuel additive *1
(12,000 km (7,5000 miles) or 12 months)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
168,000 km (105,000 miles) or 84 months
❑Rotate tire
❑ Inspect battery condition
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Inspect air conditioning refrigerant
❑ Inspect brake hoses and lines
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front brake disc/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Inspect drive belts
(First, 96,000 km (60,000 miles) or 48 months
after every 24,000 km (15,000 miles) or 12 months)
❑ Replace climate control air filter
(for evaporator and blower unit)
❑ Inspect rear brake disc/pads, parking brake
❑ Replace spark plugs (iridium coated, 2.4 GDI)
❑ Replace engine oil and filter (2.4 GDI)
(168,000 km (105,000 miles) or 168 months)
(Continued)
NORMAL MAINTENANCE SCHEDULE

721
Maintenance
NORMAL MAINTENANCE SCHEDULE
216,000 km (135,000 miles) or 108 months
❑Rotate tire
❑ Inspect battery condition
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Inspect air conditioning refrigerant
❑ Inspect brake hoses and lines
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front brake disc/pads, calipers and rotors
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Inspect drive belts
(First, 96,000 km (60,000 miles) or 48 months
after every 24,000 km (15,000 miles) or 12 months)
❑ Replace climate control air filter
(for evaporator and blower unit)
❑ Inspect rear brake disc/pads, parking brake
❑ Replace engine oil and filter (2.4 GDI)
(216,000 km (135,000 miles) or 216 months)
❑ Add fuel additive *
1
(12,000 km (7,500 miles) or 12 months)
(Continued)
(Continued)
❑ Replace spark plugs (iridium coated, 2.0 T-GDI)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
❑ Inspect all latch, hinges and locks
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
228,000 km (142,500 miles) or 114 months
❑Rotate tire
❑ Inspect battery condition
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Replace engine oil and filter (2.4 GDI)
(228,000 km (142,500 miles) or 228 months)
❑ Add fuel additive *
1
(12,000 km (7,500 miles) or 12 months)
❑ Inspect cooling system hoses and connections
❑ Inspect brake pedal free play
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

723
Maintenance
MAINTENANCE UNDER SEVERE USAGE CONDITIONS
The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer
to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if neces\
sary
MAINTENANCE ITEMMAINTENANCEOPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Engine oil and filter
2.4 LREvery 6,000 km (3,750 miles) or 6 months
A, B, C, D, E, F,G, H, I, K
2.0 LREvery 5,000 km (3,000 miles) or 3 months
Air cleaner filterRMore frequentlyC, E
Spark plugsRMore frequentlyA, B, H, I, K
Automatic transaxle fluidREvery 96,000km (60,000 miles) A, C, E, F, G, I
Front disc brake/pads, calipers
and rotorsIMore frequentlyC, D, G, H
Rear disc brake/pads, parking
brakeIMore frequentlyC, D, G, H

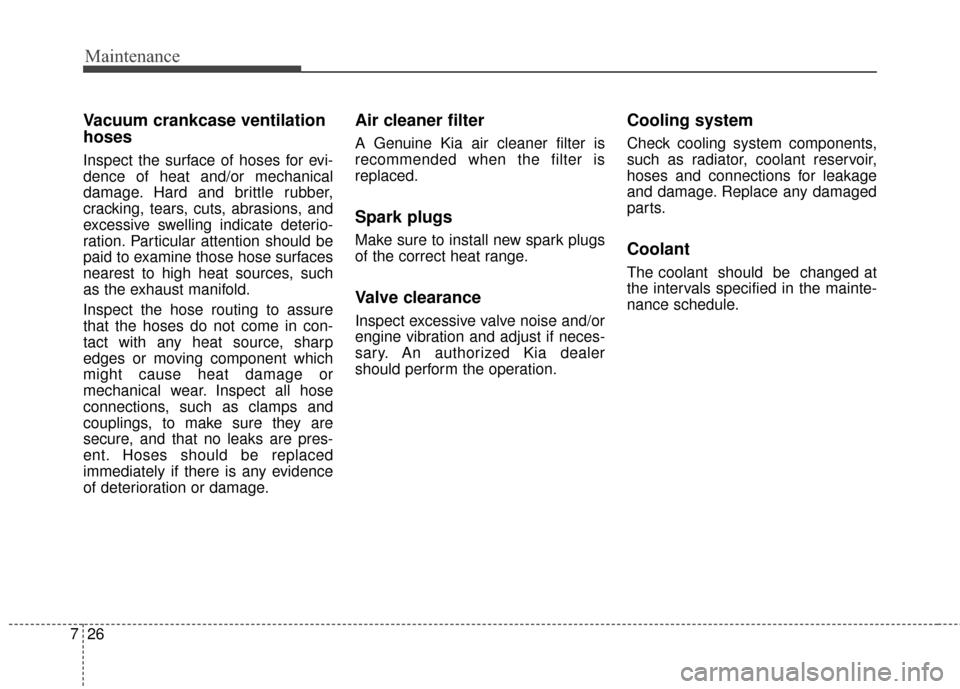

Maintenance
26
7
Vacuum crankcase ventilation
hoses
Inspect the surface of hoses for evi-
dence of heat and/or mechanical
damage. Hard and brittle rubber,
cracking, tears, cuts, abrasions, and
excessive swelling indicate deterio-
ration. Particular attention should be
paid to examine those hose surfaces
nearest to high heat sources, such
as the exhaust manifold.
Inspect the hose routing to assure
that the hoses do not come in con-
tact with any heat source, sharp
edges or moving component which
might cause heat damage or
mechanical wear. Inspect all hose
connections, such as clamps and
couplings, to make sure they are
secure, and that no leaks are pres-
ent. Hoses should be replaced
immediately if there is any evidence
of deterioration or damage.
Air cleaner filter
A Genuine Kia air cleaner filter is
recommended when the filter is
replaced.
Spark plugs
Make sure to install new spark plugs
of the correct heat range.
Valve clearance
Inspect excessive valve noise and/or
engine vibration and adjust if neces-
sary. An authorized Kia dealer
should perform the operation.
Cooling system
Check cooling system components,
such as radiator, coolant reservoir,
hoses and connections for leakage
and damage. Replace any damaged
parts.
Coolant
The coolant should be changed at
the intervals specified in the mainte-
nance schedule.

Index
8I
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Wheel alignment and tire balance . . . . . . . . . . . . . . 7-50
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-23 Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24
Removable towing hook (front) . . . . . . . . . . . . . . . . 6-24
Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-79 Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-79
Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82\
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-22 Closing the trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Emergency trunk lid release cable . . . . . . . . . . . . . . 4-23
Emergency trunk safety release . . . . . . . . . . . . . . . . 4-24
Opening the trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-9
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-58 Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-61
Tire and loading information label. . . . . . . . . . . . . . 5-58
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-63 Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-84
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-35
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98 Escort welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Welcome light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-25 Power window lock button. . . . . . . . . . . . . . . . . . . . 4-29
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26
Windshield defrosting and defogging. . . . . . . . . . . . . 4-133 Automatic climate control system . . . . . . . . . . . . . 4-134
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
Manual climate control system . . . . . . . . . . . . . . . 4-133
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-55 Carry emergency equipment . . . . . . . . . . . . . . . . . . 5-57
Change to "winter weight" oil if necessary . . . . . . . 5-56
Check battery and cables . . . . . . . . . . . . . . . . . . . . . 5-56
Check spark plugs and ignition system . . . . . . . . . . 5-56
Don't let ice and snow accumulate underneath . . . . 5-57
Don't let your parking brake freeze . . . . . . . . . . . . . 5-57
Snowy or Icy conditions. . . . . . . . . . . . . . . . . . . . . . 5-55
To keep locks from freezing. . . . . . . . . . . . . . . . . . . 5-56
Use approved window washer anti-freeze in system . . 5-56
V
W
