light KIA OPTIMA 2019 Features and Functions Guide

OPTIMA FEATURES & FUNCTIONS GUIDE16*IF EQUIPPED
Daytime Running Lights (DRL)* -
DRL may help others to see the front of your
vehicle during the day . The lights will be on
automatically when the ignition or Engine Start /
Stop button is ON and the headlight switch is in
the AUTO position, unless one of the following occurs:
• Headlights are on
• Parking brake is applied
• Engine is turned off
• Switch is in the DRL OFF positionA
Headlight position
Parking light position
AUTO*Auto Light / HBA* / AFS-H*
DRL OFFOFF position
Headlights & High Beams
To o p e r a t e :
•Rotate lever to change the Headlight function
•Push lever to turn High Beams ON
•Pull lever to flash Headlights/High Beams
Turn Signals
& Fog Lights*
To o p e r a t e :
• Turn signals - Move lever Up/
Down for Right /Left Turn Signal
• Fog Lights - Press switch A up/
down to turn Fog Lights ON/OFF
REMINDER: Headlights must be ON for fog light operation .
One-Touch Lane Change Signal is
activated by moving the Turn Signal
Lever slightly for less than 1 second
and then releasing . The lane change
signal will blink 3 times .
To change how many times the Lane
Change Signal blinks (3/5/7), go to
User Settings Mode in the LCD
Instrument Cluster modes .
Adaptive Front-Lighting System-Height (AFS-H) Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
REMINDERS:
• DRL only operates during the daytime
• When the AFS-H indicator illuminates on the instrument cluster, the AFS-H is not working properly . See an authorized Kia dealer for service
• HBA will operate when vehicle speed exceeds 25 mph
• If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously . If the lever is pulled toward you while HBA is operational, HBA will turn off
• If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
DRL
OFF
DRLOFF
One-Touch Lane Change Signal
DRLOFF
DRLOFF
For more information on the User Settings Mode, please refer to your Owner’s Manual.
AUTO Light position – When the light switch is in the AUTO Light
position, the taillights and headlights will turn ON/OFF automatically
depending on the amount of light outside the vehicle .
Adaptive Front-Lighting System-Height (AFS-H)* – The AFS-H can
help improve visibility during nighttime driving by aiming the low beam
headlights toward the direction the vehicle is moving . AFS-H controls the
aiming direction based on steering angle and speed . When the headlight
switch is in the AUTO Light position, the AFS-H will activate .
REMINDER: When the AFS-H indicator illuminates on the instrument cluster, the AFS-H is not working properly . See an authorized Kia dealer for service .
High Beam Assist (HBA)* – High Beam Assist is designed to
automatically adjust the headlight range by switching between high and
low beams based on light detected from other vehicles and road conditions .
To enable HBA, toggle the light switch to the AUTO Light position
and turn on the high beams by pushing the lever away from you .
The High Beam Assist indicator will illuminate .
STEERING WHEEL CONTROLS

OPTIMA FEATURES & FUNCTIONS GUIDE20*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Smart Cruise Control (SCC) with Stop & Go Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
A
B
CF
Smart Cruise Control
canceled
E
D
G
Smart Cruise Control (SCC) with Stop & Go*†6,22
The Smart Cruise Control (SCC) with Stop & Go system is designed to maintain a predetermined
distance from vehicles detected ahead by automatically adjusting the driving speed as needed .
To set/adjust the SCC speed:
•Push the CRUISE button A to turn system ON . The CRUISE indicator will illuminate
on the instrument cluster
•Accelerate/decelerate to the desired speed and press button B down to set speed
•Press the RES+/SET- button B up/down to increase/decrease the set speed . The SET
indicator light, set speed and vehicle-to-vehicle distance will illuminate on the instrument
cluster's LCD screen
To set the vehicle-to-vehicle distance: Press the SCC button C on the steering wheel .
The images on the LCD screen D and the Instrument Cluster E will change when scrolling
through the settings . Each time the button is pressed, the vehicle-to-vehicle distance changes .
To cancel SCC operation: Press the CANCEL button F or press the brake pedal . The LCD
screen will display a message that the SCC operation is canceled .
To turn SCC system OFF: Press the CRUISE button A . The CRUISE indicator on the
instrument cluster will turn OFF .
To change the SCC mode to standard Cruise Control press the C button for more than two seconds . Hold button again to return to SCC .
For the SCC System to operate: •When no vehicle is in front, you must be traveling at a minimum speed of 20 mph •When following a vehicle, there is no minimum speed requirement
When following a vehicle, the system can automatically adjust your cruise speed based on the vehicle in front . It will even bring the vehicle to a complete stop if necessary . If the vehicle detected stops for more than 3 seconds, the system will disable .
QUICK TIPS
REMINDERS:
•
The SCC is also canceled when the driver’s door is opened, gear shift is changed out of D (Drive), EPB is activated and various other conditions . See Owner’s Manual for other conditions
•CRUISE button must be pressed ON in order to turn SCC ON
•
SCC system is activated when ignition is turned on . Speed will need to be reset when ignition is cycled
•
The distance settings are approximations and may vary depending on factory settings at the time . See Owner’s Manual for more information
•
If the SCC system is left on, it can be activated inadvertently . Keep the system off when not in use to avoid setting a speed which the driver is not aware of
The SCC system is a supplemental system and is not a substitute for safe driving. It is the responsibility of the driver to always check the speed and distance to the vehicle ahead.
17 2 f t13 0 f t
82ft
10 6 f t
(Distances are approximate and vary according to vehicle speed
D
STEERING WHEEL CONTROLS

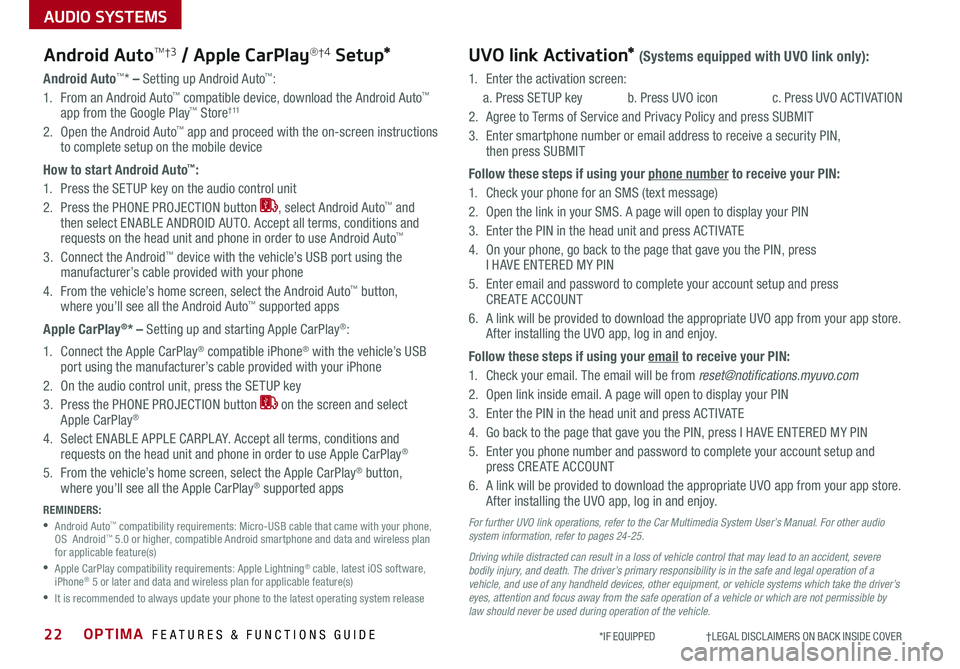

OPTIMA FEATURES & FUNCTIONS GUIDE22
AUDIO SYSTEMS
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Android AutoTM†3 / Apple CarPlay®†4 S e tup*UVO link Activation* (Systems equipped with UVO link only):
Android Auto™* – Setting up Android Auto™:
1 . From an Android Auto™ compatible device, download the Android Auto™ app from the Google Play™ Store† 11
2 . Open the Android Auto™ app and proceed with the on-screen instructions to complete setup on the mobile device
How to start Android Auto™:
1 . Press the SETUP key on the audio control unit
2 . Press the PHONE PROJECTION button , select Android Auto™ and then select ENABLE ANDROID AUTO . Accept all terms, conditions and requests on the head unit and phone in order to use Android Auto™
3 . Connect the Android™ device with the vehicle’s USB port using the manufacturer’s cable provided with your phone
4 . From the vehicle’s home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Apple CarPlay®* – Setting up and starting Apple CarPlay®:
1 . Connect the Apple CarPlay® compatible iPhone® with the vehicle’s USB port using the manufacturer’s cable provided with your iPhone
2 . On the audio control unit, press the SETUP key
3 . Press the PHONE PROJECTION button on the screen and select Apple CarPlay®
4 . Select ENABLE APPLE CARPL AY . Accept all terms, conditions and requests on the head unit and phone in order to use Apple CarPlay®
5 . From the vehicle’s home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
REMINDERS:
• Android Auto™ compatibility requirements: Micro-USB cable that came with your phone, OS Android™ 5 .0 or higher, compatible Android smartphone and data and wireless plan for applicable feature(s)
•
Apple CarPlay compatibility requirements: Apple Lightning® cable, latest iOS software, iPhone® 5 or later and data and wireless plan for applicable feature(s)
•
It is recommended to always update your phone to the latest operating system release
1 .
Enter the activation screen:
a . Press SETUP key b . Press UVO icon c . Press UVO ACTIVATION
2 .
Agree to Terms of Service and Privacy Policy and press SUBMIT
3 .
Enter smartphone number or email address to receive a security PIN, then press SUBMIT
Follow these steps if using your phone number to receive your PIN:
1 .
Check your phone for an SMS (text message)
2 .
Open the link in your SMS . A page will open to display your PIN
3 .
Enter the PIN in the head unit and press ACTIVATE
4 .
On your phone, go back to the page that gave you the PIN, press I HAVE ENTERED MY PIN
5 .
Enter email and password to complete your account setup and press CREATE ACCOUNT
6 .
A link will be provided to download the appropriate UVO app from your app store . After installing the UVO app, log in and enjoy .

Follow these steps if using your email to receive your PIN:
1 . Check your email . The email will be from [email protected]
2 . Open link inside email . A page will open to display your PIN
3 . Enter the PIN in the head unit and press ACTIVATE
4 . Go back to the page that gave you the PIN, press I HAVE ENTERED MY PIN
5 . Enter you phone number and password to complete your account setup and press CREATE ACCOUNT
6 . A link will be provided to download the appropriate UVO app from your app store . After installing the UVO app, log in and enjoy .
For further UVO link operations, refer to the Car Multimedia System User’s Manual. For other audio system information, refer to pages 24-25.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.

27ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
CENTER PANEL
Wireless Charging Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
12V 12V180W
AUX USB180W
12V180W
DBB
A
C
(Rear of Center Console shown)
(Located in front of Gear Shift)
REMINDER: When needed, Daylight Savings must be enabled in the Clock Settings screen
A Use the Aux port to connect audio devices and the USB port to
connect USB audio devices, smartphones and iPod® devices . If
equipped, additional power outlets are located inside the center console
B Use the power outlets for mobile phones and other devices
designed to operate on a 12V (180W max) power outlet
REMINDERS:
• Using the power outlet (accessory plug) for prolonged periods of time with the Engine Start /Stop button in the ACC position (Engine OFF ) and AC Inverter for prolonged periods of time with the Engine Start /Stop button in the IGN Position (Engine OFF ) could cause the battery to discharge
• Use manufacturer cables only that came with your device . Third party cables may cause damage to device
For more information on the Aux/USB/iPod® Port & Power Outlets, refer to the Owner's Manual.
Digital Clock*
Press the SETUP key, then the DATE / TIME button to display the Clock
setting screen . Then use the on-screen buttons to navigate through
setup . To access manual date and time setting, turn GPS time OFF in
the Clock Settings (UVO link with Navigation*) .
Aux/USB/iPod®†12 Port & Power Outlets
The power outlets are inactive when ignition is in the OFF position .
QUICK TIP
USB Charger*
The USB charger is located
inside the Center Console and
on rear of the Center Console C .
Wireless Smartphone
Charging System*
1 . Slide open tray cover
2 . Place compatible smartphone on the center of the charging pad
3 . Indicator light D will change to amber once the wireless charging begins
4 . Once charging is complete, the amber light
will change to green
REMINDERS:
•
The smartphone must be a compatible phone with QI function available
•
Avoid placing other metal items in the bin while charging as to not impede the charging area
•
This vehicle is equipped with wireless charging technology which allows for a device to be charged using inductive charging, however, device compatibility varies . See your Owner’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through cable . As a result, higher device operating temperatures may be experienced during use
•
Charging Performance – Device position on the wireless charging system can affect charging performance . Other factors that may affect the charging rate include foreign objects, such as coins or pens, and phone case thickness

•Wireless charging must be enabled in user settings
•For wireless charging to occur, all doors (excluding rear hatch) must be closed & the Smart Key Fob must be detected inside the vehicle
•For best results, place smart-phone on the center of the charging pad
• If wireless charging does not work, move smartphone around the pad until the charging indicator turns amber . Avoid placing other metal items in the bin while charging as to not impede the charging area .
QUICK TIPS

OPTIMA FEATURES & FUNCTIONS GUIDE30*IF EQUIPPED
Auto Hold temporarily maintains the vehicle
at a standstill even though the brake pedal
is not depressed after the driver brings the
vehicle to a complete stop by depressing the
brake pedal . Auto Hold can be turned On/
Off using the AUTO HOLD button B on the
center panel below gear shift . Before Auto
Hold will operate, the driver’s door, engine
hood and trunk must be closed .
The AUTO HOLD indicator on the
Instrument Cluster has four states:
White: Standby - With vehicle at a
standstill, when the AUTO HOLD button B
is pressed on, the indicator will illuminate
white . While driving the vehicle (vehicle is
not at a standstill), the Auto Hold indicator
will remain white .
Green: Engaged - When coming to a complete stop by depressing the
brake pedal, the Auto Hold indicator changes from white to green .
Off (not illuminated) - The indicator will turn Off when the AUTO HOLD
button B is manually pressed Off or when the EPB is manually turned On .
Yellow: Malfunction - When the indicator is illuminated yellow, there may
be a system malfunction . Take your vehicle to a local Kia dealer .
REMINDERS:
• Auto Hold only operates when vehicle is in Drive or Neutral
• To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle .
Refer to page 4 for location of Instrument Cluster indicators.
Electric Parking Brake (EPB) Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
A
B
(Located below gear shift)
Electric Parking Brake (EPB)*
The Electric Parking Brake (EPB) system utilizes
an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB
switch . Ensure that the indicator light is
illuminated on the instrument cluster .
Releasing the Parking Brake
The EPB will automatically release when the
shifter is placed in Reverse or Drive .
To release EPB manually, depress the brake pedal, then press the EPB
switch A, with the ignition switch in the ON position . Ensure that the
indicator light is OFF .
Auto Hold*

•When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB •Pull up and hold EPB switch for 3 seconds to increase brake pressure if parked on a decline or incline
QUICK TIPS
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
CENTER PANEL

OPTIMA FEATURES & FUNCTIONS GUIDE32*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Dual Clutch Transmission*
Some Kia vehicles are equipped with Dual Clutch
Transmission (DCT ) for automatic transmissions .
The following are unique driving tips of the Dual Clutch
Transmission:
• To hold the vehicle stationary on an incline, the service
brake or parking brake MUST be used or the gear shift
MUST be in the (P) Park position . If the vehicle is held
stationary by applying the accelerator pedal on a slope, the
clutch/transmission may overheat, resulting in damage
• Avoid aggressive launches on steep grades as this may
result in an overheated clutch and transmission
• A slight time lag may be experienced at takeoff from stand
still during aggressive acceleration maneuvers
If the clutch is overheating an amber warning light will
be displayed in the instrument cluster . Should this condition
occur, pull over and place the vehicle in Park and idle
the engine.
Refer to the Owner’s Manual for additional information on DCT operation or call Kia Consumer Affairs for additional information.
Yellow Color:
Warming
Blue Color:
Ventilating
Heated and Ventilated Seats Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
Yellow Color:
Warming
(Buttons located below gear shift)
(Buttons located below gear shift)
Seat Warmers*†19
Press button once for high setting (3 LEDs lit), again
for medium setting (2 LEDs lit), again for low setting
(1 LED lit) and again to turn OFF .
Seat Warmers / Ventilated Seats*†19
Seat Warmers - Press top of button once for
high setting (3 LEDs lit), again for medium setting
(2 LEDs lit), again for low setting (1 LED lit) and
again to turn OFF .
Ventilated Seats - Press setting (3 again for
medium LEDs lit), bottom of button once for high
setting (2 LEDs lit), again for low setting (1 LED lit)
and again to turn OFF .

•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature •System is OFF by default . To turn system ON again, press the Heated Steering Wheel button .
QUICK TIPS
REMINDER: Use extreme caution when using the seat warmers to avoid burns . Refer to the Owner’s Manual for more information .
CENTER PANEL

OPTIMA FEATURES & FUNCTIONS GUIDE36*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
HOLD
B
A
C
D
E
QR CODE
Lock
Unlock
Remote Keyless Entry (Folding Key)*Fuel Cap / Malfunction
Indicator (Check Engine Light)
Tighten for ONE
CLICK to prevent
Malfunction Indicator
from illuminating .
REMINDERS:
•
The Fuel Filler Door Release button is located on the lower part of the driver’s door panel
•
It is normal operation when tightening to hear one click, and then when Fuel Cap is released, it clicks back
A Press to release Folding Key
B Press to lock All Doors
C Press to unlock Driver’s Door .
Press twice in 4 seconds to
unlock All Doors
D Press and hold to unlock Trunk
and manually open
E Press and hold more than 1
second for Panic Alarm . To turn
off Alarm, press any button
Remote button configuration may vary depending on vehicle options.
Double-Turn Lock/Unlock All
•Turn clockwise once to unlock Driver’s Door
•Turn clockwise again within 4 seconds to unlock All Doors
•Turn counterclockwise once to lock All Doors
Sunvisor†12
Use the Sunvisor to shield
direct light through the
front or side windows .
Slide the Sunvisor out and
adjust as needed .
REMINDERS:
•The Sunvisor may impair visibility if not adjusted properly
•Sunvisor may not shield all direct light
•
Do not operate the vehicle if Sunvisor is impairing your visibility
•
Be aware of your seating position when adjusting or swinging Sunvisor around from the front or side windows
OTHER KEY FEATURES

OPTIMA FEATURES & FUNCTIONS GUIDE38*IF EQUIPPED
Automatic turn off function*
The interior lights automatically
turn off approximately 30 seconds
after the ignition or Engine Start /
Stop button* is OFF .
Map Lamp/Room Lamp
Operation – Push the lens A to
turn the map lamp ON/OFF . This
light produces a spot beam for
convenient use as a map lamp or
as a personal lamp for the driver or
the front passenger .
Map/Room Lamp Button –
Press button B to turn the front
and rear room lamps on and off .
Door Mode Button – Press button C, to enable or disable Door
Mode . In Door Mode, the map and room lamps turn on when any
door is opened . When all doors are locked or the ignition is on, the
map and room lamp will turn off immediately .
Rear Room Lamps – Press the button D to turn the rear passenger
lamp ON/OFF .
Panoramic Sunroof with
Power Sunshade*
The Sunroof and Sunshade operation is
controlled through a multidirectional switch/
lever . The ignition or Engine Start /Stop button*
needs to be in the ON position to operate the
sunroof .
To slide the sunshade and sunroof:
• Auto Open: Slide the lever E backward to the
farthest position and release
• Auto Close (sunroof only): Slide the lever E
forward to the farthest position and release
To slide the sunshade only:
• Open: Slide the lever E partially backward to
the first detent position and release
• Auto Close: Slide the lever E partially forward to the first detent position
and release
To slide the sunroof (with sunshade open):
• Open: Slide the lever E backward to the first detent position and release
• Close: Slide the lever E forward to the first detent position and release to
close sunroof glass only . Slide the lever forward to the farthest position and
release to close sunroof glass and sunshade
To tilt the sunroof:
• Raise: Push lever E upward
• Lower: Push lever E forward
• When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
• If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
• Using interior lights for an extended period of time may cause battery discharge
QUICK TIP
To stop the sunroof/sunshade at any position, push or pull the sunroof control lever in any direction .
QUICK TIP
REMINDER: Sunshade needs to remain OPEN while sunroof is open and vehicle is moving
AA
BCE
D
( Type B)
Map/Room Lamps Sunroof Operation Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
OTHER KEY FEATURES

39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
(Buttons located on Driver's Panel left of Steering Wheel)
AB
C
Fuel Filler Lid and Trunk Release
Press the button A to release the fuel door .
Press the button B to open the trunk .
Trunk Release Button (Exterior)
Located underneath
the Trunk lid . With
Trunk unlocked, press
the Trunk Release
button C and pull the
Trunk lid up by the
handle to open .
Smart Power Trunk*†15
When the Smart Key fob is on your person and you are near the back of the
vehicle, within close proximity, the hazard warning lights will blink and a chime
will sound for about 3 seconds as an alert that the Smart Trunk is about to open .
Then the alert system will blink and chime two additional times before opening
the Smart Power Trunk .
The Smart Power Trunk feature is OFF by default . To enable the Smart Power
Trunk, go to User Settings in the LCD Instrument Cluster modes .
During the Smart Power Trunk alert, the Smart Power Trunk can be deactivated with the Smart Key by pressing any button on the key fob .
QUICK TIPS

•The Trunk must be unlocked before it can be opened by the Trunk Release Button •Smart Key* - The Trunk unlocks automatically, and can then be opened manually, when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
REMINDERS:
•
The Smart Key must be outside of the vehicle for the Smart Power Trunk to operate
•All doors are closed and locked after about 15 seconds
•
The Smart Power Trunk feature will not operate when the doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle
•
Press any button on the Smart Key fob during the Detect and Alert stage to deactivate the Smart Power Trunk function
•
When ignition is on, the Smart Power Trunk will only operate with the gear shift in the Park (P) position
•Ensure obstacles and people are out of the way of the Trunk
For more information on the Smart Power Trunk operation, please refer to the Owner's Manual.
OTHER KEY FEATURES

OPTIMA FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Located on Driver side kick panel)(Located inside of Hood's center) (Images shown are for illustration purposes only . Actual operation may vary)
A
B
OTHER KEY FEATURES
Hood Release Lever and Latch
Opening the Hood:
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, push the secondary
Latch B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood about halfway and then press down to securely
lock in place .
Child-Protector Rear Door Locks
Locate these locks on the rear edge
of the rear passenger doors . Turn the
Child-Protector Rear Door Lock to the
LOCK position to disable the inner door
handles from opening the rear doors .
REMINDER: Child-Protector Rear Door Locks are located on rear passenger’s door jamb .
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake .
Parking Distance Warning-Reverse*†6
The Parking Distance Warning-Reverse is a supplemental system that is
designed to assist the driver by chiming if any object is detected within
the sensing area to the rear and side of the vehicle when backing up .
When the ignition is ON, the system is activated .
REMINDERS:
•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than two objects are sensed at the same time, the closest one will be recognized first

The Parking Distance Warning-Reverse is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Parking Distance Warning-Reverse may not detect every object behind the vehicle.
