KIA OPTIMA 2019 Owners Manual

4161
Features of your vehicle

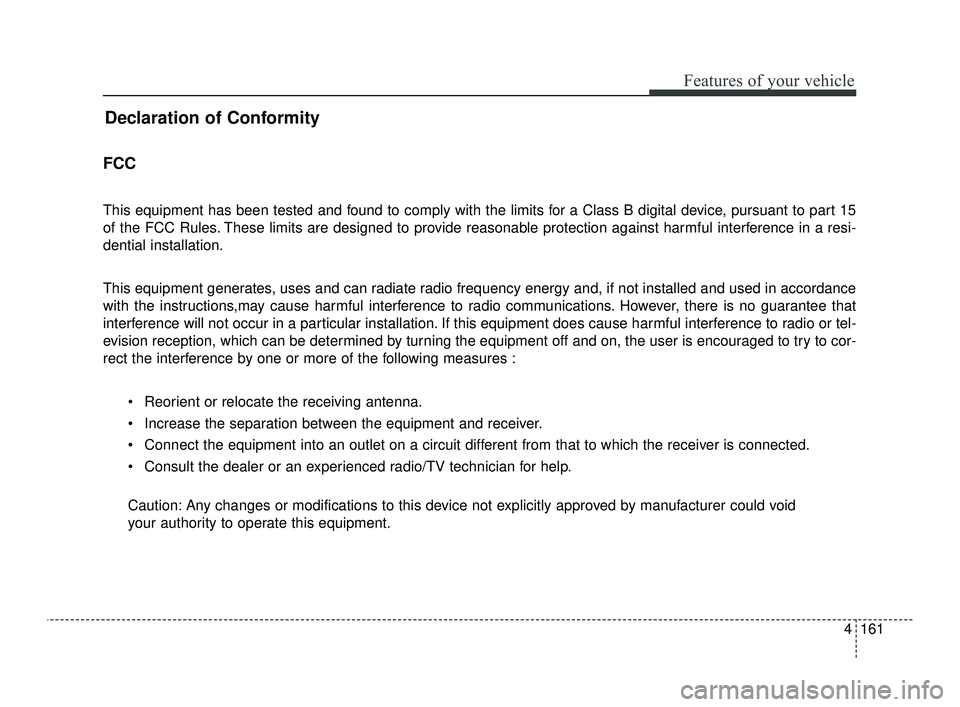

Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi-
dential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tel-
evision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following measures : Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void
your authority to operate this equipment.
JFa PE USA 4.qxp 5/18/2018 7:26 PM Page 161

Features of your vehicle
162
4

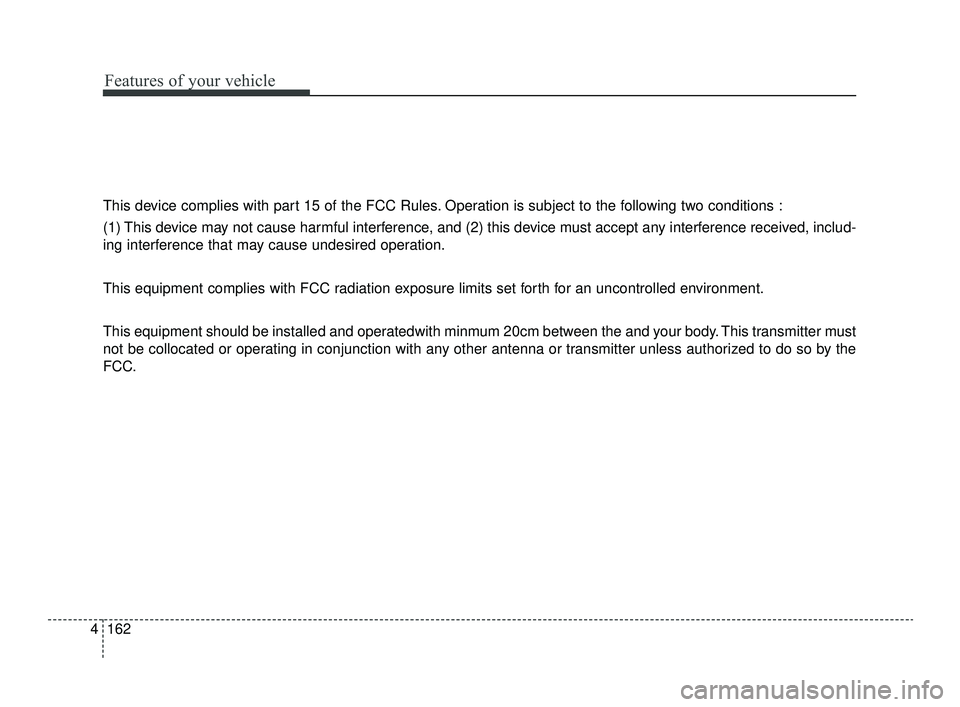

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-
ing interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operatedwith minmum 20cm between the and your body. This transmitter must
not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the
FCC.
JFa PE USA 4.qxp 5/18/2018 7:26 PM Page 162

Driving your vehicle
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
• Before entering vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
• Necessary inspections . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
• Before starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
• Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . . . 5-7
• Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
• Starting the engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Engine start/stop button . . . . . . . . . . . . . . . . . . . . 5-10
• Illuminated engine start/stop button . . . . . . . . . . . . . 5-10
• Engine start/stop button position. . . . . . . . . . . . . . . . 5-10
• Starting the engine with a smart key. . . . . . . . . . . . . 5-12
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . 5-14
• Automatic transaxle operation. . . . . . . . . . . . . . . . . . 5-14
• Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-21
Dual Clutch Transmission (DCT) . . . . . . . . . . . . . 5-22
• Dual clutch transmission operation . . . . . . . . . . . . . 5-22
• LCD display for transmission temperature and warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
• Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-33
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-36
• Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-36
• Parking brake – Foot type . . . . . . . . . . . . . . . . . . . . . 5-38
• Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . . 5-39 • Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
46
• Anti-lock Brake System (ABS). . . . . . . . . . . . . . . . . . 5-50
• Electronic Stability Control (ESC) . . . . . . . . . . . . . . 5-52
• Vehicle Stability Management (VSM) . . . . . . . . . . . . 5-56
• Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . . 5-58
• Good braking practices. . . . . . . . . . . . . . . . . . . . . . . . 5-58
Forward Collision-avoidance Assist (FCA)
(Camera type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-60
• System setting and activation . . . . . . . . . . . . . . . . . . . 5-60
• FCA warning message and system control . . . . . . . . 5-62
• Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-63
• FCA front radar/Camera sensor . . . . . . . . . . . . . . . . 5-64
• System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
• Limitation of the system . . . . . . . . . . . . . . . . . . . . . . . 5-67
Forward Collision-avoidance Assist (FCA) (Smart cruise control system equipped) . . . . . . 5-72
• System setting and activation . . . . . . . . . . . . . . . . . . . 5-72
• FCA warning message and system control . . . . . . . . 5-74
• Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-75
• FCA front radar/Camera sensor . . . . . . . . . . . . . . . . 5-76
• System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-78
• Limitation of the system . . . . . . . . . . . . . . . . . . . . . . . 5-80
• Recognizing pedestrians . . . . . . . . . . . . . . . . . . . . . . . 5-84
5
JFa PE USA 5.QXP 5/17/2018 6:09 PM Page 1

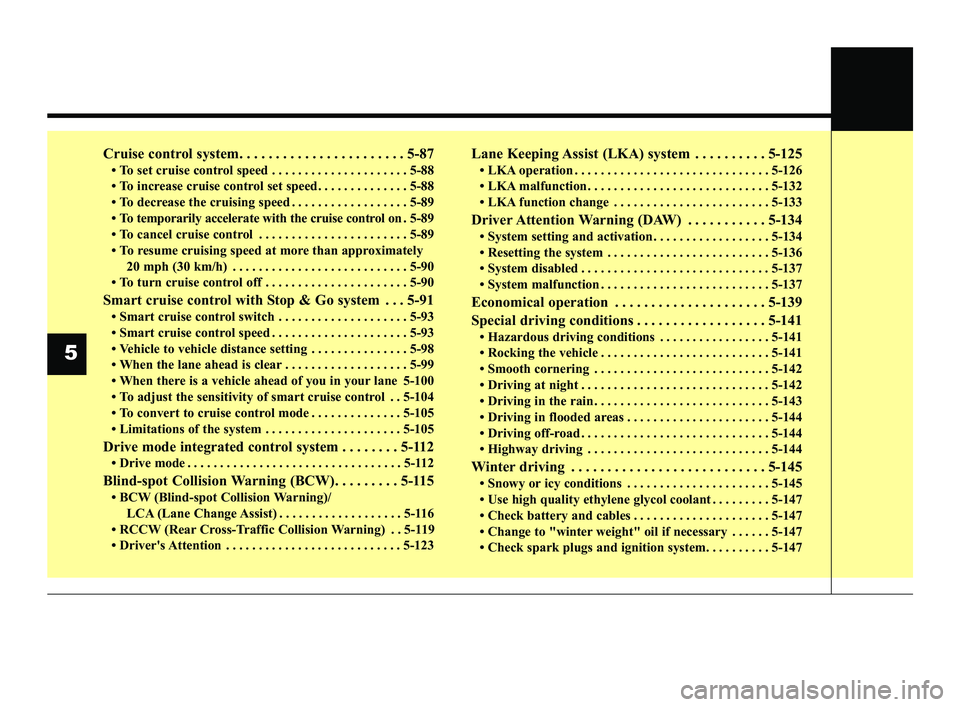

Cruise control system. . . . . . . . . . . . . . . . . . . . . . . 5-87
• To set cruise control speed . . . . . . . . . . . . . . . . . . . . . 5-88
• To increase cruise control set speed. . . . . . . . . . . . . . 5-88
• To decrease the cruising speed . . . . . . . . . . . . . . . . . . 5-89
• To temporarily accelerate with the cruise control on . 5-89
• To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . . 5-89
• To resume cruising speed at more than approximately 20 mph (30 km/h) . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-90
• To turn cruise control off . . . . . . . . . . . . . . . . . . . . . . 5-90
Smart cruise control with Stop & Go system . . . 5-91
• Smart cruise control switch . . . . . . . . . . . . . . . . . . . . 5-93
• Smart cruise control speed . . . . . . . . . . . . . . . . . . . . . 5-93
• Vehicle to vehicle distance setting . . . . . . . . . . . . . . . 5-98
• When the lane ahead is clear . . . . . . . . . . . . . . . . . . . 5-99
• When there is a vehicle ahead of you in your lane 5-100
• To adjust the sensitivity of smart cruise control . . 5-104
• To convert to cruise control mode . . . . . . . . . . . . . . 5-105
• Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-105
Drive mode integrated control system . . . . . . . . 5-112
• Drive mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-112
Blind-spot Collision Warning (BCW). . . . . . . . . 5-115
• BCW (Blind-spot Collision Warning)/ LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . . 5-116
• RCCW (Rear Cross-Traffic Collision Warning) . . 5-119
• Driver's Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-123
Lane Keeping Assist (LKA) system . . . . . . . . . . 5-125
• LKA operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-126
• LKA malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-132
• LKA function change . . . . . . . . . . . . . . . . . . . . . . . . 5-133
Driver Attention Warning (DAW) . . . . . . . . . . . 5-134
• System setting and activation . . . . . . . . . . . . . . . . . . 5-134
• Resetting the system . . . . . . . . . . . . . . . . . . . . . . . . . 5-136
• System disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-137
• System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . 5-137
Economical operation . . . . . . . . . . . . . . . . . . . . . 5-139
Special driving conditions . . . . . . . . . . . . . . . . . . 5-141
• Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-141
• Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-141
• Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-142
• Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-142
• Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-143
• Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . 5-144
• Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-144
• Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-144
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-145
• Snowy or icy conditions . . . . . . . . . . . . . . . . . . . . . . 5-145
• Use high quality ethylene glycol coolant . . . . . . . . . 5-147
• Check battery and cables . . . . . . . . . . . . . . . . . . . . . 5-147
• Change to "winter weight" oil if necessary . . . . . . 5-147
• Check spark plugs and ignition system. . . . . . . . . . 5-147
5
JFa PE USA 5.QXP 5/17/2018 6:09 PM Page 2

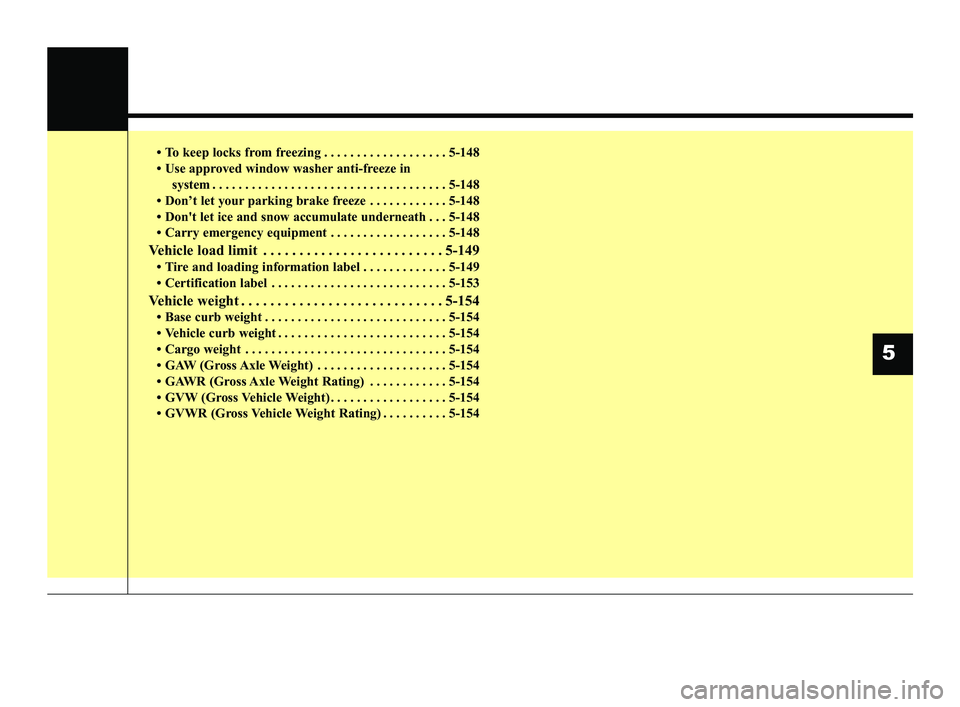

• To keep locks from freezing . . . . . . . . . . . . . . . . . . . 5-148
• Use approved window washer anti-freeze in system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
5-148
• Don’t let your parking brake freeze . . . . . . . . . . . . 5-148
• Don't let ice and snow accumulate underneath . . . 5-148
• Carry emergency equipment . . . . . . . . . . . . . . . . . . 5-148
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . 5-149
• Tire and loading information label . . . . . . . . . . . . . 5-149
• Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-154
• Base curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-154
• Vehicle curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . 5-154
• Cargo weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-154
• GAW (Gross Axle Weight) . . . . . . . . . . . . . . . . . . . . 5-154
• GAWR (Gross Axle Weight Rating) . . . . . . . . . . . . 5-154
• GVW (Gross Vehicle Weight) . . . . . . . . . . . . . . . . . . 5-154
• GVWR (Gross Vehicle Weight Rating) . . . . . . . . . . 5-154
5
JFa PE USA 5.QXP 5/17/2018 6:09 PM Page 3

Driving your vehicle
45

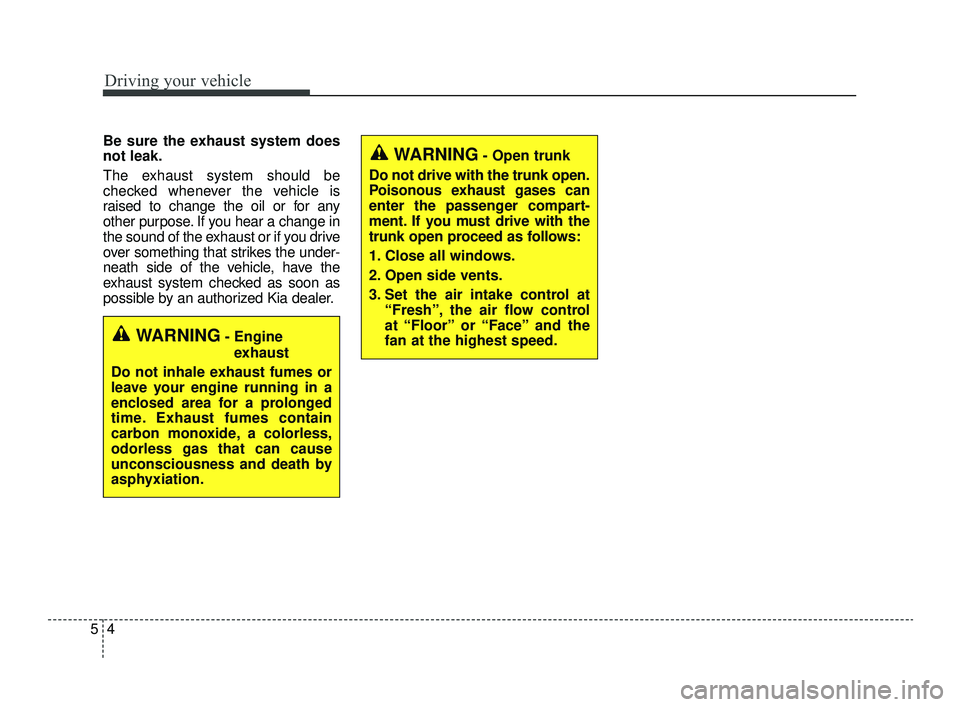

Be sure the exhaust system does
not leak.
The exhaust system should be
checked whenever the vehicle is
raised to change the oil or for any
other purpose. If you hear a change in
the sound of the exhaust or if you drive
over something that strikes the under-
neath side of the vehicle, have the
exhaust system checked as soon as
possible by an authorized Kia dealer.
WARNING- Engineexhaust
Do not inhale exhaust fumes or
leave your engine running in a
enclosed area for a prolonged
time. Exhaust fumes contain
carbon monoxide, a colorless,
odorless gas that can cause
unconsciousness and death by
asphyxiation.
WARNING- Open trunk
Do not drive with the trunk open.
Poisonous exhaust gases can
enter the passenger compart-
ment. If you must drive with the
trunk open proceed as follows:
1. Close all windows.
2. Open side vents.
3. Set the air intake control at “Fresh”, the air flow control
at “Floor” or “Face” and the
fan at the highest speed.
JFa PE USA 5.QXP 6/15/2018 1:45 PM Page 4

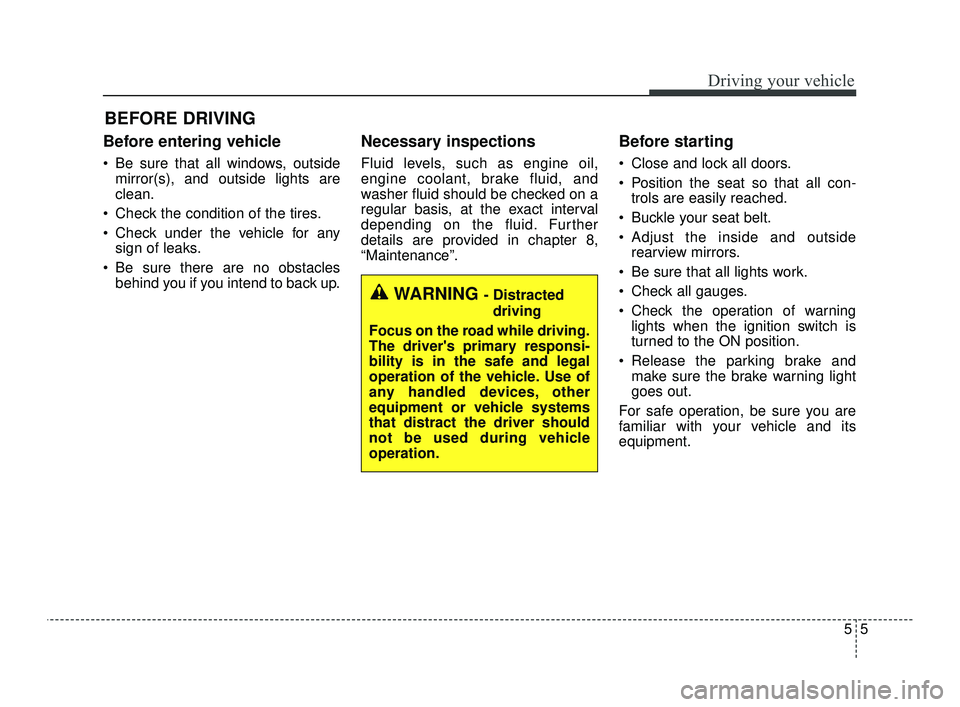

55
Driving your vehicle
Before entering vehicle
• Be sure that all windows, outsidemirror(s), and outside lights are
clean.
Check the condition of the tires.
Check under the vehicle for any sign of leaks.
Be sure there are no obstacles behind you if you intend to back up.
Necessary inspections
Fluid levels, such as engine oil,
engine coolant, brake fluid, and
washer fluid should be checked on a
regular basis, at the exact interval
depending on the fluid. Further
details are provided in chapter 8,
“Maintenance”.
Before starting
Close and lock all doors.
Position the seat so that all con-trols are easily reached.
Buckle your seat belt.
Adjust the inside and outside rearview mirrors.
Be sure that all lights work.
Check all gauges.
Check the operation of warning lights when the ignition switch is
turned to the ON position.
Release the parking brake and make sure the brake warning light
goes out.
For safe operation, be sure you are
familiar with your vehicle and its
equipment.
BEFORE DRIVING
WARNING - Distracted driving
Focus on the road while driving.
The driver's primary responsi-
bility is in the safe and legal
operation of the vehicle. Use of
any handled devices, other
equipment or vehicle systems
that distract the driver should
not be used during vehicle
operation.
JFa PE USA 5.QXP 5/17/2018 6:09 PM Page 5

Driving your vehicle
65
WARNING- Check sur-roundings
Always check the surrounding
areas near your vehicle for peo-
ple, especially children, before
putting a vehicle into D (Drive)
or R (Reverse).
WARNING- Fire risk
When you intend to park or stop
the vehicle with the engine on,
be careful not to depress the
accelerator pedal for a long
period of time. It may overheat
the engine or exhaust system
and cause fire.WARNING- Loose objects
Securely store items in your
vehicle. When you make a sud-
den stop or turn the steering
wheel rapidly, loose objects
may drop on the floor and it
could interfere with the opera-
tion of the foot pedals, possibly
causing an accident.
WARNING- Driving while intoxicated
Do not drive while intoxicated.
Drinking and driving is danger-
ous. Even a small amount of
alcohol will affect your reflexes,
perceptions and judgment.
Driving while under the influ-
ence of drugs is as dangerous
as or more dangerous than driv-
ing drunk.
WARNING- Proper footwear
Always wear appropriate shoes
when operating your vehicle.
Unsuitable shoes (high heels, ski
boots, sandals, etc.) may inter-
fere with your ability to use the
brake and accelerator pedals.
JFa PE USA 5.QXP 5/17/2018 6:09 PM Page 6

57
Driving your vehicle
Illuminated ignition switch
Whenever a front door is opened, the
ignition switch will illuminate for your
convenience, provided the ignition
switch is not in the ON position. The
light will go off immediately when the
ignition switch is turned on. It will
also go off after about 30 seconds
when the door is closed.
Ignition switch position
LOCK
The ignition key can be removed only
in the LOCK position.
ACC (Accessory)
The electrical accessories are opera-
tive. If difficulty is experienced turn-
ing the ignition switch to the ACC
position, turn the key while turning
the steering wheel right and left to
release the tension.
ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.
Do not leave the ignition switch ON ifthe engine is not running to preventbattery discharge.
START
Turn the ignition switch to the START
position to start the engine. The
engine will crank until you release
the key; then it returns to the ON
position. The brake warning light can
be checked in this position.
KEY POSITIONS (IF EQUIPPED)
OJFC055217
OJF055172L
JFa PE USA 5.QXP 5/17/2018 6:09 PM Page 7

Driving your vehicle
85
The anti-theft steering column lock (if
equipped) is not a substitute for the
parking brake. Before leaving the dri-
ver’s seat, always make sure the shift
lever is engaged in P (Park) for auto-
matic transaxle, set the parking
brake fully and shut the engine off.
Unexpected and sudden vehicle
movement may occur if these pre-
cautions are not taken.
WARNING- Key holder
Do not attach small purses,
multiple keys, or any other
heavy accessories to the dri-
ver's key chain used to start the
vehicle. It is possible for the
driver to accidently cause the
key inserted in the vehicle to
change the ignition position to
the ACC position while the vehi-
cle is moving thereby increas-
ing the risk of an accident and
causing the deactivation of sev-
eral safety features.WARNING- Leaving the Vehicle
To avoid unexpected or sudden
vehicle movement, never leave
your vehicle if the transmission
is not locked in the P (Park)
position and the parking brake
is fully engaged. Before leaving
the driver's seat, always make
sure the shift lever is engaged in
P (Park), set the parking brake
fully and shut the engine off.
WARNING- Ignition switch
Never turn the ignition switch to
LOCK or ACC while the vehicle
is moving. This would result in
loss of directional control and
braking function, which could
cause an accident.
JFa PE USA 5.QXP 5/17/2018 6:09 PM Page 8
