Features of your vehicle
110
4
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
✽ ✽
NOTICE
If an indicator flash is abnormally
quick or slow, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit.
Check headlight
This warning message illuminates if
there is a malfunction (burned-out
bulb except LED lamp or circuit mal-
function) with the headlamp. In this
case, have your vehicle inspected by
an authorized Kia dealer.
✽ ✽NOTICE
• When replacing the bulb, use the
same wattage bulb.
For more information, refer to
“BULB WATTAGE” in chapter 8.
• If a different wattage bulb is installed on the vehicle, this warn-
ing message is not displayed.
Front fog light (if equipped)
Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc. The
fog lights will turn on when the fog light
switch (1) is turned to the on position
after the headlights are turned on.
To turn off the fog lights, turn the
switch (1) to the off position.
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog
lights when visibility is poor.
OJF045058OJFA055274
JFa PE USA 4.qxp 5/18/2018 7:23 PM Page 110

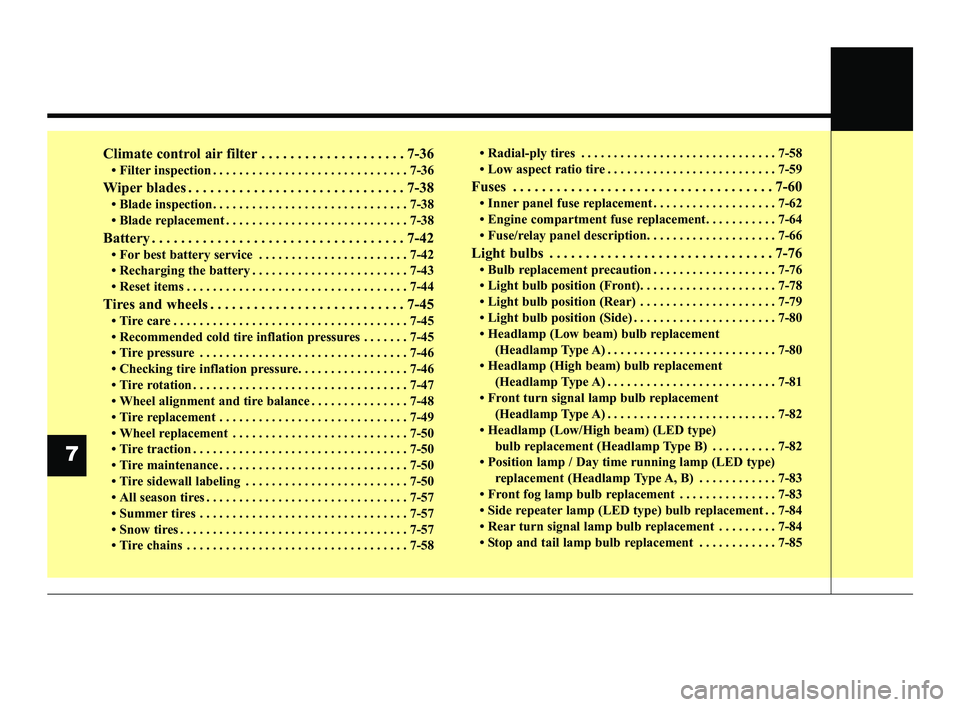

Climate control air filter . . . . . . . . . . . . . . . . . . . . 7-36
• Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
42
• For best battery service . . . . . . . . . . . . . . . . . . . . . . . 7-42
• Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44\
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
• Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-45
• Recommended cold tire inflation pressures . . . . . . . 7-45
• Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46
• Checking tire inflation pressure. . . . . . . . . . . . . . . . . 7-46
• Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
• Wheel alignment and tire balance . . . . . . . . . . . . . . . 7-48
• Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
• Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
57
• Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58\
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-59
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-60
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 7-62
• Engine compartment fuse replacement. . . . . . . . . . . 7-64
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 7-66
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . . 7-76
• Light bulb position (Front). . . . . . . . . . . . . . . . . . . . . 7-78
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 7-80
• Headlamp (Low beam) bulb replacement
(Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
• Headlamp (High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
• Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) . . . . . . . . . . 7-82
• Position lamp / Day time running lamp (LED type) replacement (Headlamp Type A, B) . . . . . . . . . . . . 7-83
• Front fog lamp bulb replacement . . . . . . . . . . . . . . . 7-83
• Side repeater lamp (LED type) bulb replacement . . 7-84
• Rear turn signal lamp bulb replacement . . . . . . . . . 7-84
• Stop and tail lamp bulb replacement . . . . . . . . . . . . 7-85
7
JFa PE USA 7.qxp 5/17/2018 6:33 PM Page 2

Maintenance
76
7

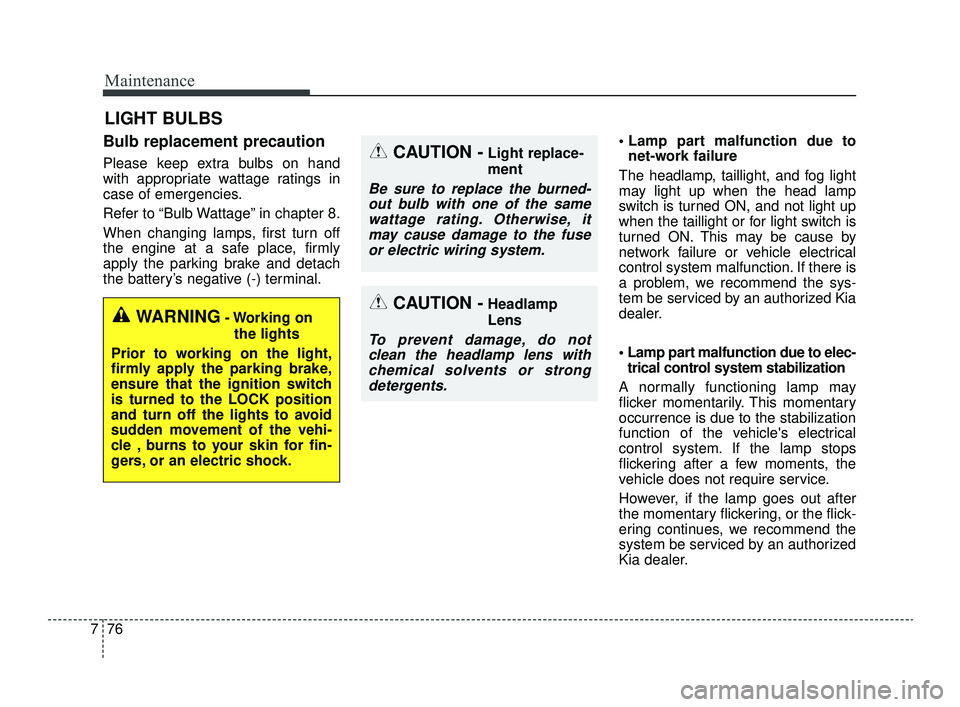

LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
net-work failure
The headlamp, taillight, and fog light
may light up when the head lamp
switch is turned ON, and not light up
when the taillight or for light switch is
turned ON. This may be cause by
network failure or vehicle electrical
control system malfunction. If there is
a problem, we recommend the sys-
tem be serviced by an authorized Kia
dealer.
trical control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to the stabilization
function of the vehicle's electrical
control system. If the lamp stops
flickering after a few moments, the
vehicle does not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
Kia dealer.
WARNING- Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle , burns to your skin for fin-
gers, or an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.
JFa PE USA 7.qxp 5/17/2018 6:36 PM Page 76

Maintenance
78
7

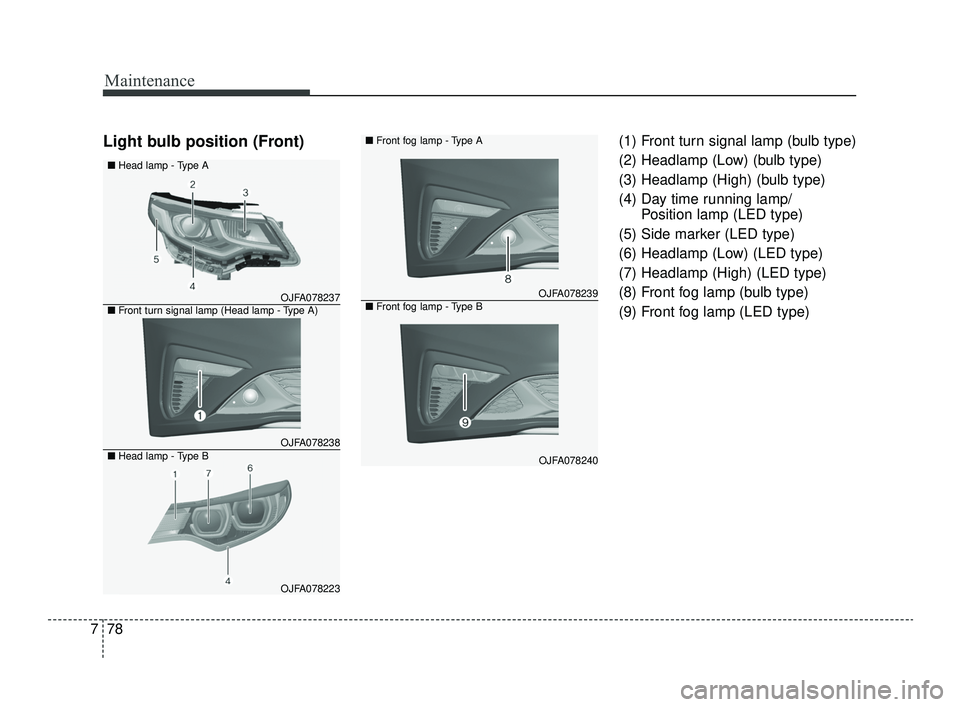

Light bulb position (Front) (1) Front turn signal lamp (bulb type)
(2) Headlamp (Low) (bulb type)
(3) Headlamp (High) (bulb type)
(4) Day time running lamp/
Position lamp (LED type)
(5) Side marker (LED type)
(6) Headlamp (Low) (LED type)
(7) Headlamp (High) (LED type)
(8) Front fog lamp (bulb type)
(9) Front fog lamp (LED type)
OJFA078237
OJFA078238
OJFA078223
■ Head lamp - Type A
■ Front turn signal lamp (Head lamp - Type A)
■Head lamp - Type B
OJFA078239
OJFA078240
■Front fog lamp - Type A
■Front fog lamp - Type B
JFa PE USA 7.qxp 5/17/2018 6:36 PM Page 78

83
Specifications, Consumer information, Reporting safety defects

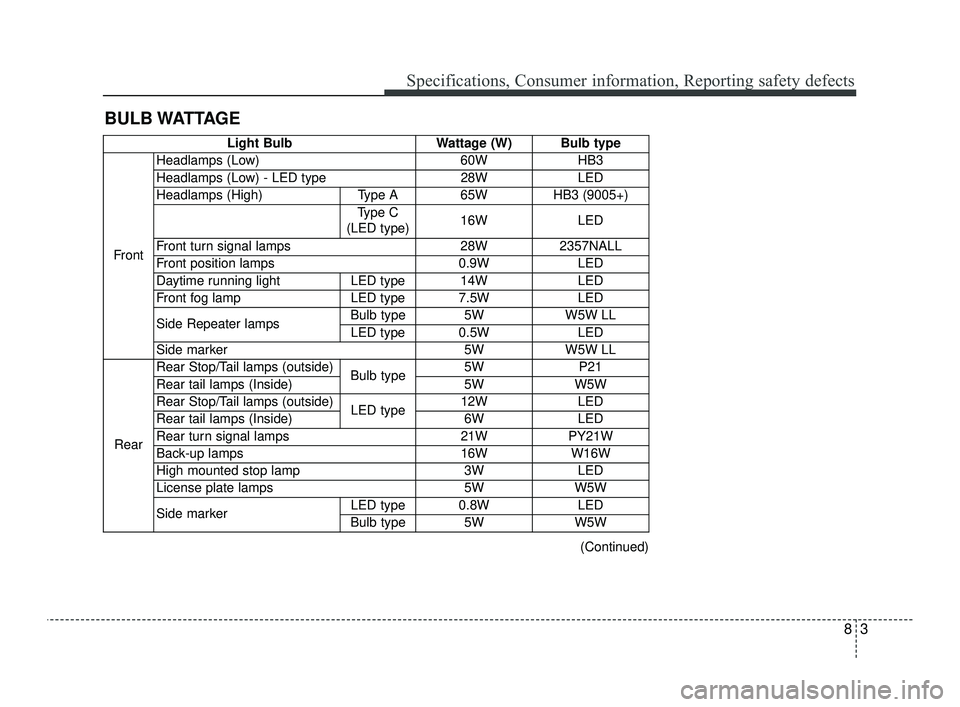

BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low)
60WHB3
Headlamps (Low) - LED type 28WLED
Headlamps (High) Type A 65W HB3 (9005+)
Type C
(LED type) 16W
LED
Front turn signal lamps 28W2357NALL
Front position lamps 0.9WLED
Daytime running light LED type 14W LED
Front fog lamp LED type 7.5W LED
Side Repeater lamps Bulb type 5W
W5W LL
LED type0.5WLED
Side marker5WW5W LL
Rear Rear Stop/Tail lamps (outside)
Bulb type5W P21
Rear tail lamps (Inside) 5W W5W
Rear Stop/Tail lamps (outside) LED type12W LED
Rear tail lamps (Inside) 6W LED
Rear turn signal lamps 21W PY21W
Back-up lamps 16W W16W
High mounted stop lamp 3W LED
License plate lamps 5W W5W
Side marker LED type 0.8W LED
Bulb type 5W W5W
(Continued)
JFa PE USA 8.qxp 5/17/2018 6:42 PM Page 3

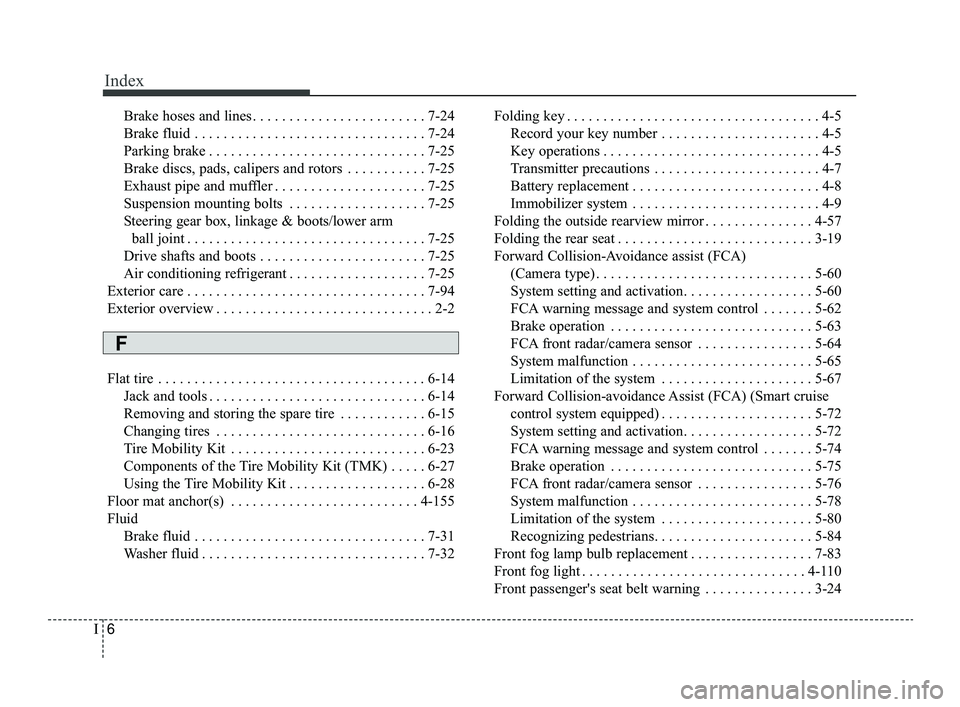

Index
6I
Brake hoses and lines . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
Brake discs, pads, calipers and rotors . . . . . . . . . . . 7-25
Exhaust pipe and muffler . . . . . . . . . . . . . . . . . . . . . 7-25
Suspension mounting bolts . . . . . . . . . . . . . . . . . . . 7-25
Steering gear box, linkage & boots/lower arm ball joint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
Drive shafts and boots . . . . . . . . . . . . . . . . . . . . . . . 7-25
Air conditioning refrigerant . . . . . . . . . . . . . . . . . . . 7-25
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-94
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Flat tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-14 Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Removing and storing the spare tire . . . . . . . . . . . . 6-15
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Components of the Tire Mobility Kit (TMK) . . . . . 6-27
Using the Tire Mobility Kit . . . . . . . . . . . . . . . . . . . 6-28
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Fluid Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Folding key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
5
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-5
Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-7
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-57
Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Forward Collision-Avoidance assist (FCA) (Camera type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-60
System setting and activation. . . . . . . . . . . . . . . . . . 5-60
FCA warning message and system control . . . . . . . 5-62
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-63
FCA front radar/camera sensor . . . . . . . . . . . . . . . . 5-64
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-67
Forward Collision-avoidance Assist (FCA) (Smart cruise control system equipped) . . . . . . . . . . . . . . . . . . . . . 5-72
System setting and activation. . . . . . . . . . . . . . . . . . 5-72
FCA warning message and system control . . . . . . . 5-74
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-75
FCA front radar/camera sensor . . . . . . . . . . . . . . . . 5-76
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-78
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-80
Recognizing pedestrians. . . . . . . . . . . . . . . . . . . . . . 5-84
Front fog lamp bulb replacement . . . . . . . . . . . . . . . . . 7-83
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Front passenger's seat belt warning . . . . . . . . . . . . . . . 3-24
F
JFa PE USA Index.qxp 5/17/2018 6:44 PM Page 6

I9
Index
LabelTire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-50
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-10
Tire specification and pressure label . . . . . . . . . . . . 8-11
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Lane Keeping Assist (LKA) System . . . . . . . . . . . . . 5-125 LKA system operation . . . . . . . . . . . . . . . . . . . . . . 5-126
Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . 5-131
LKA system malfunction . . . . . . . . . . . . . . . . . . . . 5-132
LKA system function change . . . . . . . . . . . . . . . . . 5-133
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65 LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Trip computer mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Assist mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Master warning mode. . . . . . . . . . . . . . . . . . . . . . . . 4-68
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65\
License plate lamp bulb replacement . . . . . . . . . . . . . . 7-89
Light bulb position (front) . . . . . . . . . . . . . . . . . . . . . . 7-78
Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . . . 7-80
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76\
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 7-76
Light bulb position (front) . . . . . . . . . . . . . . . . . . . . 7-78 Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (Low beam) bulb replacement
(Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-81
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) . . . . . . . . . . . . . . 7-82
Position lamp/Day time running lamp (LED type) replacement (Headlamp Type A, B) . . . . . . . . . . . 7-83
Front fog lamp bulb replacement . . . . . . . . . . . . . . . 7-83
Side repeater lamp (LED type) bulb replacement . . 7-84
Rear turn signal lamp bulb replacement . . . . . . . . . 7-84
Stop and tail lamp bulb replacement . . . . . . . . . . . . 7-85
Stop and tail lamp (LED type) bulb replacement . . 7-87
Back-up lamp bulb replacement . . . . . . . . . . . . . . . 7-87
Tail lamp bulb replacement . . . . . . . . . . . . . . . . . . . 7-88
License plate lamp bulb replacement. . . . . . . . . . . . 7-89
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-90
Map lamp bulb replacement. . . . . . . . . . . . . . . . . . . 7-90
Vanity mirror lamp bulb replacement . . . . . . . . . . . 7-91
Room lamp bulb replacement . . . . . . . . . . . . . . . . . 7-91
Personal lamp (LED type) bulb replacement. . . . . . 7-92
Glove box lamp bulb replacement . . . . . . . . . . . . . . 7-92
Trunk lamp bulb replacement . . . . . . . . . . . . . . . . . 7-93
L
JFa PE USA Index.qxp 5/17/2018 6:44 PM Page 9

Index
10I
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-103Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-103
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-103
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-105
High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Turn signals and lane change signals . . . . . . . . . . . 4-109
Headlight leveling device . . . . . . . . . . . . . . . . . . . . 4-111
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Dynamic Bending Light (DBL) . . . . . . . . . . . . . . . 4-111
Loss of the smart key (Smart key) . . . . . . . . . . . . . . . . 4-14
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Maintenance Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Scheduled maintenance service . . . . . . . . . . . . . . . . 7-10
Explanation of scheduled maintenance items . . . . . 7-22
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50 Maintenance schedule. . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Normal maintenance schedule - Non turbo models . . 7-11
Maintenance under severe usage conditions - Non turbo models . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Normal maintenance schedule - Turbo models . . . . 7-16
Maintenance under severe usage conditions - Turbo models . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6 Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Owner maintenance precautions . . . . . . . . . . . . . . . . 7-7
Manual climate control system. . . . . . . . . . . . . . . . . . 4-121 Heating and air conditioning . . . . . . . . . . . . . . . . . 4-122
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-129
Air Conditioning refrigerant label . . . . . . . . . . . . . 4-129
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . . . . . . . . . . . . 4-130
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Map lamp bulb replacement . . . . . . . . . . . . . . . . . . . . . 7-90
Master warning mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-53 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-53
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . 4-53
Electro Chromic Mirror (ECM) . . . . . . . . . . . . . . . . 4-54
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-55
Adjusting outside rearview mirror . . . . . . . . . . . . . . 4-56
Reverse parking aid function . . . . . . . . . . . . . . . . . . 4-56
Folding the outside rearview mirror . . . . . . . . . . . . 4-57
M
JFa PE USA Index.qxp 5/17/2018 6:44 PM Page 10

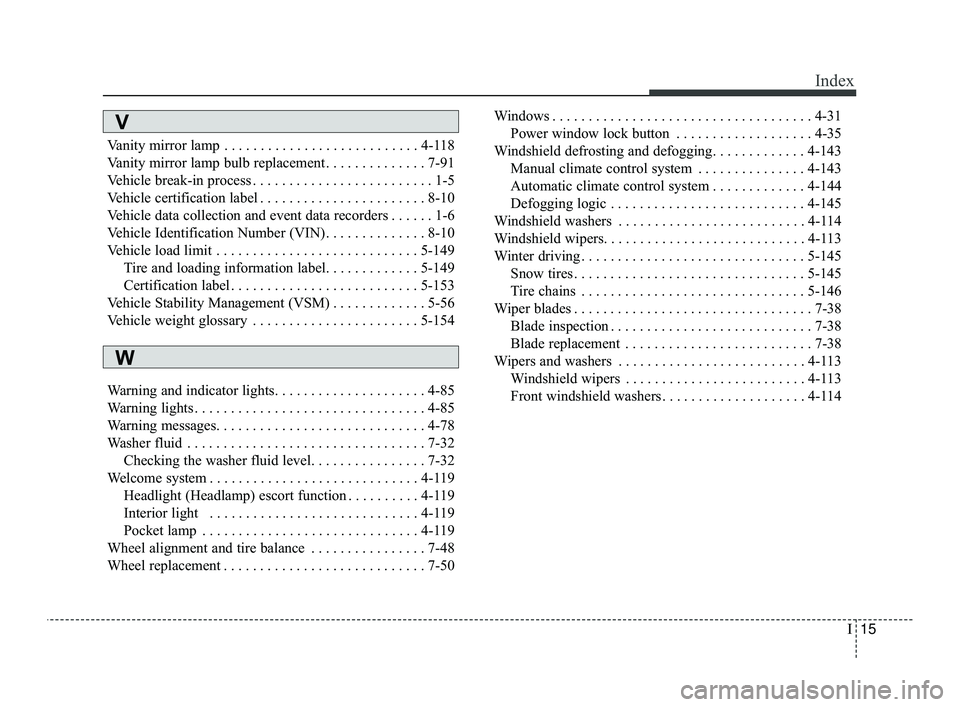

I15
Index
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Vanity mirror lamp bulb replacement. . . . . . . . . . . . . . 7-91
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . 8-10
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle Identification Number (VIN). . . . . . . . . . . . . . 8-10
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-149Tire and loading information label. . . . . . . . . . . . . 5-149
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153
Vehicle Stability Management (VSM) . . . . . . . . . . . . . 5-56
Vehicle weight glossary . . . . . . . . . . . . . . . . . . . . . . . 5-154
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-85
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-78
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Checking the washer fluid level. . . . . . . . . . . . . . . . 7-32
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119 Headlight (Headlamp) escort function . . . . . . . . . . 4-119
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 7-48
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-31
Power window lock button . . . . . . . . . . . . . . . . . . . 4-35
Windshield defrosting and defogging. . . . . . . . . . . . . 4-143 Manual climate control system . . . . . . . . . . . . . . . 4-143
Automatic climate control system . . . . . . . . . . . . . 4-144
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Windshield wipers. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-145 Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-145
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-146
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113 Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Front windshield washers . . . . . . . . . . . . . . . . . . . . 4-114
W
V
JFa PE USA Index.qxp 5/17/2018 6:44 PM Page 15
