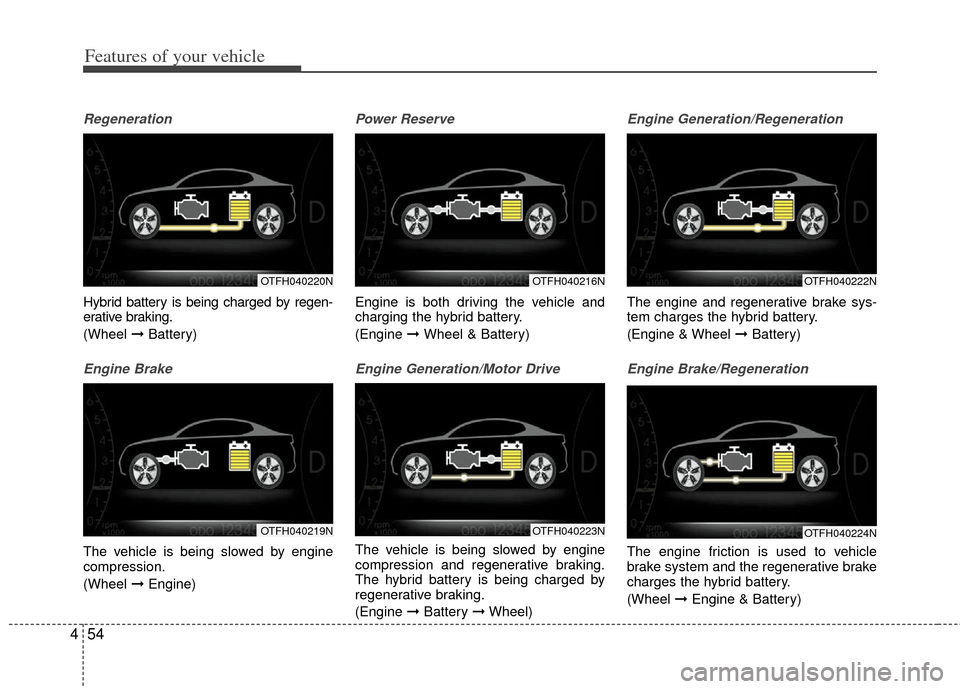

Features of your vehicle
54
4
Regeneration
Hybrid battery is being charged by regen-
erative braking.
(Wheel ➞Battery)
Engine Brake
The vehicle is being slowed by engine
compression.
(Wheel ➞Engine)
Power Reserve
Engine is both driving the vehicle and
charging the hybrid battery.
(Engine ➞ Wheel & Battery)
Engine Generation/Motor Drive
The vehicle is being slowed by engine
compression and regenerative braking.
The hybrid battery is being charged by
regenerative braking.
(Engine ➞Battery ➞Wheel)
Engine Generation/Regeneration
The engine and regenerative brake sys-
tem charges the hybrid battery.
(Engine & Wheel ➞ Battery)
Engine Brake/Regeneration
The engine friction is used to vehicle
brake system and the regenerative brake
charges the hybrid battery.
(Wheel ➞Engine & Battery)
OTFH040219NOTFH040223N
OTFH040222NOTFH040216NOTFH040220N
OTFH040224N

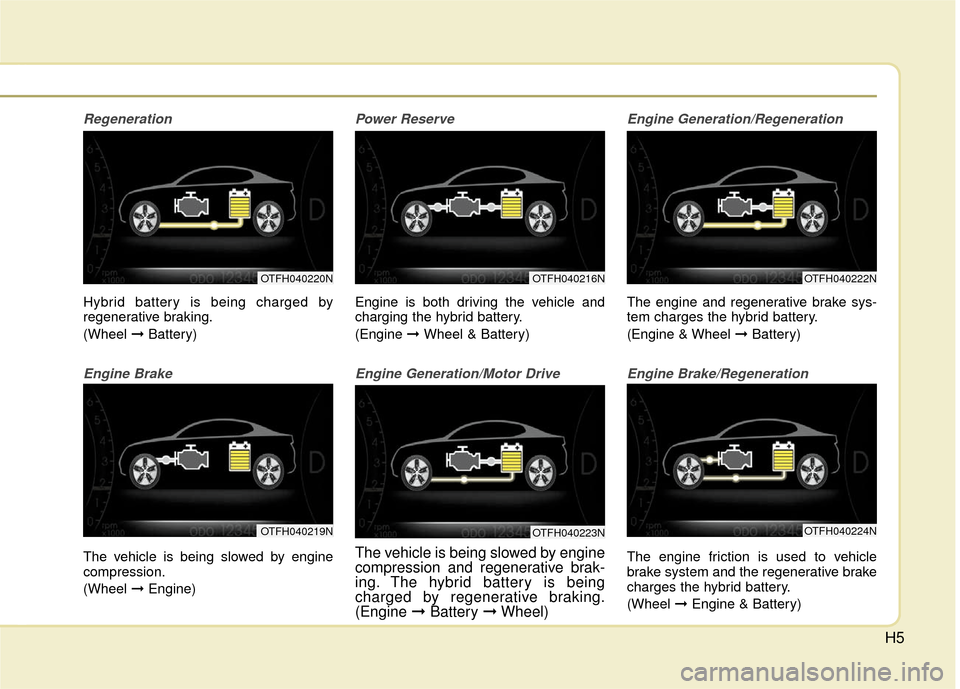

H5
Regeneration
Hybrid battery is being charged by
regenerative braking.
(Wheel ➞Battery)
Engine Brake
The vehicle is being slowed by engine
compression.
(Wheel ➞Engine)
Power Reserve
Engine is both driving the vehicle and
charging the hybrid battery.
(Engine ➞ Wheel & Battery)
Engine Generation/Motor Drive
The vehicle is being slowed by engine
compression and regenerative brak-
ing. The hybrid battery is being
charged by regenerative braking.
(Engine ➞Battery ➞Wheel)
Engine Generation/Regeneration
The engine and regenerative brake sys-
tem charges the hybrid battery.
(Engine & Wheel ➞ Battery)
Engine Brake/Regeneration
The engine friction is used to vehicle
brake system and the regenerative brake
charges the hybrid battery.
(Wheel ➞Engine & Battery)
OTFH040219NOTFH040223N
OTFH040222NOTFH040216NOTFH040220N
OTFH040224N
