trunk release KIA Optima Hybrid 2011 3.G Owner's Manual

Your vehicle at a glance
22

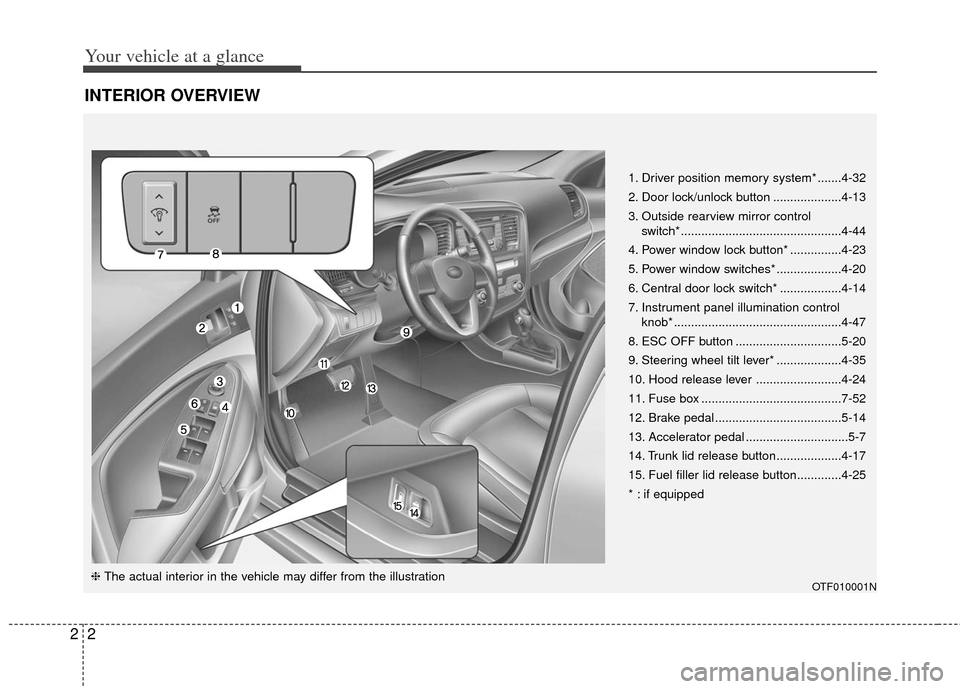

INTERIOR OVERVIEW
1. Driver position memory system* .......4-32
2. Door lock/unlock button ....................4-13
3. Outside rearview mirror control switch* ...............................................4-44
4. Power window lock button* ...............4-23
5. Power window switches* ...................4-20
6. Central door lock switch* ..................4-14
7. Instrument panel illumination control knob* .................................................4-47
8. ESC OFF button ...............................5-20
9. Steering wheel tilt lever* ...................4-35
10. Hood release lever .........................4-24
11. Fuse box .........................................7-52
12. Brake pedal .....................................5-14
13. Accelerator pedal ..............................5-7
14. Trunk lid release button...................4-17
15. Fuel filler lid release button.............4-25
* : if equipped
OTF010001N❈ The actual interior in the vehicle may differ from the illustration

417
Features of your vehicle

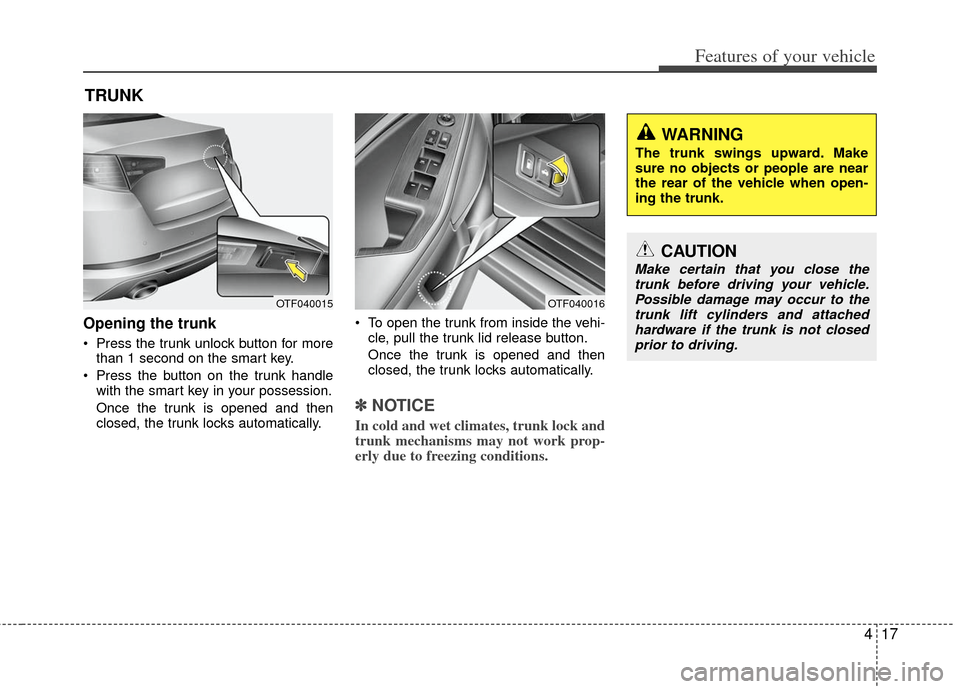

Opening the trunk
Press the trunk unlock button for morethan 1 second on the smart key.
Press the button on the trunk handle with the smart key in your possession.
Once the trunk is opened and then
closed, the trunk locks automatically. To open the trunk from inside the vehi-
cle, pull the trunk lid release button.
Once the trunk is opened and then
closed, the trunk locks automatically.
✽ ✽ NOTICE
In cold and wet climates, trunk lock and
trunk mechanisms may not work prop-
erly due to freezing conditions.
TRUNK
OTF040016OTF040015
CAUTION
Make certain that you close the
trunk before driving your vehicle.Possible damage may occur to thetrunk lift cylinders and attached hardware if the trunk is not closedprior to driving.
WARNING
The trunk swings upward. Make
sure no objects or people are near
the rear of the vehicle when open-
ing the trunk.

Features of your vehicle
18
4

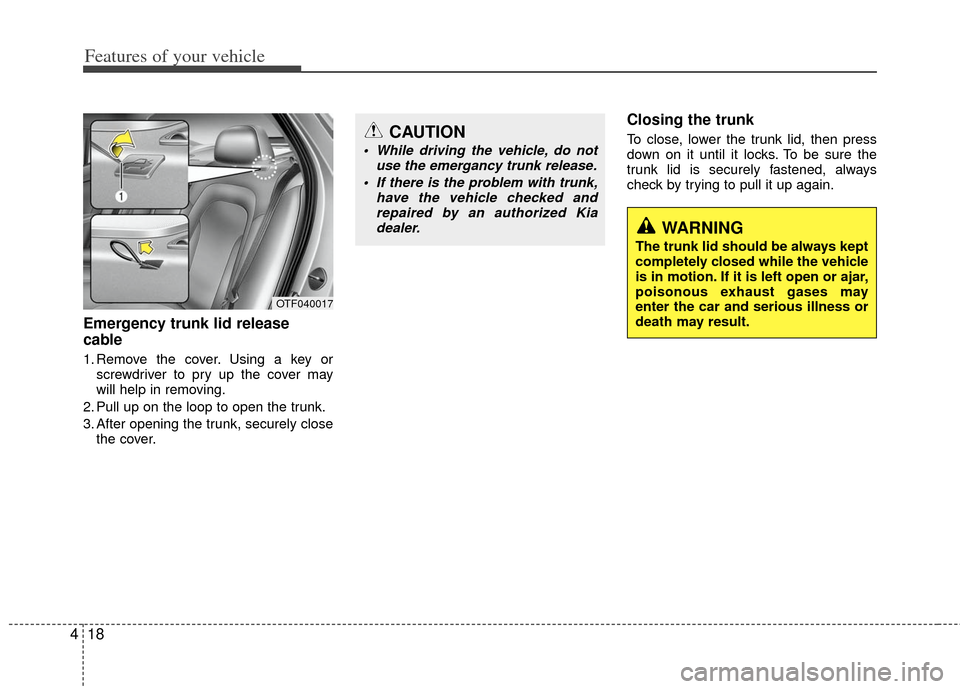

Emergency trunk lid release
cable
1. Remove the cover. Using a key or
screwdriver to pry up the cover may
will help in removing.
2. Pull up on the loop to open the trunk.
3. After opening the trunk, securely close the cover.
Closing the trunk
To close, lower the trunk lid, then press
down on it until it locks. To be sure the
trunk lid is securely fastened, always
check by trying to pull it up again.
OTF040017
CAUTION
• While driving the vehicle, do not use the emergancy trunk release.
If there is the problem with trunk, have the vehicle checked andrepaired by an authorized Kiadealer.
WARNING
The trunk lid should be always kept
completely closed while the vehicle
is in motion. If it is left open or ajar,
poisonous exhaust gases may
enter the car and serious illness or
death may result.

419
Features of your vehicle

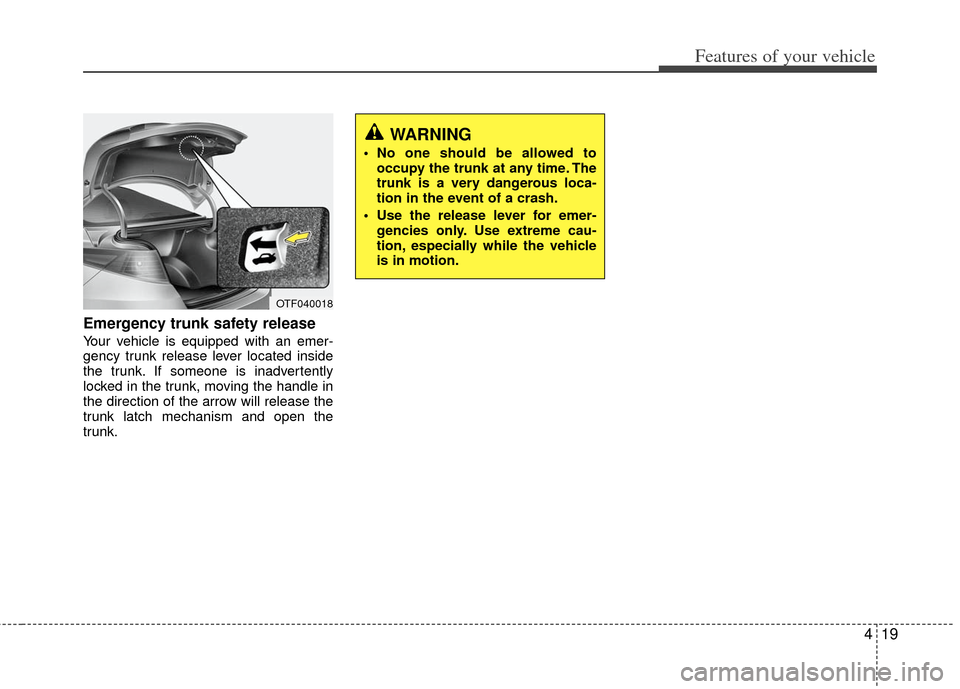

Emergency trunk safety release
Your vehicle is equipped with an emer-
gency trunk release lever located inside
the trunk. If someone is inadvertently
locked in the trunk, moving the handle in
the direction of the arrow will release the
trunk latch mechanism and open the
trunk.
WARNING
No one should be allowed tooccupy the trunk at any time. The
trunk is a very dangerous loca-
tion in the event of a crash.
Use the release lever for emer- gencies only. Use extreme cau-
tion, especially while the vehicle
is in motion.
OTF040018
