bluetooth KIA OPTIMA HYBRID 2015 Navigation System Quick Reference Guide

Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
•
Set the volume to a level which allows the driver to be aware of external conditions.
•
Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without HYUNDAI MnSoft, Inc's prior written consent.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Infinity is a trademark of Harman International Industries, Inc.
• At launch, the Apple iPhone® will be the only UVO eServices compatible device. iPhone®
is a registered trademark of Apple Inc.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.
,@5'&@(<&/>
23(
$07&3JOEE


 ,@5'&@(<&/>
23(
$07&3JOEE




Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
•
Set the volume to a level which allows the driver to be aware of external conditions.
•
Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without HYUNDAI MnSoft, Inc's prior written consent.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Infinity is a trademark of Harman International Industries, Inc.
• At launch, the Apple iPhone® will be the only UVO eServices compatible device. iPhone®
is a registered trademark of Apple Inc.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.
,@5'&@(<&/>
23(
$07&3JOEE


 ,@5'&@(<&/>
23(
$07&3JOEE




1
0037
Table OF Contents
1
Controls and Functions
2
On-Screen Touch Controls
6
Setup
8
Home Screen
9
FM/AM
11
About HD Radio™ Technology
13
SiriusXM™ Mode
14
CD Mode
17
Using MP3 Mode
19
USB Music
21
USB Image
23
iPod
24
AUX
26

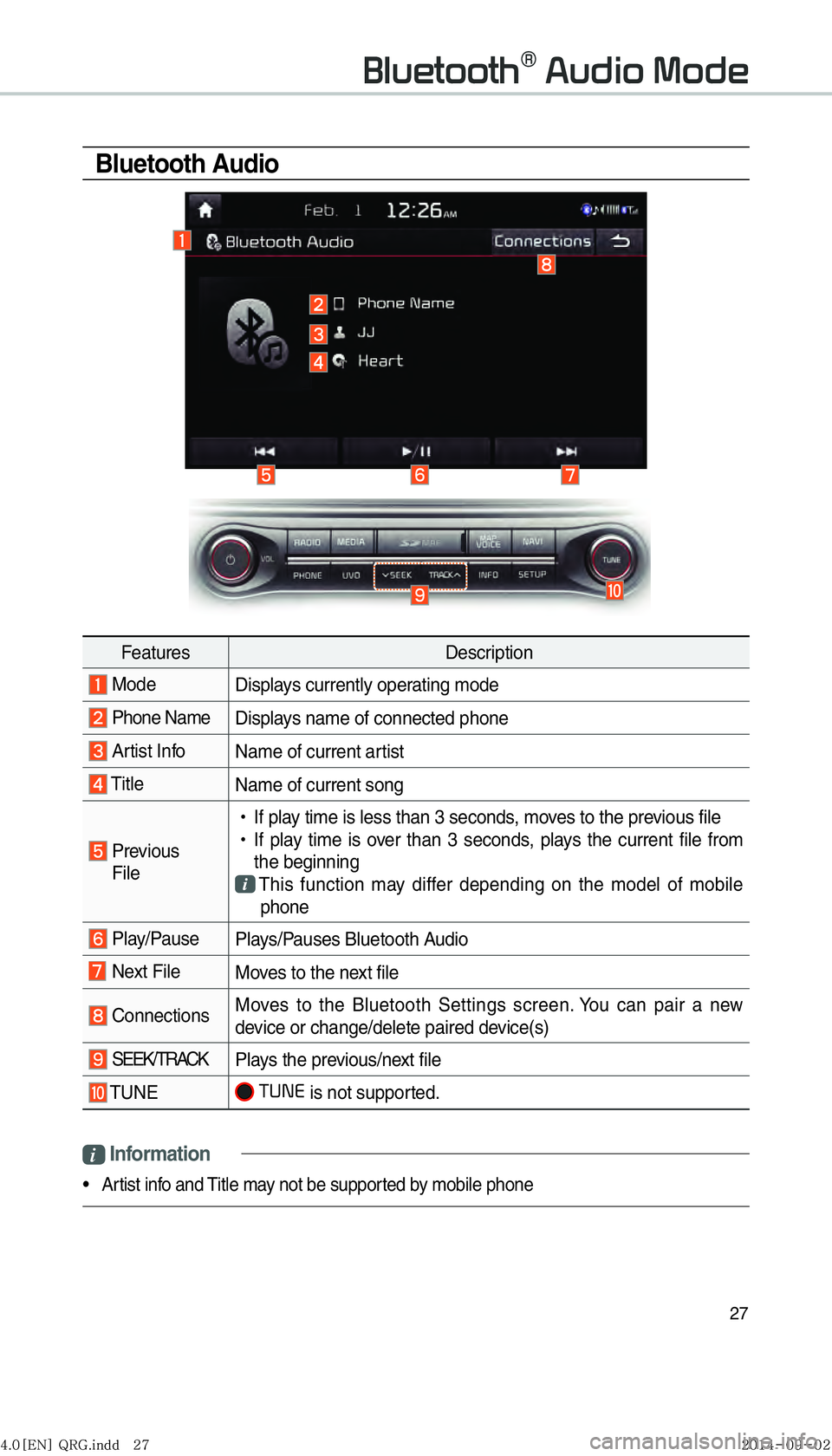

Bluetooth® Audio Mode
27
My Music
28
Using Bluetooth
30
Voice Recognition
35
FAQ
47
Pandora Radio
49
Download Center
50
SiriusXM Data
52
Navigation
58
,@5'&@(<&/>
23(JOEE


<&/>
23(JOEE





ß
1



2
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
Head Unit
NameDescription
003500240027002C0032Converts to FM/AM/SiriusXM™ mode

!Ÿ
Each time the key is pressed, the mode is changed in order of
FM →
AM →
SiriusXM™ →
FM
003000280027002C0024
Converts to MEDIA mode

!Ÿ
If the media is not connected or is or CD player not available for
Model, Media mode will not be activated.

!Ÿ
Press this key to move to the last mode that you accessed in
Media. Press it once again to display the screen where you can
select a Media mode.
003000240033
00390032002C00260028Displays the map for the current position
00310024Takes you to the menu screen where you can find your destination and
set the route.
0003003600280028002E
0037003500240026002E0003
When key is pressed shortly. (under 0.8 seconds)

!Ÿ
FM/AM mode : plays previous/next frequency

!Ÿ
SiriusXM™ mode : plays the previous/next channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : changes the track, file
or chapter (except USB Image and AUX)
When key is pressed and held. (over 0.8 seconds)
!Ÿ
FM/AM mode : continuously changes the frequency until the key
is released SiriusXM™ mode : continuously changes the channel
until the key is released and plays the current channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : rewinds or fastforwards
the track or file (except USB Image, Bluetooth Audio and AUX)
,@5'&@(<&/>
23(JOEE


 <&/>
23(JOEE





ß
1


3
NameDescription
0033002B003200310028Takes user to home phone screen
003800390032Displays the UVO mode
002C003100290032Displays the information mode
00360028003700380033
!Ÿ
Displays the Setup mode
000300330032003A00280035
001200390032002F

!Ÿ
When power is off, press to turn power on

!Ÿ
When power is on, press and hold (over 0.8 seconds) to turn
power off

!Ÿ
When power is on, press shortly (under 0.8 seconds) to turn
Audio off

!Ÿ
Turn left/right to control volume
00030037003800310028

!Ÿ
FM/AM mode : changes the frequency

!Ÿ
SiriusXM™ mode : changes the channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : changes the track,
file or title (except USB Image, Bluetooth Audio and AUX)
00350028003600280037Resets the system settings. (Preset radio channels and other
data will not be deleted.)
SD Card insert slot
,@5'&@(<&/>
23(JOEE


 <&/>
23(JOEE





ß
1


4
Steering Wheel Remote Controller
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
NameDescription
0030003800370028The sound stops playing. Press again to unmute.
0030003200270028

!Ÿ
Each time this key is pressed, mode is changed in order of FM
ª AM ª
SiriusXM™ ª
Disc ª

USB Music or iPod ª
AUX ª

Bluetooth Audio ª
My Music

!Ÿ
If the media is not connected, corresponding modes will be dis-
abled

!Ÿ
Press and hold the key (over 0.8 seconds) to turn the Audio
system on/off

!Ÿ
When power is off, press the key to turn power back on
00390032002F000E
00390032002F0010Controls the volume
0003
0003
When keys are pressed shortly. (under 0.8 seconds)

!Ÿ
FM/AM mode : searches broadcast frequencies saved to
Presets

!Ÿ
SiriusXM™ mode : searches broadcast channels saved to
Presets

!Ÿ
MEDIA(Disc/USB/iPod/My Music) mode : changes the track, file
or chapter (except USB Image, AUX)
When keys are pressed and held. (over 0.8 seconds)
!Ÿ
FM/AM Mode : Automatically searches broadcast frequencies

!Ÿ
SiriusXM™ mode : automatically searches broadcast channels

!Ÿ
MEDIA mode : Quickly looks up songs (excluding USB images,
AUX, and Bluetooth audio files)
When pressed shortly. (under 0.8 seconds)

!Ÿ
Activates voice recognition
When pressed and held. (over 0.8 seconds)
!Ÿ
Ends voice recognition

!Ÿ
Activates Siri Eyes Free
,@5'&@(<&/>
23(JOEE


 <&/>
23(JOEE





ß
1


5
NameDescription

When pressed shortly. (under 1.2 seconds)

!Ÿ
When pressed in the dial screen, makes a call

!Ÿ
When pressed in the incoming call screen, answers the call

!Ÿ
When pressed during call waiting, switches to waiting call (Call
Waiting)
When pressed and held. (over 1.2 seconds)
!Ÿ
When pressed in the Bluetooth
® Handsfree, redials the last call

!Ÿ
When pressed during a Bluetooth® Handsfree call, switches call
back to mobile phone (Private)

!Ÿ
When pressed while calling on the mobile phone, switches call
back to Bluetooth
® Handsfree (Operates only when Bluetooth®
Handsfree is connected)

!Ÿ
When pressed during a call, ends the phone call

!Ÿ
When pressed in the incoming call screen, rejects the call
,@5'&@(<&/>
23(JOEE


 <&/>
23(JOEE





ß
1


8
00360048005700580053
Setup is the screen to control sys-
tem settings of the AVN.
To enter the screen, select the
00360028003700380033 key of the device or the
00360048005700580053 button in All menus.
Features Description
NavigationProvides Normal/
Screen/Guidance/
Route/Safety Setting.
SoundProvides the sound
control options for
Position, Bass, Mid,
Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Adjust/
Mode settings.
PhoneProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/System
Bluetooth Information
settings.
UVO
eServices Provides the Activation/
Phone Ringtone/
Traffic
Announcement/
Modem Information
settings.
Features Description
Voice
Recognition Provides the
Guidance and Priority
settings.
Clock
Provides the Time
and View settings.
Wi-FiProvides the Wi-Fi
On and Network
Connection settings.
Language
Provides the Change
Language settings.
KeyboardProvides the Clock
None settings.
Downloaded
Apps Provides the removal
settings for down-
loaded and installed
apps.
Screen Saver
Provides the Clock/
None settings.
System InfoProvides software
and storage space
information.
Display OffProvides the Display
Off (touch activation)
function.
,@5'&@(<&/>
23(JOEE



<&/>
23(JOEE





ß
1


9
002B0052005000480003003600460055004800480051
Controls Menu Confi guration for the Home Screen
Information Display on the Status Bar
Displays the date and time, along with the system status shown by the various
icons to the right of the clock.
The icons in the following table indicate the various types of system status
details and events.
FeaturesDescription
Navigation
Widget
!Ÿ
Provides a brief view of the navigation map and the route screen.

!Ÿ
Touch any area on the screen to move to the navigation screen.
AV Widget
!Ÿ
Shows brief information on the radio media currently playing.

!Ÿ
Touch the area to move to the mode for what you are listening to.
All Menus Shows all of the items in the system menu.
PlacesDirectly moves to the screen where you can search for your destination.
My Menu
!Ÿ
You can add and save up to eight menu items.

!Ÿ
Add your favorite menu items to have quick and easy access to them.
AV-Mute Navigation-
Mute Making a call and Bluetooth connection Wi-Fi
ICON
Description Mute AV
sound Mute
Navogation sound Bluetooth
phone
remaining battery Handsfree
connection Making a
call using
BT phone Bluetooth phone
reception
sensitivity Wi-Fi is connected
ICON
Description Connecting to
music stream Connecting to Wi-Fi
ICON
Description Handsfree+
streaming
connection Mute
Bluetooth phone
microphone
ICON

Description Downloading
contacts/
recent calls
,@5'&@(<&/>
23(JOEE


 <&/>
23(JOEE





ß
1


27
Bluetooth Audio
i Information
• Artist info and Title may not be supported by mobile phone
0025004F005800480057005200520057004B00710003002400580047004C005200030030005200470048
FeaturesDescription
Mode
Displays currently operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous
File
!Ÿ
If play time is less than 3 seconds, moves to the previous file

!Ÿ
If play time is over than 3 seconds, plays the current file from
the beginning
This function may differ depending on the model of mobile
phone
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
ConnectionsMoves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SEEK/TRACK
Plays the previous/next file
TUNE 00370038003100280003
is not supported.
,@5'&@(<&/>
23(JOEE


 <&/>
23(JOEE





ß
1
