LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specified
wattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the engine
start/stop button is in OFF posi-
tion and turn off the lights to
avoid sudden movement of the
vehicle and burning your fingers
or receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

881
Maintenance
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
(1) Front turn signal lamp
(2) Headlamp (Low)
(3) Headlamp (High)
(4) Day time running lamp/Positionlamp (LED type)
(5) Side marker
Light bulb position (Rear)
OJFH076040N
OJFH075180L
OJFH075181L
■Rear combination lamp
■License plate lamp
■High mounted stop lamp
OJFA076135
OJFHP076190N
■ Type A
■Type B

Maintenance
82
8
(1) Rear turn signal lamp
(2) Stop lamp (LED type)
(3) Tail lamp (LED type)
(4) Back-up lamp
(5) Side marker
(6) License plate lamp
(7) High mounted stop lampLight bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (HID type) bulb
replacement (For Hybrid)
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
OJF075039L
WARNING- HID
Headlamp (if equipped)
Do not attempt to replace or
inspect the HID headlamp
(XENON bulb) due to electric
shock danger. If the light bulb
does not operate, have your
vehicle checked by an author-
ized Kia dealer.

883
Maintenance
✽
✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than halo-
gen bulbs depending on their fre-
quency of use. They will probably
require replacement at some point in
the life of the vehicle. Cycling the
headlamps on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID
lamping components are more com-
plex than conventional halogen bulbs
thus have higher replacement cost.
Headlamp (Low beam) bulb
replacement (For Hybrid)
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from bulb-socket by pulling it out. 5. Insert a new bulb by inserting it
into the bulb-socket.
6. Install the bulb-socket in the head- lamp assembly by aligning the
tabs on the bulb-socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.
OJFA075073

Maintenance
84
8
Headlamp bulb Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Headlamp (High beam) bulb
replacement (For Hybrid)
1. Open the hood.
2. Remove the headlamp bulb cover by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
OHD076046
OJFA075076

885
Maintenance
5. Install a new bulb-socket assem-bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.Headlamp (Low/High
beam,LED type) bulb replace-
ment (For Plug-in Hybrid)
If the head lamp (LED) (1,2) does not
operate, have the vehicle checked by
an authorized Kia dealer. The LED
lamps cannot be replaced as a sin-
gle unit because it is an inte grated
unit. The LED lamps has to be
replaced with the unit. A skilled tech-
nician should check or repair the
head lamp (LED), for it may damage
related parts of the vehicle.
Front turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket
OJFA075079OJFHP076231N

Maintenance
86
8
4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly

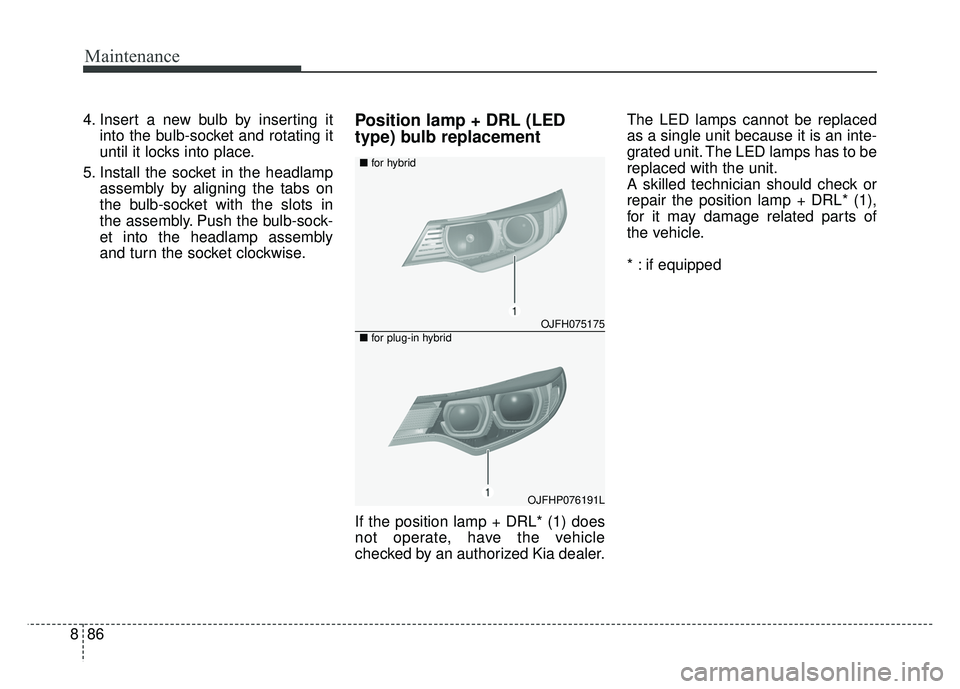

and turn the socket clockwise.Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL* (1) does
not operate, have the vehicle
checked by an authorized Kia dealer. The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the position lamp + DRL* (1),
for it may damage related parts of
the vehicle.
* : if equipped
OJFH075175
OJFHP076191L
■
for hybrid
■for plug-in hybrid

93
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage (W)Bulb type
Front Headlamps (Low)
55WH7SL
Headlamps (Low) – LED type 25WLED
Headlamps (High) 65W HB3 HYPER L/L(9005HL)
Headlamps (High) – LED type 17WLED
Front turn signal lamps 28/8WAMBER L/L
Front position lamps 0.7WLED
Daytime running light LED type 6.5W LED
Side Repeater lamps LED type 0.5W LED
Rear Rear Stop/Tail lamps (outside)
LED type12W
LED
Rear tail lamps (Inside) 6WLED
Rear turn signal lamps 21WPY21W
Back-up lamps 16WW16W
High mounted stop lamp* 3WLED
License plate lamps 5WW5W
Interior Map lamps
Bulb type 10W
FESTOON BULB
LED type 1W LED
Room lamps 10WFESTOON BULB
Personal lamps 1WLED
Vanity mirror lamps 5WFESTOON BULB
Glove box lamp 5WFESTOON BULB
Trunk lamp 5WFESTOON BULB

I7
Index
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-60Inner panel fuse replacement . . . . . . . . . . . . . . . . . 8-61
Engine compartment fuse replacement . . . . . . . . . . 8-63
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 8-66
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-53 Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Engine coolant temperature gauge . . . . . . . . . . . . . . 4-53
Hybrid System Gauge . . . . . . . . . . . . . . . . . . . . . . . 4-54
Hybrid Battery SOC(State of Charge) Gauge . . . . . 4-54
Plug-in hybrid mode indicator . . . . . . . . . . . . . . . . . 4-55
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56
Outside Temperature Gauge . . . . . . . . . . . . . . . . . . . 4-57
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13\
3
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Glove box lamp bulb replacement . . . . . . . . . . . . . . . . 8-93
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . . 6-91
Headlamp (HID type) bulb replacement (For Hybrid) . 8-82
Headlamp (High beam) bulb replacement (For Hybrid) . 8-84Headlamp (Low beam) bulb replacement (For Hybrid) .
8-83
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-113
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-106
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Headrest (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
HEV powertrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-102
High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
High mounted stop lamp bulb replacement . . . . . . . . . 8-90
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-94
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . . 6-39
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-27
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-45
Hybrid Battery SOC(State of Charge) Gauge . . . . . . . 4-54
Hybrid System Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . 4-54
Hybrid vehicle (Drive mode integrated control system) . 6-73
If an accident occurs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Important safety precautions . . . . . . . . . . . . . . . . . . . . . 3-2
Indicator Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51 Instrument Cluster Control. . . . . . . . . . . . . . . . . . . . 4-52
LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . 4-52
H
G
I

I9
Index
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 8-82
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-80\
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 8-80
Light bulb position (Front). . . . . . . . . . . . . . . . . . . . 8-81
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . 8-81
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . 8-82
Headlamp (HID type) bulb replacement(For Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-82
Headlamp (Low beam) bulb replacement (For Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-83
Headlamp (High beam) bulb replacement (For Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-84
Front turn signal lamp bulb replacement . . . . . . . . . 8-85
Position lamp + DRL (LED type) bulb replacement . . 8-86
Side repeater lamp bulb replacement . . . . . . . . . . . . 8-87
Rear turn signal lamp bulb replacement . . . . . . . . . 8-87
Stop and tail lamp (LED type) bulb replacement . . 8-88
Back-up lamp bulb replacement . . . . . . . . . . . . . . . 8-89
License plate lamp bulb replacement. . . . . . . . . . . . 8-90
High mounted stop lamp bulb replacement . . . . . . . 8-90
Map lamp bulb replacement. . . . . . . . . . . . . . . . . . . 8-91
Vanity mirror lamp bulb replacement . . . . . . . . . . . 8-91
Room lamp bulb replacement . . . . . . . . . . . . . . . . . 8-92
Personal lamp bulb replacement . . . . . . . . . . . . . . . 8-92
Glove box lamp bulb replacement . . . . . . . . . . . . . . 8-93
Trunk lamp bulb replacement . . . . . . . . . . . . . . . . . 8-93 Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-100
Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-100
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-100
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-102
High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
Turn signals and lane change signals . . . . . . . . . . . 4-105
Check headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Headlight leveling device . . . . . . . . . . . . . . . . . . . 4-106
AFLS (Adaptive Front Lighting System) . . . . . . . 4-106
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Maintenance Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Scheduled maintenance service . . . . . . . . . . . . . . . . . 8-8
Explanation of scheduled maintenance items . . . . . 8-20
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
M
