relay KIA OPTIMA HYBRID 2019 User Guide

869
Maintenance

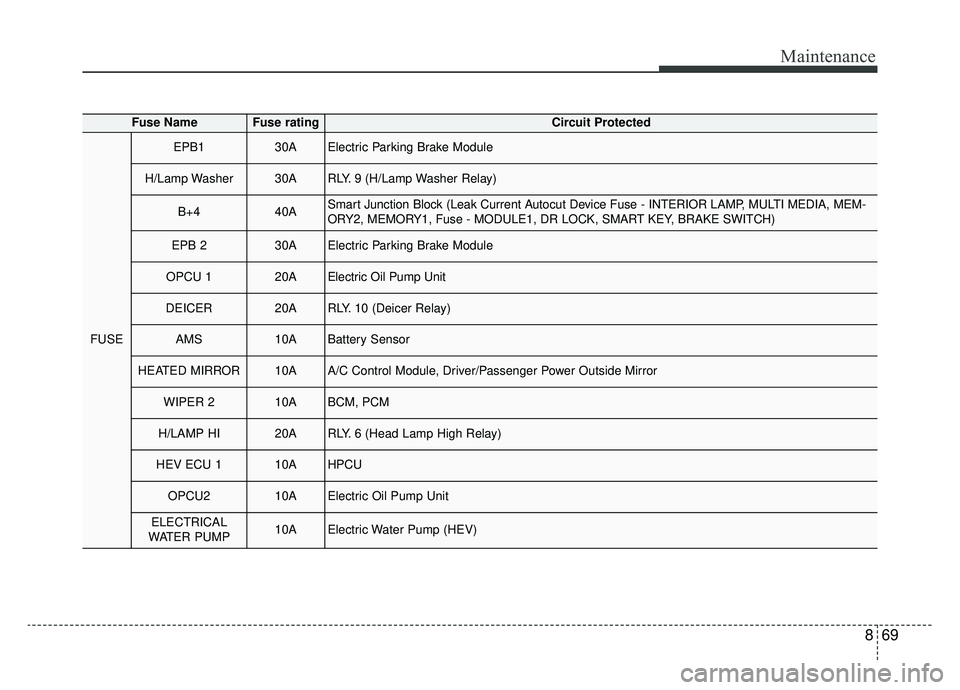

Fuse NameFuse ratingCircuit Protected
FUSE
EPB130AElectric Parking Brake Module
H/Lamp Washer30ARLY. 9 (H/Lamp Washer Relay)
B+440ASmart Junction Block (Leak Current Autocut Device Fuse - INTERIOR LAMP, MULTI MEDIA, MEM-
ORY2, MEMORY1, Fuse - MODULE1, DR LOCK, SMART KEY, BRAKE SWITCH)
EPB 230AElectric Parking Brake Module
OPCU 120AElectric Oil Pump Unit
DEICER20ARLY. 10 (Deicer Relay)
AMS10ABattery Sensor
HEATED MIRROR10AA/C Control Module, Driver/Passenger Power Outside Mirror
WIPER 210ABCM, PCM
H/LAMP HI20ARLY. 6 (Head Lamp High Relay)
HEV ECU 110AHPCU
OPCU210AElectric Oil Pump Unit
ELECTRICAL
WATER PUMP10AElectric Water Pump (HEV)

Maintenance
70
8

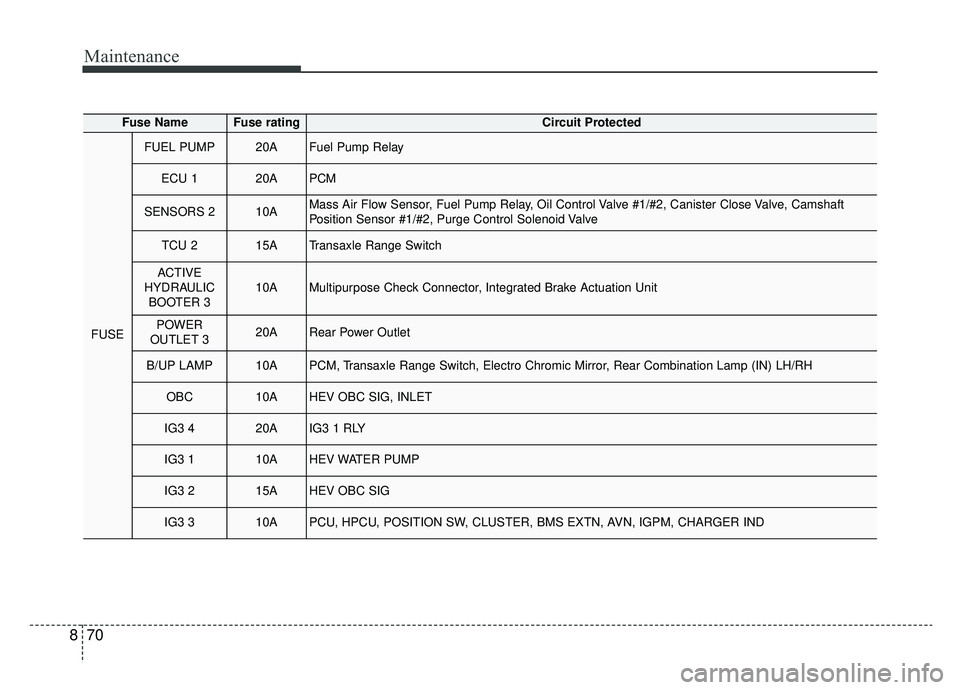

Fuse NameFuse ratingCircuit Protected
FUSE
FUEL PUMP20AFuel Pump Relay
ECU 120APCM
SENSORS 210AMass Air Flow Sensor, Fuel Pump Relay, Oil Control Valve #1/#2, Canister Close Valve, Camshaft
Position Sensor #1/#2, Purge Control Solenoid Valve
TCU 2 15ATransaxle Range Switch
ACTIVE
HYDRAULIC BOOTER 310AMultipurpose Check Connector, Integrated Brake Actuation Unit
POWER
OUTLET 320ARear Power Outlet
B/UP LAMP10APCM, Transaxle Range Switch, Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH
OBC10AHEV OBC SIG, INLET
IG3 420AIG3 1 RLY
IG3 110AHEV WATER PUMP
IG3 215AHEV OBC SIG
IG3 310APCU, HPCU, POSITION SW, CLUSTER, BMS EXTN, AVN, IGPM, CHARGER IND

871
Maintenance

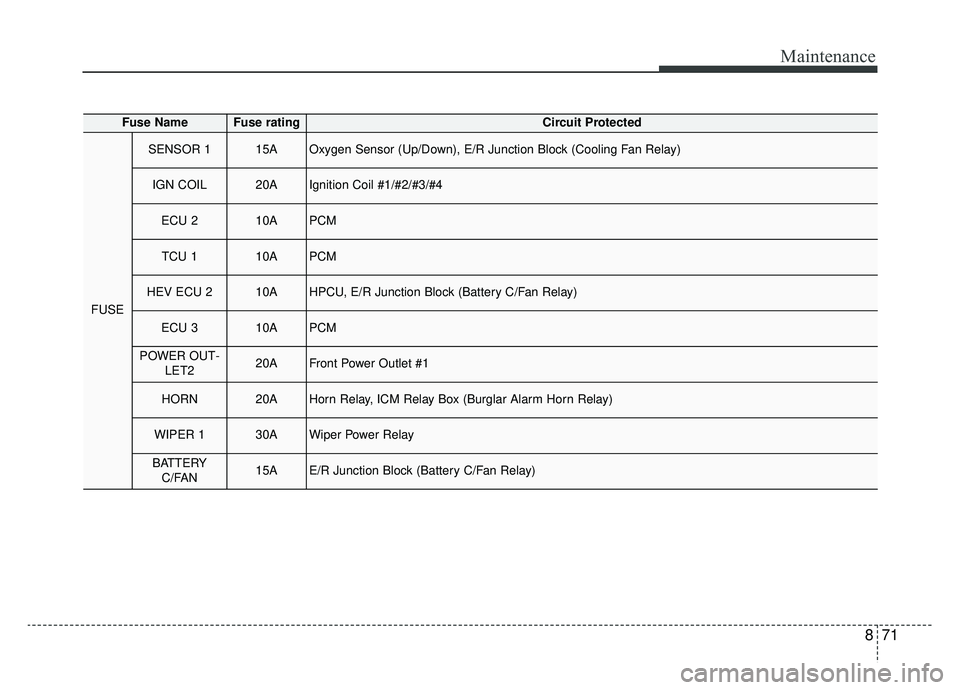

Fuse NameFuse ratingCircuit Protected
FUSE
SENSOR 115AOxygen Sensor (Up/Down), E/R Junction Block (Cooling Fan Relay)
IGN COIL20AIgnition Coil #1/#2/#3/#4
ECU 210APCM
TCU 110APCM
HEV ECU 210AHPCU, E/R Junction Block (Battery C/Fan Relay)
ECU 310APCM
POWER OUT-LET220AFront Power Outlet #1
HORN20AHorn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 130AWiper Power Relay
BATTERYC/FAN15AE/R Junction Block (Battery C/Fan Relay)

Maintenance
72
8

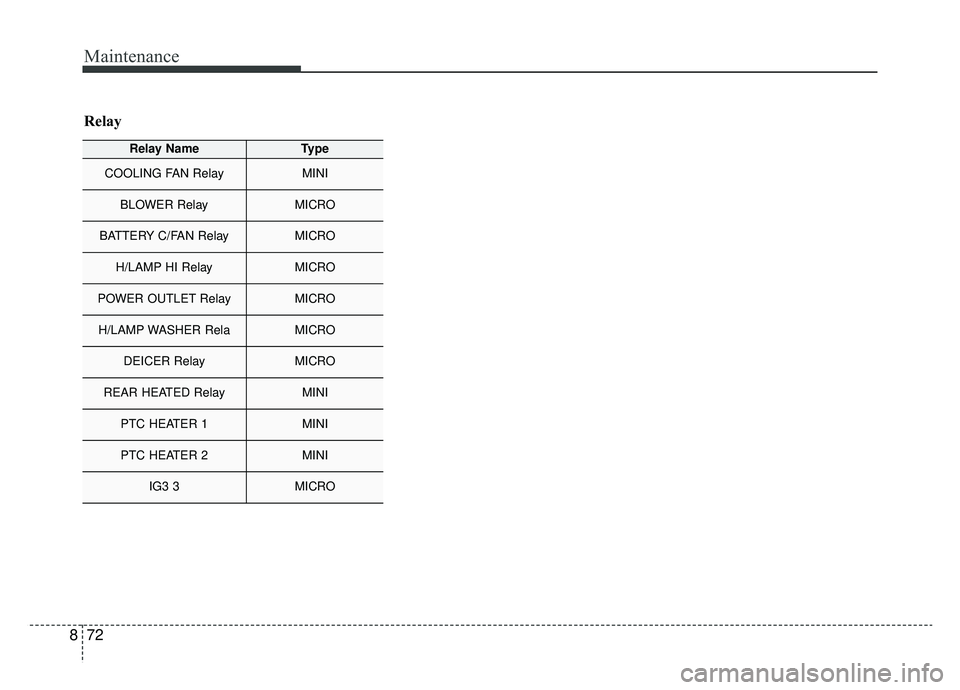

Relay NameType
COOLING FAN RelayMINI
BLOWER RelayMICRO
BATTERY C/FAN RelayMICRO
H/LAMP HI RelayMICRO
POWER OUTLET RelayMICRO
H/LAMP WASHER RelaMICRO
DEICER RelayMICRO
REAR HEATED RelayMINI
PTC HEATER 1MINI
PTC HEATER 2MINI
IG3 3MICRO
Relay

I5

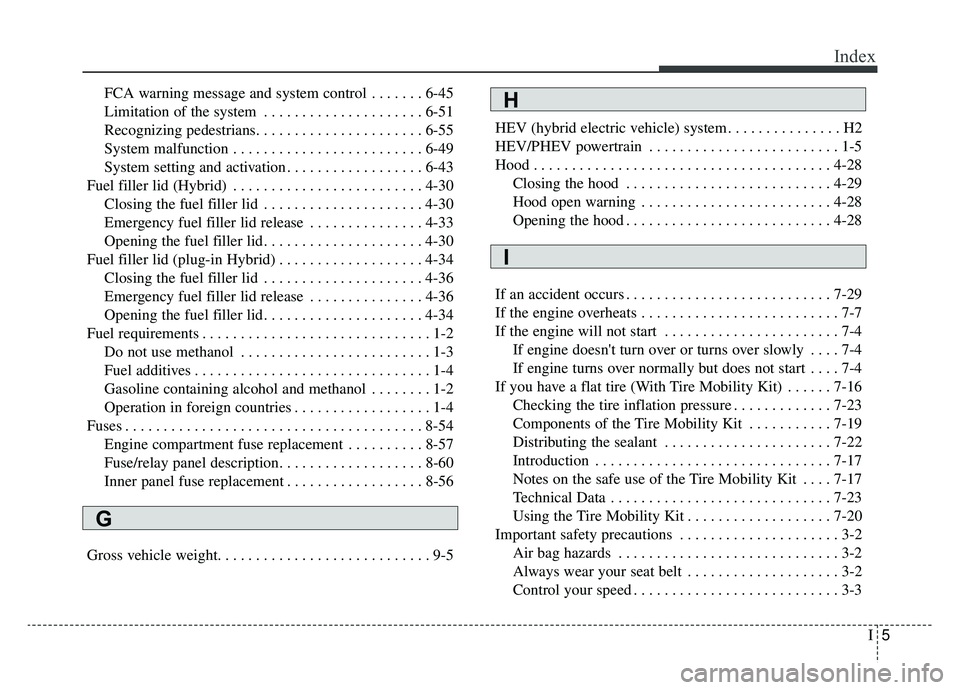

Index
FCA warning message and system control . . . . . . . 6-45
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 6-51
Recognizing pedestrians. . . . . . . . . . . . . . . . . . . . . . 6-55
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 6-49
System setting and activation . . . . . . . . . . . . . . . . . . 6-43
Fuel filler lid (Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . 4-30 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-30
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-33
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-30
Fuel filler lid (plug-in Hybrid) . . . . . . . . . . . . . . . . . . . 4-34 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-36
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-36
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-34
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Fuel additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Gasoline containing alcohol and methanol . . . . . . . . 1-2
Operation in foreign countries . . . . . . . . . . . . . . . . . . 1-4
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-54 Engine compartment fuse replacement . . . . . . . . . . 8-57
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 8-60
Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 8-56
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5 HEV (hybrid electric vehicle) system . . . . . . . . . . . . . . . H2
HEV/PHEV powertrain . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-28
Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Hood open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
If an accident occurs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
If the engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
If the engine will not start . . . . . . . . . . . . . . . . . . . . . . . 7-4 If engine doesn't turn over or turns over slowly . . . . 7-4
If engine turns over normally but does not start . . . . 7-4
If you have a flat tire (With Tire Mobility Kit) . . . . . . 7-16 Checking the tire inflation pressure . . . . . . . . . . . . . 7-23
Components of the Tire Mobility Kit . . . . . . . . . . . 7-19
Distributing the sealant . . . . . . . . . . . . . . . . . . . . . . 7-22
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Notes on the safe use of the Tire Mobility Kit . . . . 7-17
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Using the Tire Mobility Kit . . . . . . . . . . . . . . . . . . . 7-20
Important safety precautions . . . . . . . . . . . . . . . . . . . . . 3-2 Air bag hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Always wear your seat belt . . . . . . . . . . . . . . . . . . . . 3-2
Control your speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
