KIA OPTIMA PHEV 2018 Features and Functions Guide

MAINTENANCE
49ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
* And, if necessary, adjust, correct, clean, or replace .1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .2 Inspect HSG belt for evidence of cuts, cracks, excessive wear or oil saturation and replace if necessary . If HSG belt noise occurred, readjust HSG belt tension before replacing .
* And, if necessary, adjust, correct, clean, or replace .1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .2 Inspect HSG belt for evidence of cuts, cracks, excessive wear or oil saturation and replace if necessary . If HSG belt noise occurred, readjust HSG belt tension before replacing .
37,500 miles
PERFORM:
•Add fuel additive1
•Rotate tire position
REPLACE:
•Engine oil and filter
INSPECT*:
•Air cleaner filter
•HSG belt2
•Vacuum hose
45,000 miles
PERFORM:
•Fuel additive1
•Rotate tire position
REPLACE:
•Climate control air filter (for evaporator and blower unit)
•Engine oil and filter
INSPECT*:
•Air cleaner filter
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust pipe and muffler
•Front brake disc/pads and calipers
•HSG belt2
•Rear brake disc/pads
•Steering gear box, linkage & boots/lower arm ball joint, upper arm ball joint
•Suspension mounting bolts
•Vacuum hose
Normal Maintenance Schedule (Continued)

MAINTENANCE
50
* And, if necessary, adjust, correct, clean, or replace .** If equipped 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .2 Inspect HSG belt for evidence of cuts, cracks, excessive wear or oil saturation and replace if necessary . If HSG belt noise occurred, readjust HSG belt tension before replacing . 3 Fuel filter & fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality . If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc ., replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details . Inspect for excessive tappet noise and/or engine vibration and adjust if necessary .
* And, if necessary, adjust, correct, clean, or replace .1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .2 Inspect HSG belt for evidence of cuts, cracks, excessive wear or oil saturation and replace if necessary . If HSG belt noise occurred, readjust HSG belt tension before replacing .
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
52,500 miles
PERFORM:
•Add fuel additive1
•Rotate tire position
REPLACE:
•Engine oil and filter
INSPECT*:
•Air cleaner filter
•HSG belt2
•Vacuum hose
60,000 miles
PERFORM:
•Add fuel additive1
•Rotate tire position
REPLACE:
•Air cleaner filter
•Climate control air filter (for evaporator and blower unit)
•Engine oil and filter
•HSG belt2

INSPECT*:
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust pipe and muffler
•Front brake disc/pads and calipers
•Rear brake disc/pads
•Steering gear box, linkage & boots/lower
arm ball joint, upper arm ball joint
•Suspension mounting bolts
•Brake fluid
•Fuel cap, fuel lines, fuel hoses and
connections
•Fuel tank air filter**3
•Parking brake
•Vacuum hose
•Vapor hose and fuel filler cap
Normal Maintenance Schedule (Continued)

Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.
Android Auto: Android Auto is a trademark of Google, Inc.. Android™ is a registered trademark of Google, Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Apple CarPlay®: Apple CarPlay® a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Apps: All information contained herein was based upon the latest available information at the time of appstore registration. Descriptions are believed to be correct, and Kia Motors Corporation (KMC) makes every effort to ensure accuracy, however, accuracy cannot be guaranteed. From time to time, KMC may need to update or make changes to the vehicle features and other vehicle information reported in this app. KMC, by the publication and dissemination of this material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for the most current information.
Autonomous Emergency Braking System (AEB) / Forward Collision Warning System: These systems are not substitutes for safe driving, and may not detect all objects in front of vehicle. Always drive safely and use caution.
Bluetooth® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use Bluetooth® wireless technology. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.
Driver Assist Features - Advanced Smart Cruise Control (ASCC), Back-Up Warning System (Rear Parking Assist System), Blind Spot Detection (BSD) with Lane Change Assist, Rear Cross Traffic Alert (RCTA), Lane Departure Warning System, Rear-Camera Display: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.
Electronic Stability Control, Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the engine off, power assist for steering and braking will be disabled, and the vehicle will be more difficult to control.
Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
Google Play™ Store is a trademark of Google, Inc. © 2016 Google Inc. All rights reserved. Google and the Google Logo are registered trademarks of Google Inc.
HomeLink® is a registered trademark of Gentex Corporation.
iPod®/iPhone® are registered trademarks of Apple Inc. iPod® mobile digital device sold separately, and connectivity requires the Kia accessory cable.
Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
Power Trunk / Smart Trunk: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.
Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.
Seat Belts / Airbags: For maximum protection, always wear your seatbelt.
Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.
SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on t\
he NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2017 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.
Sportmatic® is a registered trademark of Kia Motors America.
Steering Wheel Controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.
Sunvisor: Sunvisor may not shield all direct light. Do not operate the vehicle if Sunvisor is impairing your visibility.
Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
TPMS: Even with the Tire-Pressure Monitoring System (TPMS), always check your tire pressure on a regular basis.
UVO eServices: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
UVO eServices app: App uses your smartphone data service. Normal cellular service rates will apply.
UVO eServices with Premium Navigation: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.

Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours & Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-upKEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System ( TPMS) – page 5 Trip Modes / Trip Computer – page 7 Fuel Economy – page 8 ECO Mode (Active ECO) – page 10 Engine Start /Stop Button – page 19 Audio Controls – page 25 Digital Clock – page 31 Seat Warmers/ Ventilated Seats* – page 35
Smart Key – page 39 Panoramic Sunroof Operation* – page 41 Sunvisor – page 42 Back-up Warning System* – page 43 Rear Parking Assist System* – page 43 Tire Mobility Kit – page 45 Passenger Airbag Off Indicator – page 46
*IF EQUIPPED
Aux/USB/iPod
® Port
– page 29

Cruise Control
– page 24

Demonstrate operation UVO eServices System*
– page 27
For further operational information, refer to

the Car Multimedia System User’s Manual.
UVO eServices / Android Auto
™ /
Apple CarPlay
® Setup* –
page 26
Walk customer through the registration/activation process for UVO eServices.
POWERPUSH
PASSENGER AIR BAGRADIOMEDIAPHONE SEEKVOL
PASSENGER
FILE
TUNEENTER
UVOSETUP
TRACK APPS
POWERPUSH
PASSENGER AIR BAGRADIOMEDIAPHONE SEEKVOL
PASSENGER
FILE
TUNEENTER
UVOSETUP
TRACK MAP
VOICE
UVO eServices with Premium
-
Navigation*
– page 28

For further operational information, refer to the Car Multimedia System User’s Manual. Bluetooth
® Wireless
Technology
– page 22

Demonstrate operation, and pair customer’s phone.
PLUG-IN HYBRID

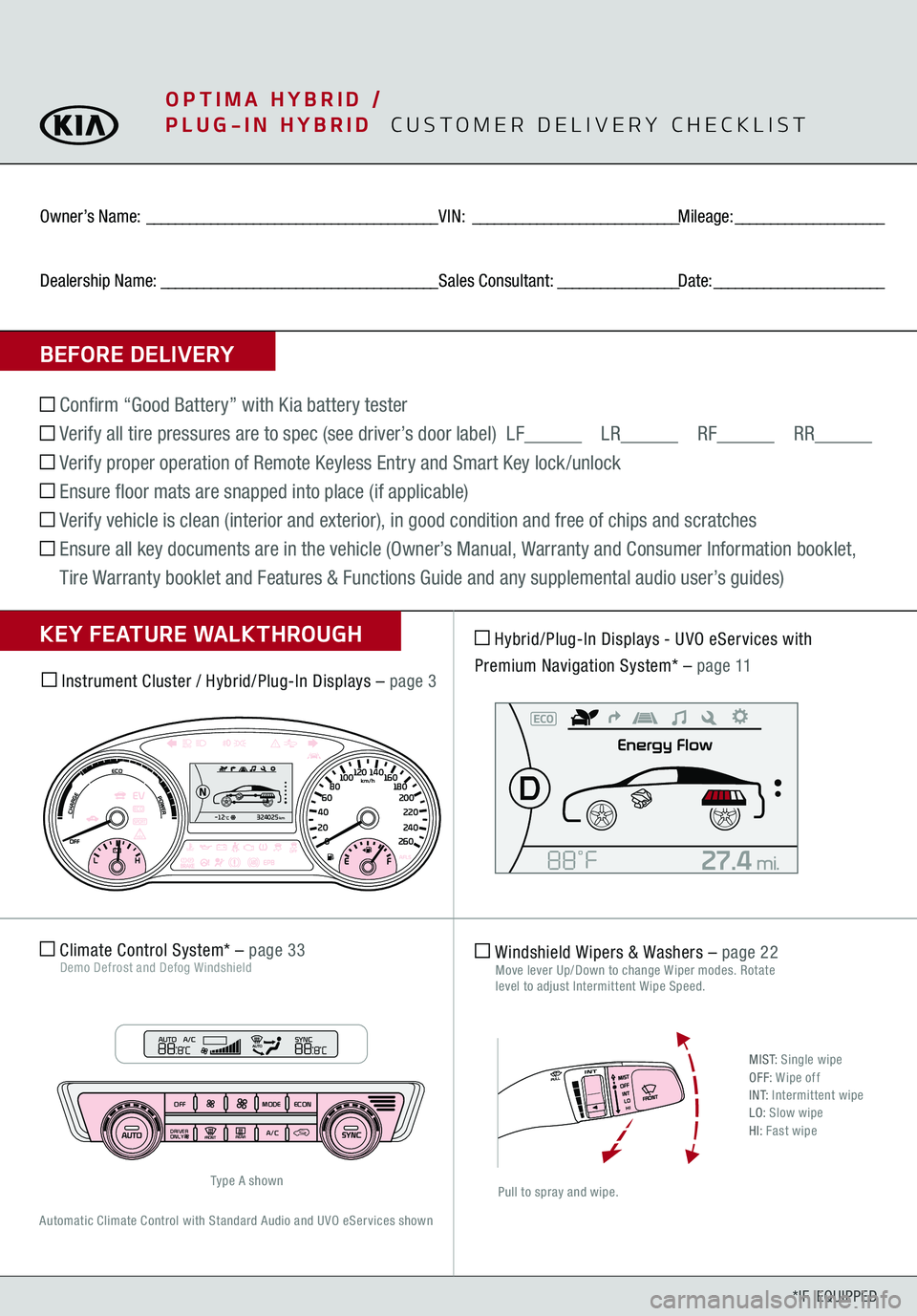

CUSTOMER DELIVERY CHECKLIST
OPTIMA HYBRID

*IF EQUIPPED
BEFORE DELIVERYOwner

*IF EQUIPPED

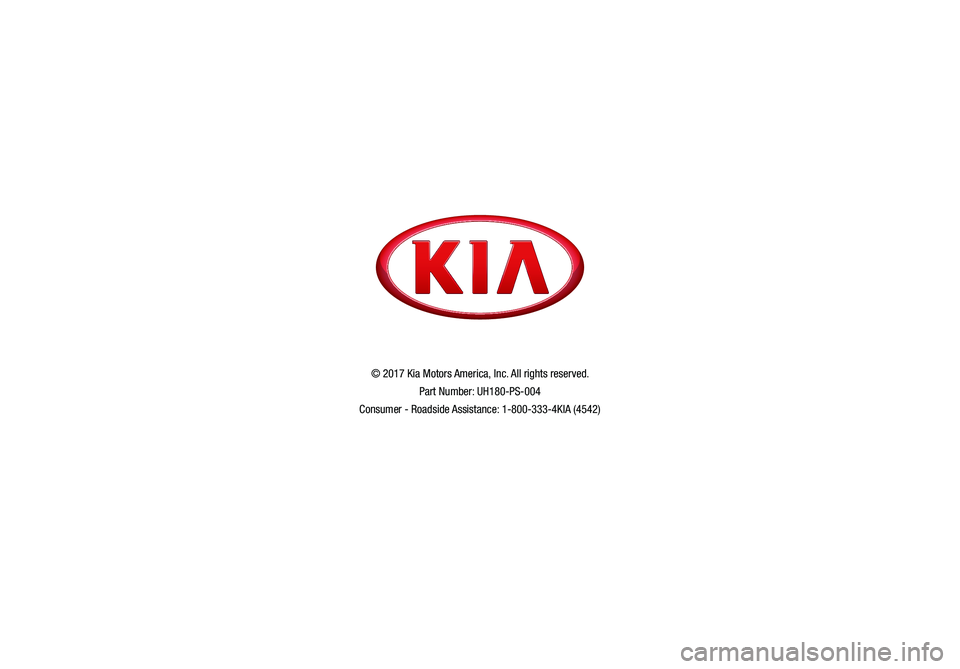

© 2017 Kia Motors America, Inc. All rights reserved.
Part Number: UH180-PS-004
Consumer - Roadside Assistance: 1-800-333-4KIA (4542)
