stop start KIA OPTIMA PLUG-IN HYBRID 2017 Owners Manual

HEV (Hybrid Electric Vehicle) system.................................... 1-02
PHEV (Plug-in Electric Vehicle) system.................................1-03
Charging the plug-in hybrid vehicle....................................... 1-04Charging information............................................................1-04
Charging time........................................................................ 1-04
Charging types.......................................................................1-05
Charging status..................................................................... 1-06
Scheduled charging .............................................................. 1-06
Charging precautions............................................................ 1-06
Normal charge....................................................................... 1-08
Charging status..................................................................... 1-10
Trickle charger....................................................................... 1-12
Driving the hybrid/plug-in hybrid vehicle..............................1-19 Changing plug-in hybrid mode............................................1-19
Warning and indicator lights............................................... 1-19
Energy flow hybrid/plug-in hybrid vehicle............................1-24 Vehicle stop............................................................................ 1-24
EV propulsion......................................................................... 1-24
Power assist.......................................................................... 1-24
Engine only propulsion......................................................... 1-25
Engine generation................................................................. 1-25
Regeneration......................................................................... 1-25
Engine brake.......................................................................... 1-26
Power reserve....................................................................... 1-26
Engine generation/regeneration........................................ 1-26
Engine generation/motor drive.......................................... 1-27
Engine brake/regeneration..................................................1-27
Starting the hybrid/plug-in hybrid vehicle (Smart key)..... 1-28 Starting the hybrid system................................................. 1-28
Economical and safe operation of hybrid system...........1-28 Components of the hybrid/plug-in hybrid vehicle............... 1-30
Safety plug............................................................................. 1-33
Some special features of the hybrid vehicle.................... 1-33
Virtual Engine Sound System (VESS)................................ 1-34
High voltage battery air intake...........................................1-34
If an accident occurs............................................................. 1-34
When the hybrid vehicle shuts off..................................... 1-36
Hybrid system overview

1

0+')12-
4. Remove any dust on the chargingconnector and charging inlet.
5. Hold the charging connector handle. Then, insert it into the charging in‐
let, until you hear a click sound. If it
is not fully connected, a bad con‐
nection between the charging con‐
nector and the charging terminals
may cause a fire.
0+')1-
6. Check if the charging cable connec‐ tion indicator of the high voltage
battery in the instrument cluster is
turned ON.
Charging does not occur when the
indicator is OFF. When the charging
connector is not connected proper‐
ly, reconnect the charging cable to
charge.
NOTICE
•The charging is in progress only
with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. Howev‐
er, it may discharge the 12-V
battery. Thus, if possible, charge
the battery with the Engine
Start/Stop button in the OFF po‐
sition.
•Moving the shift lever from P
(Park) to R (Reverse)/
N(Neutral)/D (Drive) stops the
charging process. To restart the
charging process, move the shift
lever to P (Park), press the En‐
gine Start/Stop button to the
OFF position, and disconnect the
charging cable. Then, connect
the charging cable.

1-09
1
Hybrid system overview

NOTICE
•The charging is in progress only
with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. Howev‐
er, it may discharge the 12-V
battery. Thus, if possible, charge
the battery with the Engine
Start/Stop button in the OFF po‐
sition.
•Moving the shift lever from P
(Park) to R (Reverse)/
N(Neutral)/D (Drive) stops the
charging process. To restart the
charging process, move the shift
lever to P (Park), press the En‐
gine Start/Stop button to the
OFF position, and disconnect the
charging cable. Then, connect
the charging cable and restart
the vehicle again.
0+')1-

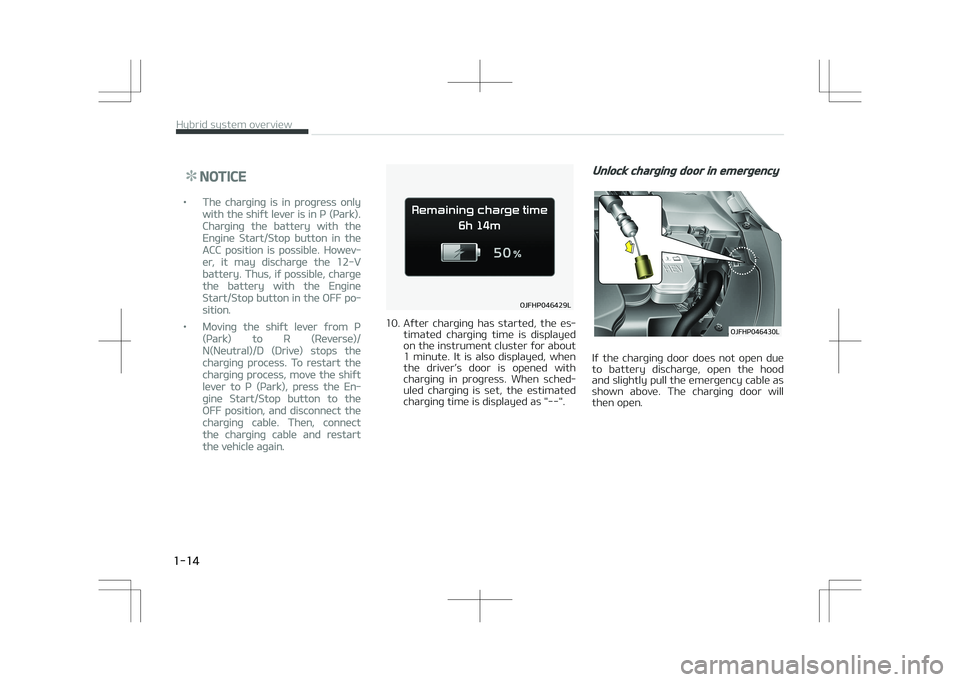

10. After charging has started, the es‐timated charging time is displayed
on the instrument cluster for about
1 minute. It is also displayed, when
the driver’s door is opened with
charging in progress. When sched‐
uled charging is set, the estimated
charging time is displayed as "--".
Unlock charging door in emergency
0+')1-
If the charging door does not open due
to battery discharge, open the hood and slightly pull the emergency cable as
shown above. The charging door will
then open.
Hybrid system overview
1-14

Hybrid system warning
light
This warning light illumi‐nates:
When there is a malfunction with the
hybrid system.
In this case, we recommend that you
have the vehicle inspected by an au‐ thorized Kia dealer.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, have your vehicle inspected by an authorized Kia dealer.
EV mode indicator
This indicator illuminateswhen the vehicle is driven
by the electric motor.EV
Charging cable
connection indicator
(Plug-in hybrid)
This indicator illuminates in red when the charging cable is connec‐
ted. ❈ Example of a deceleration event is
going down an extended hill, slow‐
ing down approaching a toll booth,
and approaching reduced speed
zones.
• User settings
Press the Engine Start/Stop button
and put the shift lever in P (Park). In
the User Settings Mode, select Driv‐ ing Assist, Coasting Guide, and then
On to turn on the system. Cancel the
selection of coasting guide to turn off
the system. For the explanation of
the system, press and hold the [OK] button.
• Operation conditions To activate the system, take the fol‐
lowing procedures. Enter your desti‐
nation information on the navigation
and select the driving route. Select
the ECO mode in the Integrated Driv‐ ing Control System. Then, satisfy the
following. - The driving speed should be be‐ tween 60 km/h (37 mph) and
160 km/h (99 mph).
❈ The operating speed may vary due
to difference between instrument
cluster and navigation effected by
tire inflation level.NOTICE
Coasting guide is only a supplemen‐
tal system to assist with fuel-effi‐
cient driving. Thus, the operating
conditions may be different in ac‐
cordance with traffic/road condi‐
tions (i.e. driving in a traffic jam,
driving on a slope, driving on a
curve). Thus, take the actual driving
conditions into consideration, such
as distances from the vehicles
ahead/ behind, while referring to the
coasting guide system as guidance.
Unplug vehicle to start (Plug-in
hybrid)
The message is displayed when you
start the engine without unplugging the charging cable. Unplug the charging
cable, and then start the vehicle.
Shift to P to charge (Plug-in hybrid)
The message is displayed when the
charging connector is plugged with the
shift lever in R (Reverse), N (Neutral) or D (Drive). Move the shift lever to P
(Park) and re-start the charging proc‐
ess.
Hybrid system overview
1-20

STARTING THE HYBRID/PLUG-IN HYBRID VEHICLE (SMART KEY)
Starting the hybrid system
1. Carry the smart key into the vehi‐cle.
2. Make sure the parking brake is firmly applied.
3. Place the shift lever in the P (Park) position.
In N (neutral) position, you cannot
start the vehicle.
4. Depress the brake pedal.
5. Press the engine start/stop button.
6. The engine should be started with‐ out pressing the accelerator. In ex‐
tremely cold weather or after the
vehicle has not been operated for several days, let the engine warm
up without depressing the acceler‐
ator. • Even if the smart key is in the ve‐ hicle, if it is far away from you, the engine may not start. • When the engine start/stop but‐
ton is in the ACC or ON position, if
any door is open, the system
checks for the smart key. If the
smart key is not in the vehicle,
the warning, "Key is not in vehi‐
cle" will come on, and if all doors
are closed, the chime will also
sound for about 5 seconds. The
indicator will turn off while the
vehicle is moving. Keep the smart
key in the vehicle when using the
ACC position or if the vehicle en‐
gine is on.
If the starting procedure is followed,the "READY" symbol on the instrumentcluster will turn on. For more details,please refer to L

NOTICE
When the hybrid system is in READY
mode, the engine will automatically
start and stop as needed. The
"READY" symbol will illuminate in the
cluster when the system is opera‐
tional.

1-29
1
Hybrid system overview

WARNING
nHot Components
When the hybrid battery system op‐erates, the HEV battery system canbe hot. Heat burns may result fromtouching even insulated componentsof the HEV system.
Safety plug
DANGER
Never touch the safety plug. Safetyplug is attached to high voltage hy‐brid battery system. Touching safe‐ty plug will result in death or seriousinjury. Service personnel should fol‐low procedure in service manual.
Some special features of the
hybrid vehicle
Hybrid vehicles sound different than
gasoline engine vehicles. When the hy‐ brid system operates, you may hear a
sound from the hybrid battery system
behind the rear seat. If you apply the accelerator pedal rapidly, you may hear
a sound. When you apply the brake
pedal, you may hear a sound from the regenerative brake system. When the
hybrid system is turned off or on, you
may hear a sound in the engine com‐ partment. If you depress the brake
pedal repeatedly when the hybrid sys‐
tem is turned on, you may hear a sound in the engine compartment.
None of these sounds indicate a prob‐
lem.
They are characteristics of hybrid vehi‐ cles. When the hybrid system is turned on,
the engine may run. This does not indi‐
cate a malfunction. If the "READY" symbol is on, the hybrid system is op‐
erating. Even if the gasoline engine is
off, you can operate the vehicle.
The HEV system may emit electromag‐ netic waves which can affect the per‐
formance of electronic devices applian‐
ces, such as laptop computers, which are not part of the vehicle design.
If you park the vehicle for a long time,
the hybrid system will discharge. You
need to drive the vehicle several times per month to maintain a charge.
When you start the hybrid system in
the "P" transmission position, the
"READY" symbol is illuminated in the cluster. The driver can drive the vehicle
even if the engine is stopped.
WARNING
When you leave the vehicle, youshould turn off the hybrid system. Ifyou depress the accelerator pedal bymistake and the vehicle is not in the"P" position, the vehicle will acceler‐ate. This may result in serious injuryor death.

1-33
1
Hybrid system overview

WARNING
•After parking the vehicle, shift thetransmission into "P" position. Turnoff the hybrid system by pushingthe Engine Start/Stop button.
•For your safety, do not touch highvoltage cables, connectors andpackage modules. High Voltagecomponents are orange in color.
•Exposed cables or wires may bevisible inside or outside of the ve‐hicle. Never touch the wires or ca‐bles, because an electrical shockmay occur causing injury or death.
•If a fire occurs, to extinguish asmall high-voltage battery fire,the following techniques can beused:-Dry chemical
-CO2
-Large amounts of water
-Regular foamFor a large high-voltage batteryfire, use these types of extin‐guishing methods:
-Large amounts of water
-Fog
(Continued)
(Continued)
-Regular foam
•If you need towing, refer to L

(Continued)
3.Leave the vehicle and evacuateto the safety place.
4.Call emergency services for helpand let them know the vehicle isa Hybrid vehicle.
If you have an extinguisher, extin‐guish a fire carefully.Do not touch high voltage cables,connectors and package modules.High voltage components are orangein color.Exposed cables or wires may be visi‐ble inside or outside of the vehicle.Never touch the wires or cables, be‐cause an electrical shock may occurcausing injury or death.
WARNING
If a submersion in water occurs:If your vehicle was flooded and hassoaked carpeting or water on theflooring, you should not try to startthe Hybrid system. Never touch thehigh voltage cables, connectors andpackage modules, because an elec‐
(Continued)
(Continued)
trical shock may occur causing injuryor death. High Voltage cables are or‐ange in color.We recommend that the car towedto an authorized Kia dealer.
When the hybrid vehicle shuts
off
When the high voltage battery or 12-
volt battery discharges, or fuel tank is empty, the hybrid system may not op‐
erate.
If the Hybrid system stops operating
while the vehicle is moving, reduce the vehicle speed gradually. Pull your vehi‐
cle off the road in a safe area, and shift
the transmission in to Park (P) position and: 1. Turn on the hazard warning flash‐ ers.
2. Set the start button at OFF, and try to start the Hybrid system by ap‐
plying the brake pedal and pushing
the start button.
3. If the Hybrid system will not oper‐ ate, refer to L

INSTRUMENT PANEL OVERVIEW
❈
5IF
BDUVBM
TIBQF
NBZ
EJGGFS
GSPN
UIF
JMMVTUSBUJPO
1. Steering wheel audio controls................ ................ p. 6-03
2. Driver’s front air bag........................ ........................ p. 4-51
3. Horn...................................... ...................................... p. 5-42
4. Instrument cluster.......................... .......................... p. 5-48
5. Wiper and washer control lever............................ p. 5-122
6. Engine start/stop button.................... .................... p. 7-06
7. Cruise control.............................. .............................. p. 7-47
Speed limit control.......................... .......................... p. 7-55
Advanced smart cruise control system........ ........ p. 7-59
8. Audio...................................... ...................................... p. 6-02
9. Hazard warning flasher...................... ...................... p. 8-02
10. Automatic climate control system........... ........... p. 5-137
11. Shift lever A/T.............................. .............................. p. 7-11
12. Heated steering wheel button................ ................ p. 5-42
13. Drive mode button.......................... .......................... p. 7-75 Active Eco button........................... ........................... p. 7-75
14. Seat warmer.............................. .............................. p. 5-155 Air ventilation seat.................................................. p. 5-156
15. Electronic parking brake (EPB) switch......... ......... p. 7-19
16. Auto Hold On/Off button.......................................... p. 7-24

3-05
3
Your vehicle at a glance
