Your vehicle at a glance
4
2
1 23456789
ENGINE COMPARTMENT
1SAA0007
1. Power steering fluid reservoir ...........7-23
2. Engine oil filler cap............................7-14
3. Brake fluid reservoir ..........................7-20
4. Air cleaner .........................................7-31
5. Fuse box ...........................................6- 7
6. Negative battery terminal ...........6-5/7-37
7. Positive battery terminal .............6-5/7-37
8. Auto transaxle oil dipstick* ................7-27
9. Radiator cap......................................7-19
10. Engine oil dipstick ...........................7-14
11. Engine coolant reservoir .................7-18
12. Windshield washer fluid reservoir ...7-30
* : if equipped

69
In case of an emergency

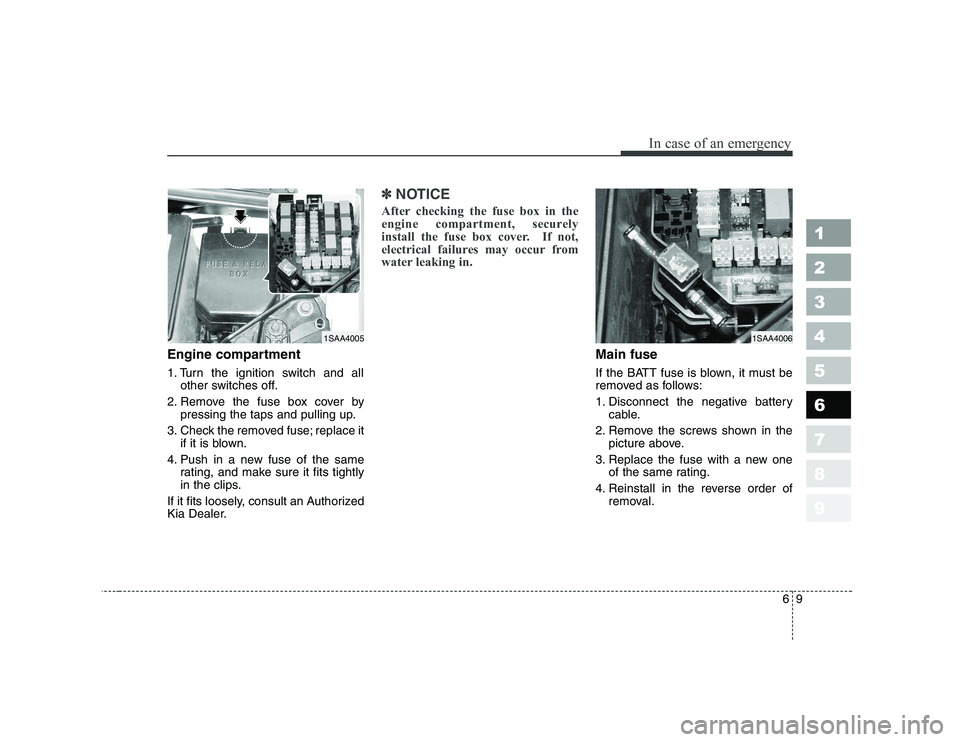

Engine compartment
1. Turn the ignition switch and allother switches off.
2. Remove the fuse box cover by pressing the taps and pulling up.
3. Check the removed fuse; replace it if it is blown.
4. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, consult an Authorized
Kia Dealer.
✽✽ NOTICE
After checking the fuse box in the
engine compartment, securely
install the fuse box cover. If not,
electrical failures may occur from
water leaking in.
Main fuse
If the BATT fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery cable.
2. Remove the screws shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
1 23456789
1SAA40051SAA4006

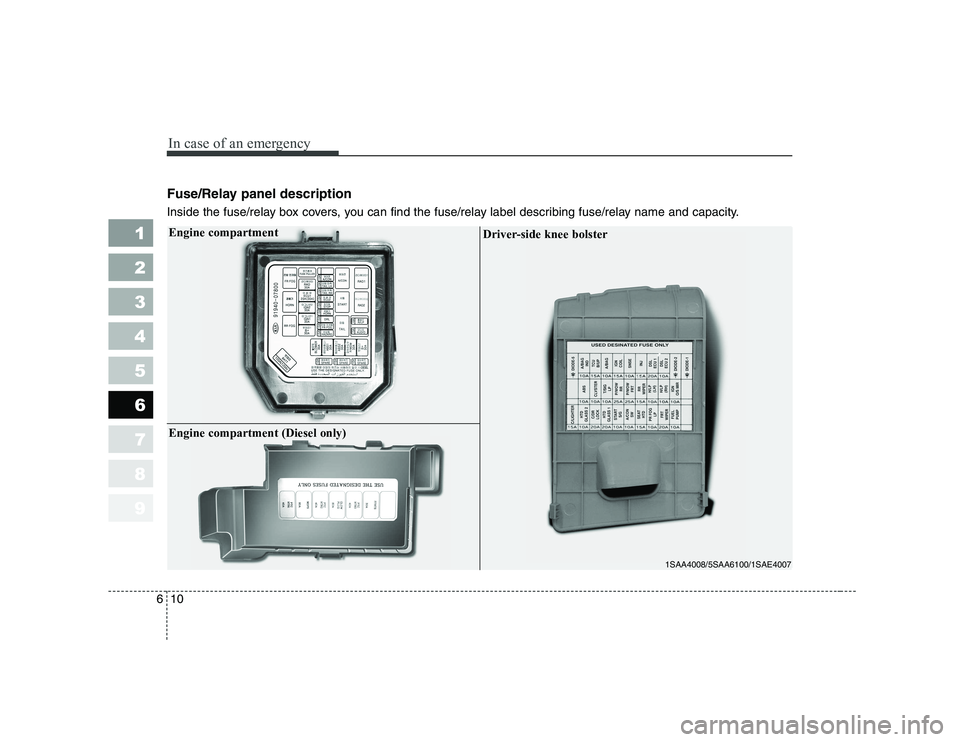

Fuse/Relay panel description
Inside the fuse/relay box covers, you can find the fuse/relay label describing fuse/relay name and capacity.
In case of an emergency
10
6
1 23456789Engine compartment
1SAA4008/5SAA6100/1SAE4007
Driver-side knee bolster
Engine compartment (Diesel only)

613
In case of an emergency
1 23456789

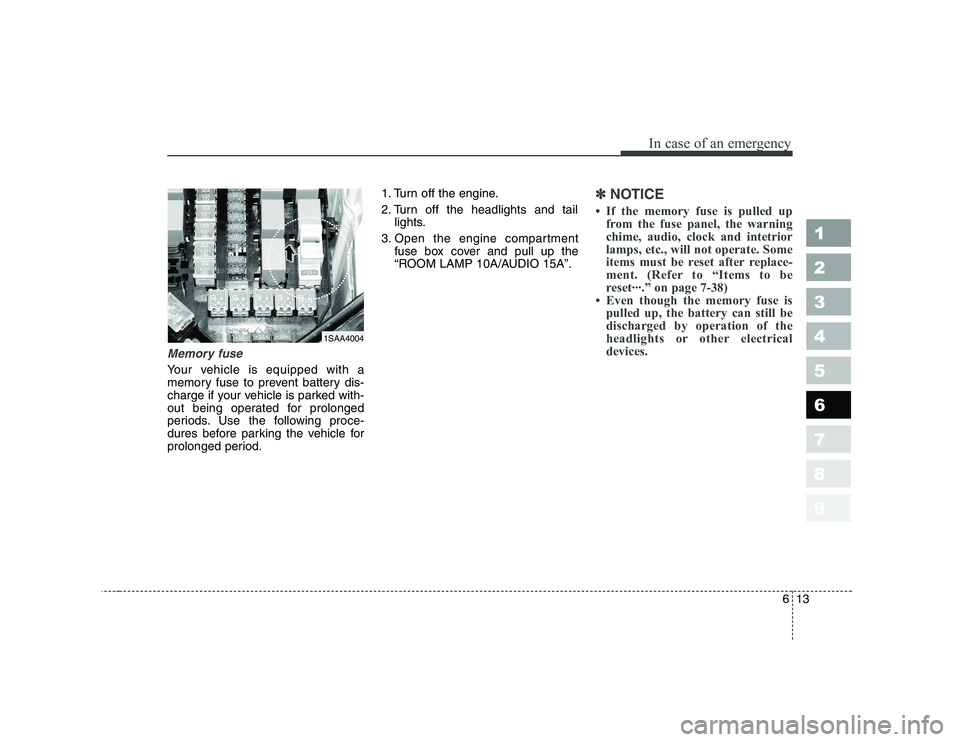

Memory fuse
Your vehicle is equipped with a
memory fuse to prevent battery dis-
charge if your vehicle is parked with-
out being operated for prolonged
periods. Use the following proce-
dures before parking the vehicle for
prolonged period.1. Turn off the engine.
2. Turn off the headlights and tail
lights.
3. Open the engine compartment fuse box cover and pull up the
“ROOM LAMP 10A/AUDIO 15A”.
✽✽ NOTICE

Maintenance
12
7
1 23456789

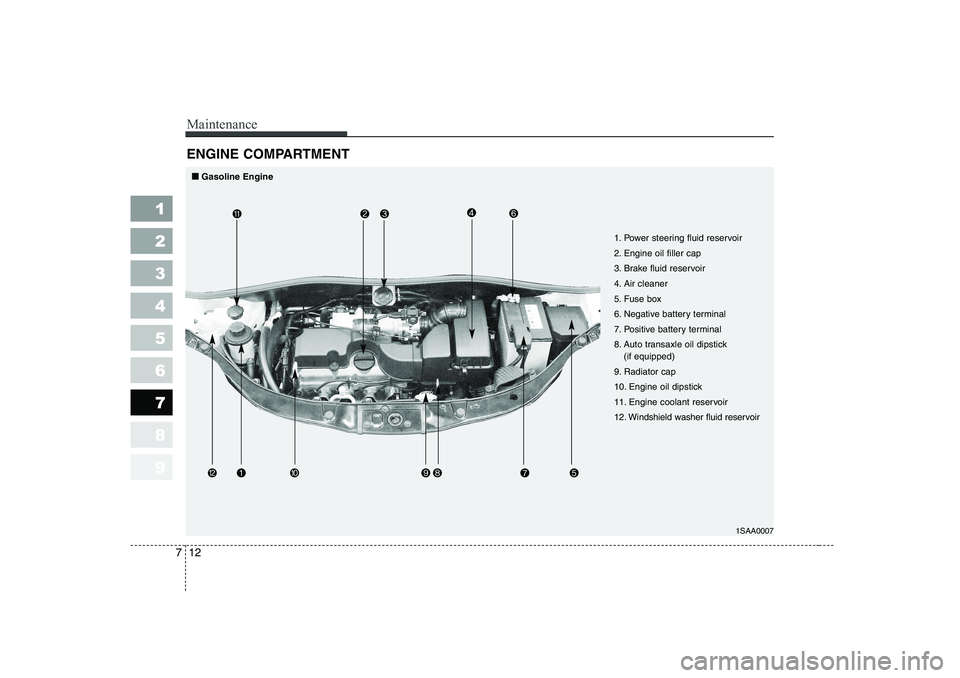

ENGINE COMPARTMENT
1SAA0007
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Auto transaxle oil dipstick
(if equipped)
9. Radiator cap
10. Engine oil dipstick
11. Engine coolant reservoir
12. Windshield washer fluid reservoir
■■ Gasoline Engine

713
Maintenance
1 23456789

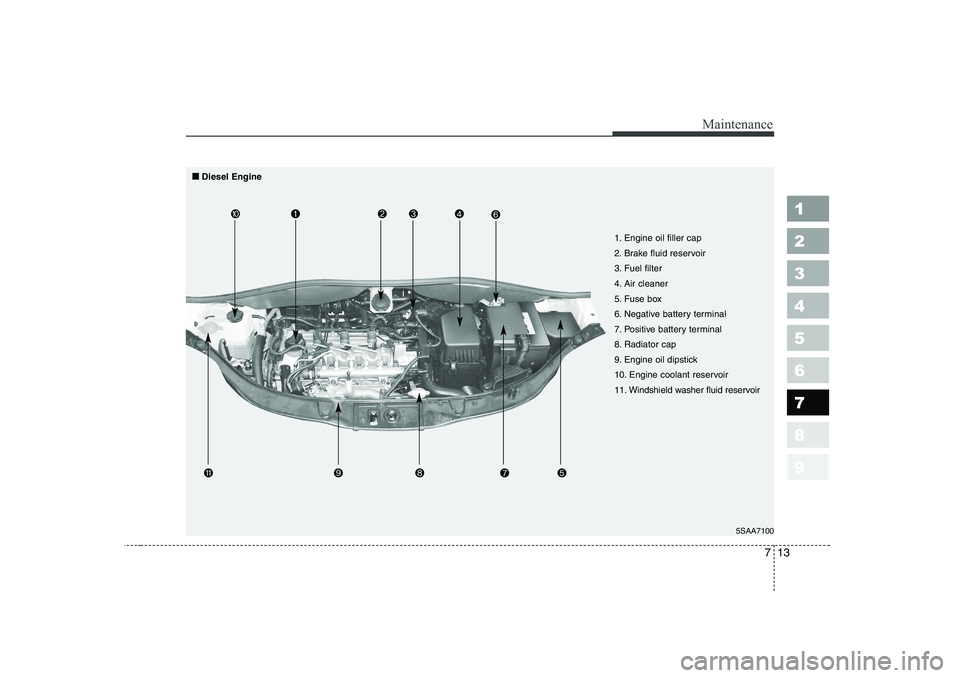

5SAA7100
1. Engine oil filler cap
2. Brake fluid reservoir
3. Fuel filter
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Engine coolant reservoir
11. Windshield washer fluid reservoir
■■
Diesel Engine
